2-85 — POWER TAKE OFF CONTROL (#915) — 87 parça

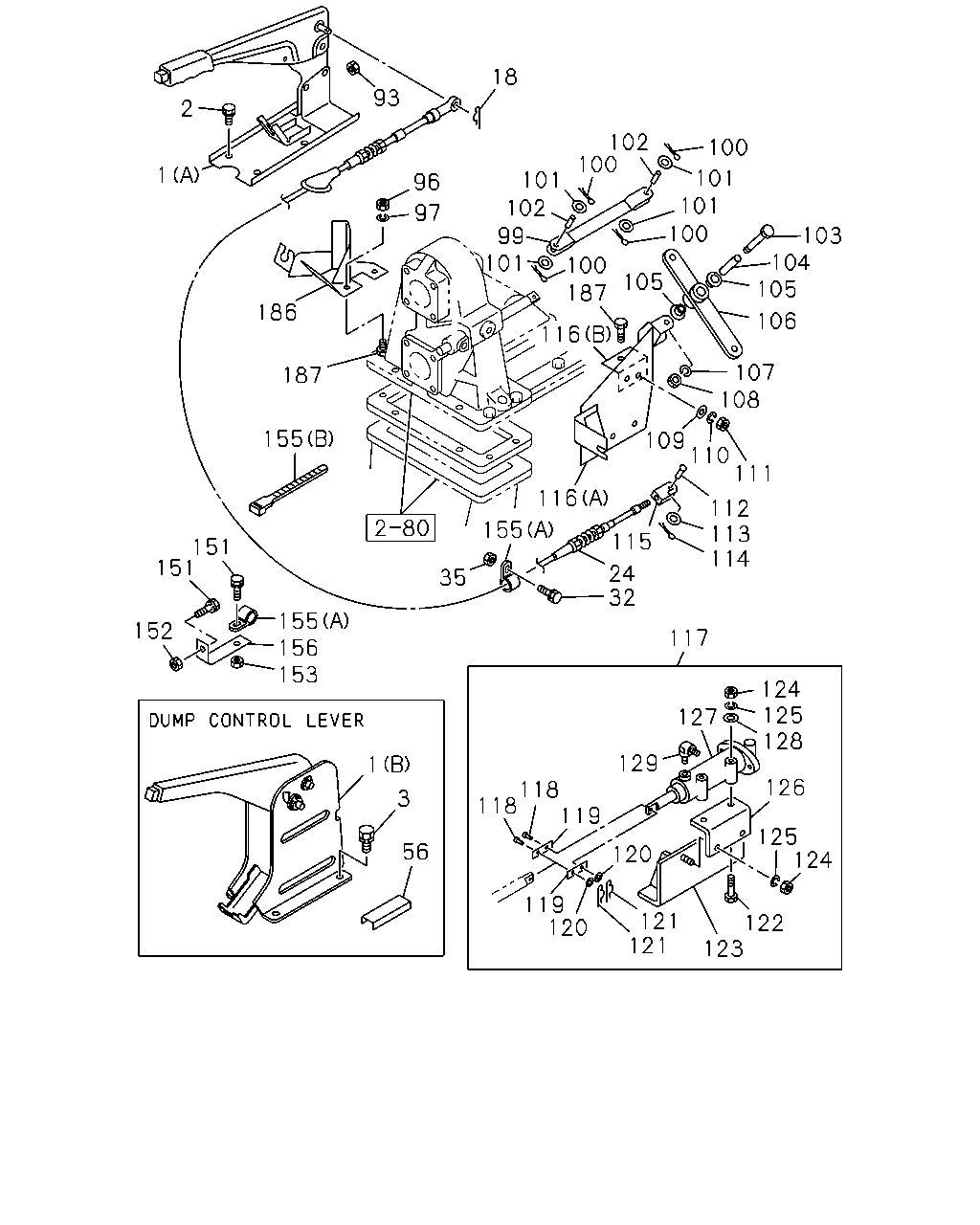

18 93 2 102 100 100 1 101 101 100 101 102 99 101 96 97 103 104 105 100 187 105 186 106 116 107 108 187 109 110 111 155 116 112 113 114 155 115 151 151 24 32 35 155 156 153 152 117 124 125 128 127 129 1 126 118 118 119 120 3 125 124 56 119 120 121 121 122 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER ASM; PTO & DUMP CONT TRANSMISSION FRONT PTO(RC2) (A)	1-79998-634-3	01	1	9202-	●
1	LEVER ASM; PTO & DUMP CONT DUMP CONTROL LEVER<RC4> (B)	1-38300-100-6	01	1	9202-		●
2	BOLT; PTO CONT TRANSMISSION FRONT PTO(RC2) M6X22	9-01960-622-0	04	1	9202-9204	●
2	BOLT; PTO CONT TRANSMISSION FRONT PTO(RC2) M6X22	0-50140-622-0	04	1	9205-	●
3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M6X16 W/LK&PL WASHER	9-01960-616-0	04	1	9202-9204		●
3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9205-		●
18	PIN; SNAP,PTO CABLE TRANSMISSION FRONT PTO(RC2) L=27.7	1-09987-141-0	01	1	9202-	●
21	WASHER; PL,CONT LEVER DUMP CONTROL LEVER<RC4> ID=8.4	9-09160-508-0	01	1	9202-		●
24	CABLE; PTO CONT TRANSMISSION FRONT PTO(RC2) L=4000	1-38319-031-1	01	1	9202-	●
32	BOLT; CLIP,CABLE PTO CONTROL AIR LINK TYPE<SEC> M8X18	0-28010-818-0	01	1	9202-9204	●
32	BOLT; CLIP,CABLE PTO CONTROL AIR LINK TYPE<SEC> M8X18 FLANGE	0-28080-818-0	01	1	9205-9207	●
32	BOLT; CLIP,CABLE PTO CONTROL AIR LINK TYPE<SEC> M8X20 FLANGE	0-28080-820-0	01	1	9208-	●
35	NUT; CLIP,CABLE PTO CONTROL AIR LINK TYPE<SEC> M8	9-09110-408-0	01	1	9202-	●
56	PATCH; DUMP CONT BRKT DUMP CONTROL LEVER<RC4>	1-79998-219-0	01	1	9202-		●
93	NUT; BRKT FIX M10	9-09110-410-0	03	1	9202-	●
96	NUT M12	9-99110-512-0	02	1	9202-9205	●
96	NUT M12 FLANGE	0-91150-212-0	02	1	9206-	●
97	WASHER; LK ID=12.2	9-09150-512-0	02	1	9202-9205	●
99	LINK; CONT,FRT PTO PTO CONTROL AIR LINK TYPE<SEC>	1-38323-005-0	01	1	9202-	●
100	PIN; SPLIT PTO CONTROL AIR LINK TYPE<SEC> OD=1.8 L=15	9-08112-015-0	04	1	9202-	●
101	WASHER; PL,LINK PTO CONTROL AIR LINK TYPE<SEC> ID=8.4	9-09160-508-0	04	1	9202-	●
102	PIN; STRAIGHT,LINK FIX PTO CONTROL AIR LINK TYPE<SEC>	9-08280-830-0	02	1	9202-	●
103	BOLT; LEVER FIX PTO CONTROL AIR LINK TYPE<SEC> M10X55	0-10811-055-0	01	1	9202-	●
104	SHAFT; CONT LEVER PTO CONTROL AIR LINK TYPE<SEC>	1-38321-003-1	01	1	9202-	●
105	BUSHING; CONT LEVER PTO CONTROL AIR LINK TYPE<SEC>	1-09330-023-0	02	1	9202-	●
106	LEVER; CONT,FRT PTO PTO CONTROL AIR LINK TYPE<SEC>	1-38322-019-0	01	1	9202-	●
107	WASHER; LK,LEVER PTO CONTROL AIR LINK TYPE<SEC> ID=10.2	9-09150-510-0	01	1	9202-	●
108	NUT; LEVER FIX PTO CONTROL AIR LINK TYPE<SEC> M10	9-09110-510-0	01	1	9202-	●
109	WASHER; LK,BRKT PTO CONTROL AIR LINK TYPE<SEC> ID=10.5 OD=18	9-09160-510-0	02	1	9202-9205	●
110	WASHER; LK,BRKT PTO CONTROL AIR LINK TYPE<SEC> ID=10.2	9-09150-510-0	02	1	9202-	●
111	NUT; BRKT PTO CONTROL AIR LINK TYPE<SEC> M10	9-09110-410-0	02	1	9202-	●
112	PIN; JAW JOINT EXC. PTO CONTROL<SV6> OD=10 L=28	9-08224-028-0	01	1	9202-	●
113	WASHER; PL,JAW JOINT EXC. PTO CONTROL<SV6> ID=10.5 OD=18	9-09160-510-0	01	1	9202-	●
114	PIN; SPLIT,JAW JOINT EXC. PTO CONTROL<SV6> OD=2.8 L=18	9-08113-018-0	01	1	9202-	●
115	JOINT; JAW,CONT CABLE EXC. PTO CONTROL<SV6>	1-09768-015-0	01	1	9202-	●
116	BRACKET; CONT,TRANS,FRT PTO PTO CONTROL AIR LINK TYPE<SEC> (B)	1-38325-077-0	01	1	9202-	●
116	BRACKET; CONT,TRANS,FRT PTO PTO CONTROL AIR LINK TYPE<SEC> (A)	1-38325-081-0	01	1	9202-	●
117	CYLINDER ASM; AIR PTO CONTROL<SV6>	1-38370-004-0	01	1	9202-	●
118	PIN; PLATE PTO CONTROL<SV6>	9-08213-620-0	02	1	9202-	●
119	PLATE; FRT PTO,CONT LEVER PTO CONTROL<SV6>	1-38379-011-0	02	1	9202-	●
120	WASHER; PL,PLATE PTO CONTROL<SV6> ID=6.4	9-09160-506-0	02	1	9202-	●
121	RING; SNAP PTO CONTROL<SV6> ID=4	9-09185-404-0	02	1	9202-	●
122	BOLT; PLATE PTO CONTROL<SV6>	9-01051-060-0	02	1	9202-	●
123	BRACKET; WITH BOLT PTO CONTROL<SV6>	1-38379-020-0	01	1	9202-	●
124	NUT; PLATE PTO CONTROL<SV6> M10	9-09110-410-0	04	1	9202-	●
125	WASHER; LK,PLATE PTO CONTROL<SV6> ID=10.2	9-09150-510-0	04	1	9202-	●
126	PLATE; AIR CYL PTO CONTROL<SV6>	1-38379-021-0	01	1	9202-	●
127	CYLINDER; AIR PTO CONTROL<SV6>	1-38377-004-0	01	1	9202-	●
128	WASHER; LK,PLATE PTO CONTROL<SV6> ID=10.5 OD=18	9-09160-510-0	02	1	9202-	●
129	NIPPLE; AIR CYL PTO CONTROL<SV6>	1-38379-012-0	01	1	9202-	●
151	BOLT; BRKT C PTO CONTROL AIR LINK TYPE<SEC> M8X18	0-28010-818-0	01	1	9202-9204	●
151	BOLT; BRKT C PTO CONTROL AIR LINK TYPE<SEC> M8X18 FLANGE	0-28080-818-0	01	1	9205-9207	●
151	BOLT; BRKT C PTO CONTROL AIR LINK TYPE<SEC> M8X20 FLANGE	0-28080-820-0	01	1	9208-	●
151	BOLT; BRKT C PTO CONTROL AIR LINK TYPE<SEC> M8X22 FLANGE	0-28010-822-0	01	1	9202-9204	●
151	BOLT; BRKT C PTO CONTROL AIR LINK TYPE<SEC> M8X22 FLANGE	0-28080-822-0	01	1	9205-9207	●
151	BOLT; BRKT C PTO CONTROL AIR LINK TYPE<SEC> M8X25 FLANGE	0-28080-825-0	01	1	9208-	●
151	BOLT; BRKT C TRANSMISSION FRONT PTO(RC2) M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9202-	●
152	NUT; BRKT PTO CONTROL AIR LINK TYPE<SEC> M8	9-09110-408-0	01	1	9202-	●
153	NUT; CLIP PTO CONTROL AIR LINK TYPE<SEC> M8	9-09110-408-0	01	1	9202-	●
153	NUT; CLIP TRANSMISSION FRONT PTO(RC2) M8	1-09984-123-0	01	1	9202-	●
155	CLIP; CABLE PTO CONTROL AIR LINK TYPE<SEC> (B) L=140	5-09707-031-0	02	1	9202-	●
155	CLIP; CABLE PTO CONTROL AIR LINK TYPE<SEC> (A) ID=11 L=16	9-09525-025-0	01	1	9202-	●
155	CLIP; CABLE PTO CONTROL AIR LINK TYPE<SEC> (A) L=28 ID=11 L=28	9-09525-055-0	01	1	9202-	●
155	CLIP; CABLE TRANSMISSION FRONT PTO(RC2) (A) ID=16	9-09525-552-0	01	1	9202-	●
156	BRACKET; C,CLIP CABLE PTO CONTROL AIR LINK TYPE<SEC>	1-38329-061-0	01	1	9202-	●
186	BRACKET; SHIFT,SELECT BASE	1-33657-473-1	01	1	9202-	●
187	BOLT; BRKT,SIDE PTO,UPR PTO CONTROL AIR LINK TYPE<SEC> M10X25 W/LK WASHER	0-50051-025-0	02	1	9202-9205	●
187	BOLT; BRKT,SIDE PTO,UPR PTO CONTROL AIR LINK TYPE<SEC> M10X22 FLANGE	0-28181-022-0	02	1	9206-	●
214	RING; SNAP,LK BOLT DUMP CONTROL LEVER<RC4> (B) ID=6	9-09185-406-0	01	1	9202-		●
214	RING; SNAP,LK BOLT DUMP CONTROL LEVER<RC4> (A) ID=8	9-09185-408-0	01	1	9202-		●

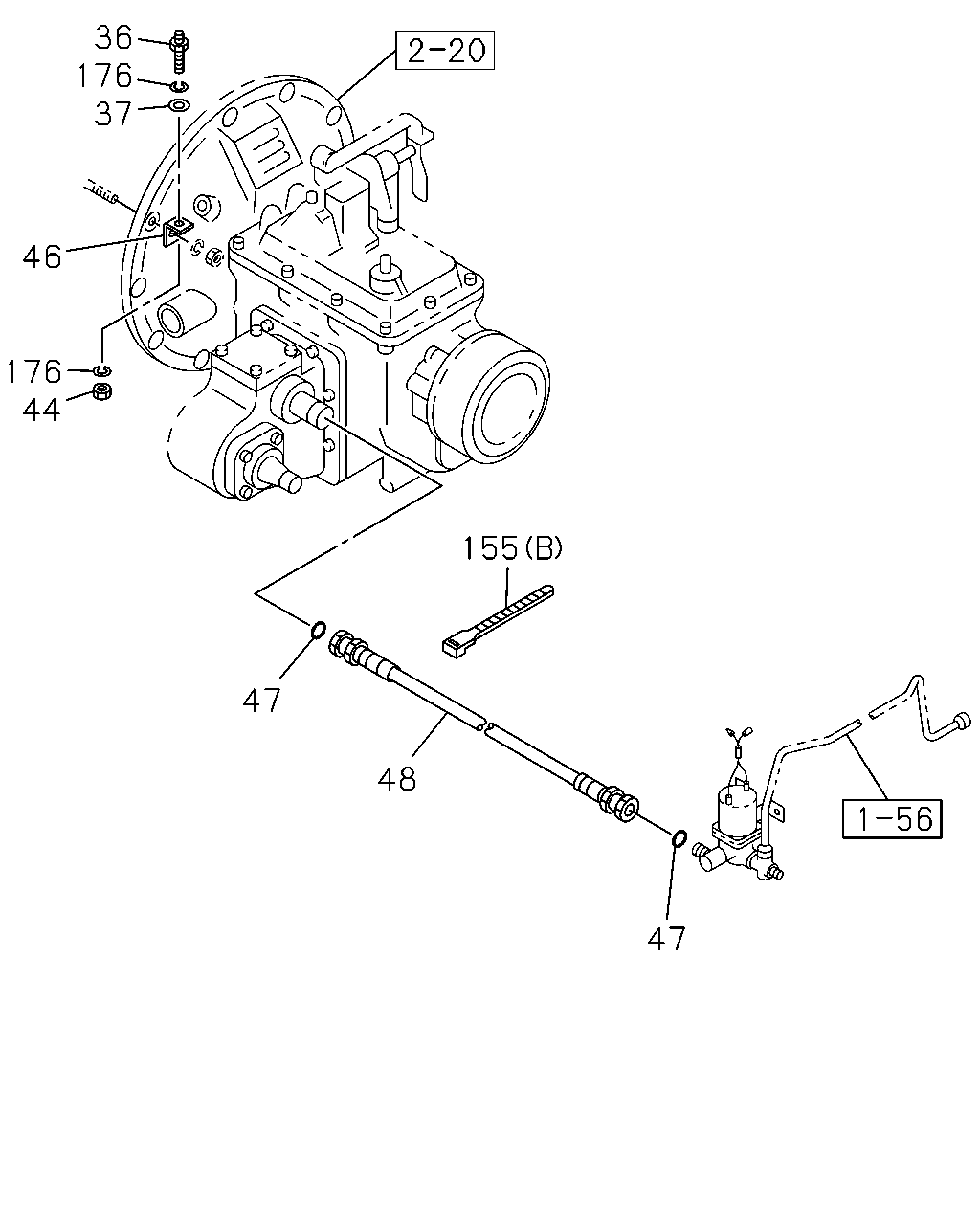

36 176 37 46 176 44 155 47 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	WASHER; PL,CONT LEVER DUMP CONTROL LEVER<RC4> ID=8.4	9-09160-508-0	01	1	9202-		●
36	BOLT; PTO BRKT TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M10X32 W/LK WASHER	1-09029-001-1	01	1	9202-	●
37	WASHER; PL,PTO BRKT TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> ID=10.5	9-09164-510-0	01	1	9202-	●
44	NUT; BRKT TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6> M10	9-09110-510-0	01	1	9202-	●
46	BRACKET; PTO,TRANS SIDE TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL<SV6>	1-38329-049-0	01	1	9202-	●
47	GASKET; FLEX HOSE PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> ID=11 OD=18	9-09572-510-0	02	1	9202-	●
48	HOSE; FLEX,PTO PTO CONTROL AIR LINK TYPE<SEC> L=330	0-07150-330-0	01	1	9202-	●
48	HOSE; FLEX,PTO TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) L=600	0-07150-550-0	01	1	9202-9205	●
48	HOSE; FLEX,PTO TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) L=650	0-07150-650-0	01	1	9206-	●
48	HOSE; FLEX,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION FRONT PTO(RC2),ENGINE REAR PTO(SV1) L=450	0-07150-450-0	01	1	9202-	●	●	●
155	CLIP; CABLE PTO CONTROL AIR LINK TYPE<SEC> (B) L=140	5-09707-031-0	02	1	9202-	●
155	CLIP; CABLE PTO CONTROL AIR LINK TYPE<SEC> (A) ID=11 L=16	9-09525-025-0	01	1	9202-	●
155	CLIP; CABLE PTO CONTROL AIR LINK TYPE<SEC> (A) L=28 ID=11 L=28	9-09525-055-0	01	1	9202-	●
155	CLIP; CABLE TRANSMISSION FRONT PTO(RC2) (A) ID=16	9-09525-552-0	01	1	9202-	●
176	WASHER; LK,BRKT EXC. PTO CONTROL<SV6> ID=10.2	9-09150-510-0	02	1	9202-	●
214	RING; SNAP,LK BOLT DUMP CONTROL LEVER<RC4> (B) ID=6	9-09185-406-0	01	1	9202-		●
214	RING; SNAP,LK BOLT DUMP CONTROL LEVER<RC4> (A) ID=8	9-09185-408-0	01	1	9202-		●
