Isuzu WW
▶
BUSES
▶
MV
▶
10857 - MV118
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

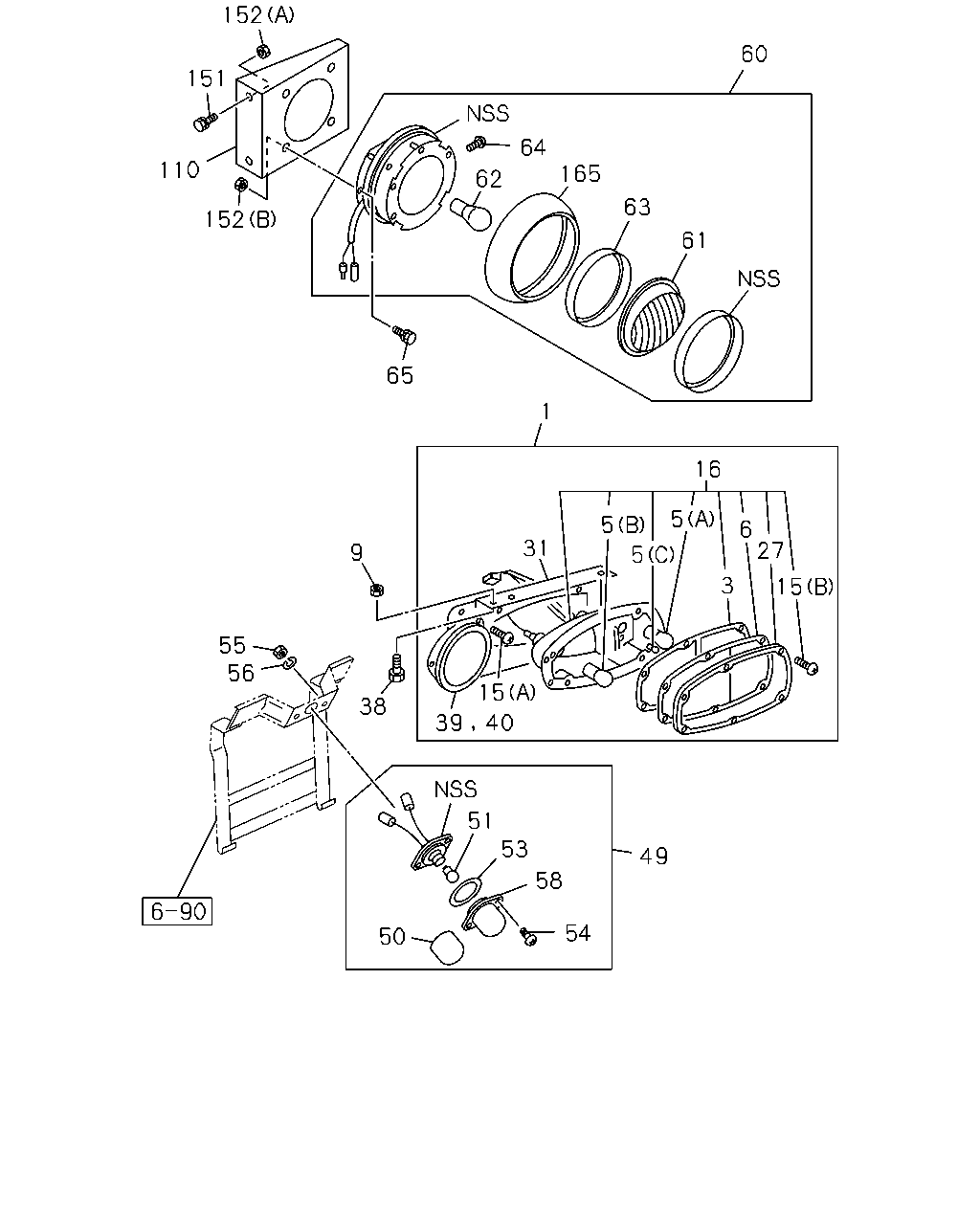

8-03 — LAMP; REAR AND REAR SIDE
(#9147) — 39 parça
Tümü
A - MVR5FB
B - MVR6FB
152
60
151
64
110
165
62
63
152
61
65
1
16
5
5
6
27
31
9
5
3
15
55
56
15
38
51
53
49
58
54
50
39
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LAMP ASM; RR COMB
1-82230-045-1
01
1
9606-
●
●
1
LAMP ASM; RR COMB
1-82230-044-1
01
1
9606-
●
●
3
GASKET; RR COMB LAMP
LENS SIDE
9-82631-714-0
02
1
9606-
●
●
3
GASKET; RR COMB LAMP
HOUSING SIDE
9-82631-715-0
02
1
9606-
●
●
5
BULB; RR COMB LAMP
(A) 24V 25/10W
9-82691-335-0
02
1
9606-
●
●
5
BULB; RR COMB LAMP
(B) 24V 25W
9-82691-347-0
02
1
9606-
●
●
5
BULB; RR COMB LAMP
(C) 24V 3W
9-82691-367-0
02
1
9606-
●
●
6
LENS; RR COMB LAMP
9-82631-240-0
02
1
9606-
●
●
9
NUT; LAMP,RR COMB
M8
9-09110-408-0
04
1
9606-
●
●
15
SCREW; RR COMB LAMP
(A) M4X6
1-09100-007-0
04
1
9606-
●
●
15
SCREW; RR COMB LAMP
(B) M4X12
9-93490-412-0
12
1
9606-
●
●
16
LAMP; STOP COMB LAMP
9-82633-005-1
01
1
9606-
●
●
16
LAMP; STOP COMB LAMP
9-82633-004-1
01
1
9606-
●
●
27
RIM; RR COMB LAMP
9-82631-412-0
02
1
9606-
●
●
31
BRACKET; RR COMB LAMP
9-53487-090-0
01
1
9606-
●
●
31
BRACKET; RR COMB LAMP
9-53487-089-0
01
1
9606-
●
●
38
BOLT; LAMP,RR COMB
M8X20 W/LK WASHER
0-50040-820-0
04
1
9606-
●
●
39
REFLECTOR; REFLEX RH
1-82290-002-0
01
1
9606-
●
●
40
REFLECTOR; REFLEX
1-82290-002-0
01
1
9606-
●
●
49
LAMP; LICENSE PLATE
1-82120-009-1
01
1
9606-
●
●
50
LENS; LICENSE PLATE LAMP
1-82235-005-0
01
1
9606-
●
●
51
BULB; LICENSE PLATE LAMP
24V 12W
1-82194-004-0
01
1
9606-
●
●
53
GASKET; LICENSE LAMP
1-82236-005-0
01
1
9606-
●
●
54
SCREW; LICENSE PLATE LAMP
1-82120-010-0
02
1
9606-
●
●
55
NUT; LICENSE PLATE LAMP
M5
9-99110-405-0
02
1
9606-
●
●
56
WASHER; LK,LICENSE PLATE LAMP
ID=5.1
9-09150-505-0
02
1
9606-
●
●
58
COVER; LICENSE PLATE LAMP
1-82129-009-0
01
1
9606-
●
●
60
LAMP; BACKUP
1-82130-003-1
01
1
9606-
●
●
61
LENS; BACKUP LAMP
9-82611-224-0
01
1
9606-
●
●
62
BULB; BACKUP LAMP
24V 35W
1-82194-012-0
01
1
9606-
●
●
63
GASKET; BACKUP LAMP
9-82611-734-0
01
1
9606-
●
●
64
SCREW; BACKUP LAMP
M5X14 OVAL-HEAD
9-93280-514-0
01
1
9606-
●
●
64
SCREW; BACKUP LAMP
M4X6
9-93490-406-0
03
1
9606-
●
●
65
BOLT; LAMP,BACKUP
M5X16 W/LK WASHER
9-03910-516-0
04
1
9606-
●
●
110
BRACKET; BACKUP LAMP
9-82611-741-0
01
1
9606-
●
●
151
BOLT; BACKUP LAMP BRKT
M6X18 W/LK WASHER
0-50040-618-0
03
1
9606-
●
●
152
NUT; BACKUP LAMP BRKT
(A) M6
9-09110-406-0
03
1
9606-
●
●
152
NUT; BACKUP LAMP BRKT
(B) M5
9-99110-405-0
04
1
9606-
●
●
165
RIM; BACKUP LAMP
9-82611-469-1
01
1
9606-
●
●
