◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MV ▶ 10857 - MV118 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#9146) — 57 parça

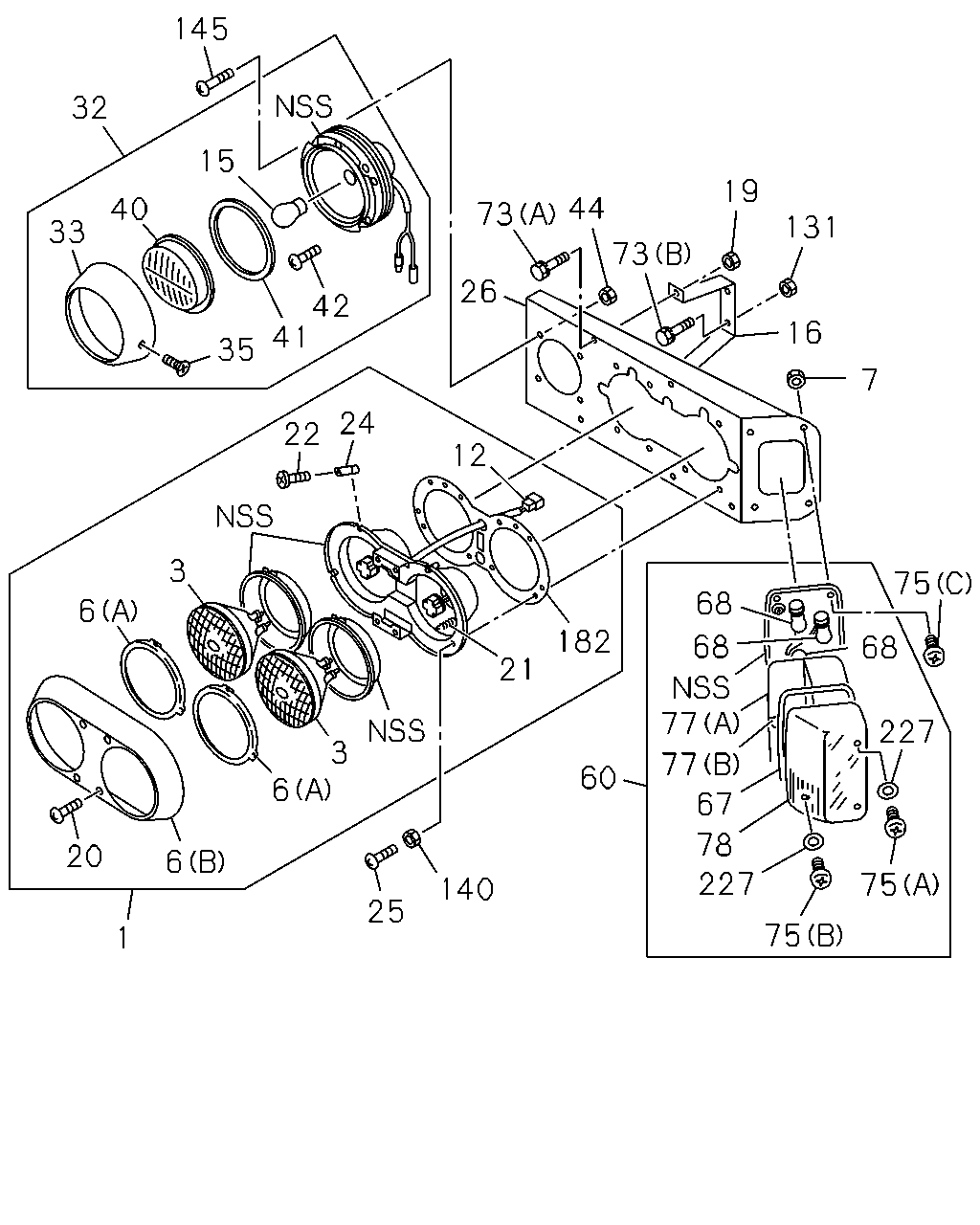

çizim 20179
145 32 15 19 44 40 73 131 33 73 26 42 41 16 35 7 24 22 12 3 75 68 6 182 68 68 21 77 227 3 77 60 6 67 78 20 6 227 75 140 25 75 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 1-82110-101-1 01 1 9606- ●
1 LAMP ASM; HEAD 1-82110-100-1 01 1 9606- ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> 		1-82110-120-0 01 1 9606- ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> 		1-82110-119-0 01 1 9606- ●
1 LAMP ASM; HEAD
EXC. AMBER HEADLAMPS<T75> 		1-82110-099-1 01 1 9606- ●
1 LAMP ASM; HEAD
EXC. AMBER HEADLAMPS<T75> 		1-82110-098-1 01 1 9606- ●
3 SEALED BEAM; HEADLAMP
TYPE-1 24V 40W 		1-82191-007-0 02 1 9606- ●
3 SEALED BEAM; HEADLAMP
EXC. AMBER HEADLAMPS<T75> TYPE-1 24V 40W 		1-82191-007-0 02 1 9606- ●
3 SEALED BEAM; HEADLAMP
TYPE-2 24V 60/40W 		1-82191-008-0 02 1 9606- ●
3 SEALED BEAM; HEADLAMP
AMBER HEADLAMPS<T75> INNER 24V 55/50W 		1-82191-012-0 02 1 9606- ●
3 SEALED BEAM; HEADLAMP
AMBER HEADLAMPS<T75> OUTER 24V 55/50W 		1-82191-013-0 02 1 9606- ●
3 SEALED BEAM; HEADLAMP
EXC. AMBER HEADLAMPS<T75> 24V 40/60W 		1-82191-009-0 02 1 9606- ●
6 RIM; HEADLAMP
(A) 		1-82117-004-0 04 1 9606- ●
6 RIM; HEADLAMP
EXC. AMBER HEADLAMPS<T75> (A) 		1-82117-004-0 04 1 9606- ●
6 RIM; HEADLAMP
(B) 		9-82612-168-0 02 1 9606- ● ●
7 NUT; FRT COMB LAMP
M5 		9-99110-405-0 08 1 9606- ● ●
12 HARNESS; HEADLAMP 9-82691-570-0 02 1 9606- ● ●
15 BULB; FOG LAMP
24V 35W 		1-82194-011-0 02 1 9606- ● ●
16 BRACKET; HEADLAMP 9-82615-154-2 04 1 9606- ●
16 BRACKET; HEADLAMP 1-82117-053-1 04 1 9606- ●
19 NUT; HEADLAMP
M6 		9-09110-406-0 08 1 9606- ● ●
20 SCREW; HEADLAMP
M4X6 		9-93490-406-0 12 1 9606- ● ●
21 SPRING; ADJ HEADLAMP 9-82615-114-0 04 1 9606- ● ●
22 SCREW; ADJ,HEADLAMP 1-82119-005-0 08 1 9606- ●
22 SCREW; ADJ,HEADLAMP
EXC. AMBER HEADLAMPS<T75> 		1-82119-005-0 08 1 9606- ●
22 SCREW; ADJ,HEADLAMP
AMBER HEADLAMPS<T75> 		9-82615-124-0 08 1 9606- ●
24 MOUNTING; ADJ SCREW HD LAMP 1-82119-004-0 08 1 9606- ● ●
25 SCREW; LAMP
M5X16 W/LK WASHER 		9-03910-516-0 16 1 9606- ● ●
26 BRACKET ASM; HEADLAMP 9-82611-699-0 01 1 9606- ● ●
26 BRACKET ASM; HEADLAMP 9-82611-698-0 01 1 9606- ● ●
32 LAMP ASM; FOG 1-82110-082-1 02 1 9606- ● ●
33 RIM; FOG LAMP 9-82611-469-1 02 1 9606- ● ●
35 SCREW; RIM,FOG LAMP
M5X14 OVAL-HEAD 		9-93280-514-0 02 1 9606- ● ●
40 LENS; FOG LAMP 1-82115-002-0 02 1 9606- ● ●
41 GASKET; LENS,FOG LAMP 9-82611-734-0 02 1 9606- ● ●
42 SCREW; LENS,FOG LAMP
M4X6 		9-93490-406-0 06 1 9606- ● ●
44 NUT; FOG LAMP
M5 		9-99110-405-0 08 1 9606- ● ●
60 LAMP ASM; FRT COMB 1-82210-109-1 01 1 9606- ● ●
60 LAMP ASM; FRT COMB 1-82210-108-1 01 1 9606- ● ●
67 GASKET; FRT COMB LAMP 1-82216-004-0 01 1 9606- ● ●
67 GASKET; FRT COMB LAMP 1-82216-003-0 01 1 9606- ● ●
68 BULB; FRT COMB LAMP
24V 25W 		9-82691-347-0 04 1 9606- ● ●
68 BULB; FRT COMB LAMP
24V 10/4W 		9-82691-607-0 02 1 9606- ● ●
73 BOLT; BRKT,HEADLAMP
(A) M6X14 W/LK WASHER 		0-50040-614-0 08 1 9606- ● ●
73 BOLT; BRKT,HEADLAMP
(B) M10X25 W/LK WASHER 		0-50041-025-0 08 1 9606- ● ●
75 SCREW; FRT COMB LAMP
(A) M4X50 		1-82219-015-0 04 1 9606- ● ●
75 SCREW; FRT COMB LAMP
(B) M4X16 		1-82219-016-0 04 1 9606- ● ●
75 SCREW; FRT COMB LAMP
(C) M5X16 W/LK WASHER 		9-03910-516-0 08 1 9606- ● ●
77 SHADE; FRT TURN SIGNAL LAMP
(A) 		1-82219-020-0 02 1 9606- ● ●
77 SHADE; FRT TURN SIGNAL LAMP
(B) 		1-82219-021-0 02 1 9606- ● ●
78 LENS ASM; FRT COMB 1-82215-009-0 01 1 9606- ● ●
78 LENS ASM; FRT COMB 1-82215-008-0 01 1 9606- ● ●
131 NUT; BRKT,HEADLAMP
M10 		9-09110-510-0 08 1 9606- ● ●
140 NUT
M5 		9-99110-405-0 16 1 9606- ● ●
145 SCREW; FOG LAMP
M5X20 W/LK WASHER 		9-03910-520-0 08 1 9606- ● ●
182 GASKET; HEADLAMP 1-82119-006-0 02 1 9606- ● ●
227 SEAT; SET SCREW,FRT COMB LAMP 1-82219-017-0 08 1 9606- ● ●
