10857 - MV118
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶

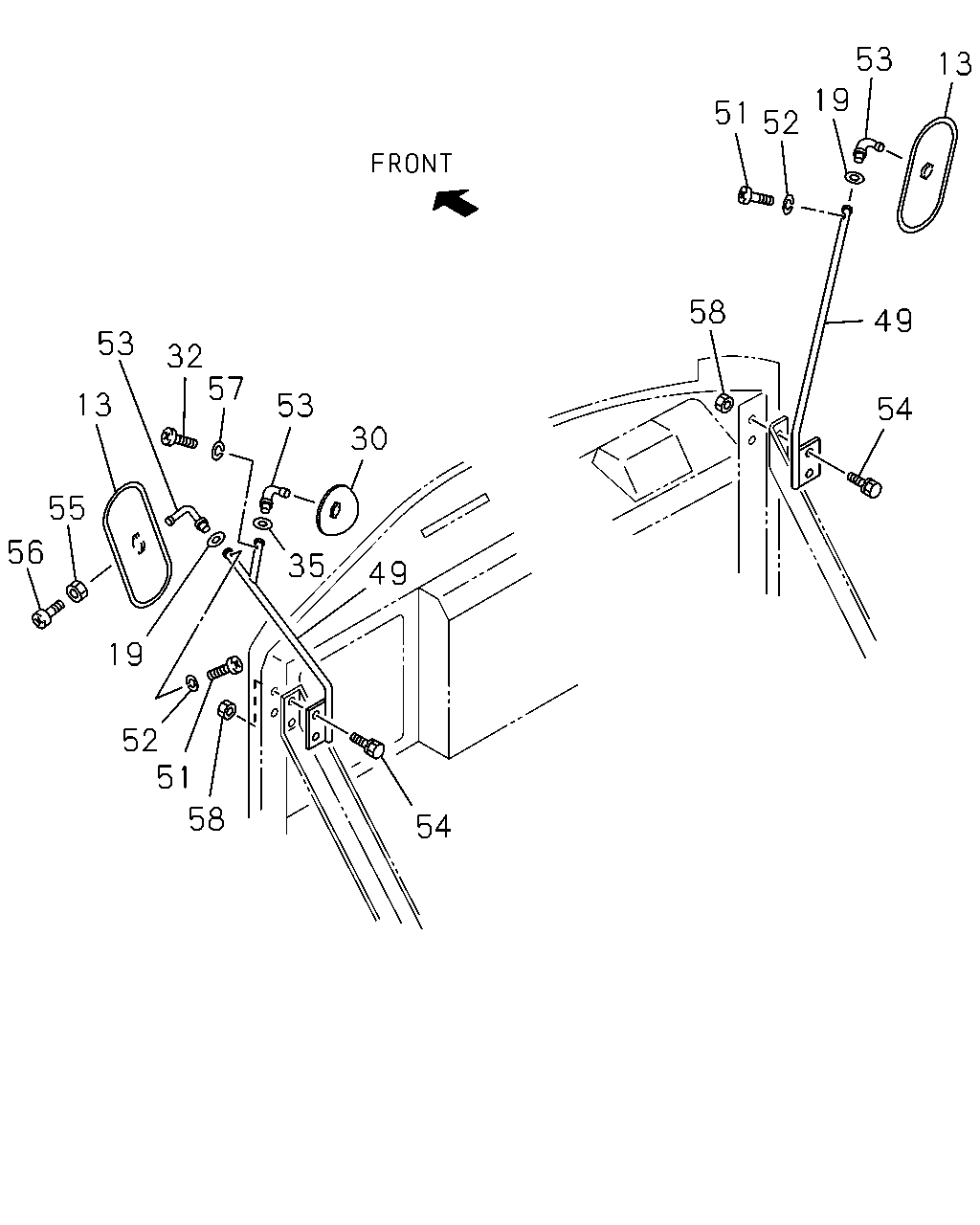

7-20 — MIRROR AND MIRROR STAY
(#9143) — 15 parça
Tümü
A - MVR5FB
B - MVR6FB
53
13
19
51
52
58
49
53
32
57
13
53
54
30
55
56
35
49
19
52
51
58
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
MIRROR ASM; OUTSIDE RR VIEW
9-61176-764-1
02
1
9606-
●
●
19
GASKET; MIRROR
9-61176-650-0
02
1
9606-
●
●
30
MIRROR; UNDER
9-61176-762-1
01
1
9606-
●
●
32
SCREW; UNDER MIRROR
M6X12
9-03490-612-0
01
1
9606-
●
●
35
GASKET; UNDER MIRROR
9-61176-650-0
01
1
9606-
●
●
49
STAY; MIRROR SIDE
9-68599-123-0
01
1
9606-
●
●
49
STAY; MIRROR SIDE
9-68599-122-0
01
1
9606-
●
●
51
SCREW; MIRROR
M6X12
9-03490-612-0
02
1
9606-
●
●
52
WASHER; LK,MIRROR
ID=6.1
9-09150-506-0
02
1
9606-
●
●
53
PIVOT; SIDE MIRROR
9-61176-537-0
02
1
9606-
●
●
54
BOLT; STAY
M10X25 W/LK WASHER
0-50041-025-0
04
1
9606-
●
●
55
NUT; SIDE MIRROR
M3
9-99110-403-0
04
1
9606-
●
●
56
SCREW; SIDE MIRROR
M3X16
9-93490-316-0
04
1
9606-
●
●
57
WASHER; LK,UNDER MIRROR
ID=6.1
9-09150-506-0
01
1
9606-
●
●
58
NUT; MIRROR STAY
M10
9-09110-510-0
04
1
9606-
●
●
