4-61 — SHOCK ABSORBER; REAR SUSPENSION (#9132) — 14 parça

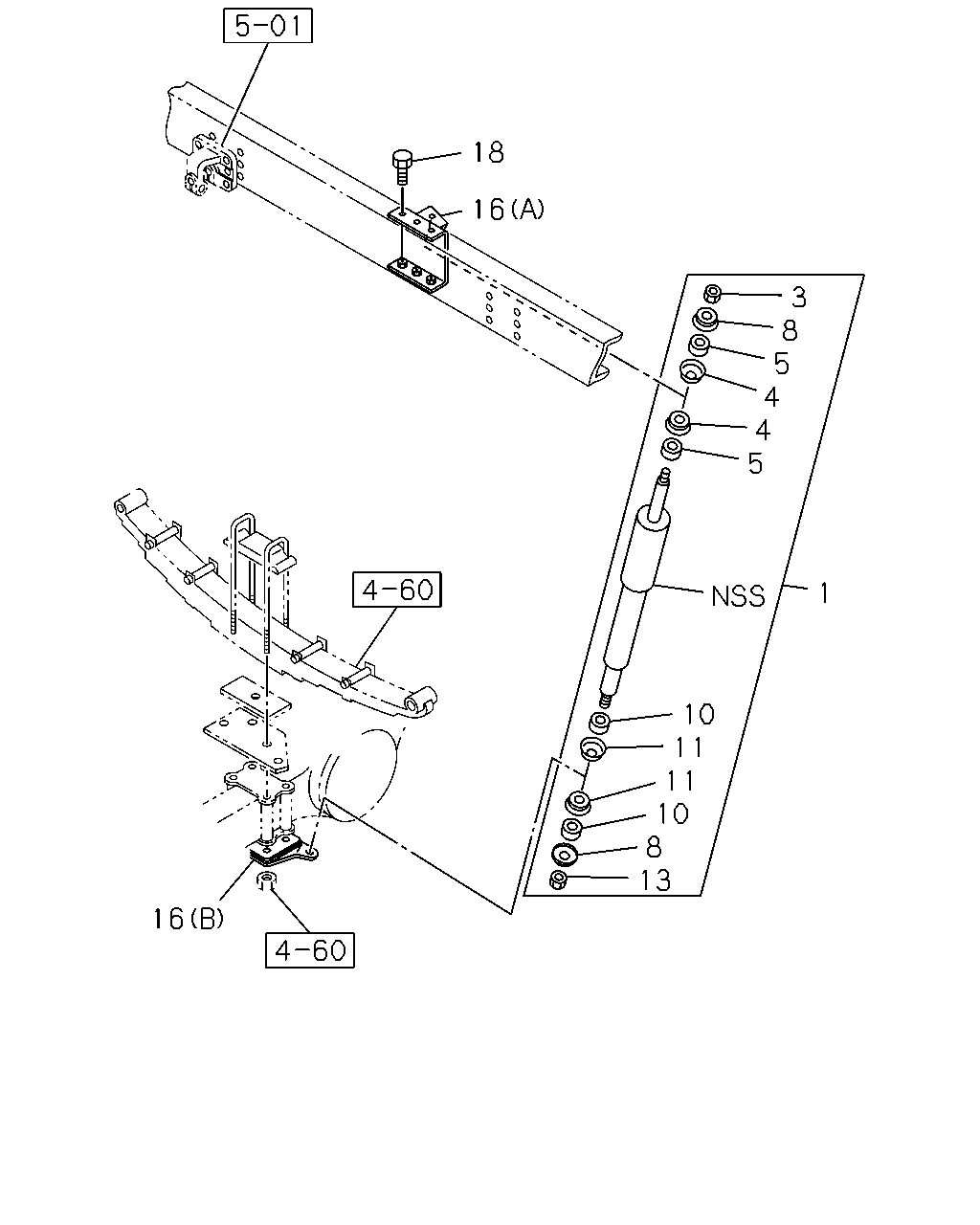

çizim 75157
18 16 3 8 5 4 4 5 1 10 11 11 10 8 13 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 ABSORBER ASM; SHOCK,RR 9-51630-388-1 02 1 9606- ● ●
3 NUT; S/ABS
M18 		9-99111-418-0 02 1 9606- ● ●
4 WASHER; CENTER,S/ABS
ID=24.4 OD=74 T=2.3 		9-51631-045-0 04 1 9606- ● ●
5 BUSHING; RUBBER,S/ABS,UPR 9-51631-043-0 04 1 9606- ● ●
8 WASHER; S/ABS
ID=20.5 OD=74 T=6 		9-51631-044-0 04 1 9606-9707 ● ●
8 WASHER; S/ABS
ID=20.5 OD=74 T=6 		9-51631-044-0 06 1 9708- ● ●
10 BUSHING; RUBBER,S/ABS 9-51631-043-0 04 1 9606- ● ●
11 WASHER; CENTER,LWR,RR S/ABS
ID=24.4 OD=74 T=2.3 		9-51631-045-0 04 1 9606- ● ●
13 NUT; LWR,RR S/ABS
M18 		9-99111-418-0 06 1 9606- ● ●
16 BRACKET; S/ABS,RR
(A) 		8-94300-562-1 01 1 9606- ● ●
16 BRACKET; S/ABS,RR
(B) 		8-94300-565-0 01 1 9606- ● ●
16 BRACKET; S/ABS,RR
(A) 		8-94300-561-1 01 1 9606- ● ●
16 BRACKET; S/ABS,RR
(B) 		8-94300-564-0 01 1 9606- ● ●
18 BOLT; S/ABS BRKT
M12X32 W/LK WASHER 		0-50041-232-0 12 1 9606- ● ●
