◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MV ▶ 10857 - MV118 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#9131) — 62 parça

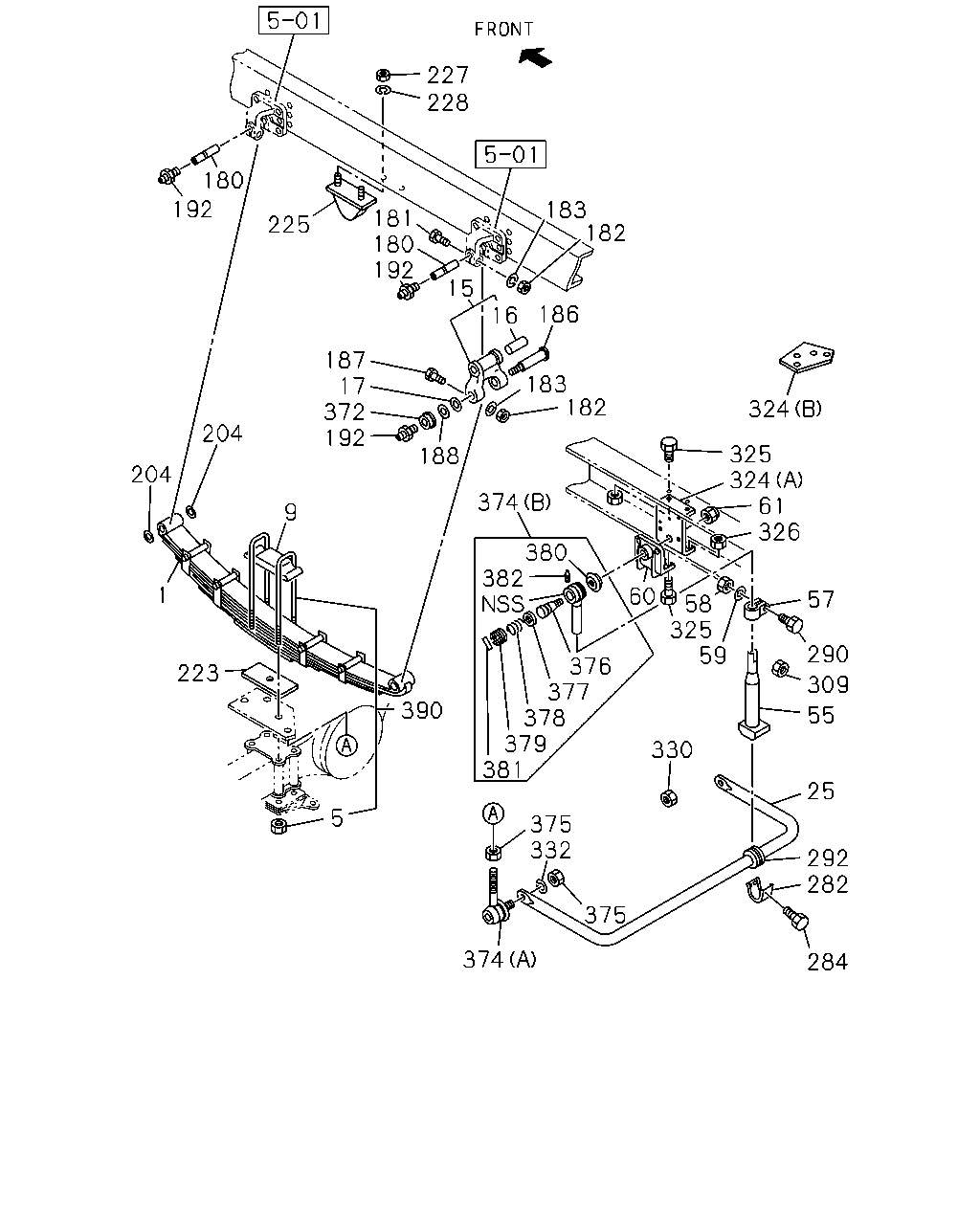

çizim 19832
227 228 180 192 183 182 181 180 192 225 15 186 16 187 17 372 192 183 182 324 204 325 324 61 326 188 204 374 9 380 382 1 60 57 58 325 59 290 376 377 378 379 381 223 309 390 55 330 25 5 375 332 292 282 375 374 284
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER SHAFT DELETE<C4L> 		1-51310-520-2 02 1 9606- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. STABILIZER SHAFT DELETE<C4L> 		1-51310-797-0 02 1 9606- ● ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 9606- ● ●
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 9606- ● ●
15 SHACKLE; RR SPR 9-51362-085-1 02 1 9606- ● ●
16 BUSHING; SHACKLE,RR SPR 1-51351-024-1 02 1 9606- ● ●
17 WASHER; LK,SHACKLE PIN
ID=24.5 OD=52 		9-51369-012-0 02 1 9606- ● ●
25 BAR ASM; STAB,RR SUSP
EXC. STABILIZER SHAFT DELETE<C4L> 		8-94300-566-0 01 1 9606- ● ●
55 ROD; STAB
EXC. STABILIZER SHAFT DELETE<C4L> 		1-51773-047-1 02 1 9606- ● ●
57 CLAMP; ROD END
EXC. STABILIZER SHAFT DELETE<C4L> 		1-43159-002-3 02 1 9606- ● ●
58 NUT; CLAMP,ROD END
EXC. STABILIZER SHAFT DELETE<C4L> M12 		9-99110-512-0 02 1 9606- ● ●
59 WASHER; LK,CLAMP
EXC. STABILIZER SHAFT DELETE<C4L> ID=12.2 		9-09150-812-0 02 1 9606- ● ●
60 BRACKET; SUPPORT,STABILIZER
EXC. STABILIZER SHAFT DELETE<C4L> 		1-51781-037-2 02 1 9606- ● ●
61 NUT; SUPPORT,STABILIZER
EXC. STABILIZER SHAFT DELETE<C4L> M16 		1-09449-014-0 02 1 9606- ● ●
180 PIN; RR SPR 1-51361-020-0 04 1 9606- ● ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10806-480-0 02 1 9606- ● ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 04 1 9606- ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 04 1 9606- ● ●
186 PIN; SHACKLE,RR SPR 9-51361-062-1 02 1 9606- ● ●
187 BOLT; SPR & SHACKLE
M14X80 		0-10806-480-0 02 1 9606- ● ●
188 WASHER; PL,SHACKLE PIN 9-09164-624-0 02 1 9606- ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 		9-09031-210-0 06 1 9606- ● ●
204 SPACER; RR SPRING 9-51169-018-0 08 1 9606- ● ●
223 SPACER; U BOLT,RR SPR
STABILIZER SHAFT DELETE<C4L> 		9-51377-010-0 02 1 9606- ● ●
225 RUBBER; CUSHION,RR SPR 9-53366-088-3 02 1 9606- ● ●
227 NUT; CUSHION RUBBER
M10 		9-09110-510-0 04 1 9606- ● ●
228 WASHER; LK,CUSHION RUBBER
ID=10.2 		9-09150-510-0 04 1 9606- ● ●
282 RETAINER; STAB BAR
EXC. STABILIZER SHAFT DELETE<C4L> 		1-51789-015-2 02 1 9606- ● ●
284 BOLT; RET TO RET
EXC. STABILIZER SHAFT DELETE<C4L> M10X25 		8-94463-351-0 08 1 9606- ● ●
290 BOLT; STAB SUPPORTER
EXC. STABILIZER SHAFT DELETE<C4L> M12X35 W/LK WASHER 		0-50041-235-0 04 1 9606- ● ●
290 BOLT; STAB SUPPORTER
EXC. STABILIZER SHAFT DELETE<C4L> M12X45 W/LK WASHER 		0-50041-245-0 04 1 9606- ● ●
290 BOLT; STAB SUPPORTER
EXC. STABILIZER SHAFT DELETE<C4L> M12X47 		9-09801-294-0 02 1 9606- ● ●
292 BUSHING; RUBBER,STAB
EXC. STABILIZER SHAFT DELETE<C4L> 		1-51789-017-0 02 1 9606- ● ●
309 NUT; STAB ROD
EXC. STABILIZER SHAFT DELETE<C4L> M16 		1-09449-014-0 02 1 9606- ● ●
324 BRACKET; STAB BAR TO FRAME
EXC. STABILIZER SHAFT DELETE<C4L> (A) 		8-94300-555-1 01 1 9606- ● ●
324 BRACKET; STAB BAR TO FRAME
EXC. STABILIZER SHAFT DELETE<C4L> (B) 		8-94300-563-0 02 1 9606- ● ●
324 BRACKET; STAB BAR TO FRAME
EXC. STABILIZER SHAFT DELETE<C4L> (A) 		8-94300-567-1 01 1 9606- ● ●
325 BOLT; BRKT TO FRAME
EXC. STABILIZER SHAFT DELETE<C4L> M12X35 W/LK WASHER 		0-50041-235-0 05 1 9606- ● ●
326 NUT; BRKT TO FRAME
EXC. STABILIZER SHAFT DELETE<C4L> M12 		9-99110-512-0 05 1 9606- ● ●
330 NUT; STAB
EXC. STABILIZER SHAFT DELETE<C4L> M12 		9-99110-512-0 08 1 9606- ● ●
332 WASHER; LK,ROD END
EXC. STABILIZER SHAFT DELETE<C4L> ID=20 LH THREAD 		1-09500-041-0 01 1 9606- ● ●
332 WASHER; LK,ROD END
EXC. STABILIZER SHAFT DELETE<C4L> ID=20 RH THREAD 		9-09150-520-0 01 1 9606- ● ●
372 NUT; SHACKLE
M24 		9-99111-524-0 02 1 9606- ● ●
374 ROD END ASM; STABILIZER
EXC. STABILIZER SHAFT DELETE<C4L> (B)RH THREAD 		1-43150-392-0 01 1 9606-9908 ● ●
374 ROD END ASM; STABILIZER
EXC. STABILIZER SHAFT DELETE<C4L> (B)LH THREAD 		1-43150-393-0 01 1 9606-9908 ● ●
374 ROD END ASM; STABILIZER
EXC. STABILIZER SHAFT DELETE<C4L> (A) 		1-43150-468-0 02 1 9606- ● ●
374 ROD END ASM; STABILIZER
EXC. STABILIZER SHAFT DELETE<C4L> (B)RH THREAD 		1-43150-472-0 01 1 9909- ● ●
374 ROD END ASM; STABILIZER
EXC. STABILIZER SHAFT DELETE<C4L> (B)LH THREAD 		1-43150-473-0 01 1 9909- ● ●
375 NUT; ROD END
EXC. STABILIZER SHAFT DELETE<C4L> LH THREAD M20 		9-09840-318-0 02 1 9606- ● ●
375 NUT; ROD END
EXC. STABILIZER SHAFT DELETE<C4L> RH THREAD M20 		9-99110-520-0 02 1 9606- ● ●
376 JOINT; BALL,ROD END
EXC. STABILIZER SHAFT DELETE<C4L> 		1-87090-211-0 04 1 9606- ● ●
377 SEAT; JOINT BALL
EXC. STABILIZER SHAFT DELETE<C4L> 		1-44373-002-0 04 1 9606- ● ●
378 SPRING; ROD END,SUPPORT
EXC. STABILIZER SHAFT DELETE<C4L> 		1-09580-080-0 04 1 9606- ● ●
379 PLUG; ROD END,SUPPORT
EXC. STABILIZER SHAFT DELETE<C4L> 		1-44375-001-0 04 1 9606- ● ●
380 BOOT; ROD END,SUPPORT
EXC. STABILIZER SHAFT DELETE<C4L> ID=20 & 32.5 		1-43159-019-0 02 1 9606-9908 ● ●
380 BOOT; ROD END,SUPPORT
EXC. STABILIZER SHAFT DELETE<C4L> D=18.5,29 		1-43159-036-0 02 1 9606-9908 ● ●
380 BOOT; ROD END,SUPPORT
EXC. STABILIZER SHAFT DELETE<C4L> D=18.5,29 		1-43159-036-0 04 1 9909- ● ●
381 PIN; SPLIT,PLUG
EXC. STABILIZER SHAFT DELETE<C4L> OD=2.8 L=55 		9-08113-055-0 04 1 9606- ● ●
382 NIPPLE; GREASE,ROD END
EXC. STABILIZER SHAFT DELETE<C4L> M6 STRAIGHT 		9-09031-006-0 02 1 9606- ● ●
382 NIPPLE; GREASE,ROD END
EXC. STABILIZER SHAFT DELETE<C4L> PT1/8 STRAIGHT 		9-09031-010-0 02 1 9606- ● ●
390 U-BOLT SET; RR SPRING
STABILIZER SHAFT DELETE<C4L> L=390 		1-87870-018-3 04 1 9606- ● ●
390 U-BOLT SET; RR SPRING
EXC. STABILIZER SHAFT DELETE<C4L> 		1-87870-016-2 04 1 9606- ● ●
