◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MV ▶ 10857 - MV118 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#9130) — 23 parça

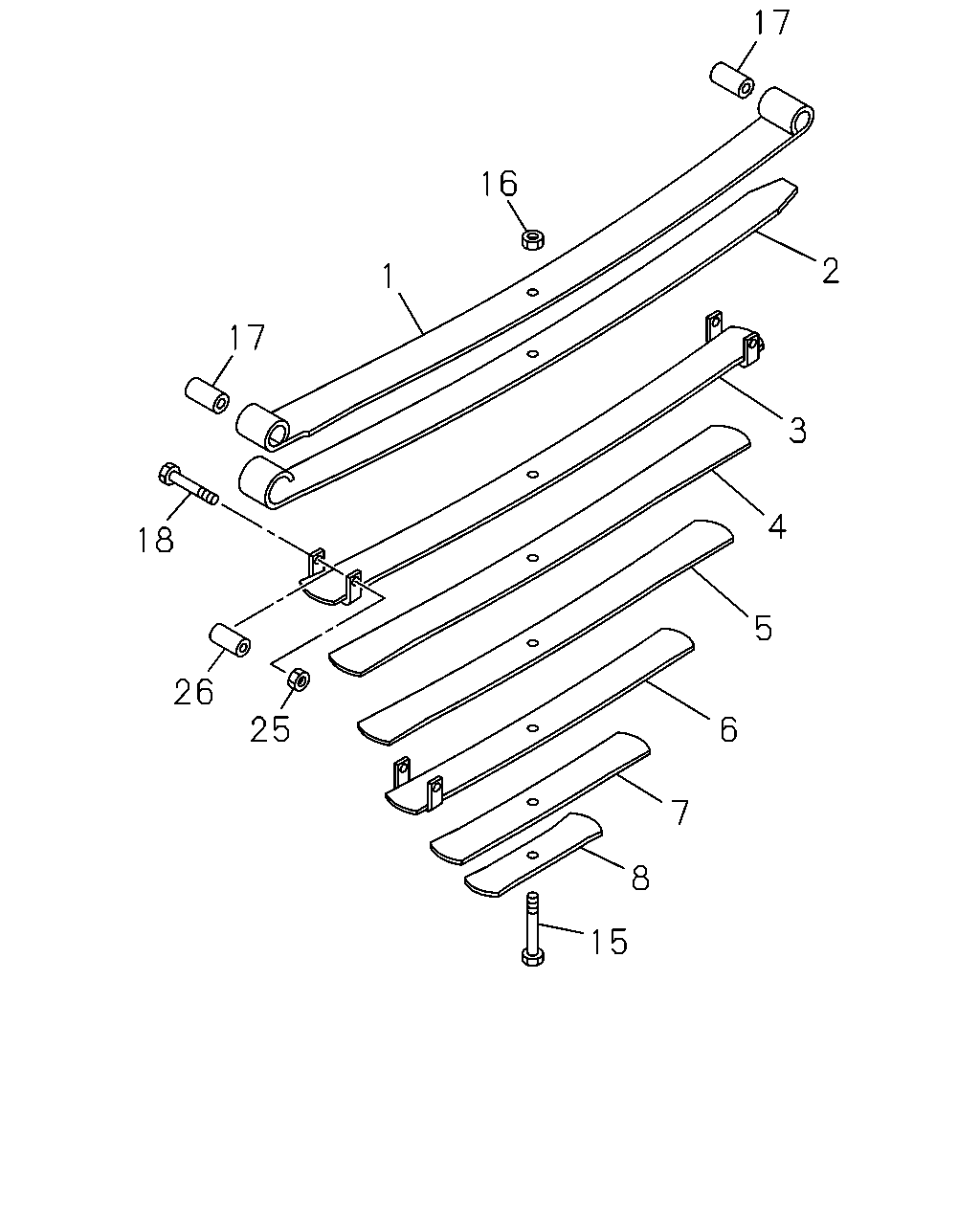

çizim 72755
17 16 1 17 3 4 18 5 26 25 6 7 8 15 2
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51110-618-0 		1-51111-466-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 1-51110-803-0 		1-51111-803-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51110-618-0 		1-51112-466-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 1-51110-803-0 		1-51112-803-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 1-51110-618-0 		1-51113-466-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 1-51110-803-0 		1-51113-803-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 1-51110-618-0 		1-51114-466-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: B = 1-51110-803-0 		1-51114-803-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: A = 1-51110-618-0 		1-51115-466-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: B = 1-51110-803-0 		1-51115-803-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: A = 1-51110-618-0 		1-51116-466-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: B = 1-51110-803-0 		1-51116-803-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: A = 1-51110-618-0 		1-51117-466-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: B = 1-51110-803-0 		1-51117-803-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: B = 1-51110-803-0 		1-51118-803-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
ASM PART: A = 1-51110-618-0 		1-51156-246-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
ASM PART: B = 1-51110-803-0 		1-51156-247-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: B = 1-51110-803-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51110-618-0 		9-99110-116-0 01 1 -
17 BUSHING; LEAF SPR,FRT
ASM PART: A = 1-51110-618-0, B = 1-51110-803-0 		9-51351-018-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51110-618-0, B = 1-51110-803-0 		9-09801-223-0 03 1 -
25 NUT; CLAMP
M10 ASM PART: A = 1-51110-618-0, B = 1-51110-803-0 		9-09110-010-0 03 1 -
26 PIPE; CLIP,LEAF SPR,FRT
ASM PART: A = 1-51110-618-0, B = 1-51110-803-0 		9-51153-009-0 03 1 -
