4-50 — FRONT SUSPENSION (#9129) — 60 parça

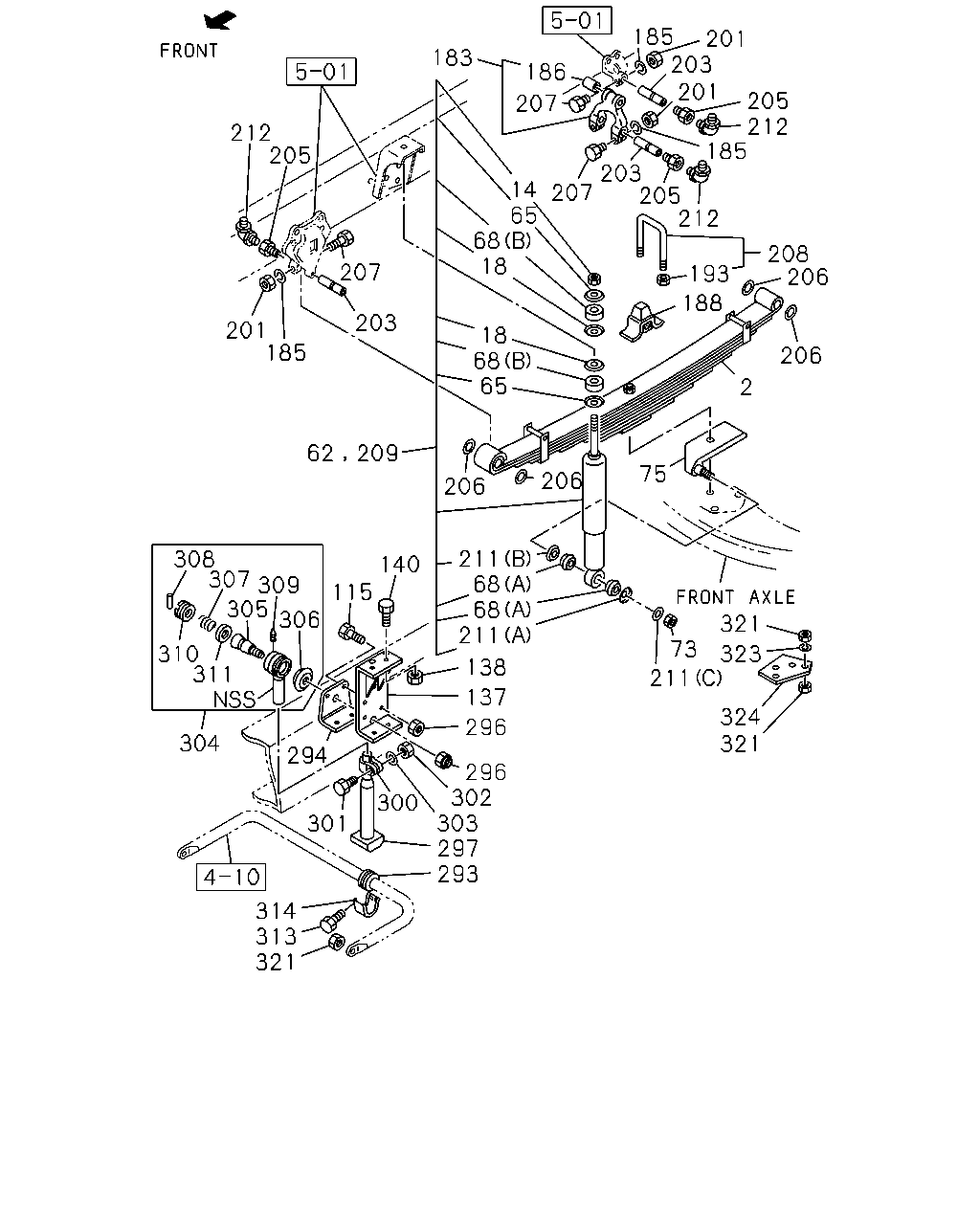

çizim 72727
185 203 201 183 186 205 212 185 207 212 205 203 207 205 212 14 65 68 18 208 206 207 193 188 203 201 185 18 68 65 206 2 75 206 206 211 68 68 211 308 307 309 305 140 115 321 306 73 323 211 310 311 138 137 324 321 296 294 304 296 302 303 297 293 300 301 314 313 321 201 62 209
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. STABILIZER SHAFT DELETE<C4L> 		1-51110-803-0 02 1 9606- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. STABILIZER SHAFT DELETE<C4L> 		1-51110-618-0 02 1 9606- ● ●
14 NUT; S/ABS,UPR
EXC. STABILIZER SHAFT DELETE<C4L> M14 		9-99111-414-0 02 1 9606- ● ●
18 WASHER; CENTERING,S/ABS
EXC. STABILIZER SHAFT DELETE<C4L> ID=20.8 		9-51631-041-0 04 1 9606- ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. STABILIZER SHAFT DELETE<C4L> 		1-51630-053-3 01 1 9606- ● ●
65 WASHER; S/ABS
EXC. STABILIZER SHAFT DELETE<C4L> ID=16.5 		9-51631-040-0 04 1 9606- ● ●
68 BUSHING; S/ABS
EXC. STABILIZER SHAFT DELETE<C4L> (A) 		9-51631-026-0 04 1 9606- ● ●
68 BUSHING; S/ABS
EXC. STABILIZER SHAFT DELETE<C4L> (B) 		9-51631-039-0 04 1 9606- ● ●
73 NUT; BRKT,SHOCK
EXC. STABILIZER SHAFT DELETE<C4L> M20 		9-99110-420-0 02 1 9606- ● ●
75 BRACKET; FRT S/ABS
EXC. STABILIZER SHAFT DELETE<C4L> 		1-51681-551-0 01 1 9606- ● ●
75 BRACKET; FRT S/ABS
EXC. STABILIZER SHAFT DELETE<C4L> 		1-51681-550-0 01 1 9606- ● ●
115 BOLT; SUPPORT BRKT TO BODY
EXC. STABILIZER SHAFT DELETE<C4L> M12X35 W/LK WASHER 		0-50041-235-0 04 1 9606- ● ●
115 BOLT; SUPPORT BRKT TO BODY
EXC. STABILIZER SHAFT DELETE<C4L> M12X40 W/LK WASHER 		0-50041-240-0 04 1 9606- ● ●
137 BRACKET; STAB BAR TO FRAME 8-94300-414-1 01 1 9606- ● ●
137 BRACKET; STAB BAR TO FRAME 8-94300-413-1 01 1 9606- ● ●
138 NUT; BRKT
M12 		9-99110-512-0 04 1 9606- ● ●
138 NUT; BRKT
STABILIZER SHAFT DELETE<C4L> M12 		9-99110-512-0 04 1 9606- ● ●
140 BOLT; BRKT
M12X30 W/LK WASHER 		0-50041-230-0 04 1 9606- ● ●
140 BOLT; BRKT
STABILIZER SHAFT DELETE<C4L> M12X30 W/LK WASHER 		0-50041-230-0 04 1 9606- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9606- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9606- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9606- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-025-1 02 1 9606- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9606- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9606- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 9606- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9606- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9606- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9606- ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 9606- ● ●
209 ABSORBER ASM; SHOCK
EXC. STABILIZER SHAFT DELETE<C4L> 		1-51630-053-3 01 1 9606- ● ●
211 WASHER; BRKT,SHOCK
EXC. STABILIZER SHAFT DELETE<C4L> (C) ID=21 		9-09160-520-0 02 1 9606- ● ●
211 WASHER; BRKT,SHOCK
EXC. STABILIZER SHAFT DELETE<C4L> (B) ID=27 		9-51631-027-0 02 1 9606- ● ●
211 WASHER; BRKT,SHOCK
EXC. STABILIZER SHAFT DELETE<C4L> (A) ID=21 		9-51631-028-0 02 1 9606- ● ●
212 NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 67.5? 		9-09031-110-0 06 1 9606- ● ●
293 BUSHING; SUPPORT,STABILIZER
EXC. STABILIZER SHAFT DELETE<C4L> 		1-51789-017-0 02 1 9606- ● ●
294 BRACKET; SUPPORT,STABILIZER
EXC. STABILIZER SHAFT DELETE<C4L> 		1-51781-037-2 02 1 9606- ● ●
296 NUT; SUPPORT,STABILIZER
EXC. STABILIZER SHAFT DELETE<C4L> M16 		1-09449-014-0 02 1 9606- ● ●
296 NUT; SUPPORT,STABILIZER
EXC. STABILIZER SHAFT DELETE<C4L> M12 		9-99110-512-0 08 1 9606- ● ●
297 ROD; STABILIZER
EXC. STABILIZER SHAFT DELETE<C4L> 		1-51773-046-1 02 1 9606- ● ●
300 CLAMP; ROD END,SUPPORT
EXC. STABILIZER SHAFT DELETE<C4L> 		1-43159-002-3 02 1 9606- ● ●
301 BOLT; CLAMP,ROD END
EXC. STABILIZER SHAFT DELETE<C4L> M12X47 		9-09801-294-0 02 1 9606- ● ●
302 NUT; CLAMP,ROD END
EXC. STABILIZER SHAFT DELETE<C4L> M12 		9-99110-512-0 02 1 9606- ● ●
303 WASHER; LK,CLAMP,ROD END
EXC. STABILIZER SHAFT DELETE<C4L> ID=12.2 		9-09150-812-0 02 1 9606- ● ●
304 ROD END ASM; STABILIZER
EXC. STABILIZER SHAFT DELETE<C4L> 		1-43150-468-0 02 1 9606- ● ●
305 JOINT; BALL,ROD END
EXC. STABILIZER SHAFT DELETE<C4L> 		1-87090-211-0 02 1 9606- ● ●
306 BOOT; ROD END,SUPPORT
EXC. STABILIZER SHAFT DELETE<C4L> D=18.5,29 		1-43159-036-0 02 1 9606- ● ●
307 SPRING; ROD END,SUPPORT
EXC. STABILIZER SHAFT DELETE<C4L> 		1-09580-080-0 02 1 9606- ● ●
308 PIN; SPLIT
EXC. STABILIZER SHAFT DELETE<C4L> OD=2.8 L=55 		9-08113-055-0 02 1 9606- ● ●
309 NIPPLE; GREASE,ROD END
EXC. STABILIZER SHAFT DELETE<C4L> PT1/8 STRAIGHT 		9-09031-010-0 02 1 9606- ● ●
310 PLUG; ROD END,SUPPORT
EXC. STABILIZER SHAFT DELETE<C4L> 		1-44375-001-0 02 1 9606- ● ●
311 SEAT; JOINT BALL
EXC. STABILIZER SHAFT DELETE<C4L> 		1-44373-002-0 02 1 9606- ● ●
313 BOLT; RET,SUPPORT
EXC. STABILIZER SHAFT DELETE<C4L> M10X25 		8-94463-351-0 08 1 9606- ● ●
314 RETAINER; SUPPORT
EXC. STABILIZER SHAFT DELETE<C4L> 		1-51789-015-2 02 1 9606- ● ●
321 NUT; ROD END,SUPPORT
EXC. STABILIZER SHAFT DELETE<C4L> M16 		1-09449-014-0 02 1 9606- ● ●
321 NUT; ROD END,SUPPORT
EXC. STABILIZER SHAFT DELETE<C4L> LH THREAD M20 		9-09840-318-0 02 1 9606- ● ●
321 NUT; ROD END,SUPPORT
EXC. STABILIZER SHAFT DELETE<C4L> RH THREAD M20 		9-99110-520-0 02 1 9606- ● ●
323 WASHER; LK,ROD END,SUPPORT
EXC. STABILIZER SHAFT DELETE<C4L> ID=20 FOR LH THREAD 		1-09500-041-0 01 1 9606- ● ●
323 WASHER; LK,ROD END,SUPPORT
EXC. STABILIZER SHAFT DELETE<C4L> ID=20.2 		9-09150-520-0 01 1 9606- ● ●
324 BRACKET; STABILIZER
EXC. STABILIZER SHAFT DELETE<C4L> 		8-94300-417-1 02 1 9606- ● ●
