4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#9125) — 126 parça

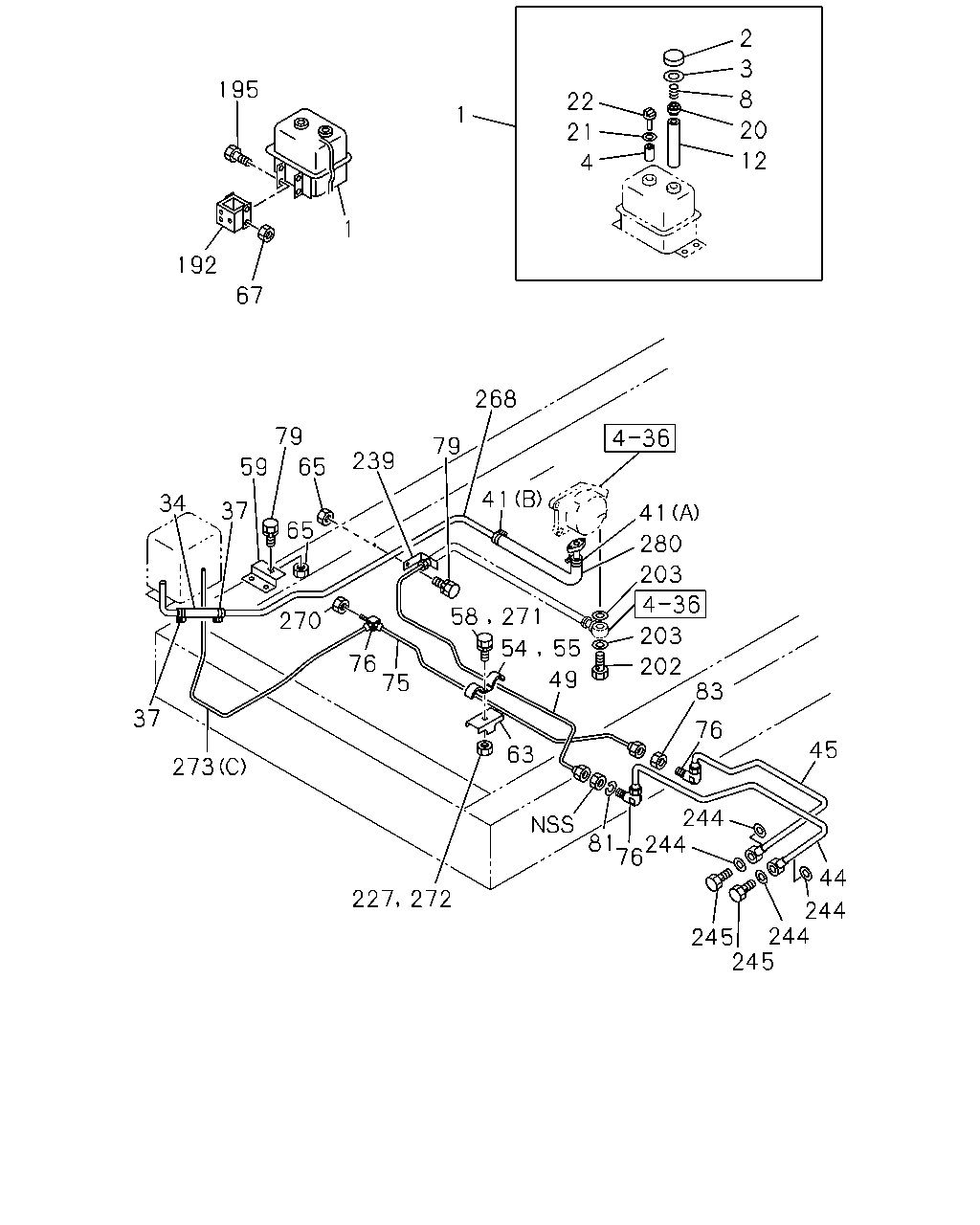

çizim 19144
2 3 195 8 22 1 20 21 12 4 1 192 67 268 79 79 239 59 65 41 34 37 41 65 280 203 270 203 54 55 76 75 202 49 83 37 76 45 63 273 244 81 244 76 44 244 245 245 244 227 272 58 271
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S 1-21210-177-2 01 1 9606- ●
1 TANK ASM; OIL,P/S 1-21210-156-2 01 1 9606- ●
2 CAP; OIL TANK,P/S 1-21241-009-0 01 1 9606- ● ●
3 GASKET; OIL TANK,P/S 1-09630-106-0 01 1 9606- ● ●
4 FILTER; OIL TANK,P/S 1-21231-002-0 01 1 9606- ● ●
8 SPRING; OIL TANK,P/S 1-09580-365-0 01 1 9606- ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-005-0 01 1 9606- ● ●
20 HOLDER; FILTER,OIL TANK,P/S 1-21239-005-0 01 1 9606- ● ●
21 GASKET; OIL GAUGE,P/S TANK 1-09630-095-1 01 1 9606- ● ●
22 GAUGE; OIL TANK,P/S 1-21240-001-1 01 1 9606- ● ●
34 HOSE; P/S OIL TANK,OUTLET
L=80 		1-09360-522-0 01 1 9606- ●
37 CLIP; HOSE,P/S
ID=28 		9-09915-672-1 02 1 9606- ●
37 CLIP; HOSE,P/S
ID=32 		9-09915-692-1 02 1 9606- ●
41 CLIP; HOSE,P/S
(A) ID=38 		9-09915-666-1 01 1 9606- ●
41 CLIP; HOSE,P/S
(B) ID=32 		9-09915-692-1 01 1 9606- ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
L=911 		1-21114-488-0 01 1 9606- ●
45 PIPE; OIL,P/S UNIT TO UNION
L=1092 		1-21112-433-0 01 1 9606- ●
45 PIPE; OIL,P/S UNIT TO UNION
L=874 		1-21112-520-1 01 1 9606- ●
49 PIPE; OIL,FLEX HOSE TO UNION
L=1161 		1-21114-486-0 01 1 9606- ●
54 CLIP; OIL PIPE
ID=23 & 16 L=25 & 20 		1-09700-613-0 01 1 9606- ●
54 CLIP; OIL PIPE
ID=16 		9-09525-533-0 01 1 9606- ●
54 CLIP; OIL PIPE
ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 9606- ●
55 CLIP; P/S RUBBER HOSE
(B) ID=38 		9-09915-666-1 04 1 9606- ●
55 CLIP; P/S RUBBER HOSE
(A) ID=23 & 16 L=25 & 20 		1-09700-613-0 01 1 9606- ● ●
58 BOLT; CLIP
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9606- ●
58 BOLT; CLIP
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9606- ●
58 BOLT; CLIP
M8X45 W/LK WASHER 		0-50040-845-0 01 1 9606- ●
59 BRACKET; CLIP,OIL PIPE 1-47475-264-0 01 1 9606- ●
59 BRACKET; CLIP,OIL PIPE 1-47469-012-0 01 1 9606- ●
63 BRACKET; CLIP,P/S 1-47475-427-1 01 1 9606- ●
65 NUT; BRKT
M8 		9-09110-408-0 02 1 9606- ● ●
65 NUT; BRKT
M8 		9-09110-408-0 02 1 9606- ● ●
67 NUT; BRKT
M10 		9-09110-510-0 07 1 9606- ●
75 PIPE; OIL,P/S,UNION TO UNION
L=1035 		1-21112-170-0 01 1 9606- ●
75 PIPE; OIL,P/S,UNION TO UNION
L=1093 		1-21112-521-1 01 1 9606- ●
76 UNION; OIL PIPE
M22 		1-09650-172-1 01 1 9606- ● ●
76 UNION; OIL PIPE
M22 		1-09650-172-1 01 1 9606- ●
76 UNION; OIL PIPE
M20 ELBOW 		9-09235-112-1 01 1 9606- ●
76 UNION; OIL PIPE
M22 		9-09235-215-1 01 1 9606- ●
79 BOLT; BRKT
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9606- ● ●
79 BOLT; BRKT
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9606- ●
81 WASHER; LK,FLEX HOSE
ID=20.2 		9-09150-520-0 01 1 9606- ● ●
83 NUT; UNION,OIL PIPE
M14 		9-99111-414-0 01 1 9606- ●
83 NUT; UNION,OIL PIPE
M22 		9-09111-422-0 01 1 9606- ●
192 BRACKET; P/S OIL TANK 1-21219-085-0 01 1 9606- ●
195 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 07 1 9606- ●
202 BOLT; EYE,OIL PIPE
M18X39 		1-09675-114-0 01 1 9606- ● ●
203 GASKET; EYE BOLT
ID=18.2 OD=24.4 		1-09630-087-0 02 1 9606- ● ●
227 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9606- ●
239 BRACKET; FLEX HOSE 1-47475-657-0 01 1 9606- ● ●
244 GASKET; OIL PIPE,P/S
ID=18 		9-09571-418-0 04 1 9606- ● ●
245 BOLT; EYE,OIL PIPE
M18X36 		1-09675-205-0 02 1 9606- ● ●
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE
W/2-BRKTS 		1-21112-523-1 01 1 9606- ●
270 NUT; UNION TO OIL PIPE
M14 		9-99111-414-0 01 1 9606- ● ●
271 BOLT; P/S OIL PIPE FIX
M6X12 W/LK WASHER 		0-50040-612-0 01 1 9606- ●
271 BOLT; P/S OIL PIPE FIX
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9606- ●
271 BOLT; P/S OIL PIPE FIX
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9606- ●
272 NUT; P/S OIL PIPE FIX
M8 		9-09110-408-0 01 1 9606- ●
272 NUT; P/S OIL PIPE FIX
M6 		9-09110-406-0 01 1 9606- ●
273 PIPE; OIL,P/S,UNION TO OIL TANK
(A) L=1207 		1-21112-432-1 01 1 9606- ●
273 PIPE; OIL,P/S,UNION TO OIL TANK
(B) L=895 		1-21112-474-0 01 1 9606- ●
273 PIPE; OIL,P/S,UNION TO OIL TANK
(C) L=790 		1-21112-522-0 01 1 9606- ●
280 HOSE; P/S OIL PUMP,INL
ID=17.6&21.8 L=170+210 		1-09360-683-0 01 1 9606- ●

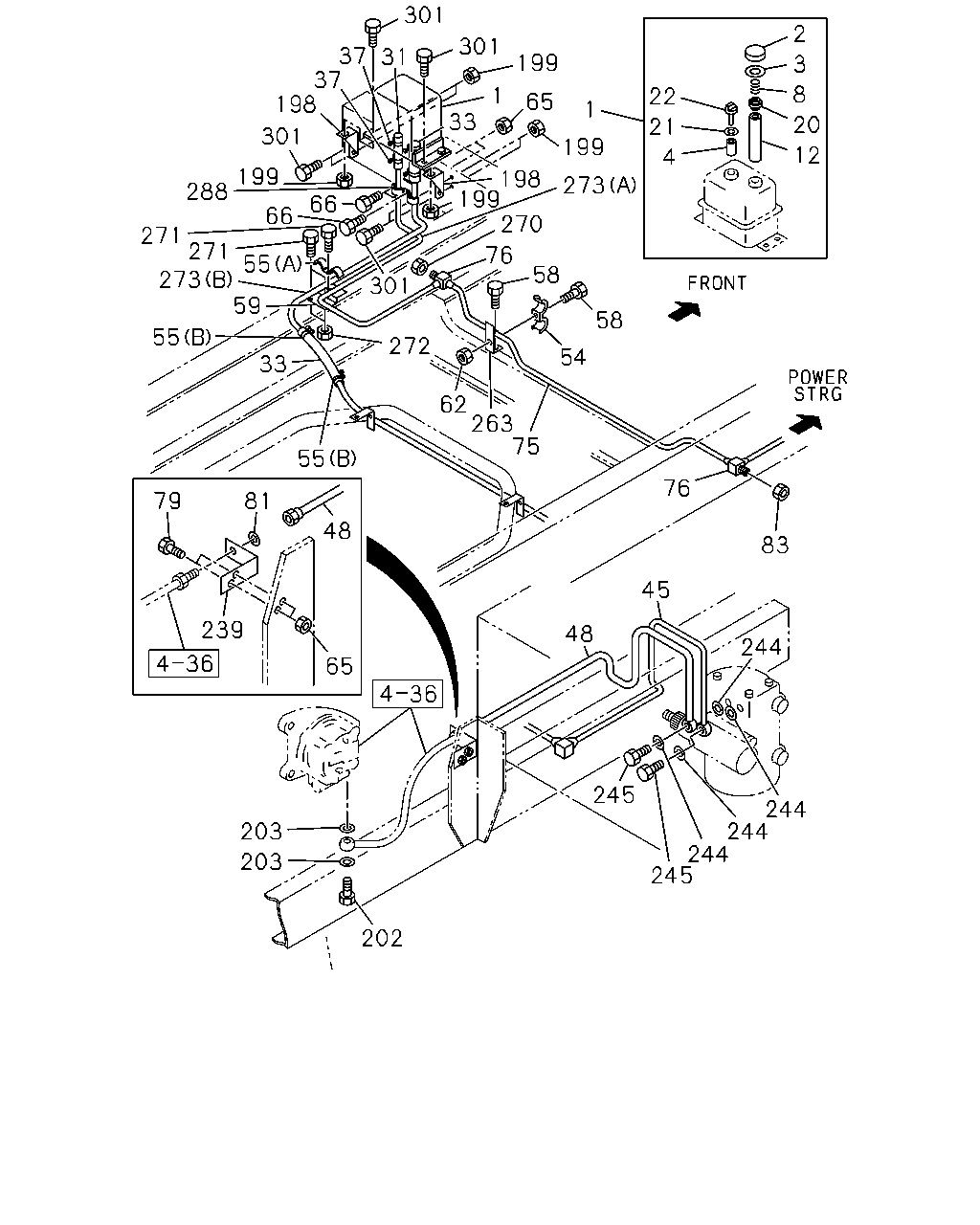

çizim 19831
301 2 301 37 37 198 31 199 3 8 1 22 65 1 33 198 270 20 21 301 199 12 4 199 273 288 66 66 271 271 273 59 76 55 58 301 58 55 272 33 54 62 263 75 55 76 79 81 48 83 45 239 48 244 65 245 244 244 244 245 203 203 202 199
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S 1-21210-177-2 01 1 9606- ●
1 TANK ASM; OIL,P/S 1-21210-156-2 01 1 9606- ●
2 CAP; OIL TANK,P/S 1-21241-009-0 01 1 9606- ● ●
3 GASKET; OIL TANK,P/S 1-09630-106-0 01 1 9606- ● ●
4 FILTER; OIL TANK,P/S 1-21231-002-0 01 1 9606- ● ●
8 SPRING; OIL TANK,P/S 1-09580-365-0 01 1 9606- ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-005-0 01 1 9606- ● ●
20 HOLDER; FILTER,OIL TANK,P/S 1-21239-005-0 01 1 9606- ● ●
21 GASKET; OIL GAUGE,P/S TANK 1-09630-095-1 01 1 9606- ● ●
22 GAUGE; OIL TANK,P/S 1-21240-001-1 01 1 9606- ● ●
31 HOSE; P/S OIL TANK,INL
L=80 		1-09360-601-0 01 1 9606- ●
33 HOSE; RUBBER,POWER STRG
L=80 		1-09360-624-0 01 1 9606- ●
33 HOSE; RUBBER,POWER STRG
L=240 L=240 		1-09360-625-1 01 1 9606- ●
37 CLIP; HOSE,P/S
ID=28 		9-09915-672-1 02 1 9606- ●
37 CLIP; HOSE,P/S
ID=32 		9-09915-692-1 02 1 9606- ●
45 PIPE; OIL,P/S UNIT TO UNION
L=1092 		1-21112-433-0 01 1 9606- ●
45 PIPE; OIL,P/S UNIT TO UNION
L=874 		1-21112-520-1 01 1 9606- ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT
L=581 		1-21112-369-1 01 1 9606- ●
54 CLIP; OIL PIPE
ID=23 & 16 L=25 & 20 		1-09700-613-0 01 1 9606- ●
54 CLIP; OIL PIPE
ID=16 		9-09525-533-0 01 1 9606- ●
54 CLIP; OIL PIPE
ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 9606- ●
55 CLIP; P/S RUBBER HOSE
(B) ID=38 		9-09915-666-1 04 1 9606- ●
55 CLIP; P/S RUBBER HOSE
(A) ID=23 & 16 L=25 & 20 		1-09700-613-0 01 1 9606- ● ●
58 BOLT; CLIP
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9606- ●
58 BOLT; CLIP
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9606- ●
58 BOLT; CLIP
M8X45 W/LK WASHER 		0-50040-845-0 01 1 9606- ●
59 BRACKET; CLIP,OIL PIPE 1-47475-264-0 01 1 9606- ●
59 BRACKET; CLIP,OIL PIPE 1-47469-012-0 01 1 9606- ●
62 NUT; CLIP FIX
M6 		9-09110-406-0 01 1 9606- ●
65 NUT; BRKT
M8 		9-09110-408-0 02 1 9606- ● ●
65 NUT; BRKT
M8 		9-09110-408-0 02 1 9606- ● ●
66 BOLT; BRKT,OIL PIPE
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9606- ●
66 BOLT; BRKT,OIL PIPE
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9606- ●
75 PIPE; OIL,P/S,UNION TO UNION
L=1035 		1-21112-170-0 01 1 9606- ●
75 PIPE; OIL,P/S,UNION TO UNION
L=1093 		1-21112-521-1 01 1 9606- ●
76 UNION; OIL PIPE
M22 		1-09650-172-1 01 1 9606- ● ●
76 UNION; OIL PIPE
M22 		1-09650-172-1 01 1 9606- ●
76 UNION; OIL PIPE
M20 ELBOW 		9-09235-112-1 01 1 9606- ●
76 UNION; OIL PIPE
M22 		9-09235-215-1 01 1 9606- ●
79 BOLT; BRKT
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9606- ● ●
79 BOLT; BRKT
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9606- ●
81 WASHER; LK,FLEX HOSE
ID=20.2 		9-09150-520-0 01 1 9606- ● ●
83 NUT; UNION,OIL PIPE
M14 		9-99111-414-0 01 1 9606- ●
83 NUT; UNION,OIL PIPE
M22 		9-09111-422-0 01 1 9606- ●
198 STAY; OIL TANK,POWER STEERING 1-21219-075-0 02 1 9606- ●
199 NUT; STAY,OIL TANK
M8 		9-09110-408-0 08 1 9606- ●
202 BOLT; EYE,OIL PIPE
M18X39 		1-09675-114-0 01 1 9606- ● ●
203 GASKET; EYE BOLT
ID=18.2 OD=24.4 		1-09630-087-0 02 1 9606- ● ●
239 BRACKET; FLEX HOSE 1-47475-657-0 01 1 9606- ● ●
244 GASKET; OIL PIPE,P/S
ID=18 		9-09571-418-0 04 1 9606- ● ●
245 BOLT; EYE,OIL PIPE
M18X36 		1-09675-205-0 02 1 9606- ● ●
263 BRACKET; P/S PIPE 1-47469-015-1 01 1 9606- ●
270 NUT; UNION TO OIL PIPE
M14 		9-99111-414-0 01 1 9606- ● ●
271 BOLT; P/S OIL PIPE FIX
M6X12 W/LK WASHER 		0-50040-612-0 01 1 9606- ●
271 BOLT; P/S OIL PIPE FIX
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9606- ●
271 BOLT; P/S OIL PIPE FIX
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9606- ●
272 NUT; P/S OIL PIPE FIX
M8 		9-09110-408-0 01 1 9606- ●
272 NUT; P/S OIL PIPE FIX
M6 		9-09110-406-0 01 1 9606- ●
273 PIPE; OIL,P/S,UNION TO OIL TANK
(A) L=1207 		1-21112-432-1 01 1 9606- ●
273 PIPE; OIL,P/S,UNION TO OIL TANK
(B) L=895 		1-21112-474-0 01 1 9606- ●
273 PIPE; OIL,P/S,UNION TO OIL TANK
(C) L=790 		1-21112-522-0 01 1 9606- ●
288 BRACKET; CLIP,P/S 1-47469-012-0 01 1 9606- ●
301 BOLT; STAY,OIL TANK
M8X25 W/LK WASHER 		0-50040-825-0 08 1 9606- ●
