Isuzu WW
▶
BUSES
▶
MV
▶
10857 - MV118
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-31 - STEERING COLUMN AND SHAFT
▶

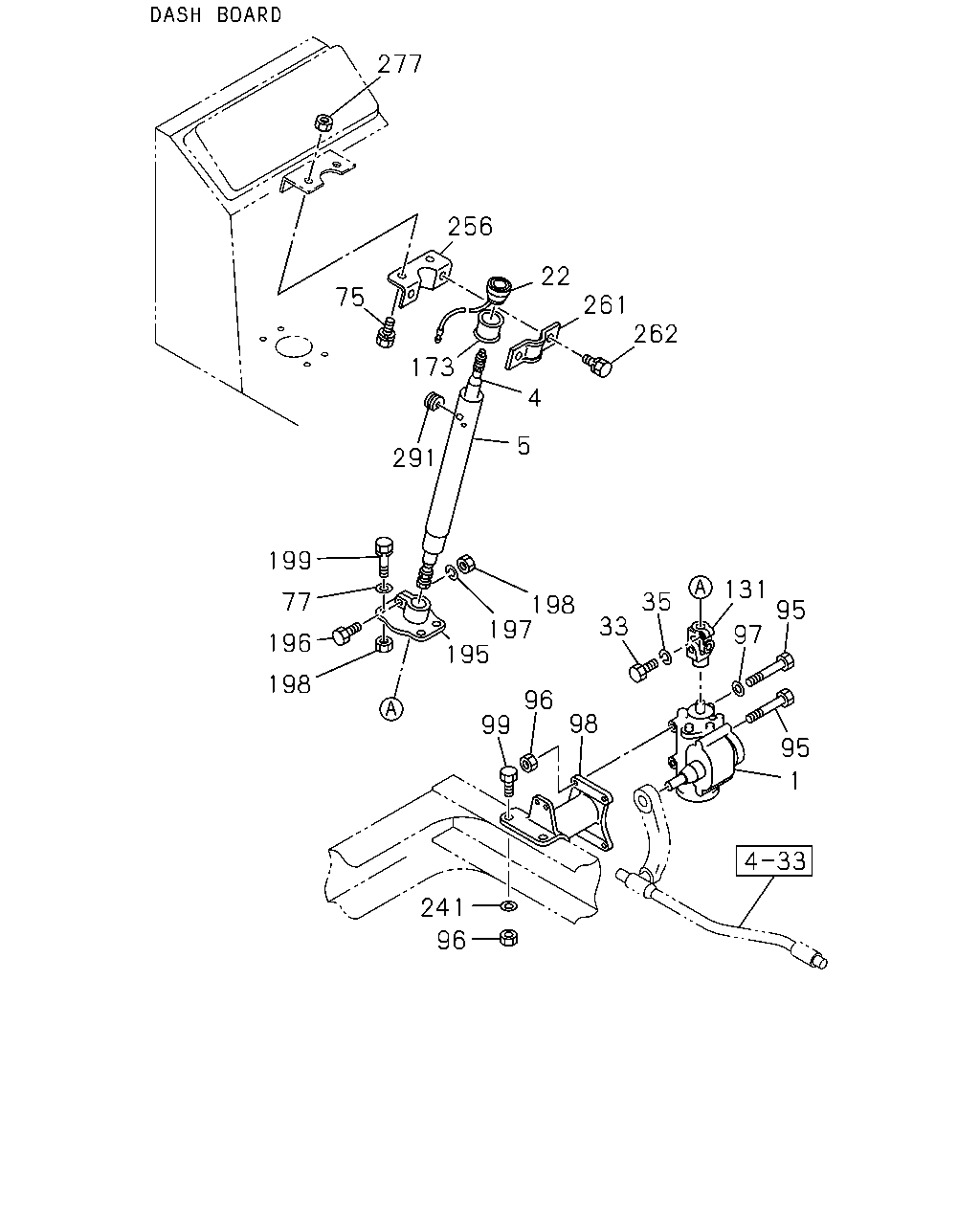

4-31 — STEERING COLUMN AND SHAFT
(#9123) — 31 parça
Tümü
A - MVR5FB
B - MVR6FB
277
256
22
75
261
262
173
4
5
291
199
131
35
77
198
197
195
95
33
97
196
198
96
98
99
95
1
241
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-836-0
01
1
9606-
●
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-837-0
01
1
9606-
●
4
SHAFT; STRG
8-94300-606-0
01
1
9606-
●
●
5
COLUMN; STRG
8-94300-607-0
01
1
9606-
●
●
22
BUSHING; STRG COLUMN
9-44133-031-0
01
1
9606-
●
●
33
BOLT; STRG SHAFT TO UNIT
M10X35
1-09009-126-1
02
1
9606-
●
●
35
WASHER; LK,STRG SHAFT
ID=10.2
9-09150-810-0
02
1
9606-
●
●
75
BOLT; STRG COLUMN
M10X20 W/LK WASHER
0-50041-020-0
02
1
9606-
●
●
77
WASHER; PL,COLUMN
ID=10.5 OD=18
9-09160-510-0
04
1
9606-
●
●
95
BOLT; STRG UNIT
M16X177
1-09000-426-0
02
1
9606-
●
●
95
BOLT; STRG UNIT
M16X163
1-09040-078-0
02
1
9606-
●
●
96
NUT; STRG UNIT
M14
9-99110-514-0
06
1
9606-
●
●
96
NUT; STRG UNIT
M16
9-99110-516-0
02
1
9606-
●
●
97
WASHER; PL,STRG UNIT
ID=16.2
1-09503-223-0
06
1
9606-
●
●
98
BRACKET; STRG GEAR BOX
1-44226-133-1
01
1
9606-
●
98
BRACKET; STRG GEAR BOX
1-44226-131-0
01
1
9606-
●
99
BOLT; BRKT TO FRAME
M14X50
9-91066-450-0
01
1
9606-
●
●
99
BOLT; BRKT TO FRAME
M14X45
9-92061-445-0
05
1
9606-
●
●
131
BRACKET; ANCHOR PIN
1-44135-106-1
01
1
9606-
●
●
173
SEAT; RUBBER,STRG COLUMN
9-44224-028-0
01
1
9606-
●
●
195
END; STRG COLUMN
1-44215-007-1
01
1
9606-
●
●
196
BOLT; COLUMN END
M10X55
0-10806-055-0
01
1
9606-
●
●
197
WASHER; LK,COLUMN END
ID=10.2
9-09150-510-0
01
1
9606-
●
●
198
NUT; COLUMN END
M10
9-09110-510-0
05
1
9606-
●
●
199
BOLT; COLUMN END TO PEDAL BOARD
M10X25 W/LK WASHER
0-50041-025-0
04
1
9606-
●
●
241
WASHER; PL
ID=15
9-09651-069-0
12
1
9606-
●
●
256
BRACKET ASM; STEERING COLUMN
9-44221-182-1
01
1
9606-
●
●
261
CAP; STRG COLUMN
9-44222-014-0
01
1
9606-
●
●
262
BOLT; CAP TO BRKT
M8X16 W/LK WASHER
0-50040-816-0
02
1
9606-
●
●
277
NUT; COLUMN BRKT
M10
9-09110-510-0
02
1
9606-
●
●
291
GROMMET; STRG SHAFT COVER
9-09956-575-0
01
1
9606-
●
●
