1 |

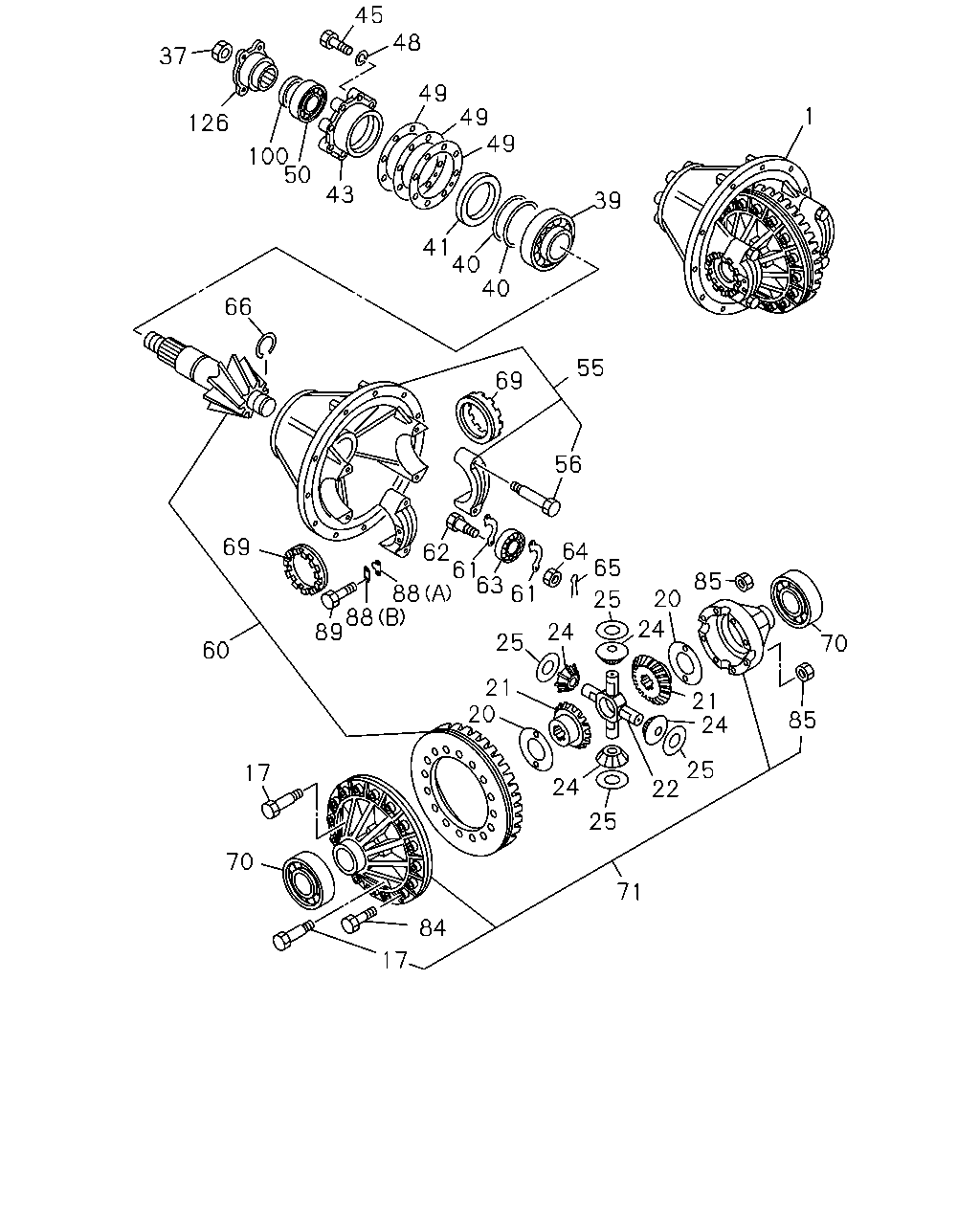

DRIVE ASM; FINAL,RR
|
1-41000-873-0 |
01 |
1 |
9606- |
| |
17 |
BOLT; DIFF CAGE SETTING
M16X125
|
1-09070-007-0 |
04 |
1 |
9606- |
| |
17 |
BOLT; DIFF CAGE SETTING
M16X113
|
1-09070-018-0 |
08 |
1 |
9606- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.8
|
1-41562-112-0 |
AR |
1 |
9606- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.9
|
1-41562-113-0 |
AR |
1 |
9606- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.0
|
1-41562-114-0 |
AR |
1 |
9606- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.1
|
1-41562-115-0 |
AR |
1 |
9606- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.2
|
1-41562-116-0 |
AR |
1 |
9606- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.3
|
1-41562-117-0 |
AR |
1 |
9606- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.4
|
1-41562-118-0 |
AR |
1 |
9606- |
| |
21 |
GEAR; SIDE,DIFF
Z=16
|
1-41561-086-0 |
02 |
1 |
9606- |
| |
22 |
PIN; CROSS,DIFF PINION
OD=35
|
1-41521-037-0 |
01 |
1 |
9606- |
| |
24 |
GEAR; PINION,DIFF
Z=10
|
1-41551-025-0 |
04 |
1 |
9606- |
| |
25 |
WASHER; THRUST,PINION
T=1.6
|
1-41552-017-0 |
04 |
1 |
9606- |
| |
37 |
NUT; DRIVING PINION
M46 FLANGE
|
1-09449-071-0 |
01 |
1 |
9606- |
| |
39 |
BEARING; FINAL PINION
NSK
|
1-09812-075-0 |
01 |
1 |
9606- |
| |
39 |
BEARING; FINAL PINION
KOYO
|
1-09812-076-1 |
01 |
1 |
9606- |
| |
40 |
SHIM; FINAL PINION
T=3.25
|
1-41229-245-0 |
AR |
1 |
9606- |
| |
40 |
SHIM; FINAL PINION
T=3.26
|
1-41229-246-0 |
AR |
1 |
9606- |
| |
40 |
SHIM; FINAL PINION
T=3.27
|
1-41229-247-0 |
AR |
1 |
9606- |
| |
40 |
SHIM; FINAL PINION
T=3.28
|
1-41229-248-0 |
AR |
1 |
9606- |
| |
40 |
SHIM; FINAL PINION
T=3.29
|
1-41229-249-0 |
AR |
1 |
9606- |
| |
40 |
SHIM; FINAL PINION
T=3.30
|
1-41229-250-0 |
AR |
1 |
9606- |
| |
40 |
SHIM; FINAL PINION
T=3.31
|
1-41229-251-0 |
AR |
1 |
9606- |
| |
40 |
SHIM; FINAL PINION
T=3.32
|
1-41229-252-0 |
AR |
1 |
9606- |
| |
40 |
SHIM; FINAL PINION
T=3.33
|
1-41229-253-0 |
AR |
1 |
9606- |
| |
40 |
SHIM; FINAL PINION
T=3.34
|
1-41229-254-0 |
AR |
1 |
9606- |
| |
40 |
SHIM; FINAL PINION
T=3.35
|
1-41229-255-0 |
AR |
1 |
9606- |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=7.60
|
1-41229-237-0 |
AR |
1 |
9606- |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=7.80
|
1-41229-238-0 |
AR |
1 |
9606- |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.00
|
1-41229-239-0 |
AR |
1 |
9606- |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.20
|
1-41229-240-0 |
AR |
1 |
9606- |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.40
|
1-41229-241-0 |
AR |
1 |
9606- |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.60
|
1-41229-242-0 |
AR |
1 |
9606- |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.80
|
1-41229-243-0 |
AR |
1 |
9606- |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=9.00
|
1-41229-244-0 |
AR |
1 |
9606- |
| |
43 |
CAGE; FINAL PINION
T=81
|
1-41151-030-0 |
01 |
1 |
9606- |
| |
45 |
BOLT; FINAL PINION CAGE
M16X55
|
0-16806-655-0 |
08 |
1 |
9606- |
| |
48 |
WASHER; LK,FINAL PINION
ID=16.2
|
9-09150-516-0 |
08 |
1 |
9606- |
| |
49 |
SHIM; FINAL PINION CAGE
T=0.50
|
1-41154-024-0 |
AR |
1 |
9606- |
| |
49 |
SHIM; FINAL PINION CAGE
T=1.00
|
1-41154-025-0 |
AR |
1 |
9606- |
| |
49 |
SHIM; FINAL PINION CAGE
T=0.30
|
1-41154-057-0 |
AR |
1 |
9606- |
| |
49 |
SHIM; FINAL PINION CAGE
T=0.40
|
1-41154-058-0 |
AR |
1 |
9606- |
| |
50 |
BEARING; FINAL PINION
NSK
|
1-09812-073-1 |
01 |
1 |
9606- |
| |
50 |
BEARING; FINAL PINION
KOYO
|
1-09812-074-1 |
01 |
1 |
9606- |
| |
55 |
CARRIER; DIFF
|
1-41110-109-0 |
01 |
1 |
9606- |
| |
56 |
BOLT; BRG CAP
M20X112
|
1-09070-042-0 |
04 |
1 |
9606- |
| |
60 |
GEAR SET; FINAL DRIVE,RR
41/8
|
1-41210-466-0 |
01 |
1 |
9606-9901 |
| |
60 |
GEAR SET; FINAL DRIVE,RR
41/8
|
1-41210-605-0 |
01 |
1 |
9902- |
| |
61 |
RETAINER; PILOT BRG,PINION
T=3.2
|
1-41227-012-0 |
02 |
1 |
9606- |
| |
62 |
BOLT; RET
M8X40 W/PIN HOLE
|
1-09042-038-1 |
02 |
1 |
9606- |
| |
63 |
BEARING; PINION PILOT
KOYO
|
1-09810-182-0 |
01 |
1 |
9606- |
| |
63 |
BEARING; PINION PILOT
NSK
|
1-09810-183-0 |
01 |
1 |
9606- |
| |
64 |
NUT; RET
M8
|
9-09117-408-0 |
02 |
1 |
9606-9707 |
| |
64 |
NUT; RET
M8 SLOTTED
|
9-09117-508-0 |
02 |
1 |
9708- |
| |
65 |
PIN; SPLIT,RET
|
9-08112-012-0 |
02 |
1 |
9606- |
| |
66 |
RING; SNAP,PILOT BRG
OD=37.2
|
1-09588-086-1 |
01 |
1 |
9606- |
| |
69 |
NUT; ADJ,DIFF CAGE
|
1-41121-002-0 |
01 |
1 |
9606- |
| |
69 |
NUT; ADJ,DIFF CAGE
|
1-41121-001-0 |
01 |
1 |
9606- |
| |
70 |
BEARING; DIFF CAGE
NSK ID=92 OD=152 T=39.7
|
1-09812-156-0 |
02 |
1 |
9606-9702 |
| |
70 |
BEARING; DIFF CAGE
KOYO ID=92 OD=152 T=39.7
|
1-09812-158-0 |
02 |
1 |
9606-9702 |
| |
70 |
BEARING; DIFF CAGE
KOYO ID=92 OD=152 T=40
|
1-09812-225-0 |
02 |
1 |
9703- |
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
|
1-41510-141-0 |
01 |
1 |
9606- |
| |
84 |
BOLT; FINAL DRIVE GEAR
M18X38 FLANGE
|
1-09009-049-1 |
16 |
1 |
9606- |
| |
85 |
NUT; DIFF CAGE SETTING
M16
|
9-99110-516-0 |
12 |
1 |
9606- |
| |
88 |
PLATE; LK,ADJ NUT
(A)
T=3.2
|
1-41124-006-0 |
02 |
1 |
9606- |
| |
88 |
PLATE; LK,ADJ NUT
(B)
T=1.0
|
9-41124-005-0 |
02 |
1 |
9606- |
| |
89 |
BOLT; LK PLATE
M8X16
|
0-20800-816-0 |
04 |
1 |
9606- |
| |
100 |
SEAL; OIL,FINAL PINION
NOK
|
1-09625-322-0 |
01 |
1 |
9606- |
| |
126 |
COUPLING; DRIVING PINION
|
1-37245-143-2 |
01 |
1 |
9606-9901 |
| |
126 |
COUPLING; DRIVING PINION
|
1-37245-265-2 |
01 |
1 |
9902- |
