◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MV ▶ 10857 - MV118 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#9119) — 34 parça

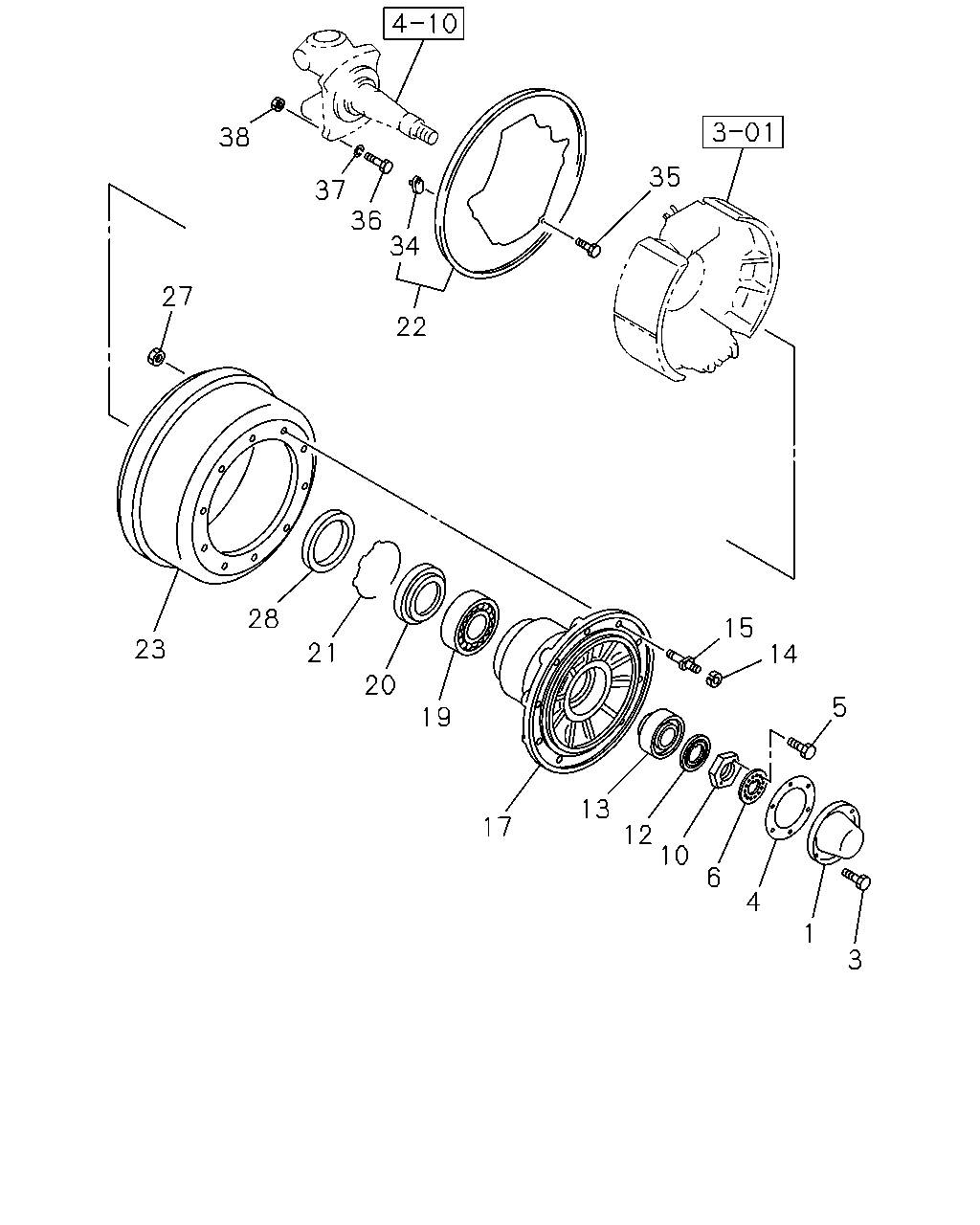

çizim 75225
38 35 37 36 34 27 22 28 15 23 21 14 20 5 19 13 17 12 10 6 4 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 9606- ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 9606- ● ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-029-0 02 1 9606-9906 ● ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-0 02 1 9907- ● ●
5 BOLT; LK WASHER
M6X16 W/LK WASHER 		0-50040-616-0 04 1 9606-9701 ● ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 04 1 9702- ● ●
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 9606- ● ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-3 02 1 9606- ● ●
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 9606- ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK 		1-09812-084-0 02 1 9606-9809 ● ●
13 BEARING; HUB OUTER,FRT AXLE
KOYO 		1-09812-234-0 02 1 9810- ● ●
13 BEARING; HUB OUTER,FRT AXLE
KOYO 		1-09812-085-0 02 1 9606-9809 ● ●
14 RING; SPR,FRT WHEEL
EXC. WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42339-025-1 20 1 9606-9704 ● ●
15 PIN; WHEEL,FRT AXLE
WHEEL 8STUD 7.50VX20 165-13(Q62) M20X37.5,M22X55.5 RH THREAD 		1-42331-047-0 08 1 9606- ● ●
15 PIN; WHEEL,FRT AXLE
WHEEL 8STUD 7.50VX20 165-13(Q62) M20X37.5 LH THREAD,M22X55.5 RH THREAD 		1-42332-047-0 08 1 9606- ● ●
15 PIN; WHEEL,FRT AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13(Q62) M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 9606- ● ●
17 HUB; FRT AXLE
WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42312-128-2 02 1 9606- ● ●
17 HUB; FRT AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42312-100-0 02 1 9606- ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK 		1-09812-142-0 02 1 9606-9809 ● ●
19 BEARING; HUB INNER,FRT AXLE
KOYO 		1-09812-143-0 02 1 9606-9809 ● ●
19 BEARING; HUB INNER,FRT AXLE
KOYO 		1-09812-231-0 02 1 9810- ● ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 9606- ● ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 9606- ● ●
22 COVER SET; FRT BRK DRUM 1-47151-459-1 AR 1 9606- ● ●
23 DRUM; BRK,FRT
WHEEL 8STUD 7.50VX20 165-13(Q62) H=195 		1-42315-208-2 02 1 9606- ● ●
23 DRUM; BRK,FRT
EXC. WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42315-218-4 02 1 9606- ● ●
27 NUT; WHEEL PIN,FRT AXLE
WHEEL 8STUD 7.50VX20 165-13(Q62) M22 		1-09400-037-0 16 1 9606- ● ●
27 NUT; WHEEL PIN,FRT AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13(Q62) M22 		1-09400-071-0 20 1 9606- ● ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 9606- ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 9606- ● ●
35 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 9606- ● ●
36 BOLT; BACK PLATE
M16X59 FLANGE 		1-09044-002-2 04 1 9606- ● ●
37 WASHER; LK,BACK PLATE
ID=16.2 		9-09150-816-0 04 1 9606- ● ●
38 NUT; BACK PLATE
M16 		9-99110-416-0 04 1 9606- ● ●
