◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51411 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#91182) — 47 parça

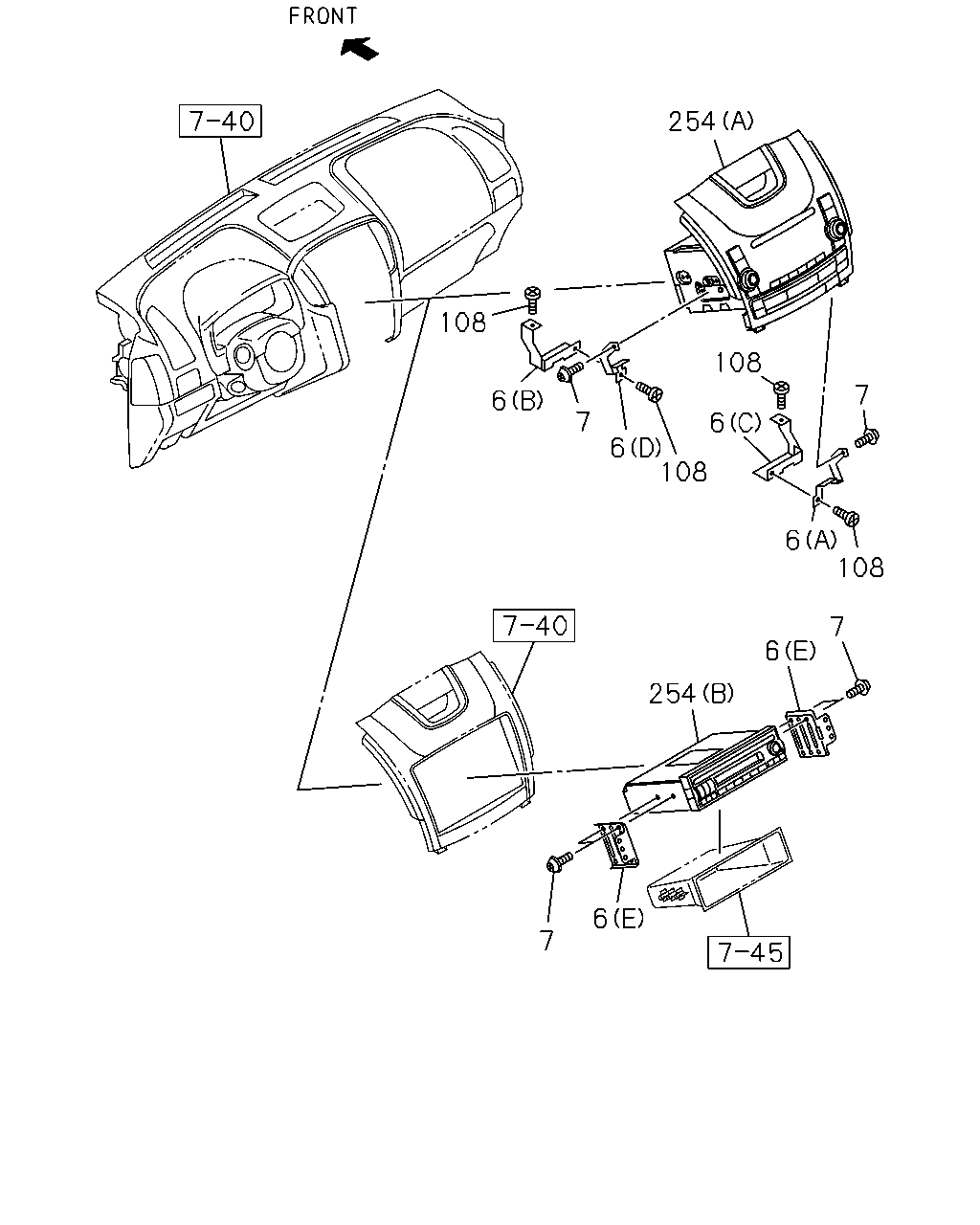

çizim 283440
108 6 254 108 6 7 108 6 7 6 108 7 6 254 6 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E
6 09.645 BRACKET; RADIO TO PANEL
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) (E) 		8-98102-188-2 02 1 1206- ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) (A) 		8-98102-186-2 01 1 1206- ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) (B) 		8-98102-187-3 01 1 1206- ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) (C) 		8-98106-390-3 01 1 1206- ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) (D) 		8-98109-822-2 01 1 1206- ● ● ●
7 09.650 SCREW; RADIO
RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 1206- ● ● ● ● ●
7 09.650 SCREW; RADIO
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 02 1 1206- ● ● ●
108 09.645 SCREW; BRKT
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) 08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1206- ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) EXC. ISRAEL EQUIPMENT(2G1),TUNER BAND LATIN AMERICA<7DM> (A) 		8-98052-935-3 01 1 1206- ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) EXC. TUNER BAND LATIN AMERICA<7DM> (A) 		8-98052-935-3 01 1 1206- ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
ISRAEL EQUIPMENT(2G1) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) EXC. TUNER BAND LATIN AMERICA<7DM> (A) 		8-98126-081-3 01 1 1206- ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO,SEEK/SCAN,CD, CLOCK(U1C) (B) 		8-98052-934-1 01 1 1206- ● ● ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN, RDS(UGQ) TUNER BAND LATIN AMERICA<7DM> (A) 		8-98111-454-1 01 1 1206- ● ● ●

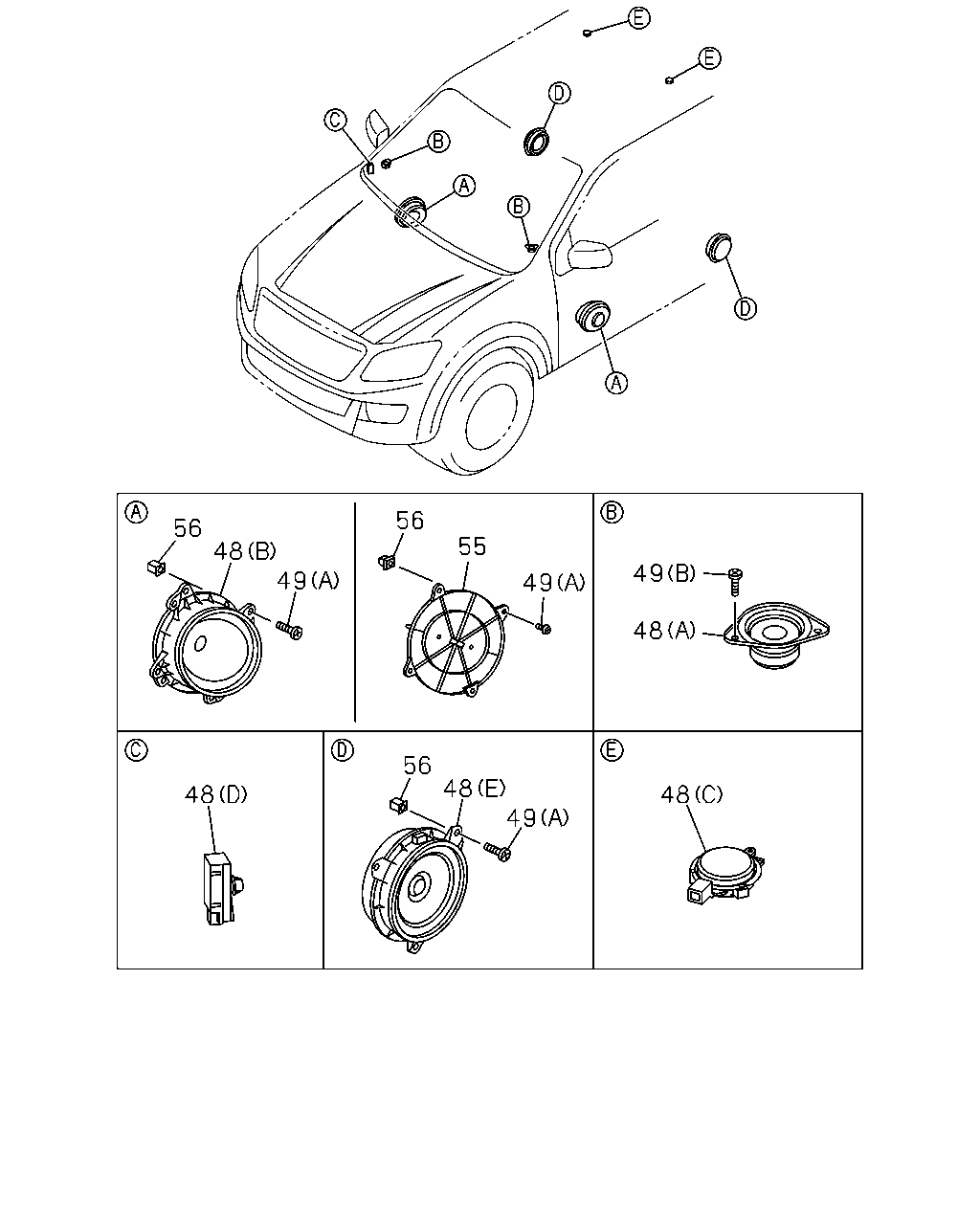

çizim 283443
56 48 49 56 55 49 49 48 48 49 48 56 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> (B) 		8-98052-937-0 02 1 1206- ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> (A) 		8-98052-940-0 02 1 1206- ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (E) 		8-98052-941-0 02 1 1206- ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6> (C) 		8-98052-942-0 02 1 1206- ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6> (D) 		8-98064-704-0 01 1 1206- ● ● ●
49 09.655 SCREW; SPEAKER
16.345 (A) M5X14 TAPPING 		8-98184-363-0 08 1 1206- ● ● ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> 08.083 (B) M5X16 TAPPING 		8-98167-449-0 04 1 1206- ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> 08.083 (B) M5X16 TAPPING 		8-98167-449-0 04 1 1206- ●
49 09.655 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> 16.345 (A) M5X14 TAPPING 		8-98184-363-0 06 1 1206- ● ●
55 09.650 COVER; SPEAKER HOLE
EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> 		8-98102-183-0 02 1 1206- ● ● ● ● ●
56 09.655 NUT; SPEAKER,RADIO OR STEREO 8-98163-895-0 08 1 1206- ● ● ● ● ●
56 09.655 NUT; SPEAKER,RADIO OR STEREO
6-SPEAKER SYSTEM BASE<UW5> 		8-98163-895-0 06 1 1206- ● ●

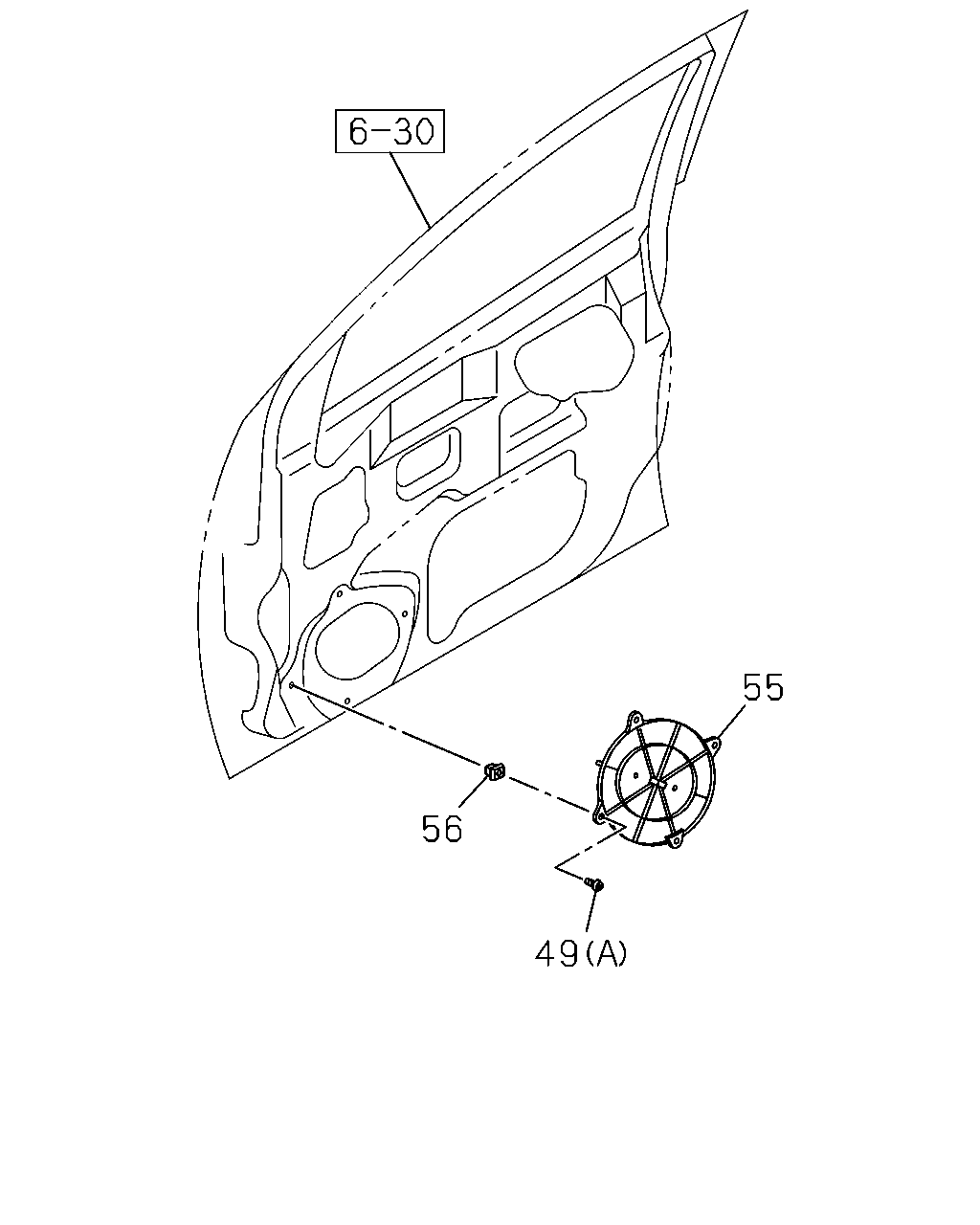

çizim 283677
49 55 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E
49 09.655 SCREW; SPEAKER
16.345 (A) M5X14 TAPPING 		8-98184-363-0 08 1 1206- ● ● ● ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> 08.083 (B) M5X16 TAPPING 		8-98167-449-0 04 1 1206- ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM CUSTOM<UW6> 08.083 (B) M5X16 TAPPING 		8-98167-449-0 04 1 1206- ●
49 09.655 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> 16.345 (A) M5X14 TAPPING 		8-98184-363-0 06 1 1206- ● ●
55 09.650 COVER; SPEAKER HOLE
EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> 		8-98102-183-0 02 1 1206- ● ● ● ● ●
56 09.655 NUT; SPEAKER,RADIO OR STEREO 8-98163-895-0 08 1 1206- ● ● ● ● ●
56 09.655 NUT; SPEAKER,RADIO OR STEREO
6-SPEAKER SYSTEM BASE<UW5> 		8-98163-895-0 06 1 1206- ● ●

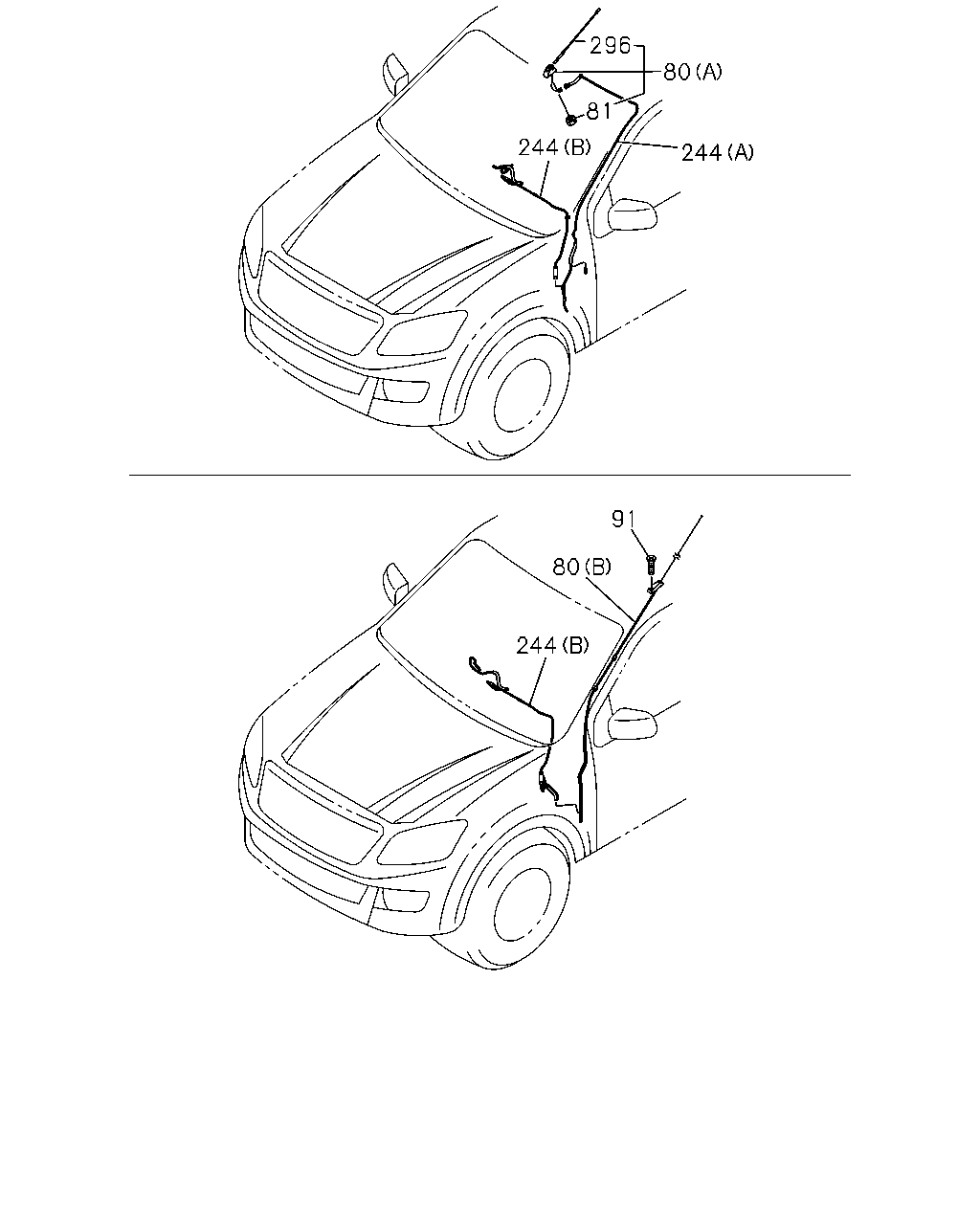

çizim 283678
244 80 91 244 80 296 81 244
BalonParca AdiParca NoAdetTipApplied Date A B C D E
80 09.645 ANTENNA
(B) 		8-98064-703-2 01 1 1206-1301 ● ●
80 09.645 ANTENNA
EXC. ROOF RADIO ANTENNA<U71> (B) 		8-98064-703-2 01 1 1206-1301 ● ● ●
80 09.645 ANTENNA
EXC. CONGO EQUIPMENT(CDF) (B) 		8-98064-703-2 01 1 1302- ● ●
80 09.645 ANTENNA
EXC. CONGO EQUIPMENT(CDF),ROOF RADIO ANTENNA<U71> (B) 		8-98064-703-2 01 1 1302- ● ●
80 09.645 ANTENNA
EXC. ROOF RADIO ANTENNA<U71> (B) 		8-98064-703-2 01 1 1302- ●
80 09.645 ANTENNA
ROOF RADIO ANTENNA<U71> (A) 		8-98053-048-0 01 1 1206- ● ● ●
81 09.647 NUT; ANTENNA POLE
ROOF RADIO ANTENNA<U71> 		8-98165-971-0 01 1 1206- ● ● ●
91 09.663 BOLT; ANTENNA
M5X16 		8-97375-569-0 02 1 1206-1301 ● ●
91 09.663 BOLT; ANTENNA
EXC. ROOF RADIO ANTENNA<U71> M5X16 		8-97375-569-0 02 1 1206-1301 ● ● ●
91 09.663 BOLT; ANTENNA
EXC. CONGO EQUIPMENT(CDF) M5X16 		8-97375-569-0 02 1 1302- ● ●
91 09.663 BOLT; ANTENNA
EXC. CONGO EQUIPMENT(CDF),ROOF RADIO ANTENNA<U71> M5X16 		8-97375-569-0 02 1 1302- ● ●
91 09.663 BOLT; ANTENNA
EXC. ROOF RADIO ANTENNA<U71> M5X16 		8-97375-569-0 02 1 1302- ●
244 09.647 CABLE; FEEDER
(B) 		8-98053-051-1 01 1 1206- ● ● ● ● ●
244 09.647 CABLE; FEEDER
ROOF RADIO ANTENNA<U71> (A) 		8-98063-228-0 01 1 1206- ● ● ●
296 09.665 ROD; ANTENNA
ROOF RADIO ANTENNA<U71> 		8-98165-969-0 01 1 1206- ● ● ●
