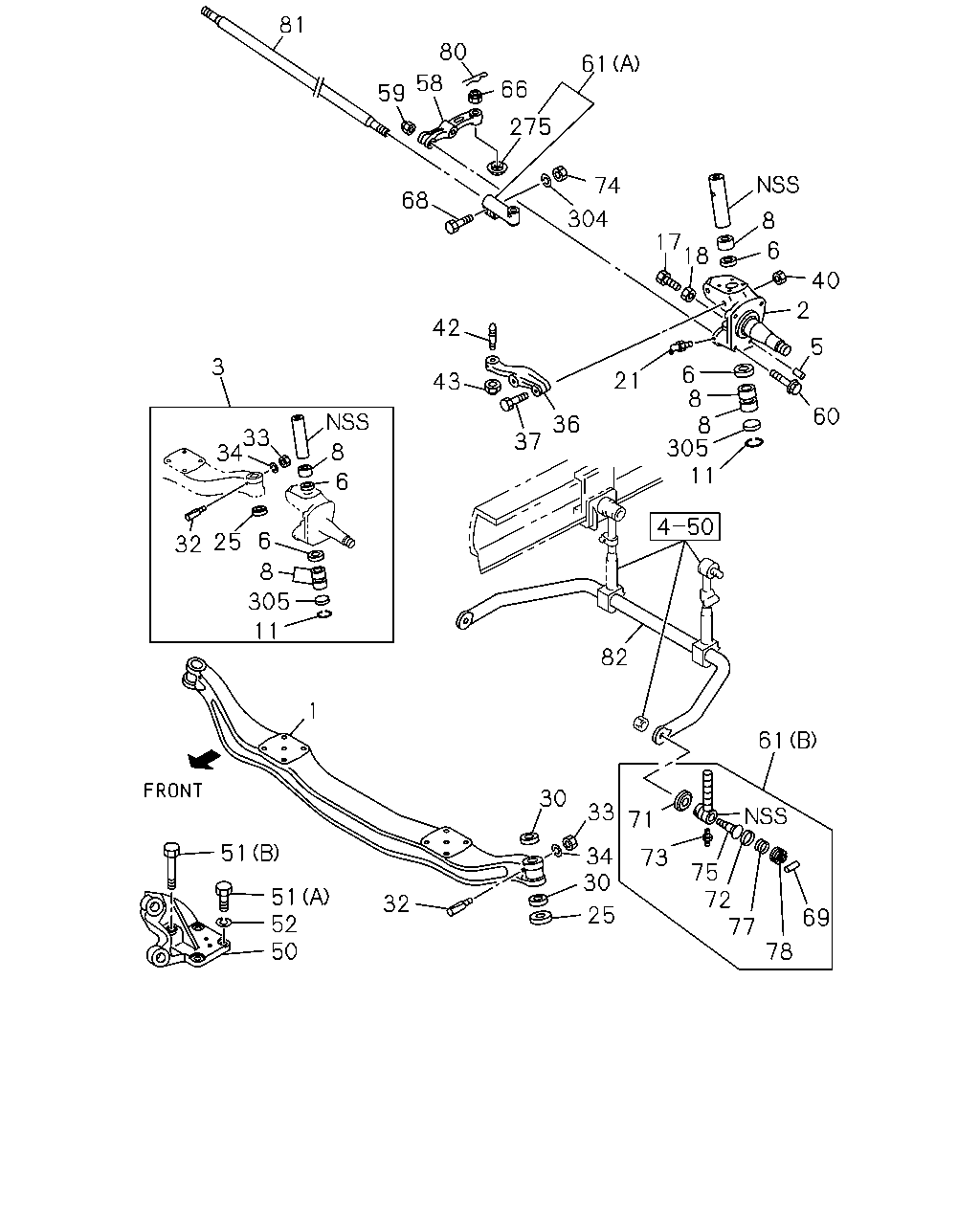

4-10 — FRONT AXLE (#9118) — 176 parça

81 80 61 58 66 59 275 74 68 304 8 17 18 6 40 2 42 5 3 6 8 8 305 11 21 43 60 36 33 34 37 8 6 6 25 32 8 305 11 82 1 61 30 33 71 51 34 30 73 75 72 77 51 52 50 32 25 69 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-051-5	01	1	9606-	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9606-	●	●
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9606-	●	●
3	KING PIN SET	1-87830-738-0	AR	1	9606-	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9606-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	9606-	●	●
8	BEARING; NEEDLE,KING PIN LOWER NTN	9-00096-242-0	04	1	9606-	●	●
8	BEARING; NEEDLE,KING PIN UPPER NTN	9-00096-243-0	02	1	9606-	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9606-	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9606-	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9606-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9606-9704	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	9705-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW	9-09031-210-0	02	1	9606-9704	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9606-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9606-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9606-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9606-	●	●
36	ARM; KNUCKLE	1-43133-028-3	01	1	9606-	●	●
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	9606-	●	●
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	9606-	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9606-	●	●
42	JOINT; BALL,KNUCKLE ARM	9-09881-092-3	01	1	9606-	●	●
43	NUT; JOINT BALL,KNUCKLE ARM M24	9-09844-669-2	01	1	9606-	●	●
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	9606-	●	●
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	9606-	●	●
51	BOLT; POWER CHAMBER BRKT (B) M12X60	0-10806-260-0	02	1	9606-0004	●	●
51	BOLT; POWER CHAMBER BRKT (B) M12X60 FLANGE	0-28081-260-0	02	1	0005-	●	●
51	BOLT; POWER CHAMBER BRKT (A) M12X28	0-20801-228-0	06	1	9606-0004	●	●
51	BOLT; POWER CHAMBER BRKT (A) M12X25 FLANGE	0-28681-225-0	06	1	0005-	●	●
52	WASHER; LK,POWER CHAMBER BRKT ID=12.2	9-09150-512-0	08	1	9606-0004	●	●
58	ARM; TIE ROD	1-43135-043-1	01	1	9606-	●	●
58	ARM; TIE ROD	1-43134-043-1	01	1	9606-	●	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9606-	●	●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	9606-	●	●
61	ROD END; TIE ROD (A)	1-43150-627-2	01	1	9606-9812	●	●
61	ROD END; TIE ROD (A)	1-43150-793-0	01	1	9901-0010	●	●
61	ROD END; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62) (A)	1-43150-793-0	01	1	0011-	●	●
61	ROD END; TIE ROD (A)	1-43150-626-2	01	1	9606-9812	●	●
61	ROD END; TIE ROD (A)	1-43150-792-0	01	1	9901-0010	●	●
61	ROD END; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62) (A)	1-43150-792-0	01	1	0011-	●	●
61	ROD END; TIE ROD EXC. STABILIZER SHAFT DELETE<C4L> (B) RH THREAD	1-43150-392-0	01	1	9606-9908	●	●
61	ROD END; TIE ROD EXC. STABILIZER SHAFT DELETE<C4L> (B) LH THREAD	1-43150-393-0	01	1	9606-9908	●	●
61	ROD END; TIE ROD EXC. STABILIZER SHAFT DELETE<C4L> (B) RH THREAD	1-43150-472-0	01	1	9909-	●	●
61	ROD END; TIE ROD EXC. STABILIZER SHAFT DELETE<C4L> (B) LH THREAD	1-43150-473-0	01	1	9909-	●	●
61	ROD END; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62) (C)	1-43150-436-1	01	1	0011-	●	●
61	ROD END; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62) (C)	1-43150-435-1	01	1	0011-	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9606-0010	●	●
66	NUT; TIE ROD END WHEEL 8STUD 7.50VX20 165-13(Q62) M24 SLOTTED	1-09442-020-0	02	1	0011-	●	●
66	NUT; TIE ROD END EXC. WHEEL 8STUD 7.50VX20 165-13(Q62) M24	9-09844-669-2	02	1	0011-	●	●
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9606-	●	●
69	PIN; SPLIT,TIE ROD END EXC. STABILIZER SHAFT DELETE<C4L> OD=2.8 L=55	9-08113-055-0	02	1	9606-	●	●
71	BOOT; TIE ROD END EXC. STABILIZER SHAFT DELETE<C4L> ID=20 & 32.5	1-43159-019-0	02	1	9606-9908	●	●
71	BOOT; TIE ROD END EXC. STABILIZER SHAFT DELETE<C4L> D=18.5,29	1-43159-036-0	02	1	9909-	●	●
71	BOOT; TIE ROD END EXC. WHEEL 8STUD 7.50VX20 165-13(Q62) ID=31 & 49	1-43159-038-0	02	1	0011-	●	●
72	SEAT; BALL,TIE ROD JOINT EXC. STABILIZER SHAFT DELETE<C4L>	1-44373-002-0	02	1	9606-	●	●
72	SEAT; BALL,TIE ROD JOINT EXC. WHEEL 8STUD 7.50VX20 165-13(Q62)	1-44371-012-1	04	1	0011-	●	●
73	NIPPLE; GREASE,TIE ROD END EXC. STABILIZER SHAFT DELETE<C4L> M6 STRAIGHT	9-09031-006-0	02	1	9606-	●	●
73	NIPPLE; GREASE,TIE ROD END EXC. WHEEL 8STUD 7.50VX20 165-13(Q62) PT1/8 STRAIGHT	9-09031-010-0	02	1	0011-	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9606-	●	●
75	JOINT; BALL,DRAG LINK EXC. STABILIZER SHAFT DELETE<C4L>	1-87090-211-0	02	1	9606-	●	●
75	JOINT; BALL,DRAG LINK EXC. WHEEL 8STUD 7.50VX20 165-13(Q62)	9-44361-169-3	02	1	0011-	●	●
77	SPRING; TIE ROD END EXC. STABILIZER SHAFT DELETE<C4L>	1-09580-080-0	02	1	9606-	●	●
77	SPRING; TIE ROD END EXC. WHEEL 8STUD 7.50VX20 165-13(Q62)	9-09941-272-0	02	1	0011-	●	●
78	PLUG; ADJ,ROD END EXC. STABILIZER SHAFT DELETE<C4L>	1-44375-001-0	02	1	9606-	●	●
78	PLUG; ADJ,ROD END EXC. WHEEL 8STUD 7.50VX20 165-13(Q62)	1-44375-014-0	02	1	0011-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9606-0010	●	●
80	PIN; SPLIT,ROD END WHEEL 8STUD 7.50VX20 165-13(Q62) OD=4.6 L=35	9-08115-035-0	02	1	0011-	●	●
81	ROD; TIE L=1648	9-43151-121-1	01	1	9606-	●	●
82	BAR; STAB,FRT SUSP EXC. STABILIZER SHAFT DELETE<C4L>	8-94300-423-0	01	1	9606-	●	●
275	BOOT; ROD END,TIE	1-43159-078-0	02	1	9606-9812	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	9901-0010	●	●
275	BOOT; ROD END,TIE WHEEL 8STUD 7.50VX20 165-13(Q62)	1-43159-107-0	02	1	0011-	●	●
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	9606-	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9606-	●	●

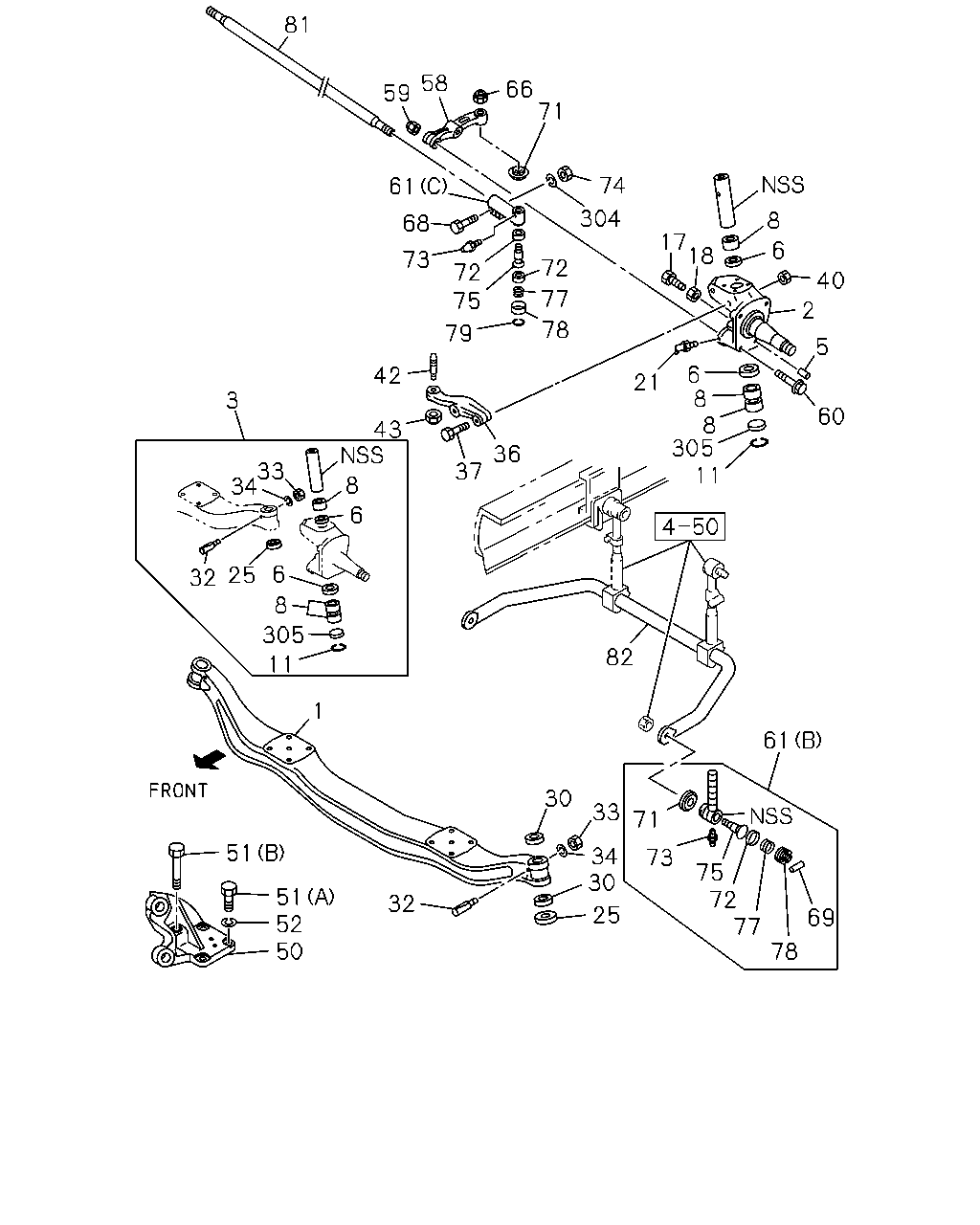

81 58 66 71 59 61 74 304 8 68 17 18 6 73 72 72 75 40 77 2 78 79 5 6 8 8 305 11 42 21 3 60 43 36 33 34 37 8 6 6 25 32 8 305 82 11 1 61 30 33 71 51 34 30 73 75 72 77 51 52 50 32 25 69 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-051-5	01	1	9606-	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9606-	●	●
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9606-	●	●
3	KING PIN SET	1-87830-738-0	AR	1	9606-	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9606-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	9606-	●	●
8	BEARING; NEEDLE,KING PIN LOWER NTN	9-00096-242-0	04	1	9606-	●	●
8	BEARING; NEEDLE,KING PIN UPPER NTN	9-00096-243-0	02	1	9606-	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9606-	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9606-	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9606-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9606-9704	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5?	9-09031-110-0	04	1	9705-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW	9-09031-210-0	02	1	9606-9704	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9606-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9606-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9606-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9606-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9606-	●	●
36	ARM; KNUCKLE	1-43133-028-3	01	1	9606-	●	●
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	9606-	●	●
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	9606-	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9606-	●	●
42	JOINT; BALL,KNUCKLE ARM	9-09881-092-3	01	1	9606-	●	●
43	NUT; JOINT BALL,KNUCKLE ARM M24	9-09844-669-2	01	1	9606-	●	●
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	9606-	●	●
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	9606-	●	●
51	BOLT; POWER CHAMBER BRKT (B) M12X60	0-10806-260-0	02	1	9606-0004	●	●
51	BOLT; POWER CHAMBER BRKT (B) M12X60 FLANGE	0-28081-260-0	02	1	0005-	●	●
51	BOLT; POWER CHAMBER BRKT (A) M12X28	0-20801-228-0	06	1	9606-0004	●	●
51	BOLT; POWER CHAMBER BRKT (A) M12X25 FLANGE	0-28681-225-0	06	1	0005-	●	●
52	WASHER; LK,POWER CHAMBER BRKT ID=12.2	9-09150-512-0	08	1	9606-0004	●	●
58	ARM; TIE ROD	1-43135-043-1	01	1	9606-	●	●
58	ARM; TIE ROD	1-43134-043-1	01	1	9606-	●	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9606-	●	●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	9606-	●	●
61	ROD END; TIE ROD (A)	1-43150-627-2	01	1	9606-9812	●	●
61	ROD END; TIE ROD (A)	1-43150-793-0	01	1	9901-0010	●	●
61	ROD END; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62) (A)	1-43150-793-0	01	1	0011-	●	●
61	ROD END; TIE ROD (A)	1-43150-626-2	01	1	9606-9812	●	●
61	ROD END; TIE ROD (A)	1-43150-792-0	01	1	9901-0010	●	●
61	ROD END; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62) (A)	1-43150-792-0	01	1	0011-	●	●
61	ROD END; TIE ROD EXC. STABILIZER SHAFT DELETE<C4L> (B) RH THREAD	1-43150-392-0	01	1	9606-9908	●	●
61	ROD END; TIE ROD EXC. STABILIZER SHAFT DELETE<C4L> (B) LH THREAD	1-43150-393-0	01	1	9606-9908	●	●
61	ROD END; TIE ROD EXC. STABILIZER SHAFT DELETE<C4L> (B) RH THREAD	1-43150-472-0	01	1	9909-	●	●
61	ROD END; TIE ROD EXC. STABILIZER SHAFT DELETE<C4L> (B) LH THREAD	1-43150-473-0	01	1	9909-	●	●
61	ROD END; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62) (C)	1-43150-436-1	01	1	0011-	●	●
61	ROD END; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62) (C)	1-43150-435-1	01	1	0011-	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9606-0010	●	●
66	NUT; TIE ROD END WHEEL 8STUD 7.50VX20 165-13(Q62) M24 SLOTTED	1-09442-020-0	02	1	0011-	●	●
66	NUT; TIE ROD END EXC. WHEEL 8STUD 7.50VX20 165-13(Q62) M24	9-09844-669-2	02	1	0011-	●	●
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9606-	●	●
69	PIN; SPLIT,TIE ROD END EXC. STABILIZER SHAFT DELETE<C4L> OD=2.8 L=55	9-08113-055-0	02	1	9606-	●	●
71	BOOT; TIE ROD END EXC. STABILIZER SHAFT DELETE<C4L> ID=20 & 32.5	1-43159-019-0	02	1	9606-9908	●	●
71	BOOT; TIE ROD END EXC. STABILIZER SHAFT DELETE<C4L> D=18.5,29	1-43159-036-0	02	1	9909-	●	●
71	BOOT; TIE ROD END EXC. WHEEL 8STUD 7.50VX20 165-13(Q62) ID=31 & 49	1-43159-038-0	02	1	0011-	●	●
72	SEAT; BALL,TIE ROD JOINT EXC. STABILIZER SHAFT DELETE<C4L>	1-44373-002-0	02	1	9606-	●	●
72	SEAT; BALL,TIE ROD JOINT EXC. WHEEL 8STUD 7.50VX20 165-13(Q62)	1-44371-012-1	04	1	0011-	●	●
73	NIPPLE; GREASE,TIE ROD END EXC. STABILIZER SHAFT DELETE<C4L> M6 STRAIGHT	9-09031-006-0	02	1	9606-	●	●
73	NIPPLE; GREASE,TIE ROD END EXC. WHEEL 8STUD 7.50VX20 165-13(Q62) PT1/8 STRAIGHT	9-09031-010-0	02	1	0011-	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9606-	●	●
75	JOINT; BALL,DRAG LINK EXC. STABILIZER SHAFT DELETE<C4L>	1-87090-211-0	02	1	9606-	●	●
75	JOINT; BALL,DRAG LINK EXC. WHEEL 8STUD 7.50VX20 165-13(Q62)	9-44361-169-3	02	1	0011-	●	●
77	SPRING; TIE ROD END EXC. STABILIZER SHAFT DELETE<C4L>	1-09580-080-0	02	1	9606-	●	●
77	SPRING; TIE ROD END EXC. WHEEL 8STUD 7.50VX20 165-13(Q62)	9-09941-272-0	02	1	0011-	●	●
78	PLUG; ADJ,ROD END EXC. STABILIZER SHAFT DELETE<C4L>	1-44375-001-0	02	1	9606-	●	●
78	PLUG; ADJ,ROD END EXC. WHEEL 8STUD 7.50VX20 165-13(Q62)	1-44375-014-0	02	1	0011-	●	●
79	RING; SNAP,ADJ PLUG EXC. WHEEL 8STUD 7.50VX20 165-13(Q62)	1-09589-006-0	02	1	0011-	●	●
81	ROD; TIE L=1648	9-43151-121-1	01	1	9606-	●	●
82	BAR; STAB,FRT SUSP EXC. STABILIZER SHAFT DELETE<C4L>	8-94300-423-0	01	1	9606-	●	●
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	9606-	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9606-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
