Sayfa 8-71 - Isuzu EPC

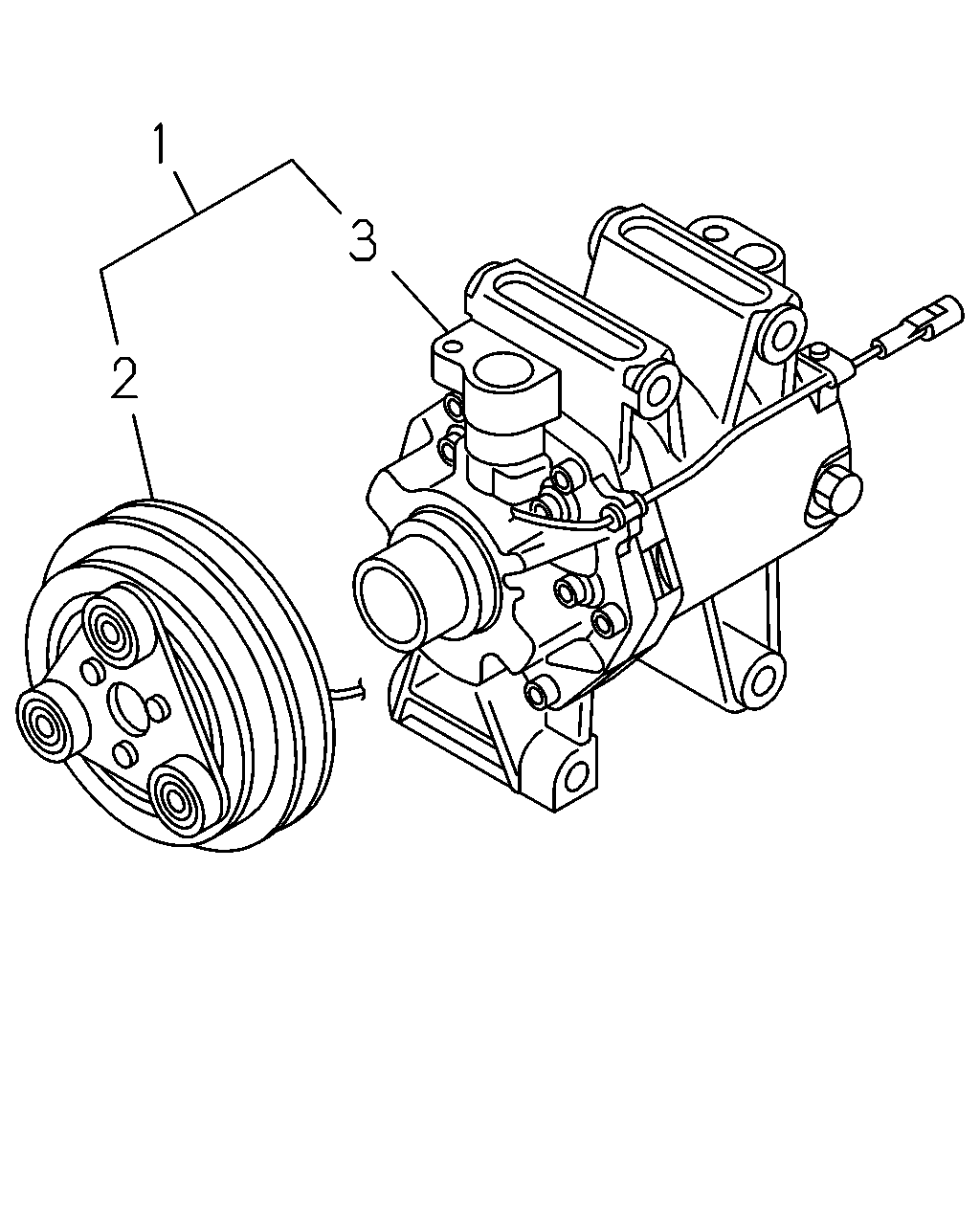

8-71 — COMPRESSOR; AIR CONDITIONING (#91178) — 8 parça

3 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98102-824-1	01	1	1206-	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98200-246-1	01	1	1206-	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98139-936-1	01	1	1206-	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-97371-580-0	01	1	1206-1402	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98258-537-0	01	1	1403-	●	●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98139-935-1	01	1	1206-	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98204-877-0	01	1	1206-1402	●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98258-536-0	01	1	1403-	●	●
