8-65 — CONTROL LEVER; HEATER AND AIR CON (#91177) — 73 parça

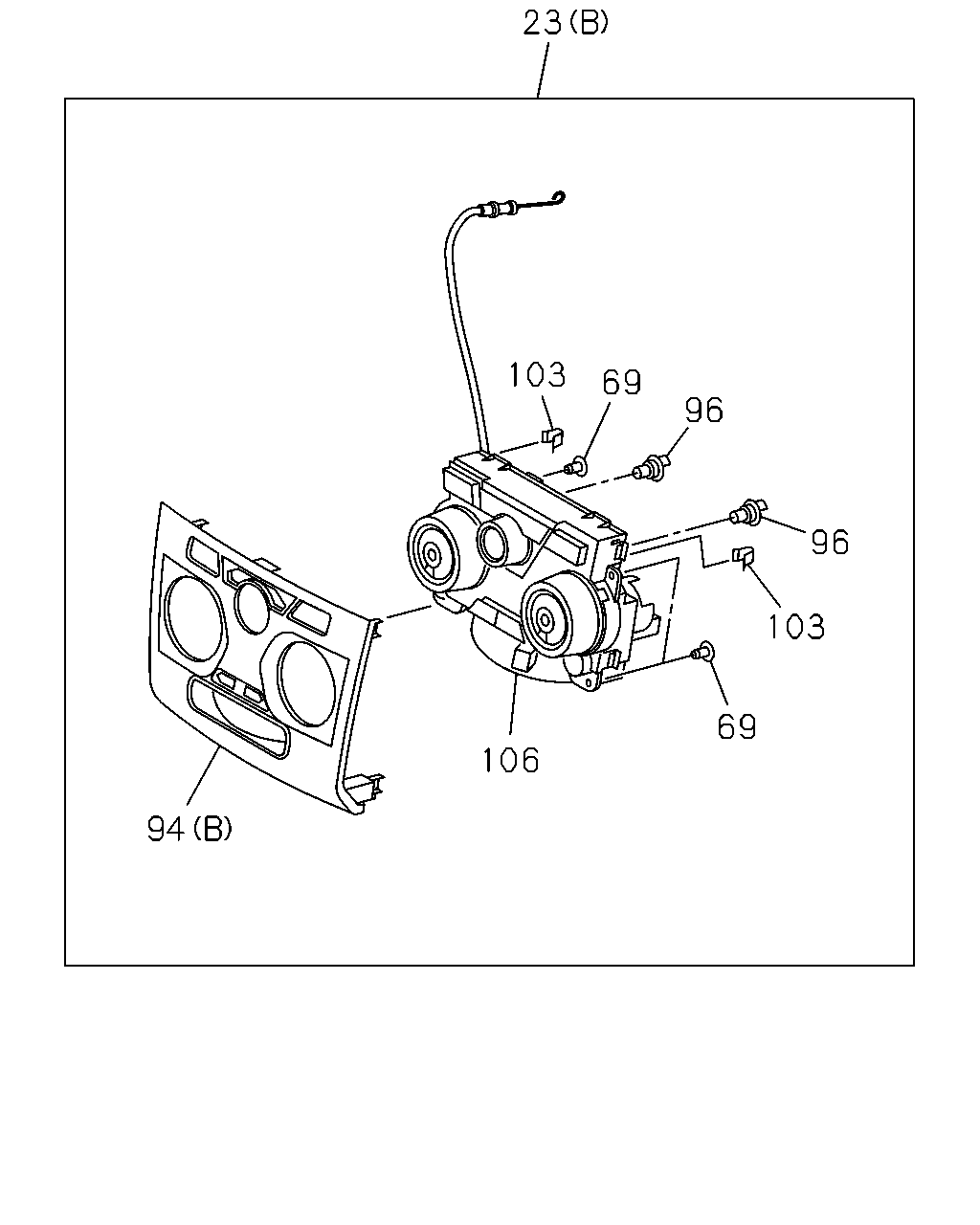

çizim 283427
94 106 69 103 96 96 69 103 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98129-548-5 01 1 1206- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (B) 		8-98120-135-3 01 1 1206- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98120-135-3 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98120-137-4 01 1 1206- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98120-137-4 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER W/FRESH AIR(C65) (B) 		8-98120-136-3 01 1 1206- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98120-136-3 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (B) 		8-98120-144-4 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (B) 		8-98120-141-3 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98120-146-4 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) (B) 		8-98120-145-4 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (B) 		8-98120-143-4 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR(C65) EXC. REAR DEFOGGER<C49> (B) 		8-98120-142-3 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98120-138-4 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98120-140-4 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98120-139-4 01 1 1206- ● ● ●
69 08.852 SCREW; BEZEL BRKT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) M4X10 TAPPING 		8-98164-986-0 04 1 1206- ● ● ●
69 08.852 SCREW; BEZEL BRKT
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42),COOLER W/FRESHAIR(C65) REAR DEFOGGER<C49> M4X10 TAPPING 		8-98164-986-0 04 1 1206- ● ●
69 08.852 SCREW; BEZEL BRKT
REAR DEFOGGER<C49> HEATER & DEFROSTER(C42),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9> M4X10 TAPPING 		8-98164-986-0 04 1 1206- ● ●
69 08.852 SCREW; BEZEL BRKT
HEATER & DEFROSTER(C42),COOLER W/FRESHAIR(C65) EXC. REAR DEFOGGER<C49> M4X10 TAPPING 		8-98164-986-0 04 1 1206- ● ●
69 08.852 SCREW; BEZEL BRKT
AIR CONDITIONER MANUAL CONT(C60) M4X10 TAPPING 		8-98164-986-0 04 1 1206- ● ●
94 08.849 PANEL; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (B) 		8-98164-669-0 01 1 1206- ● ● ● ● ●
94 08.849 PANEL; BEZEL
REAR DEFOGGER<C49> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98141-789-0 01 1 1206- ● ●
96 08.852 BULB ASM; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98156-188-0 02 1 1206- ● ● ● ● ●
103 08.854 CLIP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 16.165 		8-98164-677-0 04 1 1206- ● ● ●
103 08.854 CLIP
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42),COOLER W/FRESHAIR(C65) REAR DEFOGGER<C49> 16.165 		8-98164-677-0 04 1 1206- ● ●
103 08.854 CLIP
REAR DEFOGGER<C49> HEATER & DEFROSTER(C42),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9> 16.165 		8-98164-677-0 04 1 1206- ● ●
103 08.854 CLIP
HEATER & DEFROSTER(C42),COOLER W/FRESHAIR(C65) EXC. REAR DEFOGGER<C49> 16.165 		8-98164-677-0 04 1 1206- ● ●
103 08.854 CLIP
AIR CONDITIONER MANUAL CONT(C60) 16.165 		8-98164-677-0 04 1 1206- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) 		8-98156-897-0 01 1 1206- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> 		8-98156-897-0 01 1 1206- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98156-899-0 01 1 1206- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> 		8-98156-899-0 01 1 1206- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
COOLER W/FRESH AIR(C65) 		8-98156-898-0 01 1 1206- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> 		8-98156-898-0 01 1 1206- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> 		8-98156-906-0 01 1 1206- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> 		8-98156-903-0 01 1 1206- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) 		8-98156-908-0 01 1 1206- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) 		8-98156-907-0 01 1 1206- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> 		8-98156-905-0 01 1 1206- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR(C65) EXC. REAR DEFOGGER<C49> 		8-98156-904-0 01 1 1206- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98156-900-0 01 1 1206- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98156-902-0 01 1 1206- ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98156-901-0 01 1 1206- ● ● ●

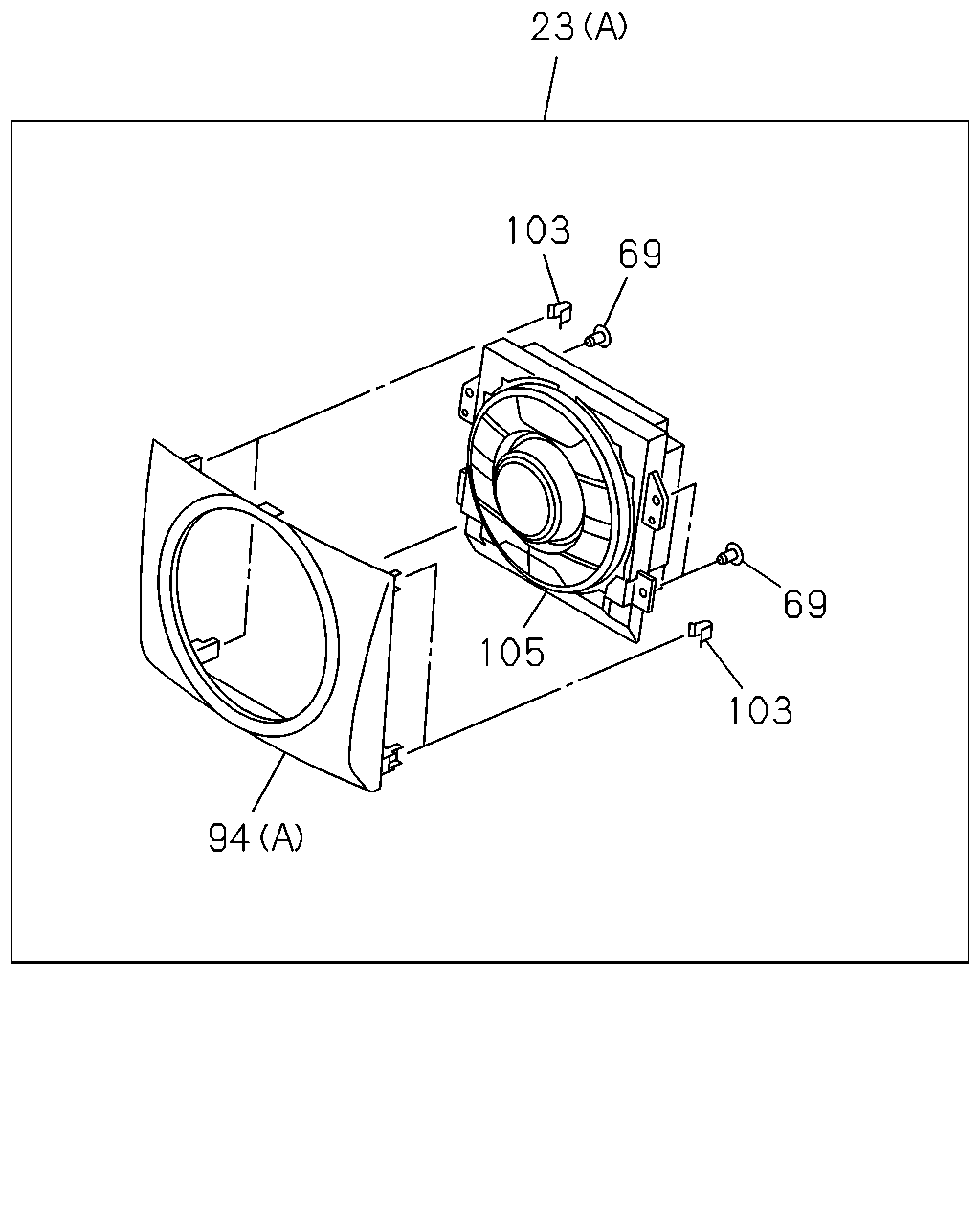

çizim 283673
103 69 105 94 69 103 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98129-548-5 01 1 1206- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) (B) 		8-98120-135-3 01 1 1206- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98120-135-3 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98120-137-4 01 1 1206- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98120-137-4 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER W/FRESH AIR(C65) (B) 		8-98120-136-3 01 1 1206- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (B) 		8-98120-136-3 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (B) 		8-98120-144-4 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (B) 		8-98120-141-3 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98120-146-4 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) (B) 		8-98120-145-4 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (B) 		8-98120-143-4 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR(C65) EXC. REAR DEFOGGER<C49> (B) 		8-98120-142-3 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98120-138-4 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98120-140-4 01 1 1206- ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9> (B) 		8-98120-139-4 01 1 1206- ● ● ●
69 08.852 SCREW; BEZEL BRKT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) M4X10 TAPPING 		8-98164-986-0 04 1 1206- ● ● ●
69 08.852 SCREW; BEZEL BRKT
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42),COOLER W/FRESHAIR(C65) REAR DEFOGGER<C49> M4X10 TAPPING 		8-98164-986-0 04 1 1206- ● ●
69 08.852 SCREW; BEZEL BRKT
REAR DEFOGGER<C49> HEATER & DEFROSTER(C42),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9> M4X10 TAPPING 		8-98164-986-0 04 1 1206- ● ●
69 08.852 SCREW; BEZEL BRKT
HEATER & DEFROSTER(C42),COOLER W/FRESHAIR(C65) EXC. REAR DEFOGGER<C49> M4X10 TAPPING 		8-98164-986-0 04 1 1206- ● ●
69 08.852 SCREW; BEZEL BRKT
AIR CONDITIONER MANUAL CONT(C60) M4X10 TAPPING 		8-98164-986-0 04 1 1206- ● ●
94 08.849 PANEL; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (B) 		8-98164-669-0 01 1 1206- ● ● ● ● ●
94 08.849 PANEL; BEZEL
REAR DEFOGGER<C49> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> (A) 		8-98141-789-0 01 1 1206- ● ●
103 08.854 CLIP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 16.165 		8-98164-677-0 04 1 1206- ● ● ●
103 08.854 CLIP
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42),COOLER W/FRESHAIR(C65) REAR DEFOGGER<C49> 16.165 		8-98164-677-0 04 1 1206- ● ●
103 08.854 CLIP
REAR DEFOGGER<C49> HEATER & DEFROSTER(C42),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9> 16.165 		8-98164-677-0 04 1 1206- ● ●
103 08.854 CLIP
HEATER & DEFROSTER(C42),COOLER W/FRESHAIR(C65) EXC. REAR DEFOGGER<C49> 16.165 		8-98164-677-0 04 1 1206- ● ●
103 08.854 CLIP
AIR CONDITIONER MANUAL CONT(C60) 16.165 		8-98164-677-0 04 1 1206- ● ●
105 08.852 SWITCH ASM; A/C
REAR DEFOGGER<C49> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98164-679-0 01 1 1206- ● ●
