◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51411 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#91176) — 614 parça

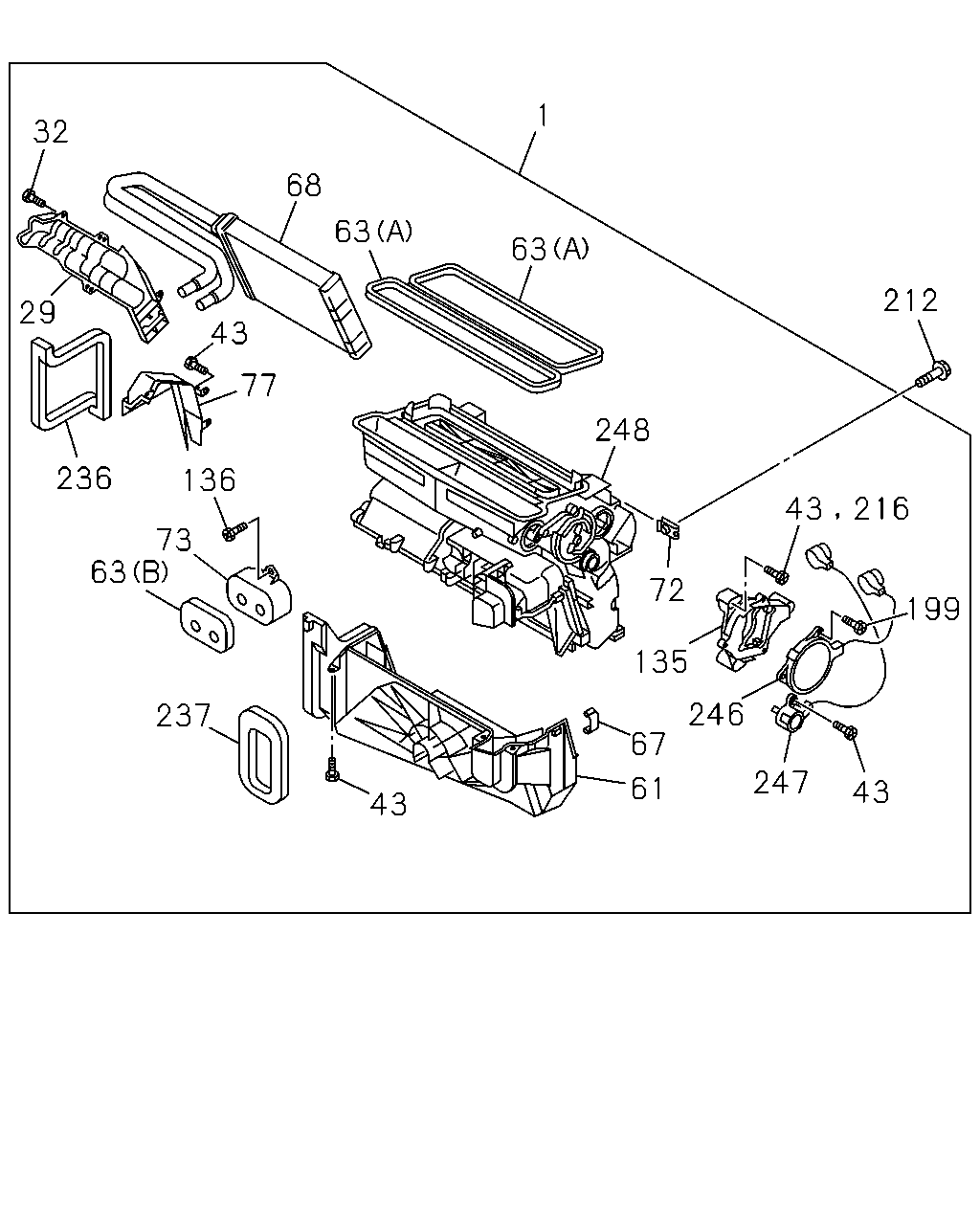

çizim 283429
43 247 61 135 43 199 216 72 212 248 63 1 63 68 77 43 136 73 63 237 236 29 32 43 67 246
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-202-0 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-202-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-203-0 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-203-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-201-0 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-201-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-209-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-037-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-210-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-038-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-211-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-039-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-204-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-032-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) 		8-98052-627-4 01 1 1206-1209 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98052-627-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-627-4 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-627-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98052-628-4 01 1 1206-1209 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98052-628-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-628-4 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-628-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) 		8-98052-626-3 01 1 1206-1209 ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 		8-98052-626-3 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-626-3 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-626-3 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98103-554-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98103-554-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98103-555-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98103-555-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98103-557-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98103-557-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-023-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-023-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98052-629-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-629-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-016-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-016-1 01 1 1301- ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-353-0 01 1 1206-1212 ● ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-590-0 01 1 1301- ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-395-0 04 1 1206-1212 ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-593-0 04 1 1301- ● ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98139-395-0 23 1 1206-1212 ● ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 18 1 1301- ● ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98139-395-0 21 1 1206-1212 ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-0 21 1 1206-1212 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98165-407-0 01 1 1206-1212 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-582-0 01 1 1301- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98165-406-0 01 1 1206-1212 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98233-581-0 01 1 1301- ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98139-358-1 02 1 1206- ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98139-361-1 01 1 1206- ● ● ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) (A) 		8-98139-358-1 01 1 1206- ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-1 01 1 1206- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) (B) 		8-98157-118-1 01 1 1206- ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> (B) 		8-98157-118-1 01 1 1206- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98157-123-0 01 1 1206-1212 ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98157-123-0 01 1 1206-1212 ● ●
67 08.854 CLIP; HTR UNIT
EXC. REAR HEATER DUCT<S8C> 		8-98157-123-0 01 1 1206-1212 ● ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1301- ● ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-374-0 01 1 1206- ● ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-394-0 03 1 1206-1212 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-394-0 03 1 1206-1212 ● ●
72 08.845 NUT; CASE,HTR UNIT
EXC. REAR HEATER DUCT<S8C> 		8-98139-394-0 03 1 1206-1212 ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1301- ● ● ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-355-0 01 1 1206-1212 ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-355-0 01 1 1206-1212 ● ●
73 08.845 PLATE; HTR UNIT
EXC. REAR HEATER DUCT<S8C> 		8-98139-355-0 01 1 1206-1212 ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1301- ● ● ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98165-415-0 01 1 1206-1212 ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98165-415-0 01 1 1206-1212 ● ●
77 08.857 COVER; HTR CASE
EXC. REAR HEATER DUCT<S8C> 		8-98165-415-0 01 1 1206-1212 ● ●
77 08.857 COVER; HTR CASE 8-98233-589-0 01 1 1301- ● ● ● ● ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-377-0 01 1 1206-1212 ● ● ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-377-0 01 1 1206-1212 ● ●
135 08.854 COVER; HTR
EXC. REAR HEATER DUCT<S8C> 		8-98139-377-0 01 1 1206-1212 ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1301- ● ● ● ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 08.852 		8-98139-395-0 02 1 1206-1212 ● ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 08.852 		8-98139-395-0 02 1 1206-1212 ● ●
136 08.850 SCREW; PLATE
EXC. REAR HEATER DUCT<S8C> 08.852 		8-98139-395-0 02 1 1206-1212 ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1301- ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98233-593-0 04 1 1301- ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 08.852 		8-98139-395-0 03 1 1206-1212 ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 05 1 1301- ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-0 04 1 1206-1212 ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) 08.852 		8-98233-593-0 03 1 1301- ● ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1301- ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1206- ● ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
08.852 		8-98233-593-0 03 1 1301- ● ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-357-0 01 1 1206-1212 ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-357-0 01 1 1206-1212 ● ●
236 08.855 GASKET; HEATER
EXC. REAR HEATER DUCT<S8C> 		8-98139-357-0 01 1 1206-1212 ● ●
236 08.855 GASKET; HEATER 8-98139-357-1 01 1 1301- ● ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-360-0 01 1 1206-1212 ● ● ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-360-0 01 1 1206-1212 ● ●
237 08.855 INSULATOR; EVAPORATOR
EXC. REAR HEATER DUCT<S8C> 		8-98139-360-0 01 1 1206-1212 ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1301- ● ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98157-124-2 01 1 1206-1212 ● ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98157-124-2 01 1 1301- ● ● ● ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) 		8-98139-397-1 01 1 1206- ● ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 		8-98139-397-1 01 1 1206- ● ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-398-1 01 1 1206-1212 ● ● ● ● ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-398-1 01 1 1301- ● ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98193-550-0 01 1 1206-1212 ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98193-550-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-575-0 01 1 1301- ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98233-575-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98193-551-0 01 1 1206-1212 ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98193-551-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-576-0 01 1 1301- ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98233-576-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98193-549-0 01 1 1206-1212 ● ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 		8-98193-549-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98233-574-0 01 1 1301- ● ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 		8-98233-574-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98193-553-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-578-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98193-554-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-579-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98194-089-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-580-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98193-552-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-577-0 01 1 1301- ● ●

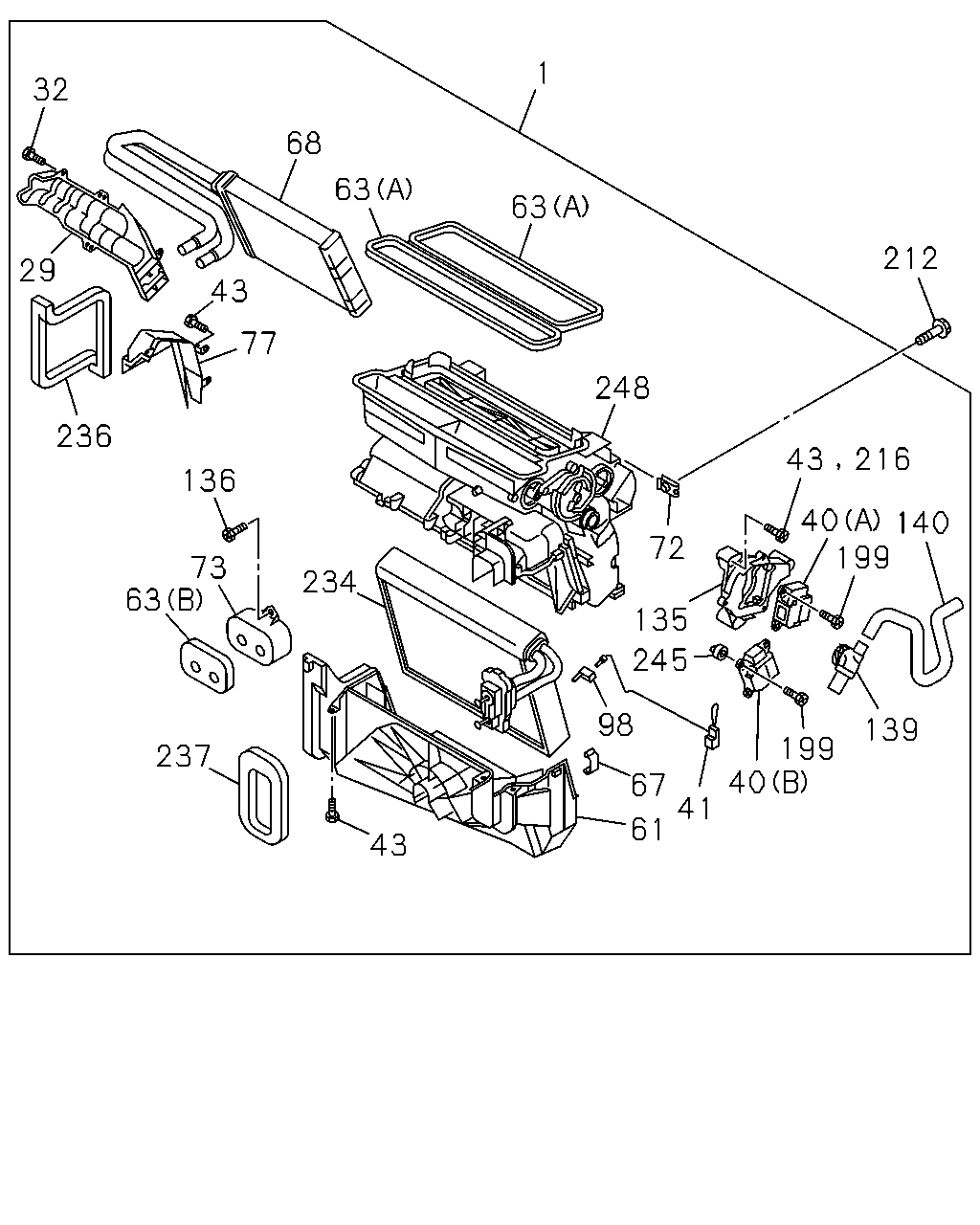

çizim 283431
32 29 236 136 63 237 73 234 43 63 77 68 43 63 98 67 61 41 40 245 135 72 248 43 216 140 40 199 139 199 212 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-202-0 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-202-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-203-0 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-203-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-201-0 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-201-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-209-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-037-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-210-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-038-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-211-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-039-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-204-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-032-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) 		8-98052-627-4 01 1 1206-1209 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98052-627-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-627-4 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-627-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98052-628-4 01 1 1206-1209 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98052-628-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-628-4 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-628-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) 		8-98052-626-3 01 1 1206-1209 ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 		8-98052-626-3 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-626-3 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-626-3 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98103-554-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98103-554-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98103-555-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98103-555-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98103-557-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98103-557-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-023-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-023-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98052-629-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-629-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-016-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-016-1 01 1 1301- ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-353-0 01 1 1206-1212 ● ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-590-0 01 1 1301- ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-395-0 04 1 1206-1212 ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-593-0 04 1 1301- ● ● ● ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98139-385-0 01 1 1206- ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98139-386-0 01 1 1206- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1206- ● ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98157-121-0 01 1 1206- ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 		8-98157-121-0 01 1 1206- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-382-0 01 1 1206- ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98139-395-0 23 1 1206-1212 ● ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 18 1 1301- ● ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98139-395-0 21 1 1206-1212 ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-0 21 1 1206-1212 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98165-407-0 01 1 1206-1212 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-582-0 01 1 1301- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98165-406-0 01 1 1206-1212 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98233-581-0 01 1 1301- ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98139-358-1 02 1 1206- ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98139-361-1 01 1 1206- ● ● ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) (A) 		8-98139-358-1 01 1 1206- ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-1 01 1 1206- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) (B) 		8-98157-118-1 01 1 1206- ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> (B) 		8-98157-118-1 01 1 1206- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98157-123-0 01 1 1206-1212 ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98157-123-0 01 1 1206-1212 ● ●
67 08.854 CLIP; HTR UNIT
EXC. REAR HEATER DUCT<S8C> 		8-98157-123-0 01 1 1206-1212 ● ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1301- ● ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-374-0 01 1 1206- ● ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-394-0 03 1 1206-1212 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-394-0 03 1 1206-1212 ● ●
72 08.845 NUT; CASE,HTR UNIT
EXC. REAR HEATER DUCT<S8C> 		8-98139-394-0 03 1 1206-1212 ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1301- ● ● ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-355-0 01 1 1206-1212 ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-355-0 01 1 1206-1212 ● ●
73 08.845 PLATE; HTR UNIT
EXC. REAR HEATER DUCT<S8C> 		8-98139-355-0 01 1 1206-1212 ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1301- ● ● ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98165-415-0 01 1 1206-1212 ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98165-415-0 01 1 1206-1212 ● ●
77 08.857 COVER; HTR CASE
EXC. REAR HEATER DUCT<S8C> 		8-98165-415-0 01 1 1206-1212 ● ●
77 08.857 COVER; HTR CASE 8-98233-589-0 01 1 1301- ● ● ● ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98157-122-0 01 1 1206- ● ● ● ● ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-377-0 01 1 1206-1212 ● ● ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-377-0 01 1 1206-1212 ● ●
135 08.854 COVER; HTR
EXC. REAR HEATER DUCT<S8C> 		8-98139-377-0 01 1 1206-1212 ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1301- ● ● ● ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 08.852 		8-98139-395-0 02 1 1206-1212 ● ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 08.852 		8-98139-395-0 02 1 1206-1212 ● ●
136 08.850 SCREW; PLATE
EXC. REAR HEATER DUCT<S8C> 08.852 		8-98139-395-0 02 1 1206-1212 ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1301- ● ● ● ● ●
139 08.845 ASPIRATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-392-1 01 1 1206- ● ●
140 08.845 HOSE; AIR
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98165-408-0 01 1 1206- ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98233-593-0 04 1 1301- ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 08.852 		8-98139-395-0 03 1 1206-1212 ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 05 1 1301- ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-0 04 1 1206-1212 ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) 08.852 		8-98233-593-0 03 1 1301- ● ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1301- ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1206- ● ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
08.852 		8-98233-593-0 03 1 1301- ● ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98139-376-1 01 1 1206- ● ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-357-0 01 1 1206-1212 ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-357-0 01 1 1206-1212 ● ●
236 08.855 GASKET; HEATER
EXC. REAR HEATER DUCT<S8C> 		8-98139-357-0 01 1 1206-1212 ● ●
236 08.855 GASKET; HEATER 8-98139-357-1 01 1 1301- ● ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-360-0 01 1 1206-1212 ● ● ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-360-0 01 1 1206-1212 ● ●
237 08.855 INSULATOR; EVAPORATOR
EXC. REAR HEATER DUCT<S8C> 		8-98139-360-0 01 1 1206-1212 ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1301- ● ● ● ● ●
245 08.854 ADAPTER; HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-390-0 01 1 1206- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98193-550-0 01 1 1206-1212 ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98193-550-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-575-0 01 1 1301- ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98233-575-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98193-551-0 01 1 1206-1212 ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98193-551-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-576-0 01 1 1301- ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98233-576-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98193-549-0 01 1 1206-1212 ● ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 		8-98193-549-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98233-574-0 01 1 1301- ● ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 		8-98233-574-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98193-553-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-578-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98193-554-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-579-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98194-089-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-580-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98193-552-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-577-0 01 1 1301- ● ●

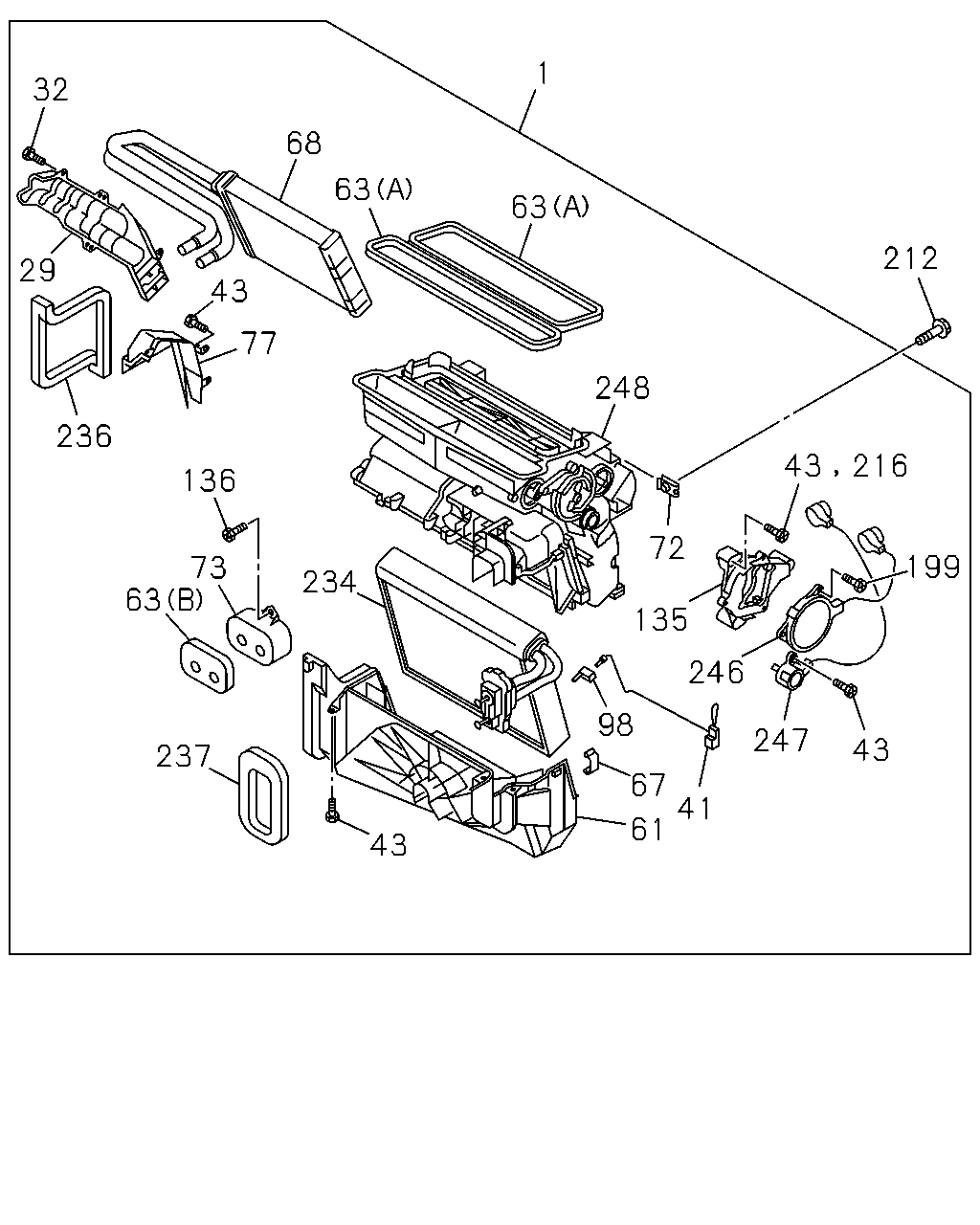

çizim 283432
1 63 212 63 68 43 43 216 199 43 246 247 41 67 61 98 248 234 43 237 63 136 29 77 72 135 236 32 73
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-202-0 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-202-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-203-0 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-203-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-201-0 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-201-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-209-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-037-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-210-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-038-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-211-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-039-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-204-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-032-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) 		8-98052-627-4 01 1 1206-1209 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98052-627-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-627-4 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-627-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98052-628-4 01 1 1206-1209 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98052-628-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-628-4 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-628-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) 		8-98052-626-3 01 1 1206-1209 ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 		8-98052-626-3 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-626-3 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-626-3 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98103-554-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98103-554-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98103-555-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98103-555-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98103-557-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98103-557-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-023-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-023-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98052-629-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-629-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-016-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-016-1 01 1 1301- ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-353-0 01 1 1206-1212 ● ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-590-0 01 1 1301- ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-395-0 04 1 1206-1212 ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-593-0 04 1 1301- ● ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1206- ● ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98157-121-0 01 1 1206- ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 		8-98157-121-0 01 1 1206- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-382-0 01 1 1206- ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98139-395-0 23 1 1206-1212 ● ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 18 1 1301- ● ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98139-395-0 21 1 1206-1212 ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-0 21 1 1206-1212 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98165-407-0 01 1 1206-1212 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-582-0 01 1 1301- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98165-406-0 01 1 1206-1212 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98233-581-0 01 1 1301- ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98139-358-1 02 1 1206- ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98139-361-1 01 1 1206- ● ● ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) (A) 		8-98139-358-1 01 1 1206- ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-1 01 1 1206- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) (B) 		8-98157-118-1 01 1 1206- ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> (B) 		8-98157-118-1 01 1 1206- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98157-123-0 01 1 1206-1212 ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98157-123-0 01 1 1206-1212 ● ●
67 08.854 CLIP; HTR UNIT
EXC. REAR HEATER DUCT<S8C> 		8-98157-123-0 01 1 1206-1212 ● ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1301- ● ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-374-0 01 1 1206- ● ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-394-0 03 1 1206-1212 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-394-0 03 1 1206-1212 ● ●
72 08.845 NUT; CASE,HTR UNIT
EXC. REAR HEATER DUCT<S8C> 		8-98139-394-0 03 1 1206-1212 ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1301- ● ● ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-355-0 01 1 1206-1212 ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-355-0 01 1 1206-1212 ● ●
73 08.845 PLATE; HTR UNIT
EXC. REAR HEATER DUCT<S8C> 		8-98139-355-0 01 1 1206-1212 ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1301- ● ● ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98165-415-0 01 1 1206-1212 ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98165-415-0 01 1 1206-1212 ● ●
77 08.857 COVER; HTR CASE
EXC. REAR HEATER DUCT<S8C> 		8-98165-415-0 01 1 1206-1212 ● ●
77 08.857 COVER; HTR CASE 8-98233-589-0 01 1 1301- ● ● ● ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98157-122-0 01 1 1206- ● ● ● ● ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-377-0 01 1 1206-1212 ● ● ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-377-0 01 1 1206-1212 ● ●
135 08.854 COVER; HTR
EXC. REAR HEATER DUCT<S8C> 		8-98139-377-0 01 1 1206-1212 ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1301- ● ● ● ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 08.852 		8-98139-395-0 02 1 1206-1212 ● ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 08.852 		8-98139-395-0 02 1 1206-1212 ● ●
136 08.850 SCREW; PLATE
EXC. REAR HEATER DUCT<S8C> 08.852 		8-98139-395-0 02 1 1206-1212 ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1301- ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98233-593-0 04 1 1301- ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 08.852 		8-98139-395-0 03 1 1206-1212 ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 05 1 1301- ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-0 04 1 1206-1212 ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) 08.852 		8-98233-593-0 03 1 1301- ● ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1301- ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1206- ● ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
08.852 		8-98233-593-0 03 1 1301- ● ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98139-376-1 01 1 1206- ● ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-357-0 01 1 1206-1212 ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-357-0 01 1 1206-1212 ● ●
236 08.855 GASKET; HEATER
EXC. REAR HEATER DUCT<S8C> 		8-98139-357-0 01 1 1206-1212 ● ●
236 08.855 GASKET; HEATER 8-98139-357-1 01 1 1301- ● ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-360-0 01 1 1206-1212 ● ● ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-360-0 01 1 1206-1212 ● ●
237 08.855 INSULATOR; EVAPORATOR
EXC. REAR HEATER DUCT<S8C> 		8-98139-360-0 01 1 1206-1212 ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1301- ● ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98157-124-2 01 1 1206-1212 ● ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98157-124-2 01 1 1301- ● ● ● ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) 		8-98139-397-1 01 1 1206- ● ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 		8-98139-397-1 01 1 1206- ● ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-398-1 01 1 1206-1212 ● ● ● ● ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-398-1 01 1 1301- ● ● ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98193-550-0 01 1 1206-1212 ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98193-550-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-575-0 01 1 1301- ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98233-575-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98193-551-0 01 1 1206-1212 ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98193-551-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-576-0 01 1 1301- ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98233-576-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98193-549-0 01 1 1206-1212 ● ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 		8-98193-549-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98233-574-0 01 1 1301- ● ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 		8-98233-574-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98193-553-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-578-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98193-554-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-579-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98194-089-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-580-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98193-552-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-577-0 01 1 1301- ● ●

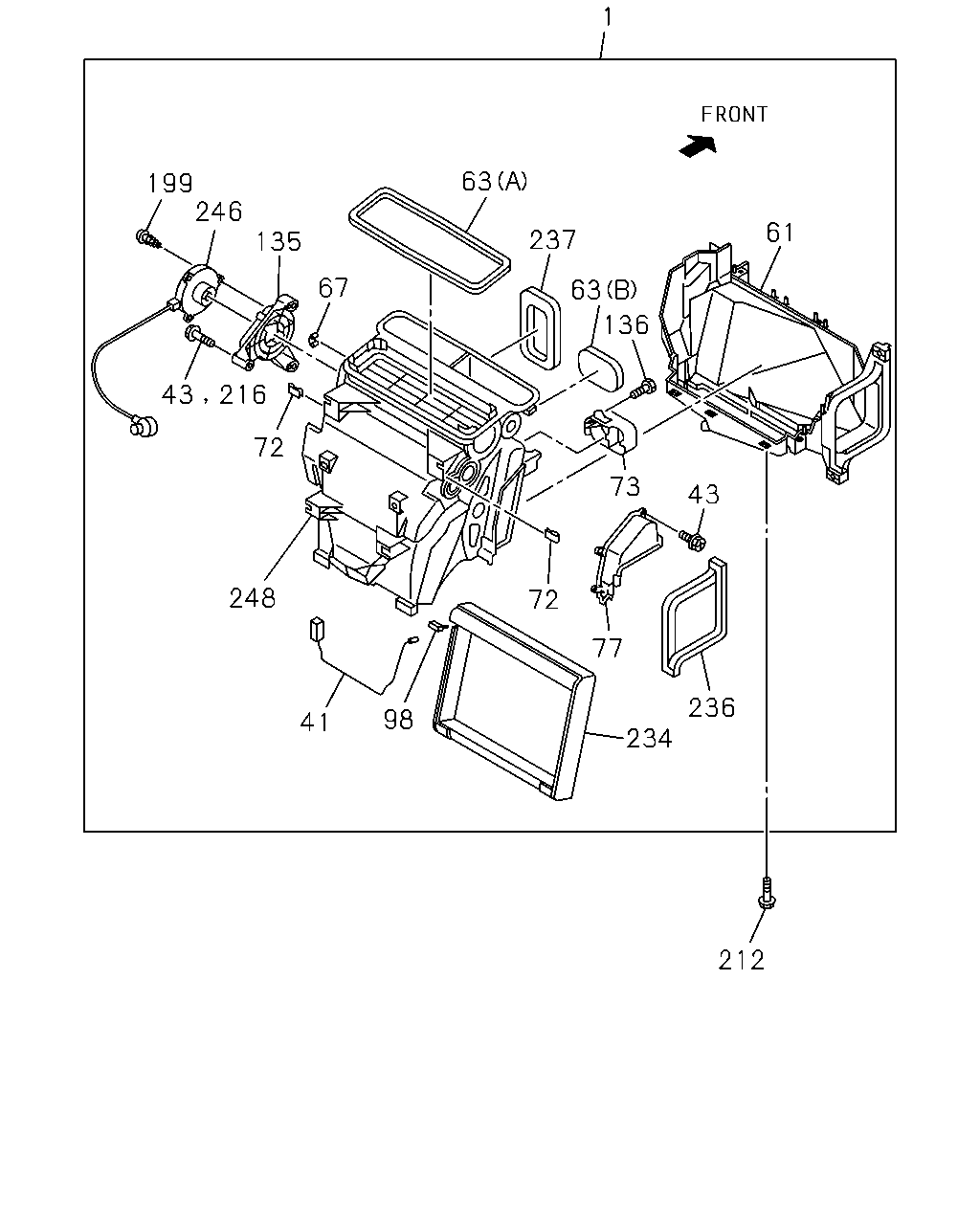

çizim 283436
212 236 234 77 72 43 73 136 63 61 237 63 67 135 246 199 43 216 248 41 98 72 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-202-0 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-202-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-203-0 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-203-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-201-0 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-201-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-209-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-037-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-210-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-038-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-211-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-039-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98230-204-0 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-032-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) 		8-98052-627-4 01 1 1206-1209 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98052-627-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-627-4 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-627-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98052-628-4 01 1 1206-1209 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98052-628-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-628-4 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-628-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) 		8-98052-626-3 01 1 1206-1209 ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 		8-98052-626-3 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98052-626-3 01 1 1210-1212 ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-626-3 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ● ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98103-554-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98103-554-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98103-555-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98103-555-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98103-557-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98103-557-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-023-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-023-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98052-629-4 01 1 1206-1209 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98052-629-4 01 1 1210-1212 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-016-1 01 1 1301- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-016-1 01 1 1301- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1206- ● ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98157-121-0 01 1 1206- ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 		8-98157-121-0 01 1 1206- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-382-0 01 1 1206- ● ●
43 09.786 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98139-395-0 23 1 1206-1212 ● ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 18 1 1301- ● ● ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98139-395-0 21 1 1206-1212 ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-0 21 1 1206-1212 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98165-407-0 01 1 1206-1212 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-582-0 01 1 1301- ● ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98165-406-0 01 1 1206-1212 ● ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98233-581-0 01 1 1301- ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98139-358-1 02 1 1206- ● ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98139-361-1 01 1 1206- ● ● ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) (A) 		8-98139-358-1 01 1 1206- ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-1 01 1 1206- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) (B) 		8-98157-118-1 01 1 1206- ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> (B) 		8-98157-118-1 01 1 1206- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98157-123-0 01 1 1206-1212 ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98157-123-0 01 1 1206-1212 ● ●
67 08.854 CLIP; HTR UNIT
EXC. REAR HEATER DUCT<S8C> 		8-98157-123-0 01 1 1206-1212 ● ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1301- ● ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-394-0 03 1 1206-1212 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-394-0 03 1 1206-1212 ● ●
72 08.845 NUT; CASE,HTR UNIT
EXC. REAR HEATER DUCT<S8C> 		8-98139-394-0 03 1 1206-1212 ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1301- ● ● ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-355-0 01 1 1206-1212 ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-355-0 01 1 1206-1212 ● ●
73 08.845 PLATE; HTR UNIT
EXC. REAR HEATER DUCT<S8C> 		8-98139-355-0 01 1 1206-1212 ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1301- ● ● ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98165-415-0 01 1 1206-1212 ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98165-415-0 01 1 1206-1212 ● ●
77 08.857 COVER; HTR CASE
EXC. REAR HEATER DUCT<S8C> 		8-98165-415-0 01 1 1206-1212 ● ●
77 08.857 COVER; HTR CASE 8-98233-589-0 01 1 1301- ● ● ● ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98157-122-0 01 1 1206- ● ● ● ● ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-377-0 01 1 1206-1212 ● ● ●
135 08.854 COVER; HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-377-0 01 1 1206-1212 ● ●
135 08.854 COVER; HTR
EXC. REAR HEATER DUCT<S8C> 		8-98139-377-0 01 1 1206-1212 ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1301- ● ● ● ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 08.852 		8-98139-395-0 02 1 1206-1212 ● ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 08.852 		8-98139-395-0 02 1 1206-1212 ● ●
136 08.850 SCREW; PLATE
EXC. REAR HEATER DUCT<S8C> 08.852 		8-98139-395-0 02 1 1206-1212 ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1301- ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98233-593-0 04 1 1301- ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 08.852 		8-98139-395-0 03 1 1206-1212 ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 05 1 1301- ● ● ● ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-0 04 1 1206-1212 ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) 08.852 		8-98233-593-0 03 1 1301- ● ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1301- ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1206- ● ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
08.852 		8-98233-593-0 03 1 1301- ● ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98139-376-1 01 1 1206- ● ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-357-0 01 1 1206-1212 ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-357-0 01 1 1206-1212 ● ●
236 08.855 GASKET; HEATER
EXC. REAR HEATER DUCT<S8C> 		8-98139-357-0 01 1 1206-1212 ● ●
236 08.855 GASKET; HEATER 8-98139-357-1 01 1 1301- ● ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-360-0 01 1 1206-1212 ● ● ●
237 08.855 INSULATOR; EVAPORATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98139-360-0 01 1 1206-1212 ● ●
237 08.855 INSULATOR; EVAPORATOR
EXC. REAR HEATER DUCT<S8C> 		8-98139-360-0 01 1 1206-1212 ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1301- ● ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98157-124-2 01 1 1206-1212 ● ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98157-124-2 01 1 1301- ● ● ● ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) 		8-98139-397-1 01 1 1206- ● ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 		8-98139-397-1 01 1 1206- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98193-550-0 01 1 1206-1212 ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98193-550-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-575-0 01 1 1301- ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C> 		8-98233-575-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98193-551-0 01 1 1206-1212 ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98193-551-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-576-0 01 1 1301- ● ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-98233-576-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98193-549-0 01 1 1206-1212 ● ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 		8-98193-549-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) 		8-98233-574-0 01 1 1301- ● ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. REAR HEATER DUCT<S8C> 		8-98233-574-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> 		8-98193-553-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-578-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-98193-554-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-579-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> 		8-98194-089-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-580-0 01 1 1301- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C> 		8-98193-552-0 01 1 1206-1212 ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-577-0 01 1 1301- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
