8-41 — HEATER SYSTEM; REAR (#91172) — 6 parça

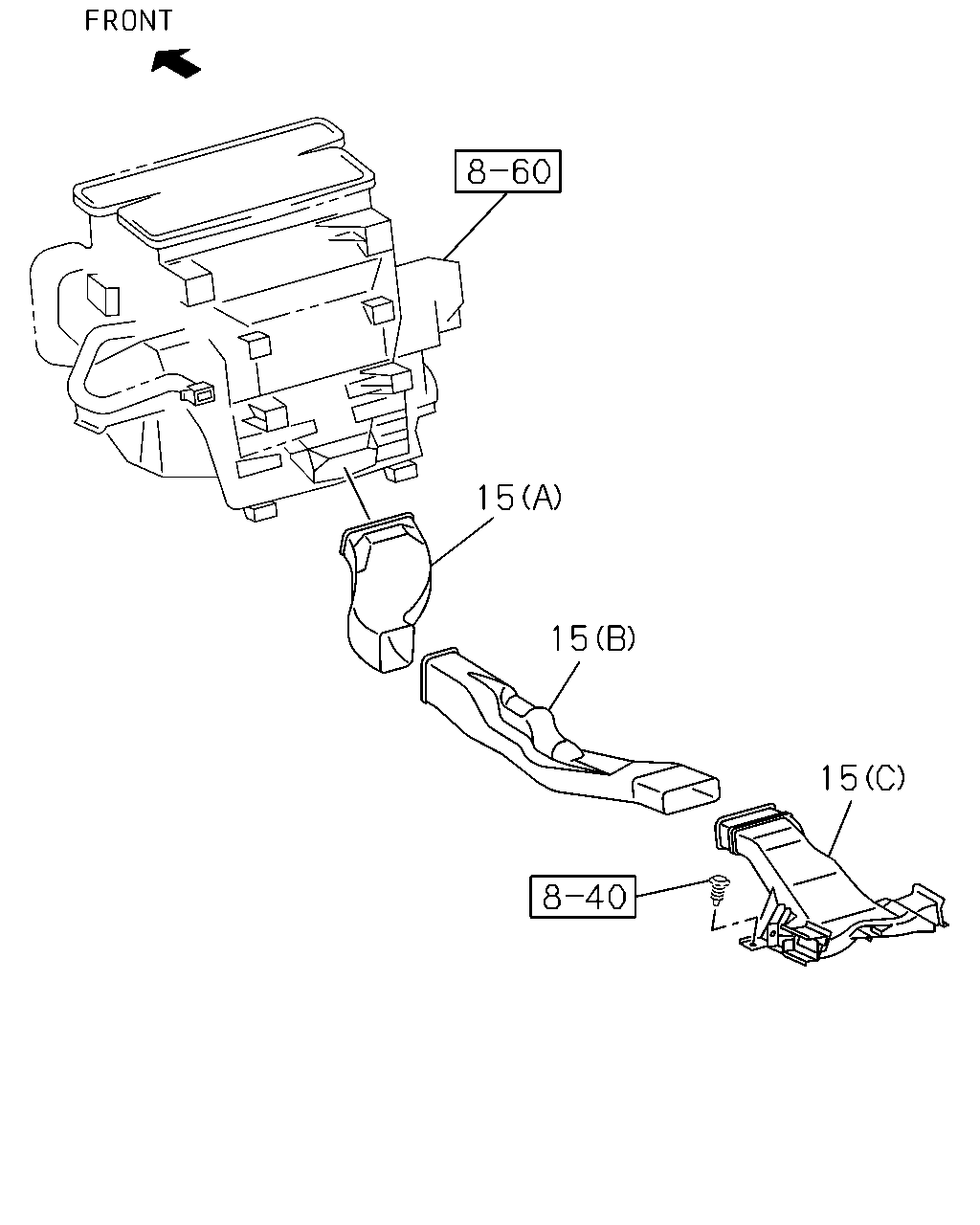

çizim 283417
15 15 15
BalonParca AdiParca NoAdetTipApplied Date A B
15 09.786 DUCT; RR HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> (A) 		8-98129-545-0 01 1 1206-1212 ● ●
15 09.786 DUCT; RR HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> (A) 		8-98129-545-0 01 1 1301- ● ●
15 09.786 DUCT; RR HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> (B) 		8-98129-546-0 01 1 1206-1212 ● ●
15 09.786 DUCT; RR HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> (B) 		8-98129-546-0 01 1 1301- ● ●
15 09.786 DUCT; RR HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> (C) 		8-98129-547-1 01 1 1206-1212 ● ●
15 09.786 DUCT; RR HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> (C) 		8-98129-547-1 01 1 1301- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
