8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#91167) — 57 parça

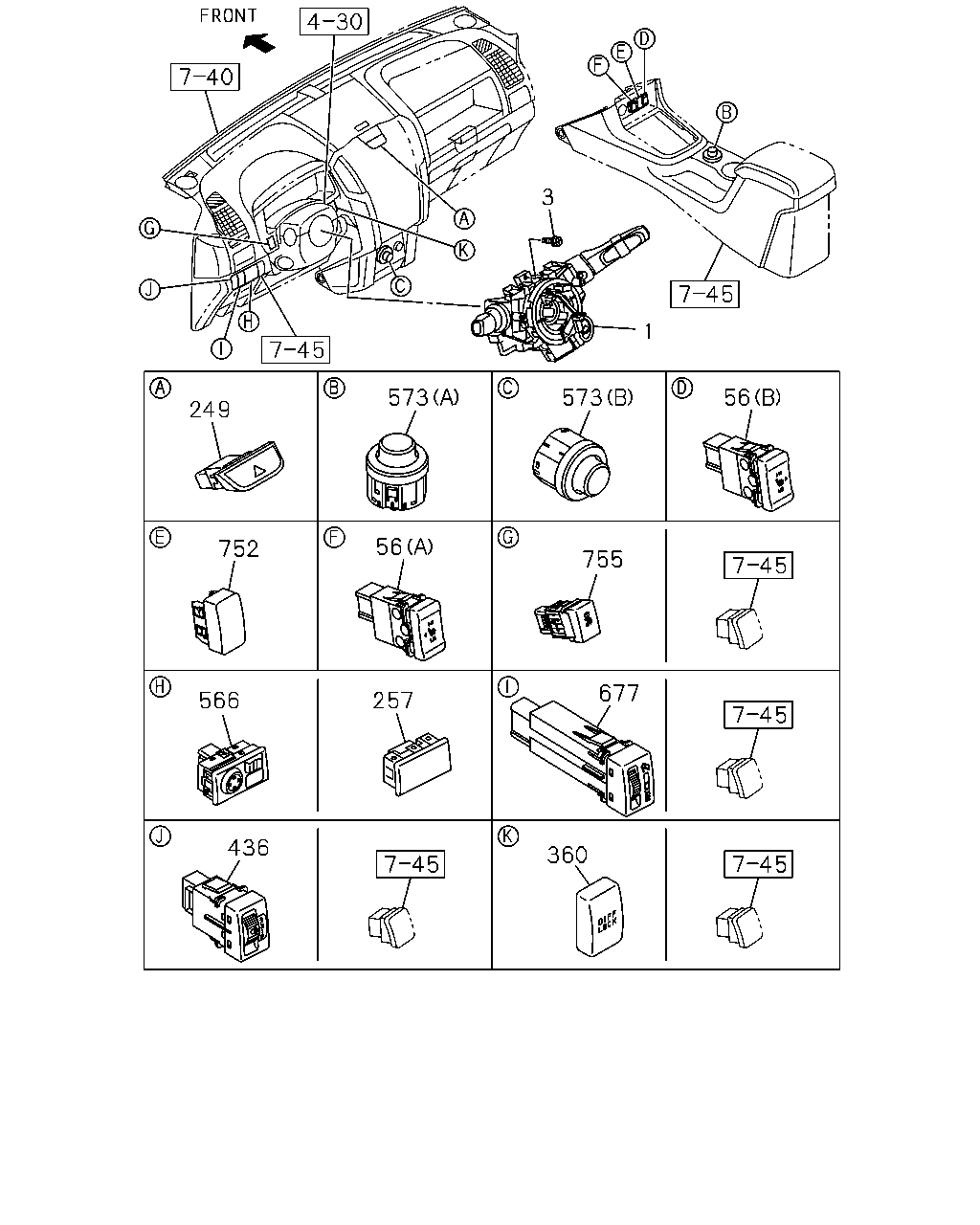

çizim 283382
3 1 249 573 573 56 752 56 755 566 257 677 436 360
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) INTERMITTENT WIPER<C13> ELECTRONIC TRACTION CONTROL<NW9> RR FOG LAMP<T79> EXC. FOG LAMP<T96>,ELECTRO LUMINESCENTINSTRUMENTATION CLUSTER<UCA> 		8-98194-143-1 01 1 1206- ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) INTERMITTENT WIPER<C13> ELECTRONIC TRACTION CONTROL<NW9> EXC. RR FOG LAMP<T79>,FOG LAMP<T96>, ELECTRO LUMINESCENT INSTRUMENTATION CLUS TER<UCA> 		8-98194-151-1 01 1 1206- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRONIC TRACTION CONTROL<NW9>, RR FOG LAMP<T79>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-146-1 01 1 1206- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) INTERMITTENT WIPER<C13> EXC. ELECTRONIC TRACTION CONTROL<NW9>, RR FOG LAMP<T79>,FOG LAMP<T96>, ELECTROLUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-145-1 01 1 1206- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,RR FOG LAMP<T79>,EL ECTRO LUMINESCENT INSTRUMENTATION CLUS TER<UCA> 		8-98194-148-1 01 1 1206- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,RR FOG LAMP<T79>,FO G LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-144-1 01 1 1206- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRONIC TRACTION CONTROL<NW9>, RR FOG LAMP<T79>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98059-585-2 01 1 1206- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> EXC. ELECTRONIC TRACTION CONTROL<NW9>, RR FOG LAMP<T79>,FOG LAMP<T96>, ELECTROLUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98059-584-2 01 1 1206- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,RR FOG LAMP<T79>,EL ECTRO LUMINESCENT INSTRUMENTATION CLUS TER<UCA> 		8-98059-590-2 01 1 1206- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,RR FOG LAMP<T79>,FO G LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98059-583-2 01 1 1206- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) VARIABLE INTERMITTENT WIPER<CD4> ELECTRONIC TRACTION CONTROL<NW9> RR FOG LAMP<T79> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98194-150-1 01 1 1206- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) VARIABLE INTERMITTENT WIPER<CD4> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. RR FOG LAMP<T79> 		8-98194-149-1 01 1 1206- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9>, RR FOG LAMP<T79> 		8-98194-147-1 01 1 1206- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9>, RR FOG LAMP<T79> 		8-98059-587-2 01 1 1206- ● ● ●
3 02.897 SCREW; COMB SW
09.744 M5X20 W/LK&PL WASHER 		0-36230-520-0 01 1 1206- ● ● ● ● ●
56 08.840 SWITCH; SEAT HTR
HEATER FRT SEAT<KA1> (A) 		8-98147-380-1 01 1 1206- ● ●
56 08.840 SWITCH; SEAT HTR
HEATER FRT SEAT<KA1> (B) 		8-98158-214-1 01 1 1206- ● ●
249 02.485 SWITCH; HAZARD
BLACK 		8-97416-805-0 01 1 1206- ● ● ● ● ●
257 16.081 COVER; HOLE,SW 8-98106-389-2 01 1 1206- ● ●
257 16.081 COVER; HOLE,SW
DOOR MIRROR<RT9> 		8-98106-389-2 01 1 1206- ● ● ●
360 04.902 SWITCH ASM; DIFF LK
REAR AXLE DIFF LOCK<8CL> 		8-98058-083-2 01 1 1302- ● ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEAD LAMP LEVELING MANUAL<T92> 		8-98187-212-1 01 1 1206- ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98187-212-1 01 1 1206- ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98187-211-1 01 1 1206- ● ●
566 02.895 SWITCH; MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-98058-078-1 01 1 1206- ● ●
566 02.895 SWITCH; MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98058-078-1 01 1 1206- ●
573 09.755 SWITCH; 4WD
FRONT CONSOLE W/LID<D55> (A) 		8-98065-836-2 01 1 1206- ● ●
573 09.755 SWITCH; 4WD
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98065-836-2 01 1 1206- ●
573 09.755 SWITCH; 4WD
EXC. FRONT CONSOLE W/LID<D55> (B) 		8-98058-076-2 01 1 1206- ● ●
573 09.755 SWITCH; 4WD
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98058-076-2 01 1 1206- ●
677 02.485 SWITCH; ILLUMINATION
ISRAEL EQUIPMENT(2G1) 		8-98058-084-2 01 1 1206- ● ●
677 02.485 SWITCH; ILLUMINATION
RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98058-084-2 01 1 1206- ● ●
752 08.840 COVER; SEAT HTR
HEATER FRT SEAT<KA1> 		8-98141-215-1 01 1 1206- ● ●
755 03.883 SWITCH; ESC OFF
ELECTRONIC TRACTION CONTROL<NW9> 		8-98058-081-1 01 1 1206- ● ● ● ● ●

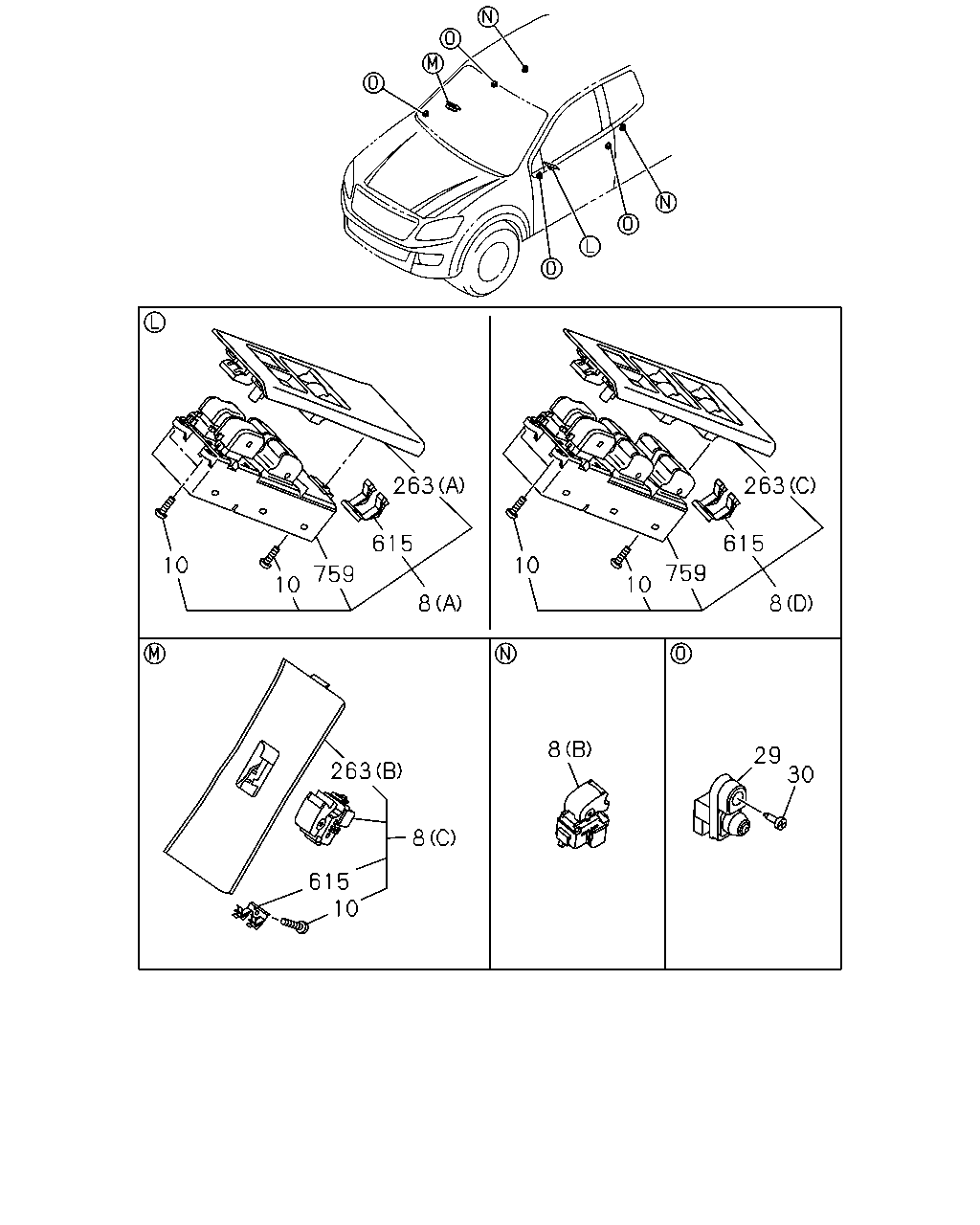

çizim 283386
10 10 759 615 263 8 263 615 10 8 8 29 30 10 10 759 615 263 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (C) BLACK 		8-97417-531-0 01 1 1206- ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ> (A) BLACK 		8-97417-470-0 01 1 1206- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) BLACK 		8-97417-468-0 01 1 1206- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ> (D) BLACK 		8-97417-471-0 01 1 1206- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK 		8-97417-004-0 02 1 1206- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (D) BLACK 		8-97417-469-0 01 1 1206- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-450-0 01 1 1206- ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-450-0 03 1 1206- ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97313-208-0 02 1 1206- ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97313-208-0 02 1 1206- ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 1206- ● ● ● ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 1206- ● ●
263 16.081 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98192-248-0 01 1 1206- ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98192-245-0 01 1 1206- ● ● ●
263 16.081 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98192-246-0 01 1 1206- ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-268-0 01 1 1206- ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-268-0 01 1 1206- ● ● ● ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW SAFETY DOOR<ABZ> 		8-98192-253-0 01 1 1206- ● ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-254-0 01 1 1206- ● ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW SAFETY DOOR<ABZ> 		8-98192-255-0 01 1 1206- ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-256-0 01 1 1206- ● ●
çizim 283618
99
BalonParca AdiParca NoAdetTipApplied Date A B C D E
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1206- ● ● ● ● ●
çizim 283620
99
BalonParca AdiParca NoAdetTipApplied Date A B C D E
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1206- ● ● ● ● ●
