◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51411 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#91166) — 35 parça

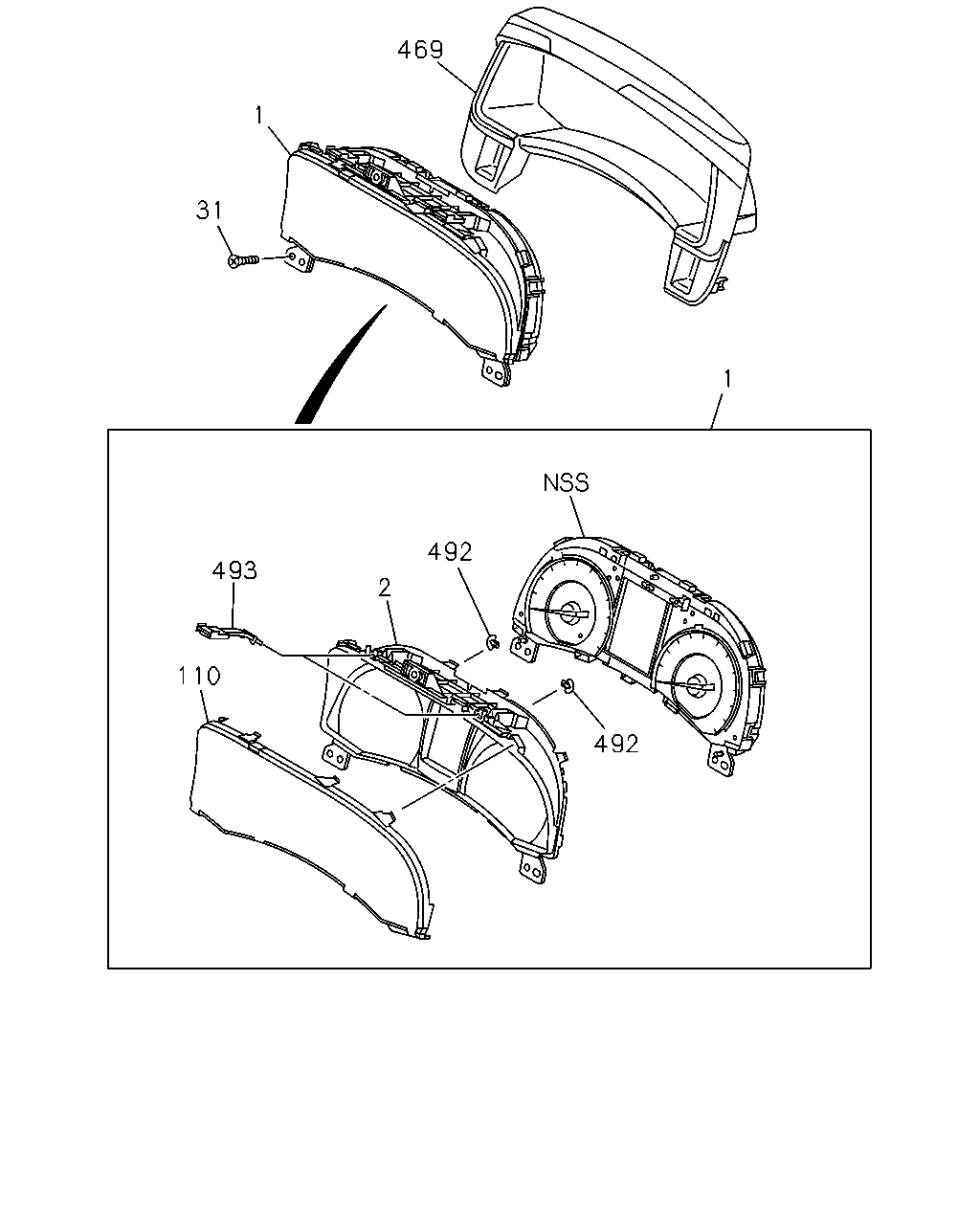

çizim 283376
1 469 493 110 2 492 492 1 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) CONGO EQUIPMENT(CDF) ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-781-9 01 1 1302- ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) CONGO EQUIPMENT(CDF) ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-779-9 01 1 1302- ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98228-363-0 01 1 1210- ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA>,ISRAEL EQUIPMENT(2G1) 		8-98103-776-8 01 1 1206-1304 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. ELECTRONIC TRACTION CONTROL<NW9>, ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA>,ISRAEL EQUIPMENT(2G1) 		8-98103-776-8 01 1 1305- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) ELECTRONIC TRACTION CONTROL<NW9> EXC. CONGO EQUIPMENT(CDF),ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>,I SRAEL EQUIPMENT(2G1) 		8-98103-776-8 01 1 1305- ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),ISRAEL EQUIPMENT(2G1) ELECTRONIC TRACTION CONTROL<NW9> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> 		8-98156-143-7 01 1 1206-1304 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) ISRAEL EQUIPMENT(2G1) ELECTRONIC TRACTION CONTROL<NW9> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> 		8-98156-143-7 01 1 1305- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) EXC. ELECTRONIC TRACTION CONTROL<NW9>, ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA>,ISRAEL EQUIPMENT(2G1) 		8-98103-761-8 01 1 1206-1301 ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. ELECTRONIC TRACTION CONTROL<NW9>, ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA>,ISRAEL EQUIPMENT(2G1) 		8-98103-761-8 01 1 1302- ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) ISRAEL EQUIPMENT(2G1) ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98156-145-8 01 1 1206- ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA>,ISRAEL EQUIPMENT(2G1) 		8-98185-145-4 01 1 1206- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. ISRAEL EQUIPMENT(2G1) 		8-98198-949-2 01 1 1206-1304 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISR AEL EQUIPMENT(2G1) 		8-98198-949-2 01 1 1305- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) ISRAEL EQUIPMENT(2G1) ELECTRONIC TRACTION CONTROL<NW9> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> 		8-98156-141-7 01 1 1206- ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98198-948-2 01 1 1206-1301 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. CONGO EQUIPMENT(CDF),ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQUIPMENT(2G1) 		8-98198-948-2 01 1 1302-1304 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ELE CTRONIC TRACTION CONTROL<NW9>,ISRAEL EQUIPMENT(2G1) 		8-98198-948-2 01 1 1305- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) ISRAEL EQUIPMENT(2G1) ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98156-147-8 01 1 1206- ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. ISRAEL EQUIPMENT(2G1) 		8-98198-947-2 01 1 1206-1209 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98198-947-2 01 1 1210-1301 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISR AEL EQUIPMENT(2G1) 		8-98198-947-2 01 1 1302- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98198-946-2 01 1 1206-1209 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),ELECTRONIC TRACTION CONT ROL<NW9>,ISRAEL EQUIPMENT(2G1) 		8-98198-946-2 01 1 1210-1301 ● ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ELE CTRONIC TRACTION CONTROL<NW9>,ISRAEL EQUIPMENT(2G1) 		8-98198-946-2 01 1 1302- ● ● ●
2 09.735 PANEL; CLUSTER
ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98163-884-0 01 1 1206- ● ● ●
2 09.735 PANEL; CLUSTER 8-98163-885-0 01 1 1206- ● ●
2 09.735 PANEL; CLUSTER
EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> 		8-98163-885-0 01 1 1206- ● ● ●
31 09.761 SCREW; METER,INST PANEL
08.083 M5X16 TAPPING 		8-98167-449-0 03 1 1206- ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98163-882-0 01 1 1206- ● ● ●
110 09.748 GLASS; CLUSTER METER 8-98163-883-0 01 1 1206- ● ●
110 09.748 GLASS; CLUSTER METER
EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> 		8-98163-883-0 01 1 1206- ● ● ●
469 16.080 PLATE; INSTRUMENT PANEL
BLACK 		8-97416-628-1 01 1 1206- ● ● ● ● ●
492 09.743 PANEL; TURN LENS
ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98163-886-0 02 1 1206- ● ● ●
493 09.743 PANEL; TOP LIGHT PRISM
ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> 		8-98163-887-0 02 1 1206- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
