◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51411 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#91164) — 464 parça

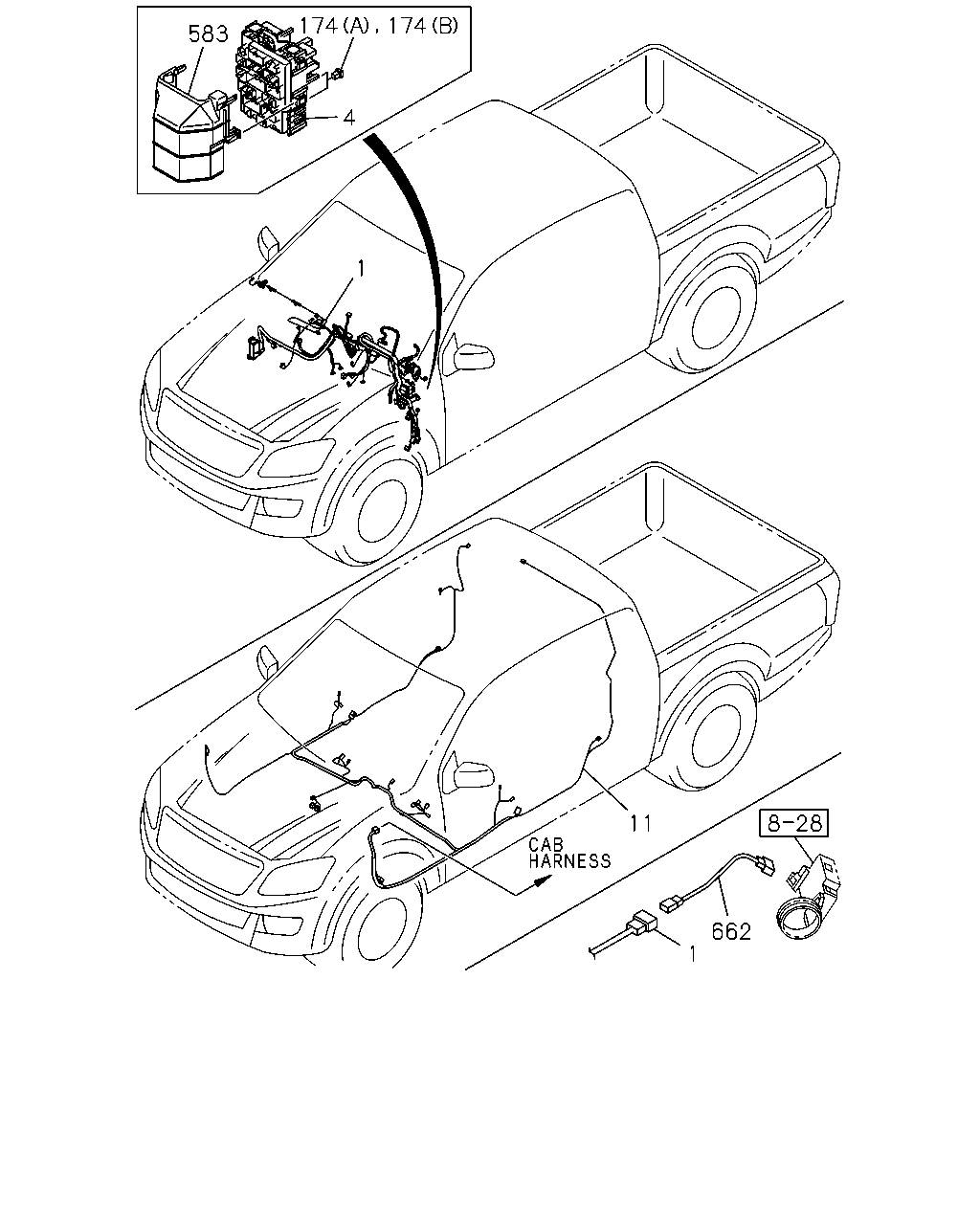

çizim 283353
583 174 174 4 1 11 1 662
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-479-7 01 1 1206- ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK W/ ANTI THEFT<7KY> 		8-98160-480-6 01 1 1206- ● ● ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-473-7 01 1 1206- ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98160-474-7 01 1 1206- ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98160-472-7 01 1 1206- ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-478-7 01 1 1206- ● ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-475-7 01 1 1206- ● ●
1 02.480 HARNESS; CAB
4JA1-T ENG(LP0) INTERIOR BASIC(RBA) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-476-1 01 1 1206- ● ●
1 02.480 HARNESS; CAB
4JA1-T ENG(LP0) INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK W/ ANTI THEFT<7KY> 		8-98160-477-1 01 1 1206- ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR CONDITIONER AUTOMATIC CONT(C61) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98160-471-8 01 1 1206- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98166-752-0 01 1 1206- ● ● ● ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) 		8-98160-561-2 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98160-560-0 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98160-562-6 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> 		8-98160-606-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-598-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1> 		8-98160-599-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-600-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1> 		8-98160-623-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-624-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1> 		8-98160-616-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-617-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> 		8-98160-648-5 01 1 1206-1306 ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> 		8-98160-648-5 01 1 1307-1312 ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98160-648-5 01 1 1307-1312 ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> 		8-98160-648-5 01 1 1401- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1> 		8-98160-633-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> EXC. REAR DEFOGGER<C49> 		8-98160-649-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1> 		8-98160-634-5 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> 		8-98160-601-3 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-602-2 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1> 		8-98160-603-3 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-604-2 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1> 		8-98160-618-3 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-619-2 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1> 		8-98160-620-3 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-621-2 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> 		8-98160-650-3 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1> 		8-98160-635-3 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> HEATER FRT SEAT<KA1> EXC. REAR DEFOGGER<C49> 		8-98160-646-3 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1> 		8-98160-636-3 01 1 1206- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> 		8-98160-637-8 01 1 1206- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> 		8-98160-605-8 01 1 1206- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. AUTO DOOR LOCK<AU4>,HEATER FRT SEAT<KA1> 		8-98160-622-8 01 1 1206- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> 		8-98160-647-8 01 1 1206- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> 		8-98160-632-8 01 1 1206- ● ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> 		8-98160-580-5 01 1 1206- ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98160-582-3 01 1 1206- ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> 		8-98160-584-4 01 1 1206- ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. REAR DEFOGGER<C49>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-586-3 01 1 1206- ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> 		8-98160-581-3 01 1 1206- ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98160-583-1 01 1 1206- ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> 		8-98160-585-2 01 1 1206- ●
11 02.480 HARNESS; BODY
AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. REAR DEFOGGER<C49>,HIGH MOUNT STOP LAMP<TS6> 		8-98160-587-1 01 1 1206- ●
35 02.530 BOX; RELAY & FUSE 8-98113-097-0 01 1 1206- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 AR 1 1206- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 AR 1 1206- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(C) 80A BLACK 		8-94388-305-1 AR 1 1206- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1206- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 40A GREEN 		8-98079-192-0 AR 1 1206- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 50A RED 		8-98079-193-0 AR 1 1206- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 60A YELLOW 		8-97219-407-0 AR 1 1206- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(E) 60A YELLOW 		8-98197-288-0 AR 1 1206- ● ● ● ● ●
583 02.559 COVER; HARNESS
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) 		8-98179-407-0 01 1 1206-1301 ● ● ● ● ●
583 02.559 COVER; HARNESS
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-98179-407-0 01 1 1302- ● ● ● ● ●
662 02.525 HARNESS; IMMOBILIZER
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) IMMOBILIZER SYSTEM<7KC> 		8-98163-074-0 01 1 1206- ●
662 02.525 HARNESS; IMMOBILIZER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) IMMOBILIZER SYSTEM<7KC> 		8-98163-074-0 01 1 1206- ● ● ●

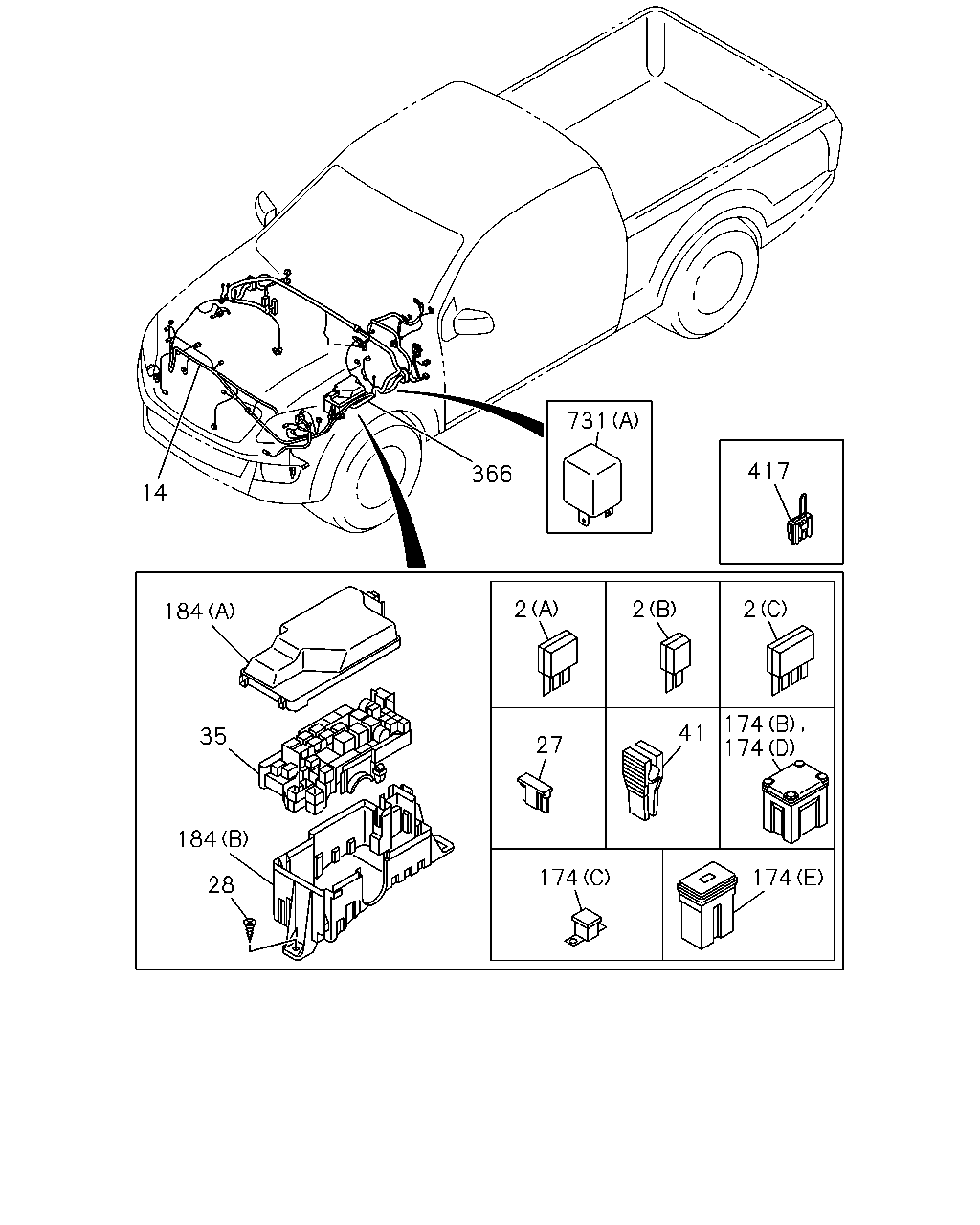

çizim 283354
731 14 184 5 184 28 174 27 2 366 417 2 2 41 174 174 174
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1206- ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1206- ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 4P-1.5A 		8-94381-730-0 AR 1 1206- ● ● ● ● ●
14 02.727 HARNESS; HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> 		8-98159-342-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-342-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98159-338-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
EXC. HEAD LAMP LEVELING MANUAL<T92>, ELECTRO LUMINESCENT INSTRUMENTATION CLUS TER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-338-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-338-1 01 1 1206- ●
14 02.727 HARNESS; HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-353-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> HEADLAMPS PROJECTOR BEAM<8LH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-352-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> 		8-98159-351-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-350-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98159-349-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-349-1 01 1 1206- ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEAD LAMP LEVELING MANUAL<T92>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-341-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-341-1 01 1 1206- ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-348-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> HEADLAMPS PROJECTOR BEAM<8LH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-348-1 01 1 1206- ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. HEAD LAMP LEVELING MANUAL<T92>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-340-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CL USTER<UCA> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-340-1 01 1 1206- ●
14 02.727 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92>, ELECTRO LUMINESCENT INSTRUMENTATION CLUS TER<UCA> 		8-98159-347-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA> 		8-98159-347-1 01 1 1206- ●
14 02.727 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEAD LAMP LEVELING MANUAL<T92>, ELECTRO LUMINESCENT INSTRUMENTATION CLUS TER<UCA>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-339-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-339-1 01 1 1206- ●
14 02.727 HARNESS; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92>, ELECTRO LUMINESCENT INSTRUMENTATION CLUS TER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-346-1 01 1 1206- ● ●
14 02.727 HARNESS; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATI ON CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-346-1 01 1 1206- ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1206- ● ● ● ● ●
27 08.965 FUSE UNIT
02.485 15A BLUE 		8-98054-258-0 AR 1 1206- ● ● ● ● ●
27 08.965 FUSE UNIT
02.485 20A YELLOW 		8-98054-259-0 AR 1 1206- ● ● ● ● ●
28 02.483 SCREW; FUSE BOX 8-97249-192-0 02 1 1206- ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-98113-097-0 01 1 1206- ● ● ● ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1206- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 AR 1 1206- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 AR 1 1206- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(C) 80A BLACK 		8-94388-305-1 AR 1 1206- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1206- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 40A GREEN 		8-98079-192-0 AR 1 1206- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 50A RED 		8-98079-193-0 AR 1 1206- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(D) 60A YELLOW 		8-97219-407-0 AR 1 1206- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(E) 60A YELLOW 		8-98197-288-0 AR 1 1206- ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-98113-098-0 01 1 1206- ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-98113-099-0 01 1 1206- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98163-065-5 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-136-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98160-516-6 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-133-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98160-514-6 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98270-131-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98163-064-6 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98270-135-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98160-515-6 01 1 1206-1401 ● ●

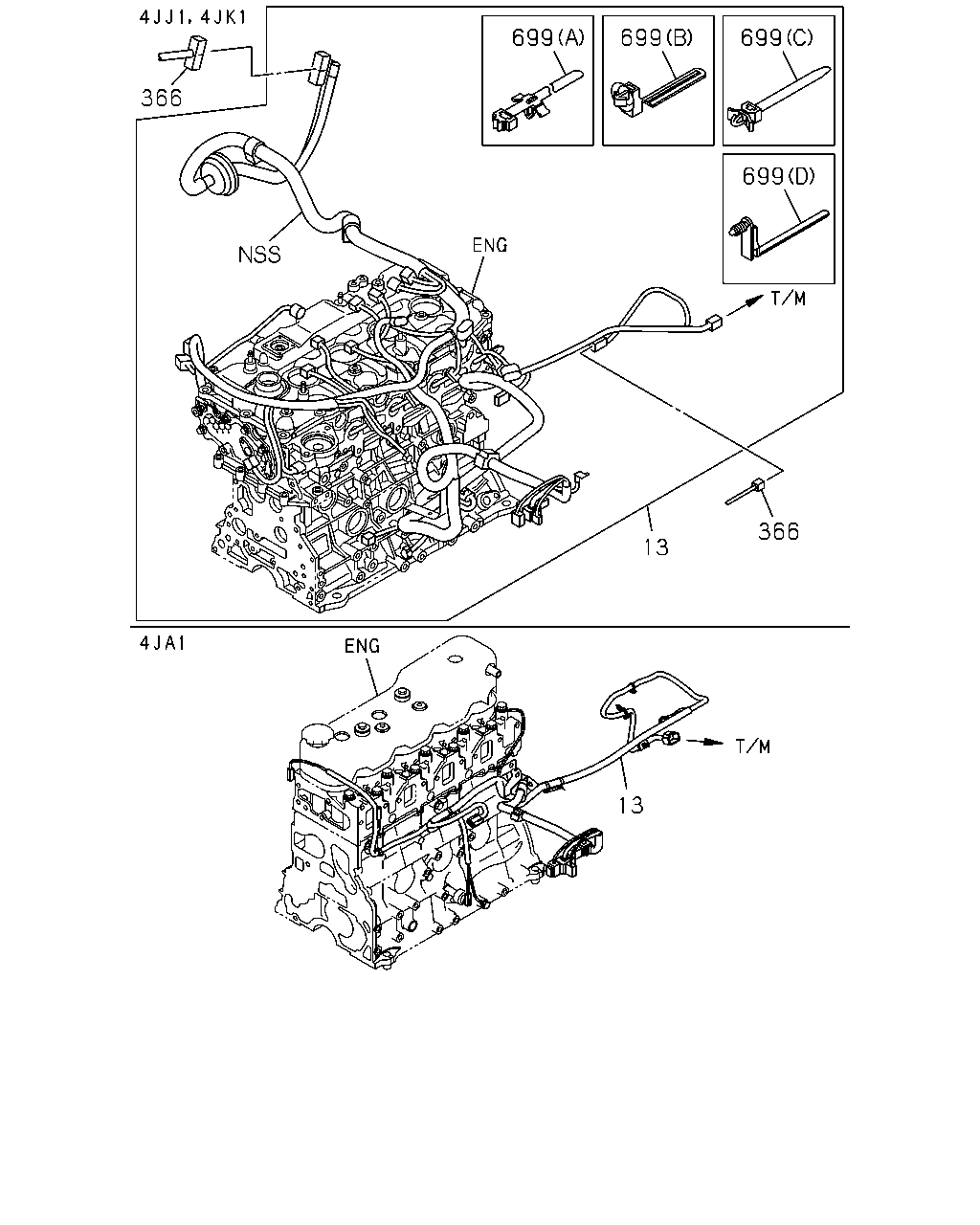

366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98270-132-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98160-551-6 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98270-134-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98160-510-5 01 1 1206-1401 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-129-2 01 1 1402- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98160-507-6 01 1 1206-1401 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-127-2 01 1 1402- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98160-504-6 01 1 1206-1401 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98270-125-2 01 1 1402- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98160-509-6 01 1 1206-1401 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98270-128-2 01 1 1402- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98160-506-6 01 1 1206-1401 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98270-126-2 01 1 1402- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98160-513-6 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98270-130-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98213-054-2 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98270-151-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98213-053-2 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98270-150-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98201-053-3 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98201-053-3 01 1 1302-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-140-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98160-496-5 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98160-496-5 01 1 1302-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-124-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98201-054-3 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98201-054-3 01 1 1302-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-141-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98160-495-7 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98160-495-7 01 1 1302-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98270-123-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98200-357-4 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98200-357-4 01 1 1302-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98270-139-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-584-7 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98270-138-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-583-7 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98270-137-2 01 1 1402- ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
COOLER W/FRESH AIR(C65) 		8-97362-918-0 01 1 1206- ● ● ● ● ●
731 02.483 RELAY; DRL
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 02.485 (A) 12V YAZAKI 		8-97309-292-0 01 1 1206- ● ● ● ●
731 02.483 RELAY; DRL
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 09.778 (B) 12V YAZAKI 		8-97309-293-0 01 1 1206- ● ● ● ●

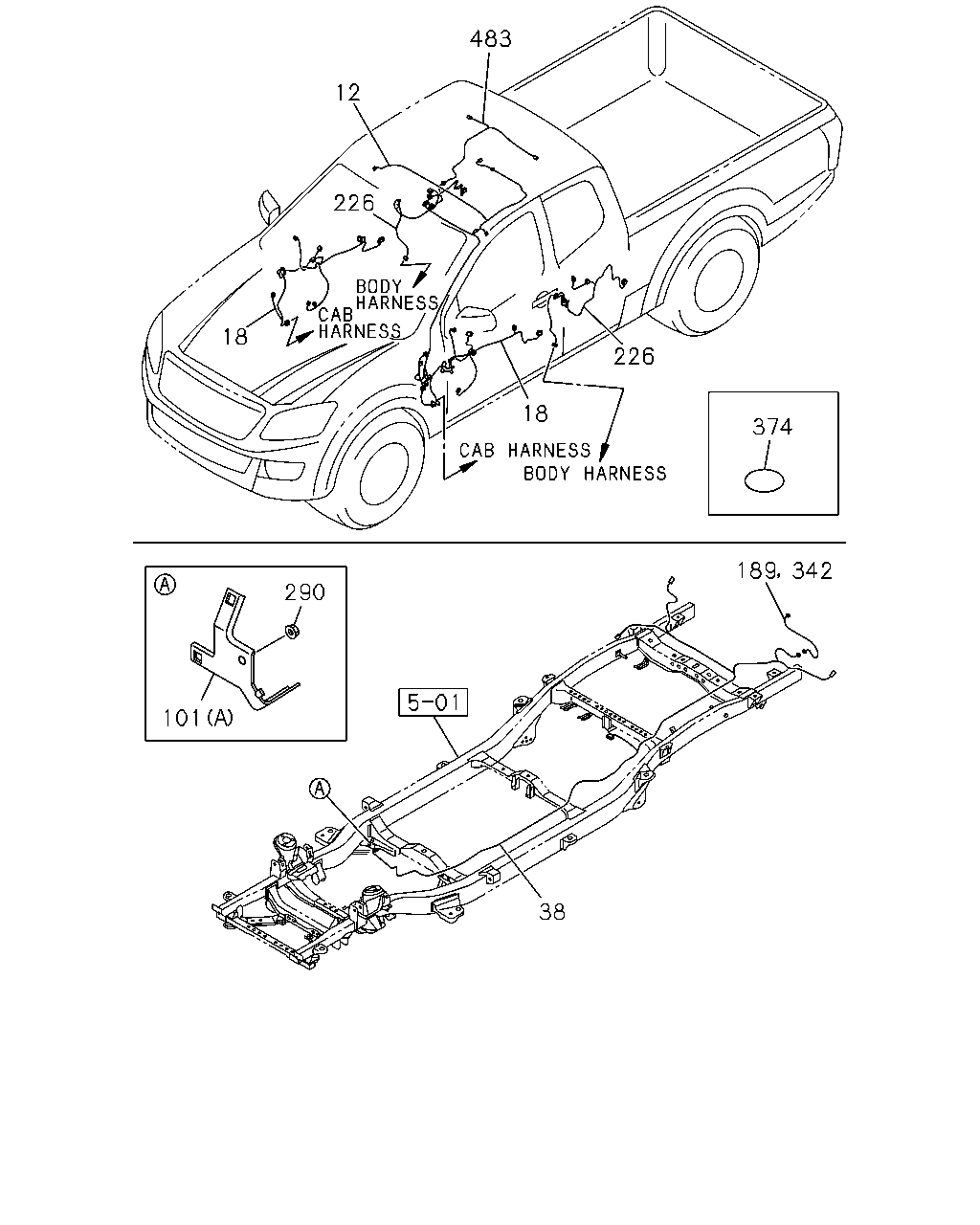

çizim 283355
374 12 483 226 18 18 226 290 101 38 189 342
BalonParca AdiParca NoAdetTipApplied Date A B C D E
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR E QUIPMENT(E46),ISRAEL EQUIPMENT(2G1) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98275-273-0 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR E QUIPMENT(E46),ISRAEL EQUIPMENT(2G1) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6>,EQUIPMENT IMPACT<EPS> 		8-98275-273-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EQUIPMENT IMPACT<EPS> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98275-273-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR E QUIPMENT(E46),ISRAEL EQUIPMENT(2G1) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-272-0 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR E QUIPMENT(E46),ISRAEL EQUIPMENT(2G1) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,EQUIPMENT IMPACT<EPS>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-272-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EQUIPMENT IMPACT<EPS> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-272-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR E QUIPMENT(E46),ISRAEL EQUIPMENT(2G1) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98275-275-0 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR E QUIPMENT(E46),ISRAEL EQUIPMENT(2G1) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74>,EQUIPMENT IMPACT<EPS> 		8-98275-275-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> EQUIPMENT IMPACT<EPS> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98275-275-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR E QUIPMENT(E46),ISRAEL EQUIPMENT(2G1) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-274-0 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR E QUIPMENT(E46),ISRAEL EQUIPMENT(2G1) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,EQUIPMENT IMPACT<EPS>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-274-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> EQUIPMENT IMPACT<EPS> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-274-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR E QUIPMENT(E46),ISRAEL EQUIPMENT(2G1) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> ,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-271-0 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR E QUIPMENT(E46),ISRAEL EQUIPMENT(2G1) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> ,EQUIPMENT IMPACT<EPS>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-271-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EQUIPMENT IMPACT<EPS> EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> ,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98275-271-0 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH MOUNT STOP LAMP<TS6> 		8-98159-332-0 01 1 1206- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98159-331-0 01 1 1206- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH MOUNT STOP LAMP<TS6> 		8-98159-333-4 01 1 1206- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98159-477-3 01 1 1206-1403 ● ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),HEAD ER CONSOLE<DK6>,ECUADOR EQUIPMENT(E46) ,ISRAEL EQUIPMENT(2G1) 		8-98159-477-3 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98159-477-3 01 1 1404-1409 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),HEAD ER CONSOLE<DK6>,EQUIPMENT IMPACT<EPS>, ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98159-477-3 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98159-477-3 01 1 1410- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-476-2 01 1 1206-1403 ● ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),HEAD ER CONSOLE<DK6>,ECUADOR EQUIPMENT(E46) ,6-SPEAKER SYSTEM CUSTOM<UW6>,ISRAEL EQUIPMENT(2G1) 		8-98159-476-2 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-476-2 01 1 1404-1409 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),HEAD ER CONSOLE<DK6>,EQUIPMENT IMPACT<EPS>, ECUADOR EQUIPMENT(E46),6-SPEAKER SYSTEM CUSTOM<UW6>,ISRAEL EQUIPMENT(2G1) 		8-98159-476-2 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-476-2 01 1 1410- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98159-479-3 01 1 1206-1403 ● ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),MAP LAMP<C74>,ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98159-479-3 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98159-479-3 01 1 1404-1409 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),MAP LAMP<C74>,EQUIPMENT IMPACT<EPS>, ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98159-479-3 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98159-479-3 01 1 1410- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-478-2 01 1 1206-1403 ● ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),MAP LAMP<C74>,ECUADOR EQUIPMENT(E46), 6-SPEAKER SYSTEM CUSTOM<UW6>,ISRAEL EQUIPME NT(2G1) 		8-98159-478-2 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-478-2 01 1 1404-1409 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),MAP LAMP<C74>,EQUIPMENT IMPACT<EPS>, ECUADOR EQUIPMENT(E46),6-SPEAKER SYSTEM CUST OM<UW6>,ISRAEL EQUIPMENT(2G1) 		8-98159-478-2 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-478-2 01 1 1410- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> ,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-475-2 01 1 1206-1403 ● ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),MAP LAMP<C74>,HEADER CONSOLE<DK6>,ECUADOR EQUIPMENT(E46),6-SPEAKER SYSTEM CUSTOM<UW6>,ISRAEL EQUIPMENT(2G1) 		8-98159-475-2 01 1 1404-1409 ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> ,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-475-2 01 1 1404-1409 ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),MAP LAMP<C74>,HEADER CONSOLE<DK6>, EQUIPMENT IMPACT<EPS>,ECUADOR EQUIPMENT(E46),6 -SPEAKER SYSTEM CUSTOM<UW6>,ISRAEL EQUIPMENT(2G1) 		8-98159-475-2 01 1 1410- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> ,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-475-2 01 1 1410- ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98159-482-5 01 1 1206- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-481-4 01 1 1206- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> 		8-98159-484-5 01 1 1206- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-483-4 01 1 1206- ● ●
12 02.480 HARNESS; ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> ,6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98159-480-4 01 1 1206- ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-498-2 01 1 1206- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> ISRAEL EQUIPMENT(2G1) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-518-2 01 1 1206- ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. ISRAEL EQUIPMENT(2G1),REMOTE CONTDOOR LOCK W/ANTI THEFT<7KY> 		8-98159-522-2 01 1 1206- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-500-2 01 1 1206- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-524-2 01 1 1206- ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-497-3 01 1 1206- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-517-2 01 1 1206- ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-499-4 01 1 1206- ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> 		8-98159-523-3 01 1 1206- ● ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-494-3 01 1 1206- ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ISRAEL EQUIPMENT(2G1) 		8-98159-514-2 01 1 1206- ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> EXC. ISRAEL EQUIPMENT(2G1),REMOTE CONTDOOR LOCK W/ANTI THEFT<7KY> 		8-98159-520-2 01 1 1206- ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-496-3 01 1 1206- ● ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> ISRAEL EQUIPMENT(2G1) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-512-2 01 1 1206- ● ●
18 02.480 HARNESS; DOOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> ISRAEL EQUIPMENT(2G1) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-516-2 01 1 1206- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-493-3 01 1 1206- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ISRAEL EQUIPMENT(2G1) 		8-98159-513-2 01 1 1206- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> EXC. ISRAEL EQUIPMENT(2G1),REMOTE CONTDOOR LOCK W/ANTI THEFT<7KY> 		8-98159-519-2 01 1 1206- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-495-3 01 1 1206- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-511-2 01 1 1206- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-515-2 01 1 1206- ● ●
35 02.530 BOX; RELAY & FUSE 8-98113-097-0 01 1 1206- ● ● ● ● ●
38 02.480 HARNESS; CHAS
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) REAR BODY FLAT BED(E39) EXC. ELECTRONIC TRACTION CONTROL<NW9>, RR FOG LAMP<T79>,ISRAEL EQUIPMENT(2G1) 		8-98198-446-1 01 1 1206- ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63) EXC. RUSSIA EQUIPMENT(B12),4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,RR FOG LAMP<T79>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ISRAEL EQUIPMENT(2G1),HIGH RIDE S USPENSION(7YC) 		8-98159-318-2 01 1 1206- ● ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) EXC. RUSSIA EQUIPMENT(B12),4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,RR FOG LAMP<T79>,ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) 		8-98159-317-2 01 1 1206- ● ●
38 02.480 HARNESS; CHAS
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. RUSSIA EQUIPMENT(B12),4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,RR FOG LAMP<T79>,ISRAEL EQUIPMENT(2G1) 		8-98159-317-2 01 1 1206- ● ●
38 02.480 HARNESS; CHAS
REAR BODY DELETE(8HH) EXC. RUSSIA EQUIPMENT(B12),4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,RR FOG LAMP<T79>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ISRAEL EQUIPMENT(2G1),HIGH RIDE S USPENSION(7YC) 		8-98159-317-2 01 1 1206- ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. RUSSIA EQUIPMENT(B12),4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,RR FOG LAMP<T79>,ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) 		8-98159-317-2 01 1 1206- ● ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63) EXC. RUSSIA EQUIPMENT(B12),RR FOG LAMP<T79>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) 		8-98159-323-2 01 1 1206- ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) EXC. RUSSIA EQUIPMENT(B12),RR FOG LAMP<T79>,ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) 		8-98159-322-2 01 1 1206-1301 ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DELETE(8HH) EXC. RUSSIA EQUIPMENT(B12),RR FOG LAMP<T79>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) 		8-98159-322-2 01 1 1206-1301 ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. RUSSIA EQUIPMENT(B12),RR FOG LAMP<T79>,ISRAEL EQUIPMENT(2G1) 		8-98159-322-2 01 1 1206-1301 ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. RUSSIA EQUIPMENT(B12),RR FOG LAMP<T79>,ISRAEL EQUIPMENT(2G1) 		8-98159-322-2 01 1 1206-1301 ● ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) EXC. RUSSIA EQUIPMENT(B12),RR FOG LAMP<T79>,ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) 		8-98159-322-2 01 1 1302- ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DELETE(8HH) EXC. RUSSIA EQUIPMENT(B12),RR FOG LAMP<T79>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) 		8-98159-322-2 01 1 1302- ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. RUSSIA EQUIPMENT(B12),RR FOG LAMP<T79>,ISRAEL EQUIPMENT(2G1) 		8-98159-322-2 01 1 1302- ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. RUSSIA EQUIPMENT(B12),RR FOG LAMP<T79>,ISRAEL EQUIPMENT(2G1) 		8-98159-322-2 01 1 1302- ● ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) REAR BODY DBL WALL CTR PULL(E63) RR FOG LAMP<T79> REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98159-327-3 01 1 1206-1301 ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) REAR BODY DBL WALL CTR PULL(E63) RR FOG LAMP<T79> HIGH RIDE SUSPENSION(7YC) 		8-98159-327-3 01 1 1206-1301 ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) REAR BODY DBL WALL CTR PULL(E63) RR FOG LAMP<T79> 		8-98159-327-3 01 1 1206-1301 ● ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) REAR BODY DBL WALL CTR PULL(E63) RR FOG LAMP<T79> REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98159-327-3 01 1 1302- ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) REAR BODY DBL WALL CTR PULL(E63) RR FOG LAMP<T79> HIGH RIDE SUSPENSION(7YC) 		8-98159-327-3 01 1 1302- ● ●
38 02.480 HARNESS; CHAS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) REAR BODY DBL WALL CTR PULL(E63) RR FOG LAMP<T79> 		8-98159-327-3 01 1 1302- ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) REAR BODY DBL WALL CTR PULL(E63) RR FOG LAMP<T79> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION (7YC) 		8-98159-329-3 01 1 1206- ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) RR FOG LAMP<T79> REAR BODY DELETE(8HH) 		8-98159-328-3 01 1 1206- ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98102-999-0 01 1 1206- ● ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) (B) 		8-98182-490-1 01 1 1206- ● ●
189 02.480 HARNESS; EXT
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1206-1301 ●
189 02.480 HARNESS; EXT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1206-1301 ●
189 02.480 HARNESS; EXT
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION (7YC) 		8-98140-863-0 01 1 1206-1301 ●
189 02.480 HARNESS; EXT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1206-1301 ● ● ●
189 02.480 HARNESS; EXT
HIGH RIDE SUSPENSION(7YC) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1302- ●
189 02.480 HARNESS; EXT
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION (7YC) 		8-98140-863-0 01 1 1302- ●
189 02.480 HARNESS; EXT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1302- ●
189 02.480 HARNESS; EXT
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION (7YC) 		8-98140-863-0 01 1 1302- ●
189 02.480 HARNESS; EXT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1302- ● ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-533-3 01 1 1206- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-534-3 01 1 1206- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-527-3 01 1 1206- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 		8-98159-528-3 01 1 1206- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5> 		8-98159-535-3 01 1 1206- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5> 		8-98159-536-3 01 1 1206- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-525-3 01 1 1206- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-526-3 01 1 1206- ● ●
226 02.480 HARNESS; RR DOOR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98159-355-6 01 1 1206- ●
226 02.480 HARNESS; RR DOOR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98167-613-6 01 1 1206- ●
226 02.480 HARNESS; RR DOOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98159-354-4 01 1 1206- ●
226 02.480 HARNESS; RR DOOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98167-612-4 01 1 1206- ●
290 02.483 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 1206- ● ● ● ● ●
342 02.480 HARNESS; EXT,LICENSE LAMP
REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) 		8-98137-579-2 01 1 1206- ● ● ● ● ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AUTO DOOR LOCK<AU4>,6-SPEAKER SYSTEM BASE<UW5> 02.559 D=58 BLACK 		8-97302-191-0 02 1 1206- ● ●
483 02.480 HARNESS; EXT,RADIO
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98165-202-2 01 1 1206- ● ● ●
483 02.480 HARNESS; EXT,RADIO
6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> 		8-98129-592-2 01 1 1206- ● ● ●
çizim 283362
4 734 745 750 749
BalonParca AdiParca NoAdetTipApplied Date A B C D E
4 02.483 BOX ASM; FUSE,HARNESS 8-98166-752-0 01 1 1206- ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-98113-097-0 01 1 1206- ● ● ● ● ●
734 02.694 RELAY; ACC SOCKET
09.778 12V YAZAKI 		8-97309-293-0 01 1 1206- ● ● ● ● ●
745 02.694 RELAY; HEATER
4JA1-T ENG(LP0) INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> 02.485 (B) 12V YAZAKI 		8-97309-292-0 01 1 1206- ● ●
745 02.694 RELAY; HEATER
03.670 (A) 12V YAZAKI 		8-98146-834-0 01 1 1206- ● ● ● ● ●
749 02.694 RELAY; POWER WINDOW
09.778 12V YAZAKI 		8-97309-293-0 01 1 1206- ● ● ● ● ●
750 02.694 RELAY; RR DEFOGGER
09.778 12V YAZAKI 		8-97309-293-0 01 1 1206- ● ● ● ● ●
çizim 283366
31 736 738 739 741 743 744 746 737 745 747 748 366 742
BalonParca AdiParca NoAdetTipApplied Date A B C D E
35 02.530 BOX; RELAY & FUSE 8-98113-097-0 01 1 1206- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98163-065-5 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-136-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98160-516-6 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-133-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98160-514-6 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98270-131-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98163-064-6 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98270-135-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98160-515-6 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98270-132-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98160-551-6 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98270-134-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98160-510-5 01 1 1206-1401 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-129-2 01 1 1402- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98160-507-6 01 1 1206-1401 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-127-2 01 1 1402- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98160-504-6 01 1 1206-1401 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98270-125-2 01 1 1402- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98160-509-6 01 1 1206-1401 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98270-128-2 01 1 1402- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98160-506-6 01 1 1206-1401 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98270-126-2 01 1 1402- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98160-513-6 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98270-130-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98213-054-2 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98270-151-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98213-053-2 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98270-150-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98201-053-3 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98201-053-3 01 1 1302-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-140-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98160-496-5 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98160-496-5 01 1 1302-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-124-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98201-054-3 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98201-054-3 01 1 1302-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-141-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98160-495-7 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98160-495-7 01 1 1302-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98270-123-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98200-357-4 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98200-357-4 01 1 1302-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98270-139-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-584-7 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98270-138-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-583-7 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98270-137-2 01 1 1402- ● ●
736 02.694 RELAY; STARTER CUT
02.485 12V YAZAKI 		8-97309-292-0 01 1 1206- ● ● ● ● ●
737 02.694 RELAY; DIMMER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1206- ● ● ● ● ●
738 02.694 RELAY; HEADLAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 1206- ● ● ● ● ●
739 02.694 RELAY; TAIL LAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 1206- ● ● ● ● ●
741 02.694 RELAY; HORN
09.778 12V YAZAKI 		8-97309-293-0 01 1 1206- ● ● ● ● ●
742 02.694 RELAY; THERMO
09.778 12V YAZAKI 		8-97309-293-0 01 1 1206- ● ● ● ● ●
743 02.694 RELAY; A/C COMPRESSOR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1206- ● ● ● ● ●
744 02.694 RELAY; RR FOG LAMP
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 09.778 12V YAZAKI 		8-97309-293-0 01 1 1206- ● ● ● ● ●
745 02.694 RELAY; HEATER
4JA1-T ENG(LP0) INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> 02.485 (B) 12V YAZAKI 		8-97309-292-0 01 1 1206- ● ●
745 02.694 RELAY; HEATER
03.670 (A) 12V YAZAKI 		8-98146-834-0 01 1 1206- ● ● ● ● ●
746 02.694 RELAY; ECM,MAIN
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 03.670 12V YAZAKI 		8-98146-834-0 01 1 1206- ● ● ● ● ●
747 02.694 RELAY; GLOW
02.100 12V YAZAKI 		8-98146-837-0 01 1 1206- ● ● ● ● ●
748 02.694 RELAY; STARTER
02.100 12V YAZAKI 		8-98146-837-0 01 1 1206- ● ● ● ● ●

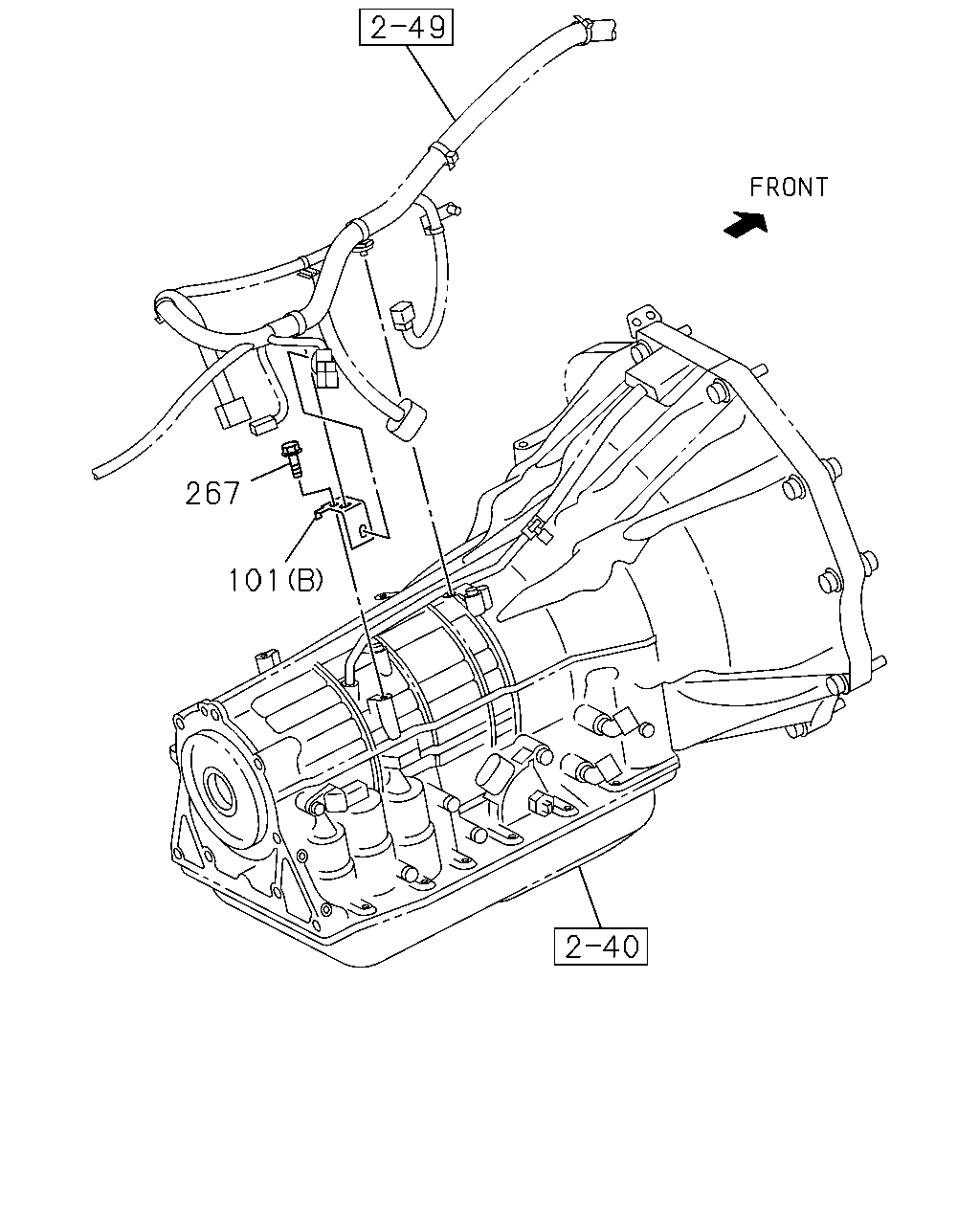

çizim 283367
267 101
BalonParca AdiParca NoAdetTipApplied Date A B C D E
35 02.530 BOX; RELAY & FUSE 8-98113-097-0 01 1 1206- ● ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98102-999-0 01 1 1206- ● ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) (B) 		8-98182-490-1 01 1 1206- ● ●
267 02.483 BOLT; BRKT
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1206- ● ●

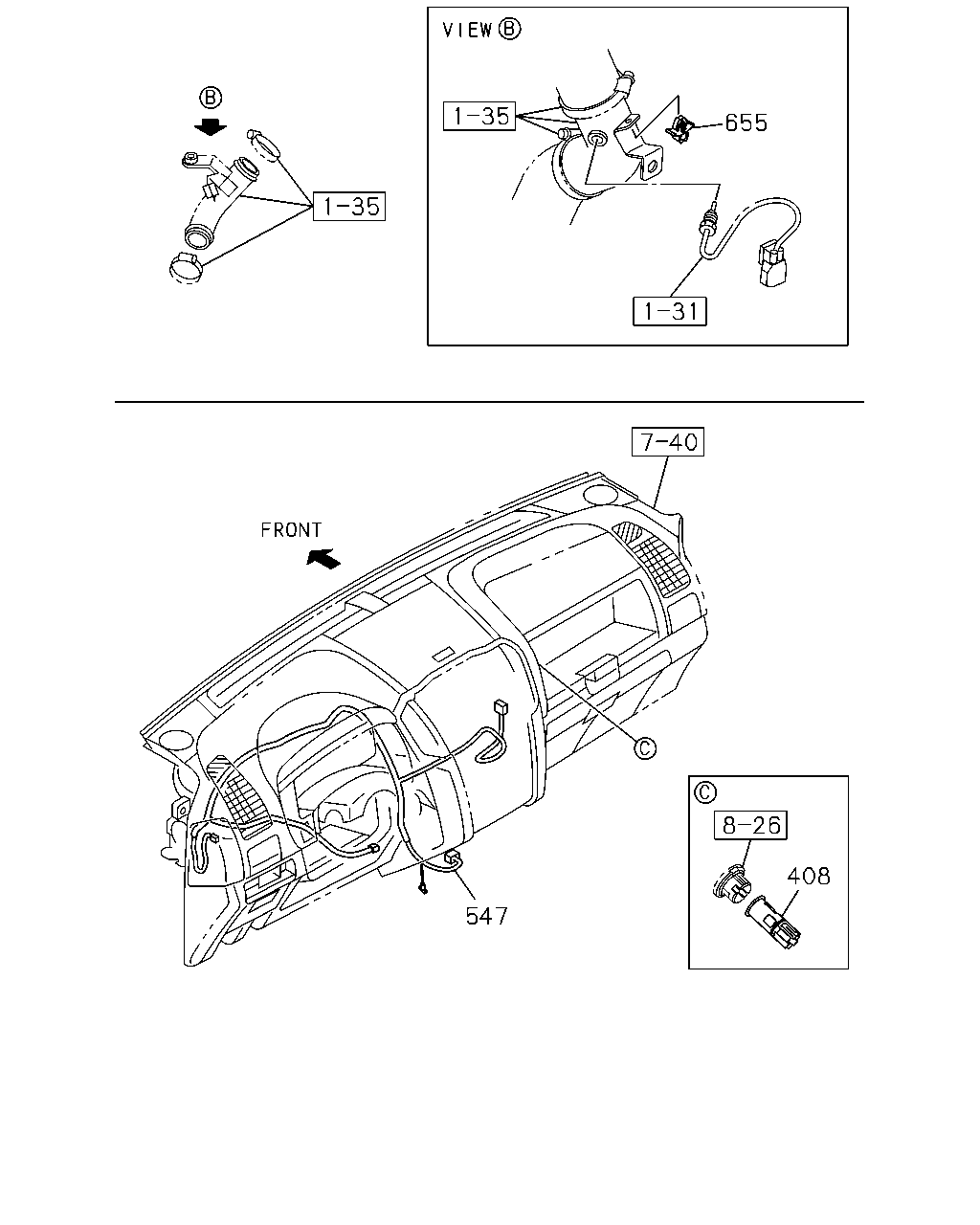

çizim 283616
655 547 408
BalonParca AdiParca NoAdetTipApplied Date A B C D E
35 02.530 BOX; RELAY & FUSE 8-98113-097-0 01 1 1206- ● ● ● ● ●
408 02.575 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98123-115-0 01 1 1206- ● ● ● ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98159-337-2 01 1 1206- ● ● ● ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98163-068-2 01 1 1206- ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98163-069-2 01 1 1206- ● ●
655 02.480 RETAINER
4JK1-TCY ENG(RDX) 08.077 		8-97182-405-0 01 1 1206- ● ● ● ●
çizim 283621
366 699 699 699 699 366 13 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HIGH ALTITUDE COMPENSATOR<EE2> EURO2 SPECIFICATION<NT2> 		8-98218-214-0 01 1 1206-1209 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HIGH ALTITUDE COMPENSATOR<EE2> EURO2 SPECIFICATION<NT2> 		8-98224-636-2 01 1 1210- ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HIGH ALTITUDE COMPENSATOR<EE2> EURO2 SPECIFICATION<NT2> 		8-98218-215-0 01 1 1206-1209 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HIGH ALTITUDE COMPENSATOR<EE2> EURO2 SPECIFICATION<NT2> 		8-98224-637-2 01 1 1210-1401 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ) HIGH ALTITUDE COMPENSATOR<EE2> EURO2 SPECIFICATION<NT2> 		8-98260-537-0 01 1 1402- ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-98190-073-1 01 1 1206-1209 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-98224-628-2 01 1 1210- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98174-793-1 01 1 1206-1209 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98224-632-2 01 1 1210- ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) EMISSION SYSTEM R15-04<K75> 		8-98190-105-4 01 1 1206- ● ●
13 02.525 HARNESS; ENG
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98190-106-4 01 1 1206- ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98174-795-1 01 1 1206-1209 ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98224-634-2 01 1 1210- ● ●
13 02.525 HARNESS; ENG
4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) 		8-98188-433-7 01 1 1206- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75> 		8-98190-075-1 01 1 1206-1209 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75> 		8-98224-639-2 01 1 1210- ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98174-789-1 01 1 1206-1209 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98224-641-2 01 1 1210- ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) 		8-98174-787-1 01 1 1206-1209 ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) 		8-98224-643-2 01 1 1210- ●
13 02.525 HARNESS; ENG
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) 		8-98188-434-7 01 1 1206- ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75> 		8-98190-076-1 01 1 1206-1209 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75> 		8-98224-638-2 01 1 1210-1401 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75> 		8-98260-542-0 01 1 1402- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98174-790-1 01 1 1206-1210 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98224-640-2 01 1 1211-1401 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98260-543-0 01 1 1402- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-98190-074-1 01 1 1206-1209 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-98224-629-2 01 1 1210-1401 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-98260-533-0 01 1 1402- ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98174-794-1 01 1 1206-1209 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98224-633-2 01 1 1210-1401 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EURO2 SPECIFICATION<NT2> EXC. HIGH ALTITUDE COMPENSATOR<EE2> 		8-98260-535-0 01 1 1402- ● ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) 		8-98174-788-1 01 1 1206-1209 ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) 		8-98224-642-2 01 1 1210-1401 ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) 		8-98260-544-0 01 1 1402- ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98174-796-1 01 1 1206-1210 ● ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98224-635-2 01 1 1211-1401 ● ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98260-536-0 01 1 1402- ● ● ●
13 02.525 HARNESS; ENG
4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) 		8-98188-432-7 01 1 1206-1401 ● ●
13 02.525 HARNESS; ENG
4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) 		8-98260-551-0 01 1 1402- ● ●
13 02.525 HARNESS; ENG
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) 		8-98188-435-7 01 1 1206-1401 ●
13 02.525 HARNESS; ENG
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) 		8-98260-550-0 01 1 1402- ●
35 02.530 BOX; RELAY & FUSE 8-98113-097-0 01 1 1206- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98163-065-5 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-136-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98160-516-6 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-133-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98160-514-6 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98270-131-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98163-064-6 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98270-135-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98160-515-6 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98270-132-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98160-551-6 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98270-134-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98160-510-5 01 1 1206-1401 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-129-2 01 1 1402- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98160-507-6 01 1 1206-1401 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-127-2 01 1 1402- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98160-504-6 01 1 1206-1401 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98270-125-2 01 1 1402- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98160-509-6 01 1 1206-1401 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98270-128-2 01 1 1402- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98160-506-6 01 1 1206-1401 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98270-126-2 01 1 1402- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98160-513-6 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1) 		8-98270-130-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98213-054-2 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98270-151-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98213-053-2 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98270-150-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98201-053-3 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98201-053-3 01 1 1302-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-140-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98160-496-5 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98160-496-5 01 1 1302-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-124-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98201-054-3 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98201-054-3 01 1 1302-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQ UIPMENT(2G1) 		8-98270-141-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98160-495-7 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98160-495-7 01 1 1302-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EMISSION SYSTEM R15-04<K75> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98270-123-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98200-357-4 01 1 1206-1301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98200-357-4 01 1 1302-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC TRACTION CONTROL<NW9>, ISRAEL EQUIPMENT(2G1) 		8-98270-139-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-584-7 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98270-138-2 01 1 1402- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98191-583-7 01 1 1206-1401 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ),M/T AISIN 6 SPEED(RNU) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98270-137-2 01 1 1402- ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (B) L=140 		8-97378-707-0 01 1 1206-1401 ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (B) L=140 		8-97378-707-0 01 1 1402- ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (C) L=146.2 		8-98052-677-0 01 1 1206-1401 ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (C) L=146.2 		8-98052-677-0 01 1 1402- ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (D) 		8-98182-511-0 02 1 1206-1401 ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (D) 		8-98182-511-0 02 1 1402- ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A) L=135 		8-94473-399-0 01 1 1206-1401 ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A) L=135 		8-94473-399-0 01 1 1402- ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (B) L=155 		8-97173-307-0 02 1 1210-1210 ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (B) L=155 		8-97173-307-0 02 1 1211-1401 ● ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (B) L=155 		8-97173-307-0 02 1 1402- ● ●
699 02.559 CLIP; ENG HARNESS
4JK1-TCY ENG(RDX) (B) L=170.3 		1-09987-182-0 01 1 1206-1401 ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JK1-TCY ENG(RDX) (B) L=170.3 		1-09987-182-0 01 1 1402- ● ●
699 02.559 CLIP; ENG HARNESS
4JK1-TCY ENG(RDX) (A) L=155 		8-97173-307-0 01 1 1206-1401 ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JK1-TCY ENG(RDX) (A) L=155 		8-97173-307-0 01 1 1402- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
