◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51411 - TFR/TFS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#91156) — 46 parça

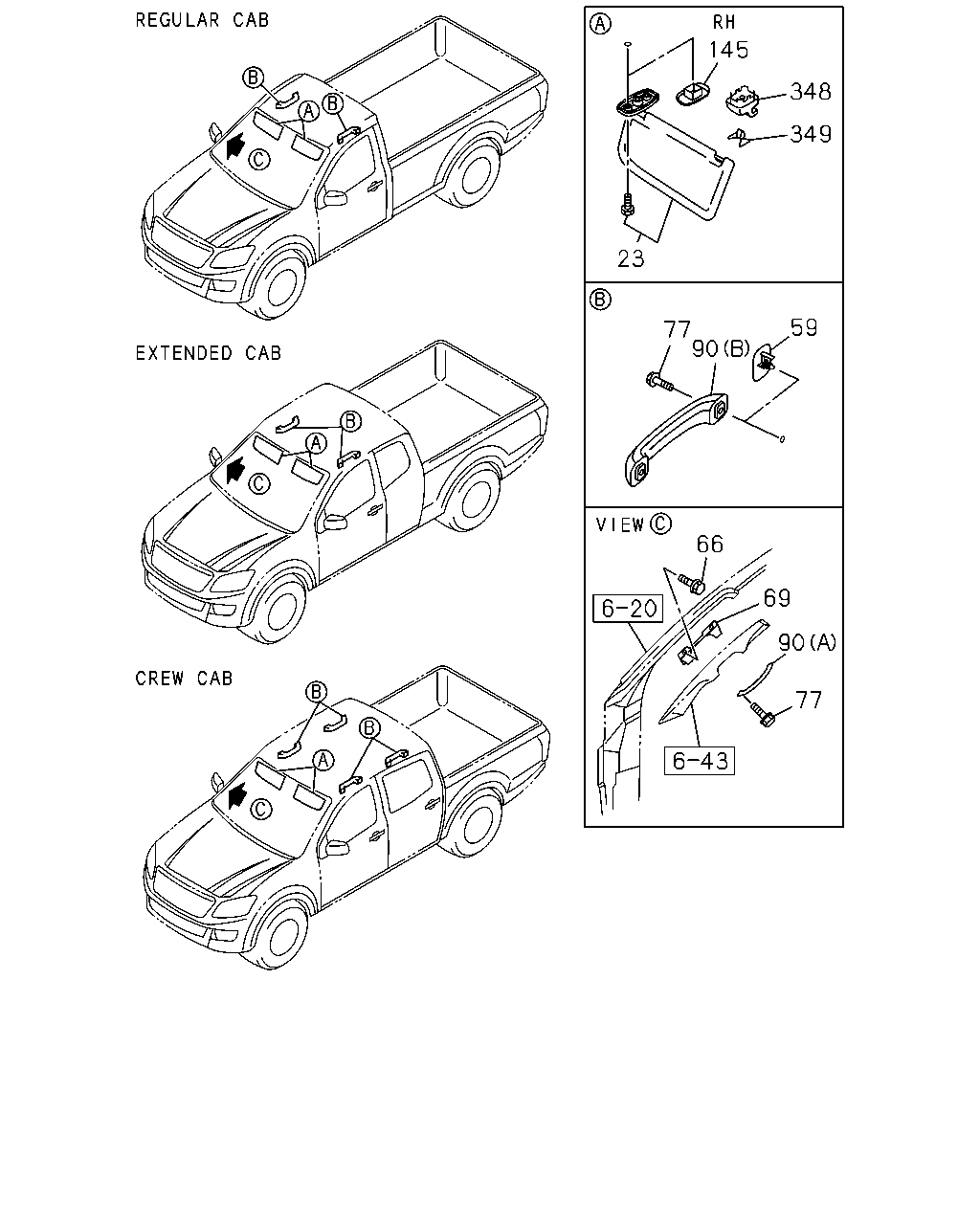

çizim 283339
145 348 349 23 77 90 59 66 69 90 77
BalonParca AdiParca NoAdetTipApplied Date A B C D E
23 16.070 SUN VISOR
EXC. ISRAEL EQUIPMENT(2G1) GRAY 		8-97416-681-2 01 1 1206- ●
23 16.070 SUN VISOR
EXC. RUSSIA EQUIPMENT(B12),SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34>, ISRAEL EQUIPMENT(2G1) GRAY 		8-97416-681-2 01 1 1206- ●
23 16.070 SUN VISOR
ISRAEL EQUIPMENT(2G1) GRAY 		8-97417-449-2 01 1 1206- ●
23 16.070 SUN VISOR
RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97417-449-2 01 1 1206- ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> GRAY 		8-97417-449-2 01 1 1206- ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY 		8-97417-453-2 01 1 1206- ●
23 16.070 SUN VISOR
GRAY 		8-97417-453-2 01 1 1206- ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97419-373-3 01 1 1206- ● ● ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> GRAY 		8-97417-452-4 01 1 1206- ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE<D20> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97416-682-2 01 1 1206- ● ● ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> GRAY 		8-97417-451-3 01 1 1206- ● ● ●
59 16.450 COVER; ASSIST GRIP
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY 		8-97416-700-0 02 1 1206- ● ● ● ● ●
59 16.450 COVER; ASSIST GRIP
EXC. ASSIST HANDLE<E28> GRAY 		8-97416-700-0 02 1 1206- ● ● ● ● ●
66 16.450 BOLT; ASSIST GRIP BRKT
HIGH RIDE SUSPENSION(7YC) M6X16 FLANGE 		8-98050-320-0 04 1 1206-1301 ●
66 16.450 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE 		8-98050-320-0 04 1 1206-1301 ● ● ●
66 16.450 BOLT; ASSIST GRIP BRKT
HIGH RIDE SUSPENSION(7YC) M6X16 FLANGE 		8-98050-320-0 04 1 1302- ● ●
66 16.450 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE 		8-98050-320-0 04 1 1302- ● ● ●
69 16.450 BRACKET; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) 		8-98103-347-3 01 1 1206-1301 ●
69 16.450 BRACKET; ASSIST GRIP 8-98103-347-3 01 1 1206-1301 ● ● ●
69 16.450 BRACKET; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) 		8-98103-347-3 01 1 1302- ● ●
69 16.450 BRACKET; ASSIST GRIP 8-98103-347-3 01 1 1302- ● ● ●
69 16.450 BRACKET; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) 		8-98103-348-3 01 1 1206-1301 ●
69 16.450 BRACKET; ASSIST GRIP 8-98103-348-3 01 1 1206-1301 ● ● ●
69 16.450 BRACKET; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) 		8-98103-348-3 01 1 1302- ● ●
69 16.450 BRACKET; ASSIST GRIP 8-98103-348-3 01 1 1302- ● ● ●
77 16.450 SCREW; ASSIST GRIP
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ASSIST HANDLE<E28> M6X25 		0-36230-625-0 02 1 1206- ● ● ● ● ●
77 16.450 SCREW; ASSIST GRIP
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) M6X25 		0-36230-625-0 04 1 1206-1301 ● ●
77 16.450 SCREW; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) M6X25 		0-36230-625-0 04 1 1206-1301 ●
77 16.450 SCREW; ASSIST GRIP
M6X25 		0-36230-625-0 04 1 1206-1301 ● ● ●
77 16.450 SCREW; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) M6X25 		0-36230-625-0 04 1 1302- ● ●
77 16.450 SCREW; ASSIST GRIP
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) M6X25 		0-36230-625-0 04 1 1302- ● ●
77 16.450 SCREW; ASSIST GRIP
M6X25 		0-36230-625-0 04 1 1302- ● ● ●
90 16.450 GRIP; ASSIST,ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ASSIST HANDLE<E28> (B) FRONT GRAY 		8-97416-698-4 01 1 1206- ● ● ● ● ●
90 16.450 GRIP; ASSIST,ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ASSIST HANDLE<E28> (B) FRONT GRAY 		8-97423-866-2 02 1 1206- ● ●
90 16.450 GRIP; ASSIST,ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ASSIST HANDLE<E28> (B) FRONT GRAY 		8-97419-356-5 02 1 1206- ● ●
90 16.450 GRIP; ASSIST,ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) (B) REAR GRAY 		8-97418-299-1 01 1 1206- ● ●
90 16.450 GRIP; ASSIST,ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) (B) REAR GRAY 		8-97418-300-1 01 1 1206- ● ●
90 16.450 GRIP; ASSIST,ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (B) REAR GRAY 		8-97423-347-4 01 1 1206- ● ●
90 16.450 GRIP; ASSIST,ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (B) REAR GRAY 		8-97419-357-6 01 1 1206- ● ●
90 16.450 GRIP; ASSIST,ROOF
HIGH RIDE SUSPENSION(7YC) (A) GRAY 		8-97416-698-4 02 1 1206-1301 ●
90 16.450 GRIP; ASSIST,ROOF
(A) GRAY 		8-97416-698-4 02 1 1206-1301 ● ● ●
90 16.450 GRIP; ASSIST,ROOF
HIGH RIDE SUSPENSION(7YC) (A) GRAY 		8-97416-698-4 02 1 1302- ● ●
90 16.450 GRIP; ASSIST,ROOF
(A) GRAY 		8-97416-698-4 02 1 1302- ● ● ●
145 16.070 PLUG; HOLE
EXC. SUNVISOR PASSENGER SIDE<D20> GRAY 		8-97416-689-1 01 1 1206- ● ● ● ● ●
348 16.070 RETAINER; SUNSHADE
GRAY 		8-97403-990-0 02 1 1206- ● ● ● ● ●
349 16.070 CLIP; RETAINER SUNSHADE 8-98039-903-0 02 1 1206- ● ● ● ● ●
