Sayfa 7-01 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51411 - TFR/TFS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶

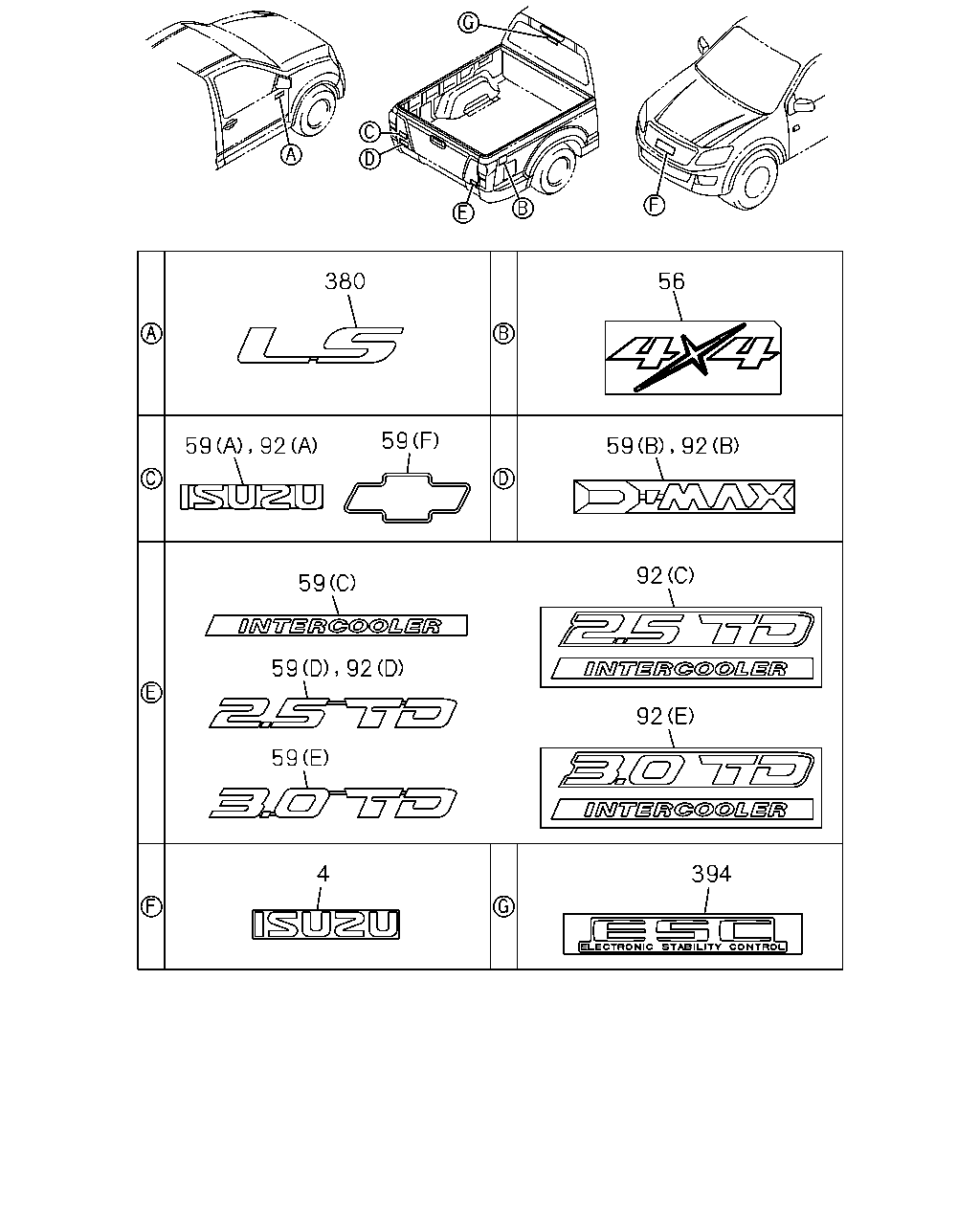

7-01 — EMBLEM AND NAME PLATE (#91150) — 26 parça

92 59 92 56 380 59 92 59 59 59 92 59 92 394 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
4	01.303 EMBLEM; RAD GRILLE ISUZU BRAND<7WL>	8-98164-912-0	01	1	1206-	●	●	●	●
4	01.303 EMBLEM; RAD GRILLE	8-98164-912-0	01	1	1206-					●
56	08.147 DECAL; BODY SIDE BODY COLOR NAUTILUS BLUE MICA(521), BODY COLOR COSMIC BLACK MICA(523),BODY COLOR GARNET RED MICA(528),BODY COLOR MI NERAL GRAY MET(530),BODY COLOR TUNDRA GREEN MICA(533) REAR BODY DBL WALL CTR PULL(E63) DECAL 4X4<YJ3> LIGHT SILVER & RED	8-97421-195-1	02	1	1206-			●	●	●
56	08.147 DECAL; BODY SIDE BODY COLOR SPLASH WHITE(527),BODY COLOR TITANIUM SILVER MET(529),BODY COLOR SOLEIL ORANGE MICA(532),BODY COLOR ASHBEIGE MET(541) REAR BODY DBL WALL CTR PULL(E63) DECAL 4X4<YJ3> DARK GRAY & RED	8-97421-196-1	02	1	1206-			●	●	●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (A)	8-98129-896-0	01	1	1206-		●		●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) (A)	8-98129-896-0	01	1	1206-					●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (B)	8-98134-860-0	01	1	1206-		●		●
59	01.303 DECAL; TAIL GATE REAR BODY DBL WALL CTR PULL(E63) (B)	8-98134-860-0	01	1	1206-					●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) (C)	8-98129-903-0	01	1	1206-		●		●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (C)	8-98129-903-0	01	1	1206-					●
59	01.303 DECAL; TAIL GATE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) (D)	8-98134-871-0	01	1	1206-		●		●
59	01.303 DECAL; TAIL GATE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (D)	8-98134-871-0	01	1	1206-					●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) (E)	8-98134-872-0	01	1	1206-		●		●
59	01.303 DECAL; TAIL GATE 4JJ1-TCS ENG(LFB) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (E)	8-98134-872-0	01	1	1206-					●
59	01.303 DECAL; TAIL GATE COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) REAR BODY DBL WALL CTR PULL(E63) CHEVROLET BRAND<RWE> (F)	8-98200-743-1	01	1	1206-	●	●	●	●
92	08.147 DECAL; RR END REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (A)	8-98129-861-0	01	1	1206-	●		●
92	08.147 DECAL; RR END REAR BODY DBL WALL CTR PULL(E63) ISUZU BRAND<7WL> (B)	8-98129-863-0	01	1	1206-	●		●
92	08.147 DECAL; RR END 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) (C)	8-98129-870-0	01	1	1206-	●	●	●	●	●
92	08.147 DECAL; RR END 4JA1-T ENG(LP0) REAR BODY DBL WALL CTR PULL(E63) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) (D)	8-98129-869-0	01	1	1206-	●	●
92	08.147 DECAL; RR END 4JJ1-TCS ENG(LFB) INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) (E)	8-98129-871-0	01	1	1206-		●	●	●	●
380	17.215 PLATE; SIDE INTERIOR CUSTOM(RBD) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46)	8-98129-894-0	02	1	1206-		●		●
380	17.215 PLATE; SIDE INTERIOR CUSTOM(RBD)	8-98129-894-0	02	1	1206-					●
394	16.507 DECAL; RR BODY ELECTRONIC TRACTION CONTROL<NW9> EXC. ISRAEL EQUIPMENT(2G1)	8-98129-857-2	01	1	1206-	●		●
394	16.507 DECAL; RR BODY ELECTRONIC TRACTION CONTROL<NW9> EXC. RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1)	8-98129-857-2	01	1	1206-		●		●
394	16.507 DECAL; RR BODY ELECTRONIC TRACTION CONTROL<NW9>	8-98129-857-2	01	1	1206-					●

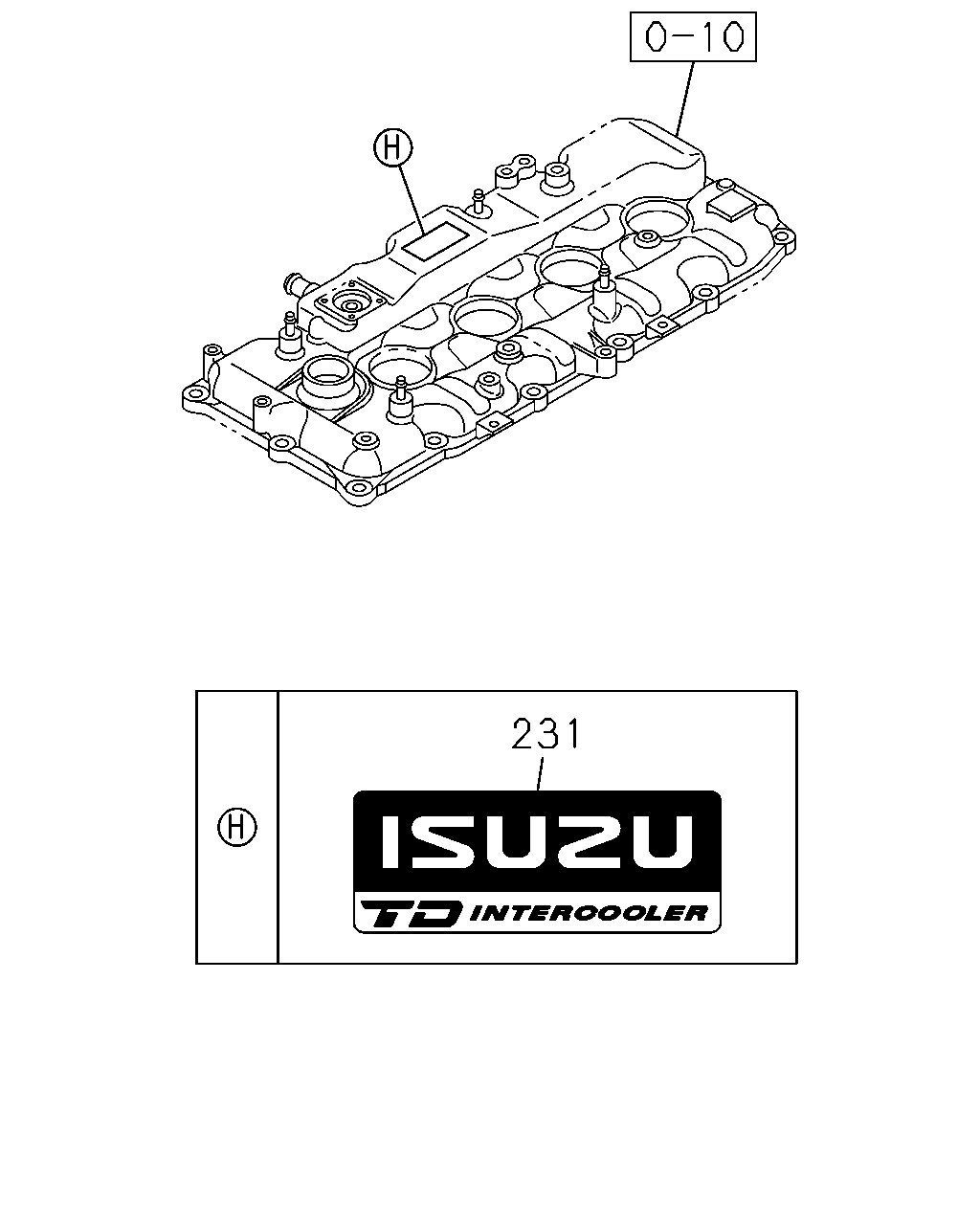

231

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	231	01.303 EMBLEM; ENG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) ISUZU BRAND<7WL> EXC. ENG SIGHT SHIELD<8LQ>	8-98221-983-0	01	1	1206-	●	●	●	●	●
