Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#9115) — 278 parça

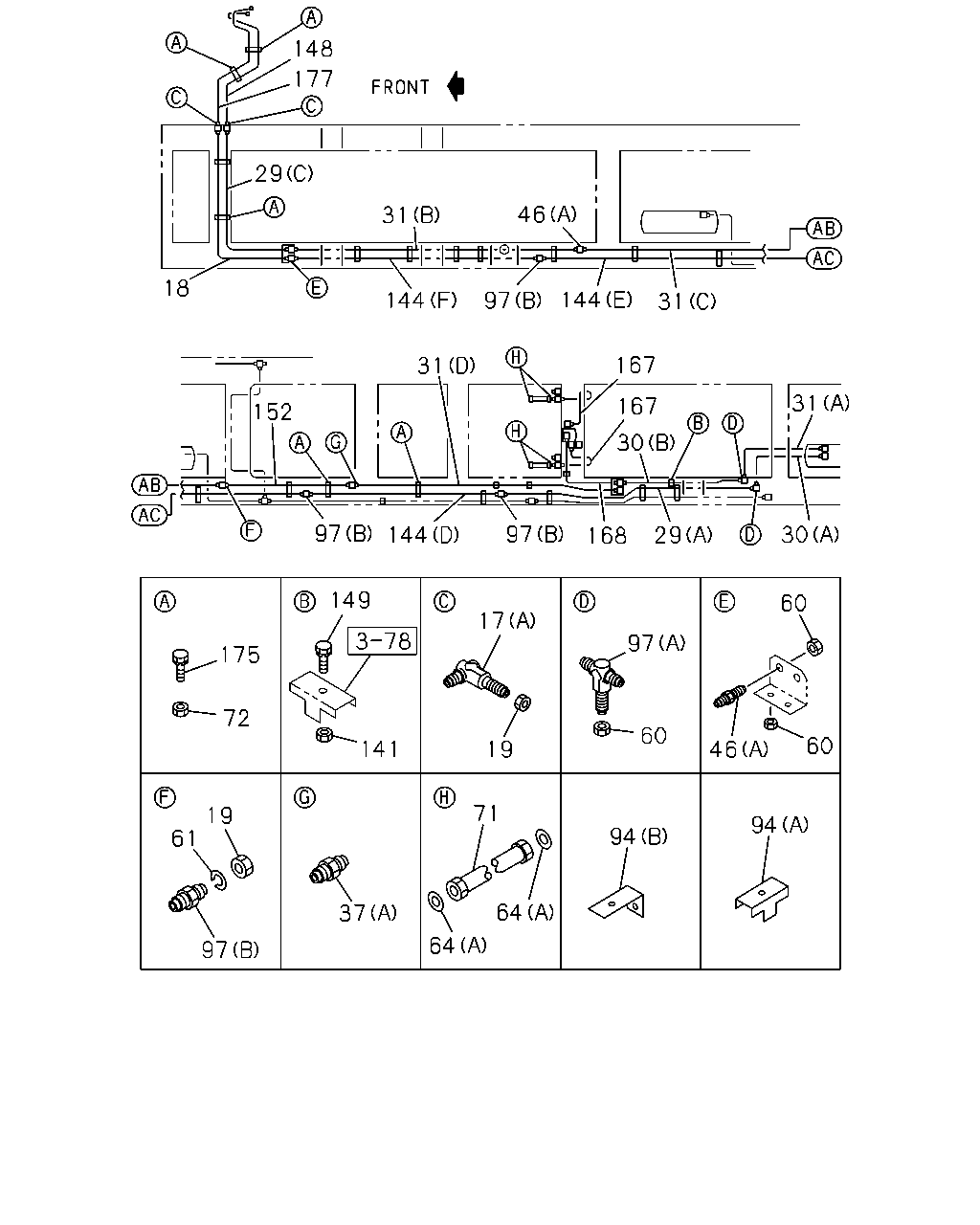

148 177 29 46 31 18 144 144 97 31 167 31 152 31 167 30 97 97 30 29 144 168 149 60 17 97 175 72 60 60 19 141 46 71 19 94 94 61 64 37 64 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	UNION; AIR PIPE (A) M14	9-09235-108-1	01	1	9606-	●
17	UNION; AIR PIPE (A) M16 ELBOW	9-09235-110-1	01	1	9606-	●
17	UNION; AIR PIPE (B) M14	9-09223-208-1	01	1	9606-		●
18	PIPE; AIR,UNION TO UNION L=1416 SERVICED BY L=1550	1-47426-419-0	01	1	9606-	●
19	NUT; PIPE UNION M14	9-99111-414-0	01	1	9606-	●	●
19	NUT; PIPE UNION M14	9-99111-414-0	02	1	9606-	●	●
29	PIPE; AIR,UNION TO UNION (C) L=1398 SERVICED BY L=1400	1-47426-389-0	01	1	9606-	●
29	PIPE; AIR,UNION TO UNION (A) L=2109 SERVICED BY L=2500	1-47426-423-0	01	1	9606-	●	●
29	PIPE; AIR,UNION TO UNION (B) L=2494 SERVICED BY L=2700	1-47426-396-0	01	1	9606-		●
30	PIPE; AIR,AIR TANK TO JOINT (A) L=688 SERVICED BY L=730	1-47426-411-0	01	1	9606-	●	●
30	PIPE; AIR,AIR TANK TO JOINT (B) L=1191	1-47448-553-0	01	1	9606-	●	●
31	PIPE; AIR,UNION TO UNION (C) L=1223 SERVICED BY L=1250	1-47426-388-0	01	1	9606-	●
31	PIPE; AIR,UNION TO UNION (B) L=2134 SERVICED BY L=2150	1-47426-394-0	01	1	9606-	●
31	PIPE; AIR,UNION TO UNION (D)	1-47496-847-0	01	1	9606-	●
31	PIPE; AIR,UNION TO UNION (A)	1-47448-554-0	01	1	9606-	●	●
31	PIPE; AIR,UNION TO UNION (C) L=1262 SERVICED BY L=1400	1-47426-389-0	01	1	9606-		●
31	PIPE; AIR,UNION TO UNION (D)	1-47496-848-0	01	1	9606-		●
37	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	02	1	9606-	●
37	UNION; AIR PIPE (A) M22	1-09650-172-1	01	1	9606-	●	●
37	UNION; AIR PIPE (A) M16 2WAY	1-09650-182-1	01	1	9606-	●	●
37	UNION; AIR PIPE (A) M16 2WAY	1-09650-182-1	01	1	9606-		●
37	UNION; AIR PIPE (B) M14	9-09223-208-1	01	1	9606-	●	●
37	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	01	1	9606-	●	●
37	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	01	1	9606-		●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-110-1	01	1	9606-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-110-1	01	1	9606-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-110-1	01	1	9606-	●
46	NIPPLE; AIR PIPE (A) M16 L=65 STRAIGHT	9-09223-110-1	01	1	9606-	●
46	NIPPLE; AIR PIPE (A) M14	9-09223-208-1	01	1	9606-	●
46	NIPPLE; AIR PIPE (B) M16 L=42	9-09233-010-1	01	1	9606-	●
46	NIPPLE; AIR PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9606-	●	●
46	NIPPLE; AIR PIPE (B) M16 L=42	9-09233-010-1	02	1	9606-	●	●
46	NIPPLE; AIR PIPE (B) M16 2WAY	1-09650-182-1	01	1	9606-		●
46	NIPPLE; AIR PIPE (A) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9606-		●
60	NUT; NIPPLE,AIR PIPE M14	9-99111-414-0	01	1	9606-	●
60	NUT; NIPPLE,AIR PIPE M16	9-99111-416-0	02	1	9606-	●
60	NUT; NIPPLE,AIR PIPE M14	9-99110-414-0	01	1	9606-	●	●
60	NUT; NIPPLE,AIR PIPE M12	9-99110-512-0	01	1	9606-	●	●
60	NUT; NIPPLE,AIR PIPE M16	9-99111-416-0	01	1	9606-	●	●
60	NUT; NIPPLE,AIR PIPE M16	9-99111-416-0	01	1	9606-	●	●
61	WASHER; LK,NIPPLE ID=15	9-09160-514-0	01	1	9606-	●	●
64	GASKET; FLEX HOSE (A) ID=11 OD=18	9-09572-510-0	04	1	9606-	●	●
64	GASKET; FLEX HOSE (B) ID=17.5	9-09572-515-0	04	1	9606-	●	●
71	HOSE; FLEX,RWD RR L=680	0-07847-680-1	02	1	9606-	●	●
72	NUT; BRKT M6	9-09110-406-0	02	1	9606-	●
72	NUT; BRKT M8	9-09110-408-0	02	1	9606-	●
72	NUT; BRKT M8	9-09110-408-0	03	1	9606-	●	●
72	NUT; BRKT M8	9-09110-408-0	03	1	9606-		●
72	NUT; BRKT M6	9-09110-406-0	05	1	9606-		●
94	BRACKET; AIR PIPE (B) L=55	1-47475-304-0	01	1	9606-	●
94	BRACKET; AIR PIPE (A)	1-47475-427-1	01	1	9606-	●
94	BRACKET; AIR PIPE (A)	1-47475-427-1	03	1	9606-		●
94	BRACKET; AIR PIPE (B) M8 W/NUT	1-47475-439-2	01	1	9606-		●
97	UNION; AIR PIPE (A) M22	1-09650-172-1	01	1	9606-	●	●
97	UNION; AIR PIPE (A) M16 2WAY	1-09650-182-1	01	1	9606-	●	●
97	UNION; AIR PIPE (B) M14	9-09223-208-1	01	1	9606-	●	●
97	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	01	1	9606-	●	●
97	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	02	1	9606-	●	●
97	UNION; AIR PIPE (C) M16 ELBOW	9-09235-110-1	01	1	9606-		●
141	NUT; PIPE BRKT M8	9-09110-408-0	01	1	9606-	●	●
144	PIPE; AIR,UNION TO UNION (D) L=1165 SERVICED BY L=1250	1-47426-416-0	01	1	9606-	●
144	PIPE; AIR,UNION TO UNION (E) L=2124 SERVICED BY L=2500	1-47426-423-0	01	1	9606-	●
144	PIPE; AIR,UNION TO UNION (F) L=1942 SERVICED BY L=2500	1-47426-423-0	01	1	9606-	●
144	PIPE; AIR,UNION TO UNION (C) L=1370 SERVICED BY L=1400	1-47426-418-0	01	1	9606-		●
144	PIPE; AIR,UNION TO UNION (A) L=1676 SERVICED BY L=1900	1-47426-421-0	01	1	9606-		●
144	PIPE; AIR,UNION TO UNION (B) L=2523 SERVICED BY L=2600	1-47426-424-0	01	1	9606-		●
148	PIPE; AIR,SPR BRK TO UNION L=1781 SERVICED BY L=1800	1-47426-392-0	01	1	9606-	●
148	PIPE; AIR,SPR BRK TO UNION L=1777 SERVICED BY L=1800	1-47426-392-0	01	1	9606-		●
149	BOLT; PIPE BRKT M8X45 W/LK WASHER	0-50040-845-0	01	1	9606-	●	●
152	PIPE; AIR,UNION TO UNION L=1445 SERVICED BY L=1550	1-47426-390-0	01	1	9606-	●	●
167	PIPE; AIR,QUICK RELEASE VLV L=574 SERVICED BY L=600	1-47426-408-0	01	1	9606-	●	●
167	PIPE; AIR,QUICK RELEASE VLV L=560 SERVICED BY L=600	1-47426-408-0	01	1	9606-	●	●
168	PIPE; AIR,RELAY VALVE TO QUICK RELEASE L=626 SERVICED BY L=660	1-49111-438-0	01	1	9606-	●	●
175	BOLT; HOSE BRKT M6X25 W/LK WASHER	0-50040-625-0	03	1	9606-	●
175	BOLT; HOSE BRKT M8X45 W/LK WASHER	0-50040-845-0	02	1	9606-	●
175	BOLT; HOSE BRKT M8X25 W/LK WASHER	0-50040-825-0	01	1	9606-	●	●
175	BOLT; HOSE BRKT M8X45 W/LK WASHER	0-50040-845-0	01	1	9606-	●	●
175	BOLT; HOSE BRKT M6X20 W/LK WASHER	0-50040-620-0	07	1	9606-		●
175	BOLT; HOSE BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9606-		●
175	BOLT; HOSE BRKT M8X45 W/LK WASHER	0-50040-845-0	03	1	9606-		●
177	PIPE; AIR,UNION TO SPR CHAMBER L=1767 SERVICED BY L=1900	1-47426-421-0	01	1	9606-	●
177	PIPE; AIR,UNION TO SPR CHAMBER L=1771 SERVICED BY L=1900	1-47426-421-0	01	1	9606-		●

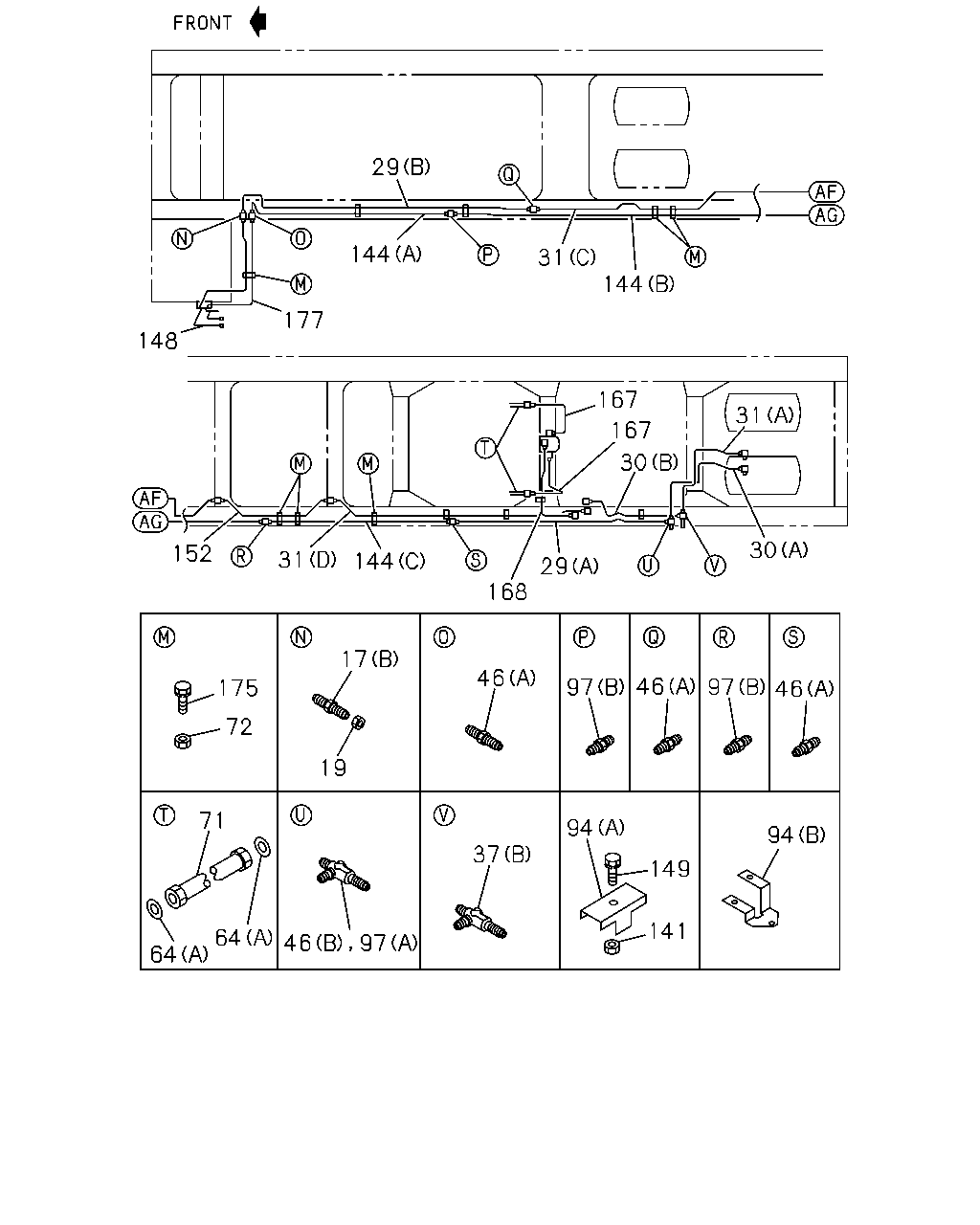

29 144 31 144 177 148 167 31 167 30 30 152 31 144 29 168 17 46 46 97 175 72 19 71 94 94 37 149 141 64 64 97 46 97 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	UNION; AIR PIPE (A) M14	9-09235-108-1	01	1	9606-	●
17	UNION; AIR PIPE (A) M16 ELBOW	9-09235-110-1	01	1	9606-	●
17	UNION; AIR PIPE (B) M14	9-09223-208-1	01	1	9606-		●
19	NUT; PIPE UNION M14	9-99111-414-0	01	1	9606-	●	●
19	NUT; PIPE UNION M14	9-99111-414-0	02	1	9606-	●	●
29	PIPE; AIR,UNION TO UNION (C) L=1398 SERVICED BY L=1400	1-47426-389-0	01	1	9606-	●
29	PIPE; AIR,UNION TO UNION (A) L=2109 SERVICED BY L=2500	1-47426-423-0	01	1	9606-	●	●
29	PIPE; AIR,UNION TO UNION (B) L=2494 SERVICED BY L=2700	1-47426-396-0	01	1	9606-		●
30	PIPE; AIR,AIR TANK TO JOINT (A) L=688 SERVICED BY L=730	1-47426-411-0	01	1	9606-	●	●
30	PIPE; AIR,AIR TANK TO JOINT (B) L=1191	1-47448-553-0	01	1	9606-	●	●
31	PIPE; AIR,UNION TO UNION (C) L=1223 SERVICED BY L=1250	1-47426-388-0	01	1	9606-	●
31	PIPE; AIR,UNION TO UNION (B) L=2134 SERVICED BY L=2150	1-47426-394-0	01	1	9606-	●
31	PIPE; AIR,UNION TO UNION (D)	1-47496-847-0	01	1	9606-	●
31	PIPE; AIR,UNION TO UNION (A)	1-47448-554-0	01	1	9606-	●	●
31	PIPE; AIR,UNION TO UNION (C) L=1262 SERVICED BY L=1400	1-47426-389-0	01	1	9606-		●
31	PIPE; AIR,UNION TO UNION (D)	1-47496-848-0	01	1	9606-		●
37	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	02	1	9606-	●
37	UNION; AIR PIPE (A) M22	1-09650-172-1	01	1	9606-	●	●
37	UNION; AIR PIPE (A) M16 2WAY	1-09650-182-1	01	1	9606-	●	●
37	UNION; AIR PIPE (A) M16 2WAY	1-09650-182-1	01	1	9606-		●
37	UNION; AIR PIPE (B) M14	9-09223-208-1	01	1	9606-	●	●
37	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	01	1	9606-	●	●
37	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	01	1	9606-		●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-110-1	01	1	9606-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-110-1	01	1	9606-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-110-1	01	1	9606-	●
46	NIPPLE; AIR PIPE (A) M16 L=65 STRAIGHT	9-09223-110-1	01	1	9606-	●
46	NIPPLE; AIR PIPE (A) M14	9-09223-208-1	01	1	9606-	●
46	NIPPLE; AIR PIPE (B) M16 L=42	9-09233-010-1	01	1	9606-	●
46	NIPPLE; AIR PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9606-	●	●
46	NIPPLE; AIR PIPE (B) M16 L=42	9-09233-010-1	02	1	9606-	●	●
46	NIPPLE; AIR PIPE (B) M16 2WAY	1-09650-182-1	01	1	9606-		●
46	NIPPLE; AIR PIPE (A) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9606-		●
64	GASKET; FLEX HOSE (A) ID=11 OD=18	9-09572-510-0	04	1	9606-	●	●
64	GASKET; FLEX HOSE (B) ID=17.5	9-09572-515-0	04	1	9606-	●	●
71	HOSE; FLEX,RWD RR L=680	0-07847-680-1	02	1	9606-	●	●
72	NUT; BRKT M6	9-09110-406-0	02	1	9606-	●
72	NUT; BRKT M8	9-09110-408-0	02	1	9606-	●
72	NUT; BRKT M8	9-09110-408-0	03	1	9606-	●	●
72	NUT; BRKT M8	9-09110-408-0	03	1	9606-		●
72	NUT; BRKT M6	9-09110-406-0	05	1	9606-		●
94	BRACKET; AIR PIPE (B) L=55	1-47475-304-0	01	1	9606-	●
94	BRACKET; AIR PIPE (A)	1-47475-427-1	01	1	9606-	●
94	BRACKET; AIR PIPE (A)	1-47475-427-1	03	1	9606-		●
94	BRACKET; AIR PIPE (B) M8 W/NUT	1-47475-439-2	01	1	9606-		●
97	UNION; AIR PIPE (A) M22	1-09650-172-1	01	1	9606-	●	●
97	UNION; AIR PIPE (A) M16 2WAY	1-09650-182-1	01	1	9606-	●	●
97	UNION; AIR PIPE (B) M14	9-09223-208-1	01	1	9606-	●	●
97	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	01	1	9606-	●	●
97	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	02	1	9606-	●	●
97	UNION; AIR PIPE (C) M16 ELBOW	9-09235-110-1	01	1	9606-		●
141	NUT; PIPE BRKT M8	9-09110-408-0	01	1	9606-	●	●
144	PIPE; AIR,UNION TO UNION (D) L=1165 SERVICED BY L=1250	1-47426-416-0	01	1	9606-	●
144	PIPE; AIR,UNION TO UNION (E) L=2124 SERVICED BY L=2500	1-47426-423-0	01	1	9606-	●
144	PIPE; AIR,UNION TO UNION (F) L=1942 SERVICED BY L=2500	1-47426-423-0	01	1	9606-	●
144	PIPE; AIR,UNION TO UNION (C) L=1370 SERVICED BY L=1400	1-47426-418-0	01	1	9606-		●
144	PIPE; AIR,UNION TO UNION (A) L=1676 SERVICED BY L=1900	1-47426-421-0	01	1	9606-		●
144	PIPE; AIR,UNION TO UNION (B) L=2523 SERVICED BY L=2600	1-47426-424-0	01	1	9606-		●
148	PIPE; AIR,SPR BRK TO UNION L=1781 SERVICED BY L=1800	1-47426-392-0	01	1	9606-	●
148	PIPE; AIR,SPR BRK TO UNION L=1777 SERVICED BY L=1800	1-47426-392-0	01	1	9606-		●
149	BOLT; PIPE BRKT M8X45 W/LK WASHER	0-50040-845-0	01	1	9606-	●	●
152	PIPE; AIR,UNION TO UNION L=1445 SERVICED BY L=1550	1-47426-390-0	01	1	9606-	●	●
167	PIPE; AIR,QUICK RELEASE VLV L=574 SERVICED BY L=600	1-47426-408-0	01	1	9606-	●	●
167	PIPE; AIR,QUICK RELEASE VLV L=560 SERVICED BY L=600	1-47426-408-0	01	1	9606-	●	●
168	PIPE; AIR,RELAY VALVE TO QUICK RELEASE L=626 SERVICED BY L=660	1-49111-438-0	01	1	9606-	●	●
175	BOLT; HOSE BRKT M6X25 W/LK WASHER	0-50040-625-0	03	1	9606-	●
175	BOLT; HOSE BRKT M8X45 W/LK WASHER	0-50040-845-0	02	1	9606-	●
175	BOLT; HOSE BRKT M8X25 W/LK WASHER	0-50040-825-0	01	1	9606-	●	●
175	BOLT; HOSE BRKT M8X45 W/LK WASHER	0-50040-845-0	01	1	9606-	●	●
175	BOLT; HOSE BRKT M6X20 W/LK WASHER	0-50040-620-0	07	1	9606-		●
175	BOLT; HOSE BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9606-		●
175	BOLT; HOSE BRKT M8X45 W/LK WASHER	0-50040-845-0	03	1	9606-		●
177	PIPE; AIR,UNION TO SPR CHAMBER L=1767 SERVICED BY L=1900	1-47426-421-0	01	1	9606-	●
177	PIPE; AIR,UNION TO SPR CHAMBER L=1771 SERVICED BY L=1900	1-47426-421-0	01	1	9606-		●

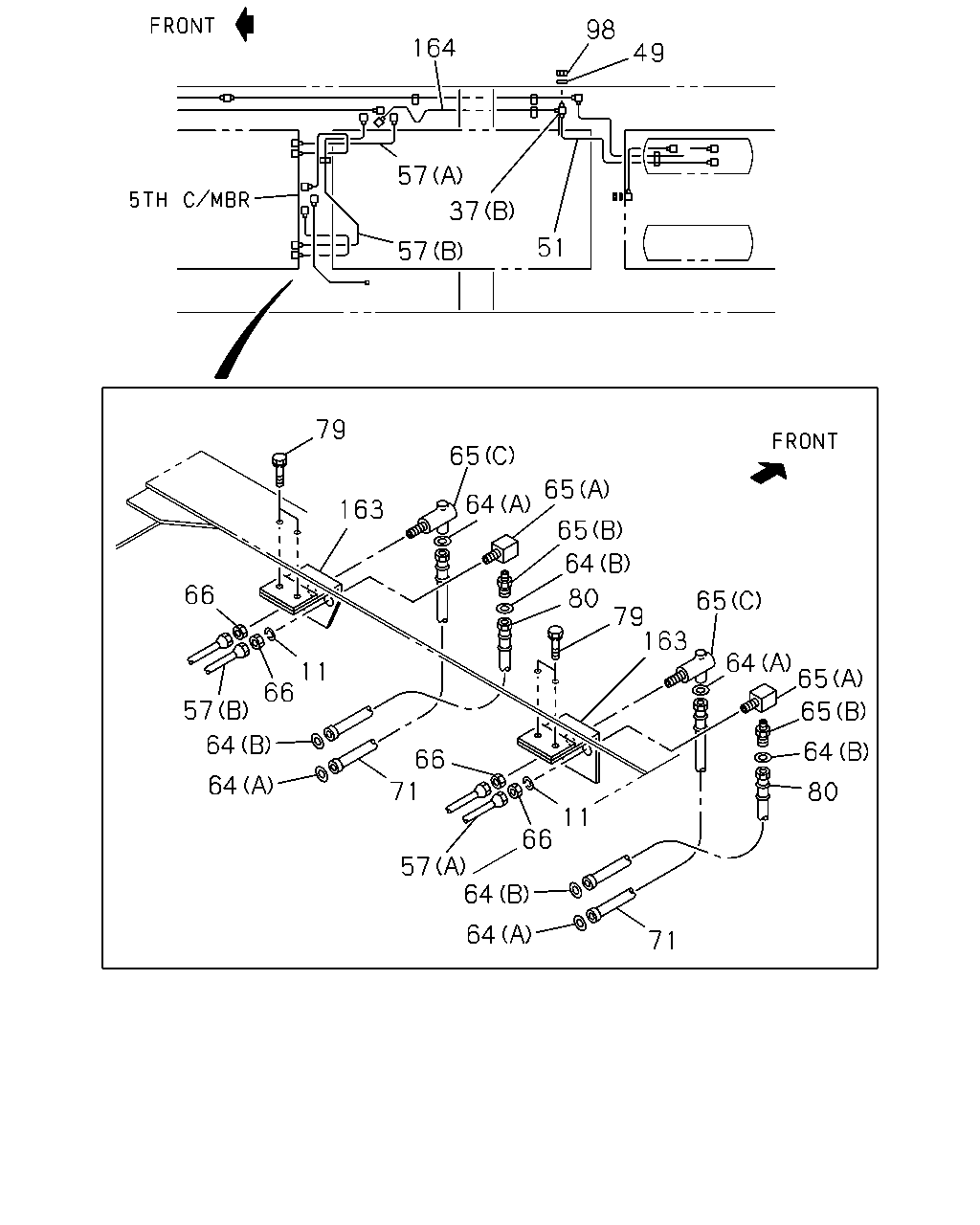

98 164 49 57 37 51 57 79 65 65 64 163 65 64 66 80 65 79 163 64 65 11 66 57 65 64 64 66 64 71 80 11 66 57 64 64 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	WASHER; LK,CONNECTOR ID=20.2	9-09150-520-0	02	1	9606-	●	●
37	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	02	1	9606-	●
37	UNION; AIR PIPE (A) M22	1-09650-172-1	01	1	9606-	●	●
37	UNION; AIR PIPE (A) M16 2WAY	1-09650-182-1	01	1	9606-	●	●
37	UNION; AIR PIPE (A) M16 2WAY	1-09650-182-1	01	1	9606-		●
37	UNION; AIR PIPE (B) M14	9-09223-208-1	01	1	9606-	●	●
37	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	01	1	9606-	●	●
37	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	01	1	9606-		●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-110-1	01	1	9606-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-110-1	01	1	9606-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-110-1	01	1	9606-	●
49	WASHER; LK,PIPE UNION ID=15	9-09160-514-0	01	1	9606-	●	●
51	PIPE; AIR,UNION TO UNION	1-47448-737-0	01	1	9606-	●	●
57	PIPE; AIR,RELAY VLV TO FLEX HOSE (A) L=481 SERVICED BY L=550	1-49111-436-0	01	1	9606-	●	●
57	PIPE; AIR,RELAY VLV TO FLEX HOSE (B) L=790 SERVICED BY L=800	1-49111-441-0	01	1	9606-	●	●
64	GASKET; FLEX HOSE (A) ID=11 OD=18	9-09572-510-0	04	1	9606-	●	●
64	GASKET; FLEX HOSE (B) ID=17.5	9-09572-515-0	04	1	9606-	●	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER (A)	1-09650-003-1	02	1	9606-	●	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER (B)	1-09656-088-0	02	1	9606-	●	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER (C)	9-09903-782-1	02	1	9606-	●	●
66	NUT; HOSE CONNECTOR M16	9-99111-416-0	02	1	9606-	●	●
66	NUT; HOSE CONNECTOR M20	9-99111-420-0	02	1	9606-	●	●
71	HOSE; FLEX,RWD RR L=680	0-07847-680-1	02	1	9606-	●	●
79	BOLT; HOSE BRKT M8X25 W/LK WASHER	0-50040-825-0	04	1	9606-	●	●
80	HOSE; FLEX,POWER CHAMBER L=650	0-07909-650-0	02	1	9606-	●	●
98	NUT; PIPE UNION M14	9-99110-414-0	01	1	9606-	●	●
98	NUT; PIPE UNION M16	9-99111-416-0	01	1	9606-		●
163	BRACKET; FLEX HOSE	8-94300-576-1	01	1	9606-	●	●
163	BRACKET; FLEX HOSE	8-94300-575-1	01	1	9606-	●	●
164	PIPE; AIR,AIR TANK TO RELAY VLV	1-47448-561-0	01	1	9606-	●	●

13 102 93 103 13 103 95 104 46 46 93 46 46 46 46 92 93 87 113 60 91 91 2 13 100 37 13 60 91 102 2 95 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE M16 ELBOW	9-09235-110-1	01	1	9606-	●	●
13	PIPE; AIR,BRK VLV TO UNION (A) L=200 SERVICED BY L=350	1-47426-403-0	01	1	9606-	●	●
13	PIPE; AIR,BRK VLV TO UNION (B) L=603 SERVICED BY L=660	1-47426-409-0	01	1	9606-	●	●
37	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	02	1	9606-	●
37	UNION; AIR PIPE (A) M22	1-09650-172-1	01	1	9606-	●	●
37	UNION; AIR PIPE (A) M16 2WAY	1-09650-182-1	01	1	9606-	●	●
37	UNION; AIR PIPE (A) M16 2WAY	1-09650-182-1	01	1	9606-		●
37	UNION; AIR PIPE (B) M14	9-09223-208-1	01	1	9606-	●	●
37	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	01	1	9606-	●	●
37	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	01	1	9606-		●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-110-1	01	1	9606-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-110-1	01	1	9606-	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-110-1	01	1	9606-	●
46	NIPPLE; AIR PIPE (A) M16 L=65 STRAIGHT	9-09223-110-1	01	1	9606-	●
46	NIPPLE; AIR PIPE (A) M14	9-09223-208-1	01	1	9606-	●
46	NIPPLE; AIR PIPE (B) M16 L=42	9-09233-010-1	01	1	9606-	●
46	NIPPLE; AIR PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9606-	●	●
46	NIPPLE; AIR PIPE (B) M16 L=42	9-09233-010-1	02	1	9606-	●	●
46	NIPPLE; AIR PIPE (B) M16 2WAY	1-09650-182-1	01	1	9606-		●
46	NIPPLE; AIR PIPE (A) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9606-		●
60	NUT; NIPPLE,AIR PIPE M14	9-99111-414-0	01	1	9606-	●
60	NUT; NIPPLE,AIR PIPE M16	9-99111-416-0	02	1	9606-	●
60	NUT; NIPPLE,AIR PIPE M14	9-99110-414-0	01	1	9606-	●	●
60	NUT; NIPPLE,AIR PIPE M12	9-99110-512-0	01	1	9606-	●	●
60	NUT; NIPPLE,AIR PIPE M16	9-99111-416-0	01	1	9606-	●	●
60	NUT; NIPPLE,AIR PIPE M16	9-99111-416-0	01	1	9606-	●	●
87	PIPE; AIR,AIR TANK TO UNION L=999 SERVICED BY L=1000	1-47426-414-0	01	1	9606-	●	●
91	NUT; PIPE UNION M12	9-99110-512-0	01	1	9606-	●	●
91	NUT; PIPE UNION M12	9-99110-512-0	01	1	9606-		●
91	NUT; PIPE UNION M12	9-99110-512-0	01	1	9606-		●
91	NUT; PIPE UNION M16	9-99111-416-0	01	1	9606-	●	●
92	PIPE; AIR,UNION TO UNION L=2135 SERVICED BY L=2500	1-47426-423-0	01	1	9606-	●	●
93	PIPE; AIR,UNION TO UNION (D) L=1535 SERVICED BY L=1550	1-47426-419-0	01	1	9606-	●
93	PIPE; AIR,UNION TO UNION (F) L=1580 SERVICED BY L=1700	1-47426-420-0	01	1	9606-	●
93	PIPE; AIR,UNION TO UNION (E) L=2230 SERVICED BY L=2500	1-47426-423-0	01	1	9606-	●
93	PIPE; AIR,UNION TO UNION (C) L=1643 SERVICED BY L=1700	1-47426-420-0	01	1	9606-		●
93	PIPE; AIR,UNION TO UNION (B) L=1944 SERVICED BY L=2100	1-47426-422-0	01	1	9606-		●
93	PIPE; AIR,UNION TO UNION (A) L=2530 SERVICED BY L=2600	1-47426-424-0	01	1	9606-		●
95	PIPE; AIR,UNION TO UNION L=577 SERVICED BY L=600	1-47426-408-0	01	1	9606-	●
95	PIPE; AIR,UNION TO UNION L=579 SERVICED BY L=600	1-47426-408-0	01	1	9606-		●
100	NUT; UNION M16	9-99111-416-0	01	1	9606-	●	●
102	PIPE; AIR,UNION TO UNION L=743 SERVICED BY L=900	1-47426-413-0	01	1	9606-	●
102	PIPE; AIR,UNION TO UNION L=535 SERVICED BY L=550	1-47426-407-0	01	1	9606-		●
103	PIPE; AIR,UNION TO UNION (C) L=933 SERVICED BY L=1000	1-47426-414-0	01	1	9606-	●
103	PIPE; AIR,UNION TO UNION (D) L=1069 SERVICED BY L=1100	1-47426-415-0	01	1	9606-	●
103	PIPE; AIR,UNION TO UNION (A) L=2210 SERVICED BY L=2500	1-47426-423-0	01	1	9606-		●
103	PIPE; AIR,UNION TO UNION (B) L=2309 SERVICED BY L=2600	1-47426-424-0	01	1	9606-		●
104	PIPE; AIR,UNION TO UNION L=1131 SERVICED BY L=1250	1-47426-416-0	01	1	9606-	●
104	PIPE; AIR,UNION TO UNION L=976 SERVICED BY L=1100	1-47426-415-0	01	1	9606-		●
113	PIPE; AIR,UNION TO RELAY VLV L=1644 SERVICED BY L=2500	1-47426-423-0	01	1	9606-	●	●

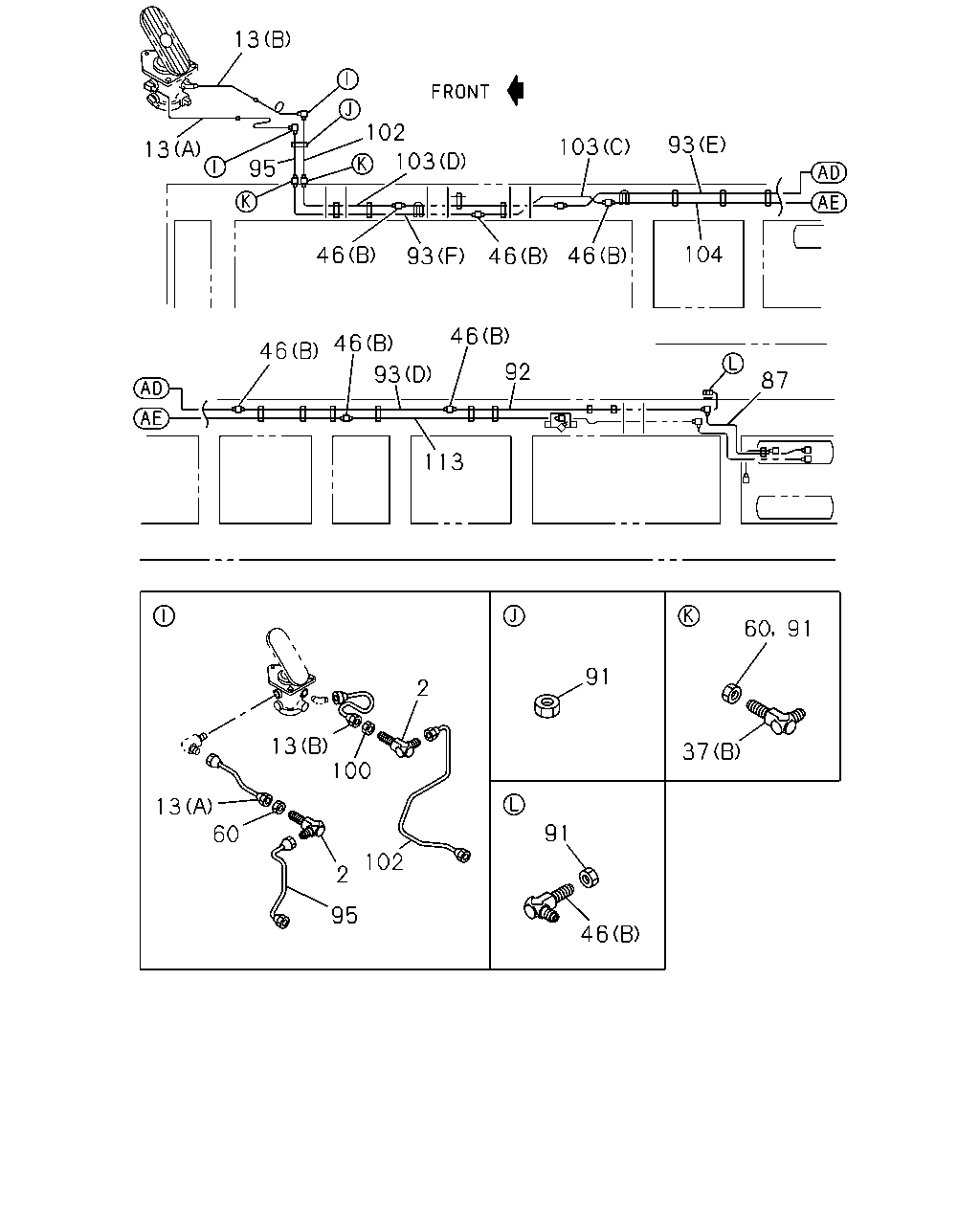

13 93 103 103 93 95 102 13 93 104 92 87 113 98 100 46 46 97 46 91 2 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE M16 ELBOW	9-09235-110-1	01	1	9606-	●	●
13	PIPE; AIR,BRK VLV TO UNION (A) L=200 SERVICED BY L=350	1-47426-403-0	01	1	9606-	●	●
13	PIPE; AIR,BRK VLV TO UNION (B) L=603 SERVICED BY L=660	1-47426-409-0	01	1	9606-	●	●
46	NIPPLE; AIR PIPE (A) M16 L=65 STRAIGHT	9-09223-110-1	01	1	9606-	●
46	NIPPLE; AIR PIPE (A) M14	9-09223-208-1	01	1	9606-	●
46	NIPPLE; AIR PIPE (B) M16 L=42	9-09233-010-1	01	1	9606-	●
46	NIPPLE; AIR PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9606-	●	●
46	NIPPLE; AIR PIPE (B) M16 L=42	9-09233-010-1	02	1	9606-	●	●
46	NIPPLE; AIR PIPE (B) M16 2WAY	1-09650-182-1	01	1	9606-		●
46	NIPPLE; AIR PIPE (A) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9606-		●
87	PIPE; AIR,AIR TANK TO UNION L=999 SERVICED BY L=1000	1-47426-414-0	01	1	9606-	●	●
91	NUT; PIPE UNION M12	9-99110-512-0	01	1	9606-	●	●
91	NUT; PIPE UNION M12	9-99110-512-0	01	1	9606-		●
91	NUT; PIPE UNION M12	9-99110-512-0	01	1	9606-		●
91	NUT; PIPE UNION M16	9-99111-416-0	01	1	9606-	●	●
92	PIPE; AIR,UNION TO UNION L=2135 SERVICED BY L=2500	1-47426-423-0	01	1	9606-	●	●
93	PIPE; AIR,UNION TO UNION (D) L=1535 SERVICED BY L=1550	1-47426-419-0	01	1	9606-	●
93	PIPE; AIR,UNION TO UNION (F) L=1580 SERVICED BY L=1700	1-47426-420-0	01	1	9606-	●
93	PIPE; AIR,UNION TO UNION (E) L=2230 SERVICED BY L=2500	1-47426-423-0	01	1	9606-	●
93	PIPE; AIR,UNION TO UNION (C) L=1643 SERVICED BY L=1700	1-47426-420-0	01	1	9606-		●
93	PIPE; AIR,UNION TO UNION (B) L=1944 SERVICED BY L=2100	1-47426-422-0	01	1	9606-		●
93	PIPE; AIR,UNION TO UNION (A) L=2530 SERVICED BY L=2600	1-47426-424-0	01	1	9606-		●
95	PIPE; AIR,UNION TO UNION L=577 SERVICED BY L=600	1-47426-408-0	01	1	9606-	●
95	PIPE; AIR,UNION TO UNION L=579 SERVICED BY L=600	1-47426-408-0	01	1	9606-		●
97	UNION; AIR PIPE (A) M22	1-09650-172-1	01	1	9606-	●	●
97	UNION; AIR PIPE (A) M16 2WAY	1-09650-182-1	01	1	9606-	●	●
97	UNION; AIR PIPE (B) M14	9-09223-208-1	01	1	9606-	●	●
97	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	01	1	9606-	●	●
97	UNION; AIR PIPE (B) M16 L=42	9-09233-010-1	02	1	9606-	●	●
97	UNION; AIR PIPE (C) M16 ELBOW	9-09235-110-1	01	1	9606-		●
98	NUT; PIPE UNION M14	9-99110-414-0	01	1	9606-	●	●
98	NUT; PIPE UNION M16	9-99111-416-0	01	1	9606-		●
100	NUT; UNION M16	9-99111-416-0	01	1	9606-	●	●
102	PIPE; AIR,UNION TO UNION L=743 SERVICED BY L=900	1-47426-413-0	01	1	9606-	●
102	PIPE; AIR,UNION TO UNION L=535 SERVICED BY L=550	1-47426-407-0	01	1	9606-		●
103	PIPE; AIR,UNION TO UNION (C) L=933 SERVICED BY L=1000	1-47426-414-0	01	1	9606-	●
103	PIPE; AIR,UNION TO UNION (D) L=1069 SERVICED BY L=1100	1-47426-415-0	01	1	9606-	●
103	PIPE; AIR,UNION TO UNION (A) L=2210 SERVICED BY L=2500	1-47426-423-0	01	1	9606-		●
103	PIPE; AIR,UNION TO UNION (B) L=2309 SERVICED BY L=2600	1-47426-424-0	01	1	9606-		●
104	PIPE; AIR,UNION TO UNION L=1131 SERVICED BY L=1250	1-47426-416-0	01	1	9606-	●
104	PIPE; AIR,UNION TO UNION L=976 SERVICED BY L=1100	1-47426-415-0	01	1	9606-		●
113	PIPE; AIR,UNION TO RELAY VLV L=1644 SERVICED BY L=2500	1-47426-423-0	01	1	9606-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
