Sayfa 6-84 - Isuzu EPC

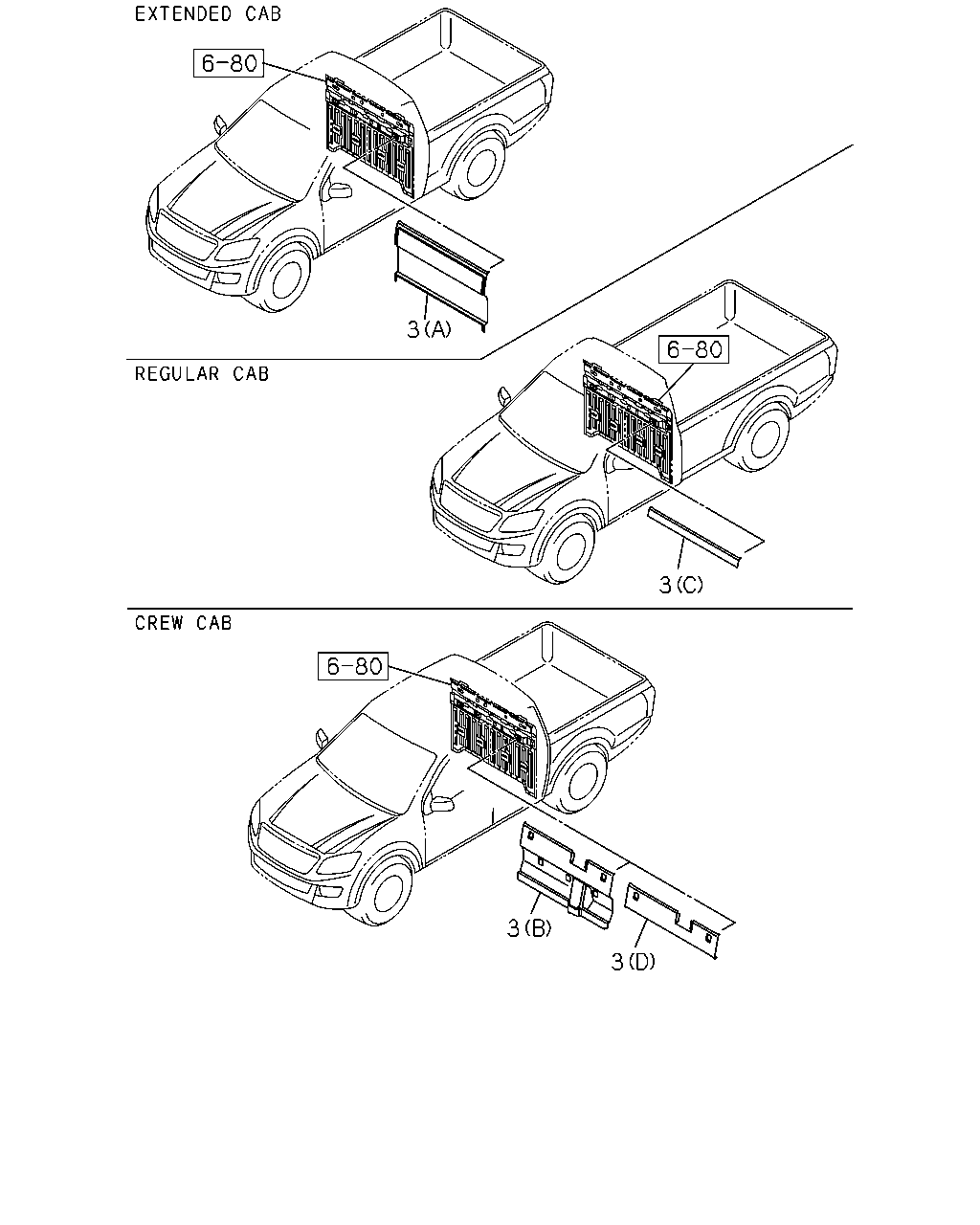

6-84 — BACK TRIM (#91147) — 8 parça

3 3 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
3	16.578 TRIM; FULL,BACK UPR 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (C) BLACK	8-97417-124-1	01	1	1206-	●
3	16.578 TRIM; FULL,BACK UPR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (C) BLACK	8-97417-124-1	01	1	1206-		●
3	16.578 TRIM; FULL,BACK UPR INTERIOR BASIC(RBA) (D) BLACK	8-97417-467-0	01	1	1206-			●	●
3	16.578 TRIM; FULL,BACK UPR INTERIOR CUSTOM(RBD) (B) BLACK	8-97417-466-3	01	1	1206-			●	●
3	16.578 TRIM; FULL,BACK UPR JUMP SEAT<AJ2> (A) LIGHT GRAY	8-97421-711-5	01	1	1206-1310					●
3	16.578 TRIM; FULL,BACK UPR JUMP SEAT<AJ2> (A) LIGHT GRAY	8-97428-390-0	01	1	1311-					●
3	16.578 TRIM; FULL,BACK UPR EXC. JUMP SEAT<AJ2> (A) LIGHT GRAY	8-97421-710-5	01	1	1206-1310					●
3	16.578 TRIM; FULL,BACK UPR EXC. JUMP SEAT<AJ2> (A) LIGHT GRAY	8-97428-389-0	01	1	1311-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
