◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51411 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#91139) — 83 parça

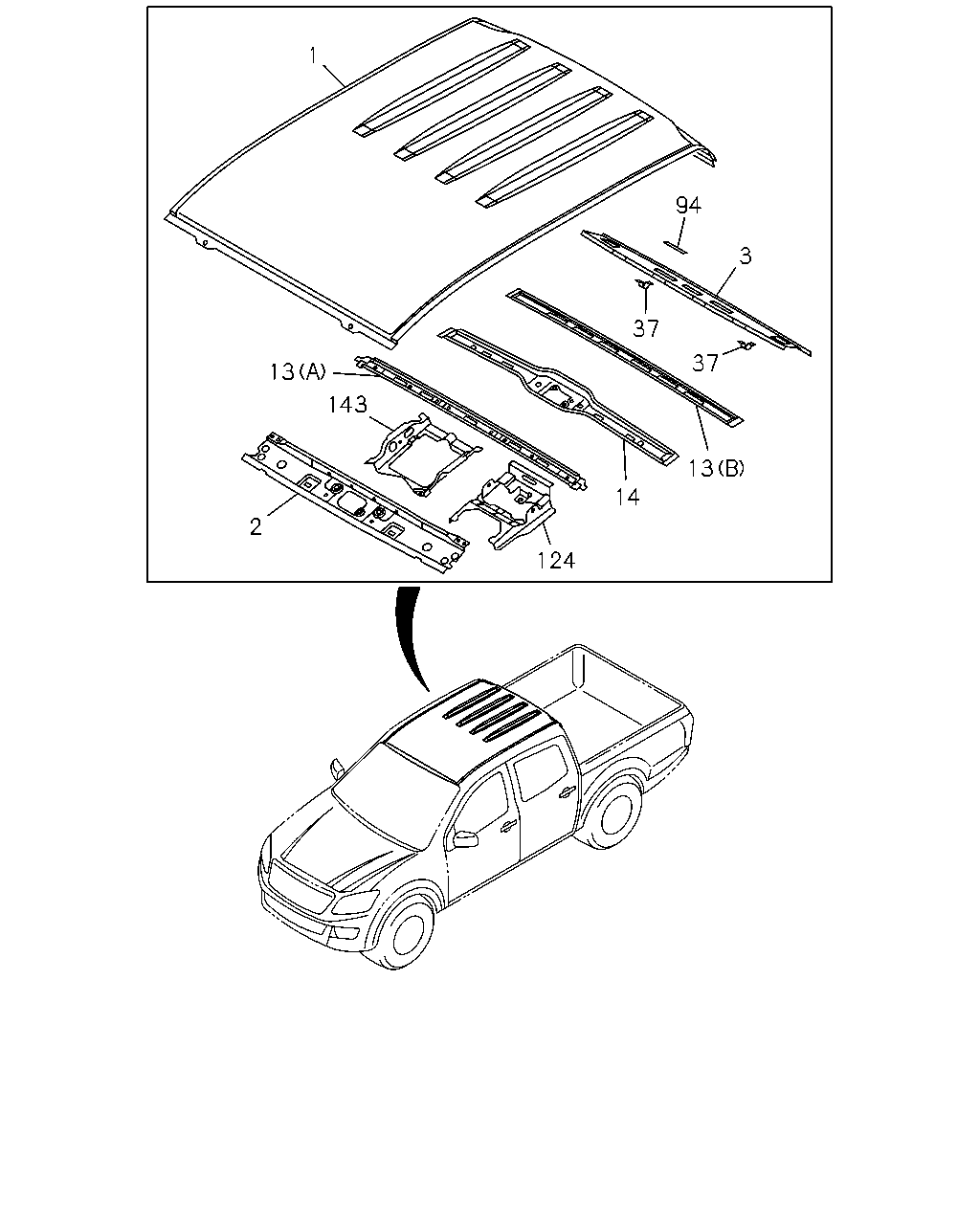

çizim 283321
124 2 143 13 1 94 37 3 37 13 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> 		8-98103-951-3 01 1 1206- ● ●
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6>,ISRAEL EQUIPMENT(2G1) 		8-98103-950-3 01 1 1206- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> 		8-98103-957-3 01 1 1206- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98103-955-3 01 1 1206- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) 		8-98103-960-3 01 1 1206-1301 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) EXC. CONGO EQUIPMENT(CDF) 		8-98103-960-3 01 1 1302- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HIGH MOUNT STOP LAMP<TS6> 		8-98184-915-1 01 1 1302- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98184-914-1 01 1 1302- ● ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> 		8-98103-954-3 01 1 1206- ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> EXC. ROOF RADIO ANTENNA<U71> 		8-98103-953-3 01 1 1206- ●
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98103-952-3 01 1 1206- ●
2 16.585 PANEL; ROOF,CENTER 8-98103-964-5 01 1 1206- ● ● ● ● ●
3 16.585 PANEL; ROOF,RR 8-98103-999-3 01 1 1206- ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-98103-963-1 01 1 1206- ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(B) 		8-98103-982-0 01 1 1206- ● ●
13 16.585 PANEL; ROOF SUPPORT
(C) 		8-98150-942-0 01 1 1206- ● ●
14 16.585 SUPPORT; ROOF
INTERIOR BASIC(RBA) ISRAEL EQUIPMENT(2G1) 		8-98112-817-1 01 1 1206-1208 ● ●
14 16.585 SUPPORT; ROOF
INTERIOR CUSTOM(RBD) RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98112-817-1 01 1 1206-1208 ● ●
14 16.585 SUPPORT; ROOF
RUSSIA EQUIPMENT(B12),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98112-817-1 01 1 1209-1210 ● ●
14 16.585 SUPPORT; ROOF
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98112-817-1 01 1 1211-1301 ● ●
14 16.585 SUPPORT; ROOF
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98112-817-1 01 1 1302-1409 ● ●
14 16.585 SUPPORT; ROOF
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98112-817-1 01 1 1410- ● ●
14 16.585 SUPPORT; ROOF
PHILIPPINE ISLANDS EQUIPMENT(B15), LAOSEQUIPMENT(CF0) EQUIPMENT IMPACT<EPS> 		8-98112-817-1 01 1 1410- ● ●
14 16.585 SUPPORT; ROOF
INTERIOR BASIC(RBA) EXC. RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98163-387-1 01 1 1206-1208 ● ●
14 16.585 SUPPORT; ROOF
INTERIOR CUSTOM(RBD) EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COSTA RICA EQUIPMENT(CB9),IS RAEL EQUIPMENT(2G1) 		8-98163-387-1 01 1 1206-1208 ● ●
14 16.585 SUPPORT; ROOF
EXC. RUSSIA EQUIPMENT(B12),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98163-387-1 01 1 1209-1210 ● ●
14 16.585 SUPPORT; ROOF
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98163-387-1 01 1 1211-1301 ● ●
14 16.585 SUPPORT; ROOF
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98163-387-1 01 1 1302-1409 ● ●
14 16.585 SUPPORT; ROOF
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), EQUIPMENT IMPACT<EPS>,ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98163-387-1 01 1 1410- ● ●
14 16.585 SUPPORT; ROOF 8-98163-386-1 01 1 1206- ●
37 16.585 BRACKET; TRIM,ROOF BACK 8-98103-996-0 02 1 1206- ● ● ● ●
94 16.570 SEAL; REINFORCEMENT 8-98201-900-0 01 1 1206- ● ●
124 16.585 BRACKET; ROOM LAMP
MAP LAMP<C74> 		8-98103-968-0 01 1 1206- ● ● ●
143 16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> 16.570 		8-98103-962-1 01 1 1206- ● ● ●

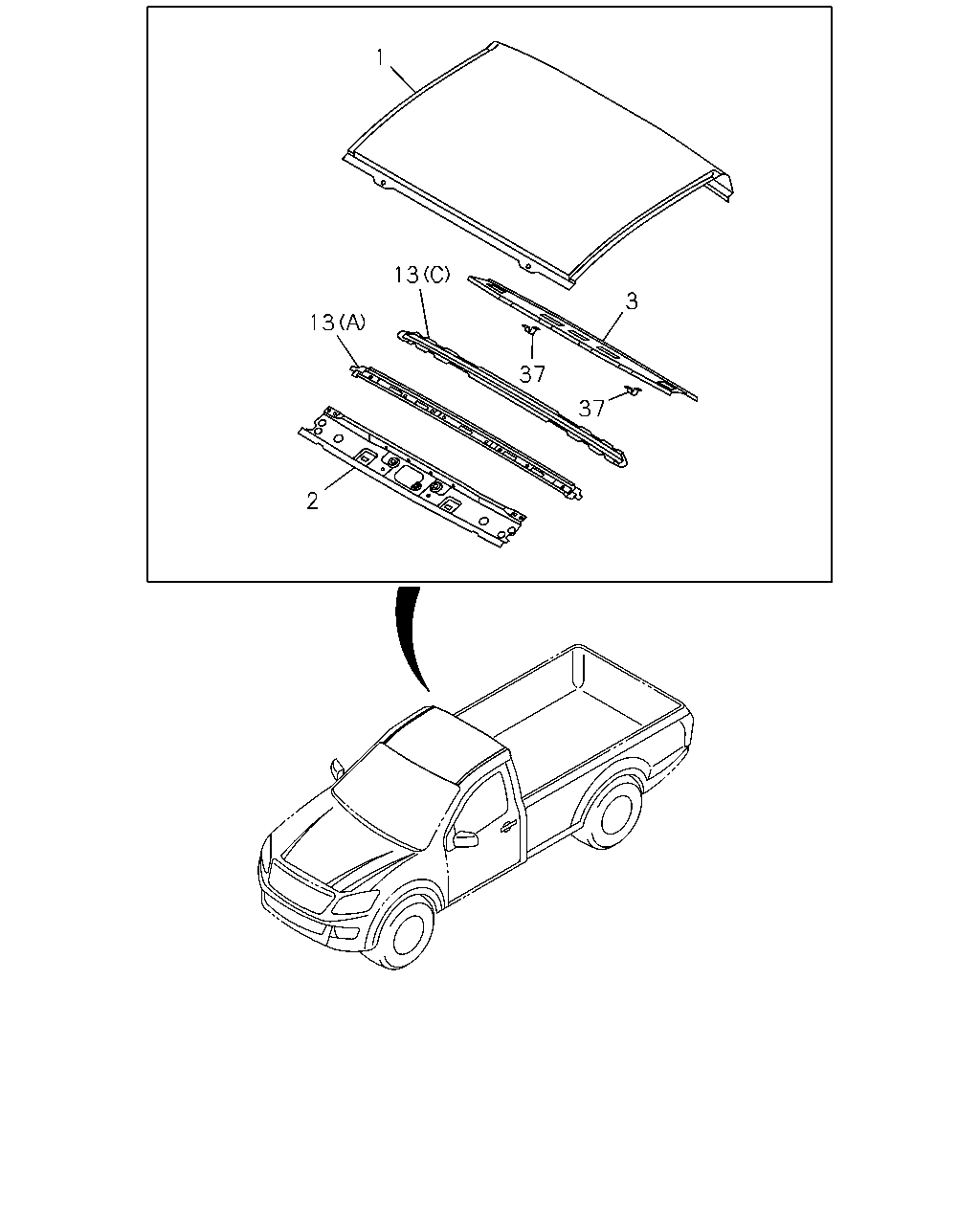

çizim 283322
13 1 13 3 37 2 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> 		8-98103-951-3 01 1 1206- ● ●
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6>,ISRAEL EQUIPMENT(2G1) 		8-98103-950-3 01 1 1206- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> 		8-98103-957-3 01 1 1206- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98103-955-3 01 1 1206- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) 		8-98103-960-3 01 1 1206-1301 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) EXC. CONGO EQUIPMENT(CDF) 		8-98103-960-3 01 1 1302- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HIGH MOUNT STOP LAMP<TS6> 		8-98184-915-1 01 1 1302- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98184-914-1 01 1 1302- ● ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> 		8-98103-954-3 01 1 1206- ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> EXC. ROOF RADIO ANTENNA<U71> 		8-98103-953-3 01 1 1206- ●
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98103-952-3 01 1 1206- ●
2 16.585 PANEL; ROOF,CENTER 8-98103-964-5 01 1 1206- ● ● ● ● ●
3 16.585 PANEL; ROOF,RR 8-98103-999-3 01 1 1206- ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-98103-963-1 01 1 1206- ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(B) 		8-98103-982-0 01 1 1206- ● ●
13 16.585 PANEL; ROOF SUPPORT
(C) 		8-98150-942-0 01 1 1206- ● ●
37 16.585 BRACKET; TRIM,ROOF BACK 8-98103-996-0 02 1 1206- ● ● ● ●

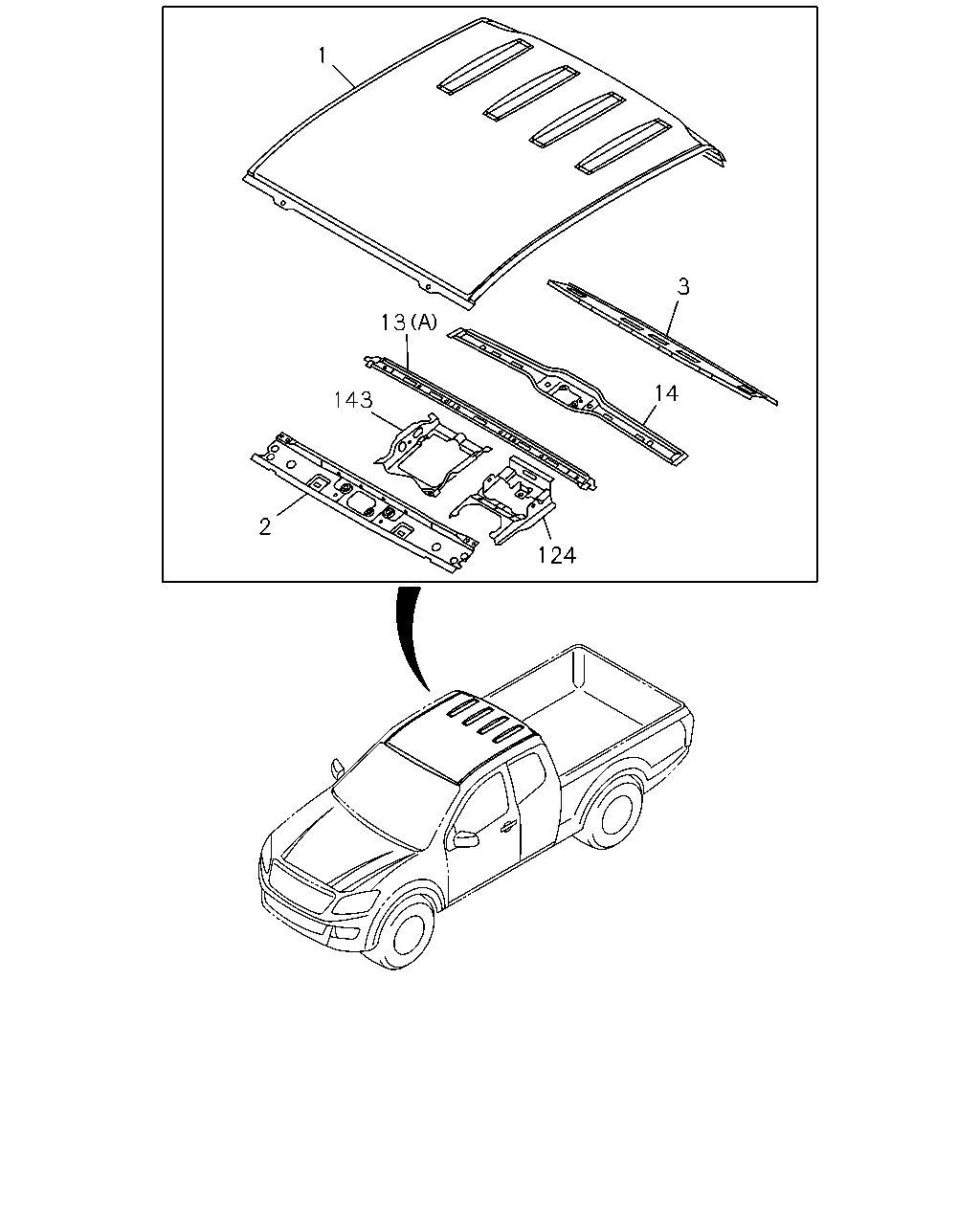

çizim 283610
3 13 1 2 143 124 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> 		8-98103-951-3 01 1 1206- ● ●
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6>,ISRAEL EQUIPMENT(2G1) 		8-98103-950-3 01 1 1206- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> 		8-98103-957-3 01 1 1206- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98103-955-3 01 1 1206- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) 		8-98103-960-3 01 1 1206-1301 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) EXC. CONGO EQUIPMENT(CDF) 		8-98103-960-3 01 1 1302- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HIGH MOUNT STOP LAMP<TS6> 		8-98184-915-1 01 1 1302- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98184-914-1 01 1 1302- ● ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> 		8-98103-954-3 01 1 1206- ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> EXC. ROOF RADIO ANTENNA<U71> 		8-98103-953-3 01 1 1206- ●
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98103-952-3 01 1 1206- ●
2 16.585 PANEL; ROOF,CENTER 8-98103-964-5 01 1 1206- ● ● ● ● ●
3 16.585 PANEL; ROOF,RR 8-98103-999-3 01 1 1206- ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-98103-963-1 01 1 1206- ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(B) 		8-98103-982-0 01 1 1206- ● ●
13 16.585 PANEL; ROOF SUPPORT
(C) 		8-98150-942-0 01 1 1206- ● ●
14 16.585 SUPPORT; ROOF
INTERIOR BASIC(RBA) ISRAEL EQUIPMENT(2G1) 		8-98112-817-1 01 1 1206-1208 ● ●
14 16.585 SUPPORT; ROOF
INTERIOR CUSTOM(RBD) RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98112-817-1 01 1 1206-1208 ● ●
14 16.585 SUPPORT; ROOF
RUSSIA EQUIPMENT(B12),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98112-817-1 01 1 1209-1210 ● ●
14 16.585 SUPPORT; ROOF
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98112-817-1 01 1 1211-1301 ● ●
14 16.585 SUPPORT; ROOF
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98112-817-1 01 1 1302-1409 ● ●
14 16.585 SUPPORT; ROOF
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98112-817-1 01 1 1410- ● ●
14 16.585 SUPPORT; ROOF
PHILIPPINE ISLANDS EQUIPMENT(B15), LAOSEQUIPMENT(CF0) EQUIPMENT IMPACT<EPS> 		8-98112-817-1 01 1 1410- ● ●
14 16.585 SUPPORT; ROOF
INTERIOR BASIC(RBA) EXC. RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98163-387-1 01 1 1206-1208 ● ●
14 16.585 SUPPORT; ROOF
INTERIOR CUSTOM(RBD) EXC. EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COSTA RICA EQUIPMENT(CB9),IS RAEL EQUIPMENT(2G1) 		8-98163-387-1 01 1 1206-1208 ● ●
14 16.585 SUPPORT; ROOF
EXC. RUSSIA EQUIPMENT(B12),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98163-387-1 01 1 1209-1210 ● ●
14 16.585 SUPPORT; ROOF
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98163-387-1 01 1 1211-1301 ● ●
14 16.585 SUPPORT; ROOF
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98163-387-1 01 1 1302-1409 ● ●
14 16.585 SUPPORT; ROOF
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), EQUIPMENT IMPACT<EPS>,ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98163-387-1 01 1 1410- ● ●
14 16.585 SUPPORT; ROOF 8-98163-386-1 01 1 1206- ●
124 16.585 BRACKET; ROOM LAMP
MAP LAMP<C74> 		8-98103-968-0 01 1 1206- ● ● ●
143 16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> 16.570 		8-98103-962-1 01 1 1206- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
