6-47 — MUD GUARD AND INSULATOR (#91134) — 137 parça

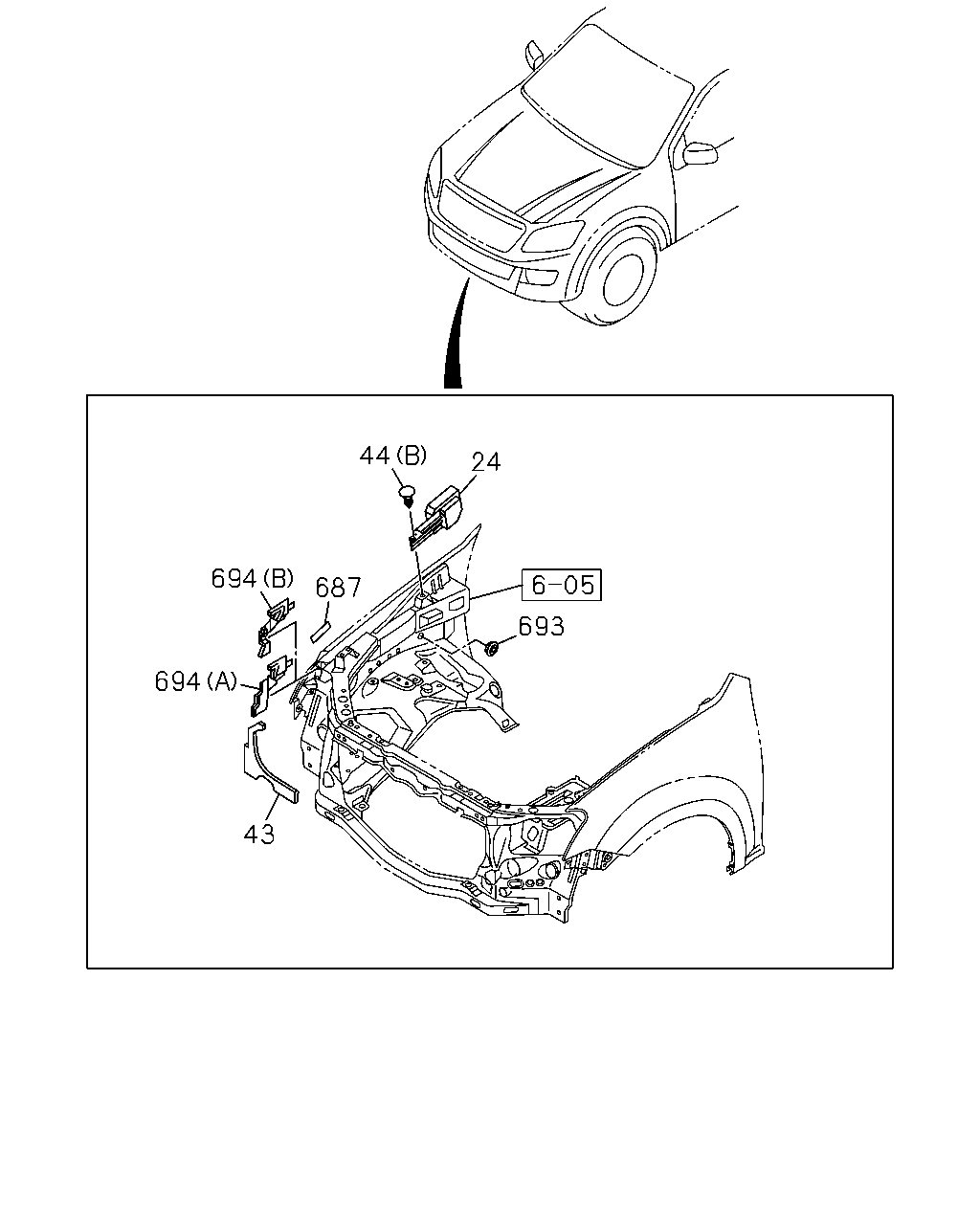

çizim 283312
24 693 687 694 694 43 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E
24 08.155 PLATE; MUD COVER
EURO5 SPECIFICATION<NT5> 		8-98187-805-0 01 1 1206- ● ● ● ●
24 08.155 PLATE; MUD COVER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-98187-805-0 01 1 1206- ● ● ● ●
43 08.153 INSULATION; FENDER SIDE
EURO5 SPECIFICATION<NT5> 		8-98189-338-2 01 1 1206- ● ● ● ●
43 08.153 INSULATION; FENDER SIDE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 		8-98189-338-2 01 1 1206- ● ● ● ●
44 08.154 CLIP; ANCHOR
EURO5 SPECIFICATION<NT5> 16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 1206- ● ● ● ●
44 08.154 CLIP; ANCHOR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 1206- ● ● ● ●
44 08.154 CLIP; ANCHOR
(A) OD=22 L=10.7 		8-94215-211-0 10 1 1206- ● ● ● ● ●
687 08.155 TAPE; PROTECT 8-98191-602-1 02 1 1206- ● ● ● ● ●
693 08.155 GROMMET; ACCESSORY HOLE 8-98191-606-0 01 1 1206- ● ● ● ● ●
694 08.155 PROTECTOR; WHEEL HOUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-98187-812-0 01 1 1206- ● ● ● ●
694 08.155 PROTECTOR; WHEEL HOUSE
EURO5 SPECIFICATION<NT5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-98187-812-0 01 1 1206- ● ● ● ●
694 08.155 PROTECTOR; WHEEL HOUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-98187-814-0 01 1 1206- ● ●
694 08.155 PROTECTOR; WHEEL HOUSE
EURO5 SPECIFICATION<NT5> HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-98187-814-0 01 1 1206- ● ●

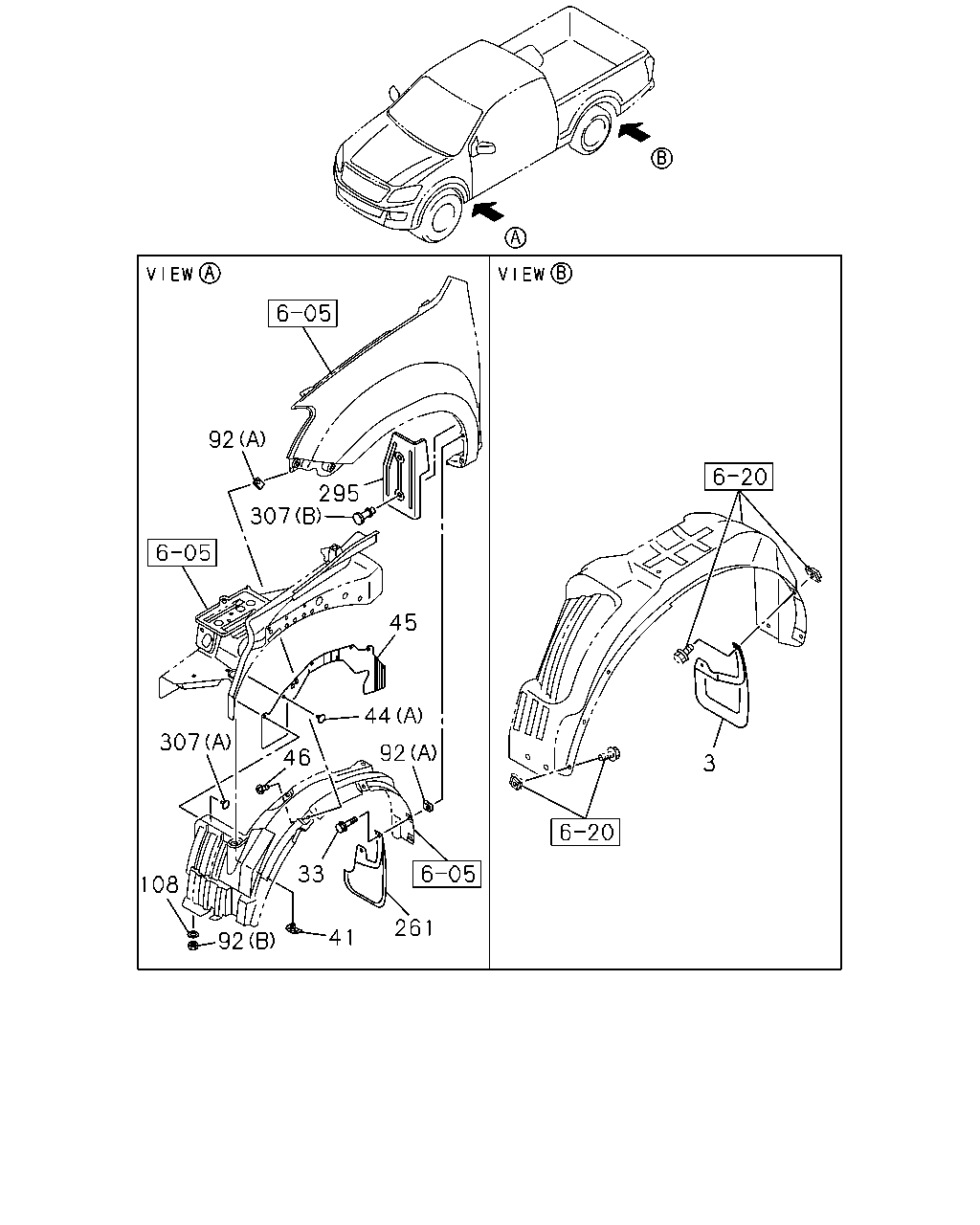

çizim 283603
92 295 307 307 46 92 108 92 33 41 261 45 44 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC) 		8-98077-277-1 01 1 1302- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP EXTEND FRT & RR<Q8J> 		8-98077-277-1 01 1 1302- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC) 		8-98077-280-1 01 1 1302- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP EXTEND FRT & RR<Q8J> 		8-98077-280-1 01 1 1302- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98077-275-0 01 1 1302- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98077-278-0 01 1 1302- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-98119-330-2 01 1 1206-1301 ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98119-330-2 01 1 1206-1301 ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98119-330-2 01 1 1302- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-98119-331-2 01 1 1206-1301 ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98119-331-2 01 1 1206-1301 ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98119-331-2 01 1 1302- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-276-1 01 1 1206-1301 ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-276-1 01 1 1206-1301 ● ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-276-1 01 1 1302- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-276-1 01 1 1302- ● ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-279-1 01 1 1206-1301 ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-279-1 01 1 1206-1301 ● ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-279-1 01 1 1302- ● ●
3 08.153 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-279-1 01 1 1302- ● ● ●
33 08.155 BOLT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1206-1301 ● ● ● ● ●
33 08.155 BOLT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1302-1409 ● ● ● ●
33 08.155 BOLT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1302-1409 ●
33 08.155 BOLT; MUD COVER
EQUIPMENT IMPACT<EPS> FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC) 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1410- ● ●
33 08.155 BOLT; MUD COVER
EQUIPMENT IMPACT<EPS> FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1410- ● ●
33 08.155 BOLT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. EQUIPMENT IMPACT<EPS> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1410- ● ●
33 08.155 BOLT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1410- ●
33 08.155 BOLT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> 07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1410- ● ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 12 1 1206-1207 ● ● ● ● ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 10 1 1208- ● ● ● ● ●
41 08.155 RIVET; INNER LINER
EXC. FORMED MUD FLAP FRT & RR<Q8H> 08.154 		8-94221-150-0 06 1 1206-1301 ● ● ● ● ●
41 08.155 RIVET; INNER LINER
EXC. FORMED MUD FLAP FRT & RR<Q8H>, FORMED MUD FLAP EXTEND FRT & RR<Q8J> 08.154 		8-94221-150-0 06 1 1302- ● ● ● ●
41 08.155 RIVET; INNER LINER
EXC. FORMED MUD FLAP FRT & RR<Q8H> 08.154 		8-94221-150-0 06 1 1302- ●
41 08.155 RIVET; INNER LINER
ISRAEL EQUIPMENT(2G1) HIGH RIDE SUSPENSION(7YC) 08.154 		8-94221-150-0 04 1 1206-1301 ●
41 08.155 RIVET; INNER LINER
ISRAEL EQUIPMENT(2G1) HIGH RIDE SUSPENSION(7YC) 08.154 		8-94221-150-0 04 1 1302- ● ●
41 08.155 RIVET; INNER LINER
HIGH RIDE SUSPENSION(7YC) EXC. ISRAEL EQUIPMENT(2G1) 08.154 		8-94221-150-0 02 1 1206-1301 ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 02 1 1206-1301 ● ● ●
41 08.155 RIVET; INNER LINER
HIGH RIDE SUSPENSION(7YC) EXC. ISRAEL EQUIPMENT(2G1) 08.154 		8-94221-150-0 02 1 1302- ● ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 02 1 1302- ● ● ●
44 08.154 CLIP; ANCHOR
EURO5 SPECIFICATION<NT5> 16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 1206- ● ● ● ●
44 08.154 CLIP; ANCHOR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 16.069 (B) OD=12 L=14.8 		8-94279-921-0 01 1 1206- ● ● ● ●
44 08.154 CLIP; ANCHOR
(A) OD=22 L=10.7 		8-94215-211-0 10 1 1206- ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 		8-98077-267-1 01 1 1206-1301 ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98077-267-1 01 1 1206-1301 ●
45 08.153 COVER; MUD,FENDER SKIRT
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98077-267-1 01 1 1302- ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98077-267-1 01 1 1302- ●
45 08.153 COVER; MUD,FENDER SKIRT 8-98077-269-0 01 1 1206-1301 ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98077-269-0 01 1 1206-1301 ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98077-269-0 01 1 1302- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) 		8-98077-268-1 01 1 1206-1301 ●
45 08.153 COVER; MUD,FENDER SKIRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-98077-268-1 01 1 1206-1301 ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) 		8-98077-268-1 01 1 1302- ●
45 08.153 COVER; MUD,FENDER SKIRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) 		8-98077-268-1 01 1 1302- ●
45 08.153 COVER; MUD,FENDER SKIRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-98077-268-1 01 1 1302- ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) 		8-98176-526-0 01 1 1206-1301 ●
45 08.153 COVER; MUD,FENDER SKIRT
4JK1-TCY ENG(RDX) 		8-98176-526-0 01 1 1206-1301 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) 		8-98176-526-0 01 1 1302- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
4JK1-TCY ENG(RDX) 		8-98176-526-0 01 1 1302- ● ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-98077-270-0 01 1 1206-1301 ●
45 08.153 COVER; MUD,FENDER SKIRT 8-98077-270-0 01 1 1206-1301 ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-98077-270-0 01 1 1302- ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-98077-270-0 01 1 1302- ● ● ●
46 08.155 SCREW; INNER LINER
07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 04 1 1206- ● ● ● ● ●
92 08.155 NUT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> (A) 		8-97125-519-0 06 1 1206-1301 ● ● ● ● ●
92 08.155 NUT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> (A) 		8-97125-519-0 06 1 1302-1409 ● ● ● ●
92 08.155 NUT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> (A) 		8-97125-519-0 06 1 1302-1409 ●
92 08.155 NUT; MUD COVER
EQUIPMENT IMPACT<EPS> FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC) (A) 		8-97125-519-0 06 1 1410- ● ●
92 08.155 NUT; MUD COVER
EQUIPMENT IMPACT<EPS> FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97125-519-0 06 1 1410- ● ●
92 08.155 NUT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. EQUIPMENT IMPACT<EPS> (A) 		8-97125-519-0 06 1 1410- ● ●
92 08.155 NUT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> (A) 		8-97125-519-0 06 1 1410- ●
92 08.155 NUT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> (A) 		8-97125-519-0 06 1 1410- ● ●
92 08.155 NUT; MUD COVER
(A) 		8-97125-519-0 04 1 1206- ● ● ● ● ●
92 08.155 NUT; MUD COVER
(B) M6 CAP NUT 		8-98049-850-0 02 1 1206- ● ● ● ● ●
108 16.549 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 		8-98049-851-0 02 1 1206- ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98184-707-0 01 1 1404-1409 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) FORMED MUD FLAP FRT & RR<Q8H> EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC) 		8-98184-707-0 01 1 1410- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
EQUIPMENT IMPACT<EPS> FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98184-707-0 01 1 1410- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98184-708-0 01 1 1404-1409 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) FORMED MUD FLAP FRT & RR<Q8H> EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC) 		8-98184-708-0 01 1 1410- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
EQUIPMENT IMPACT<EPS> FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98184-708-0 01 1 1410- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
CONGO EQUIPMENT(CDF) FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98184-704-1 01 1 1302-1403 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98184-704-1 01 1 1404-1409 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC) 		8-98184-704-1 01 1 1410- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
CONGO EQUIPMENT(CDF) FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98184-705-1 01 1 1302-1403 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98184-705-1 01 1 1404-1409 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC) 		8-98184-705-1 01 1 1410- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC) 		8-98122-330-0 01 1 1302- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> 		8-98122-330-0 01 1 1302- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION(7YC) 		8-98122-332-0 01 1 1302- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> 		8-98122-332-0 01 1 1302- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. CONGO EQUIPMENT(CDF),HIGH RIDE SUSPENSION(7YC) 		8-98077-271-1 01 1 1302-1403 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),HIG H RIDE SUSPENSION(7YC) 		8-98077-271-1 01 1 1404-1409 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),EQUIPMENT IMPACT<EPS>,ECUA DOR EQUIPMENT(E46),HIGH RIDE SUSPENSION(7YC) 		8-98077-271-1 01 1 1410- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. CONGO EQUIPMENT(CDF),HIGH RIDE SUSPENSION(7YC) 		8-98077-273-1 01 1 1302-1403 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),HIG H RIDE SUSPENSION(7YC) 		8-98077-273-1 01 1 1404-1409 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),EQUIPMENT IMPACT<EPS>,ECUA DOR EQUIPMENT(E46),HIGH RIDE SUSPENSION(7YC) 		8-98077-273-1 01 1 1410- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98119-229-0 01 1 1206-1301 ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98119-229-0 01 1 1206-1301 ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98119-229-0 01 1 1302-1403 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),HIG H RIDE SUSPENSION(7YC) 		8-98119-229-0 01 1 1404-1409 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),EQUIPMENT IMPACT<EPS>,ECUA DOR EQUIPMENT(E46),HIGH RIDE SUSPENSION(7YC) 		8-98119-229-0 01 1 1410- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98119-230-0 01 1 1206-1301 ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98119-230-0 01 1 1206-1301 ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98119-230-0 01 1 1302-1403 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),HIG H RIDE SUSPENSION(7YC) 		8-98119-230-0 01 1 1404-1409 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),EQUIPMENT IMPACT<EPS>,ECUA DOR EQUIPMENT(E46),HIGH RIDE SUSPENSION(7YC) 		8-98119-230-0 01 1 1410- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-272-0 01 1 1206-1301 ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-272-0 01 1 1206-1301 ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-272-0 01 1 1302- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-272-0 01 1 1302- ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-274-0 01 1 1206-1301 ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-274-0 01 1 1206-1301 ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION(7YC) 		8-98077-274-0 01 1 1302- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-274-0 01 1 1302- ● ● ●
295 08.153 COVER; WHEEL HOUSE
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98187-396-1 01 1 1404-1409 ● ●
295 08.153 COVER; WHEEL HOUSE
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC) 		8-98187-396-1 01 1 1410- ● ●
295 08.153 COVER; WHEEL HOUSE
EQUIPMENT IMPACT<EPS> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98187-396-1 01 1 1410- ● ●
295 08.153 COVER; WHEEL HOUSE
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98187-397-1 01 1 1404-1409 ● ●
295 08.153 COVER; WHEEL HOUSE
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC) 		8-98187-397-1 01 1 1410- ● ●
295 08.153 COVER; WHEEL HOUSE
EQUIPMENT IMPACT<EPS> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98187-397-1 01 1 1410- ● ●
307 08.155 RETAINER
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) EXC. HIGH RIDE SUSPENSION(7YC) 03.602 (B) 		8-97372-006-0 04 1 1404-1409 ● ●
307 08.155 RETAINER
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46) EXC. EQUIPMENT IMPACT<EPS>,HIGH RIDE SUSPENSION(7YC) 03.602 (B) 		8-97372-006-0 04 1 1410- ● ●
307 08.155 RETAINER
EQUIPMENT IMPACT<EPS> EXC. HIGH RIDE SUSPENSION(7YC) 03.602 (B) 		8-97372-006-0 04 1 1410- ● ●
307 08.155 RETAINER
(A) 		8-98050-462-0 02 1 1206- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
