3-70 — BRAKE PIPING; AIR,AIR MASTER (#9113) — 98 parça
çizim 72753
52 14 1 246 36 44 44 246 246 369 246 221 352 221 248 163 1 247 247 39 249 248 40 248 247
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 0-07736-760-0 01 1 9606- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=1195 SERVICED BY L=1200 		1-49111-445-0 01 1 9606- ● ●
36 PIPE; AIR,AIR TANK TO UNION
L=655 SERVICED BY L=660 		1-49111-438-0 01 1 9606- ● ●
39 UNION; AIR PIPE 1-09656-308-1 01 1 9606- ● ●
40 NUT; PIPE UNION
M14 		9-99111-414-0 01 1 9606- ● ●
44 PIPE; AIR,UNION TO AIR TANK FRT
(A) L=465 SERVICED BY L=500 		1-47426-406-0 01 1 9606- ● ●
44 PIPE; AIR,UNION TO AIR TANK FRT
(B) L=423 SERVICED BY L=450 		1-47437-962-0 01 1 9606- ● ●
52 PIPE; AIR,UNION TO AIR TANK 1-47496-480-0 01 1 9606- ● ●
163 BRACKET; AIR PIPE
L=50 		1-47475-299-2 01 1 9606- ●
163 BRACKET; AIR PIPE
L=55 		1-47475-304-0 01 1 9606- ● ●
221 BOLT; BRKT
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9606- ● ●
221 BOLT; BRKT
M8X45 W/LK WASHER 		0-50040-845-0 01 1 9606- ● ●
221 BOLT; BRKT
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9606- ●
246 PIPE; AIR,UNION TO UNION
(A) L=2033 SERVICED BY L=2250 		1-49111-451-0 01 1 9606- ●
246 PIPE; AIR,UNION TO UNION
(D) L=963 SERVICED BY L=1000 		1-47426-414-0 01 1 9606- ● ●
246 PIPE; AIR,UNION TO UNION
(C) L=483 SERVICED BY L=550 		1-49111-436-0 01 1 9606- ● ●
246 PIPE; AIR,UNION TO UNION
(B) L=1792 SERVICED BY L=2000 		1-49111-450-0 01 1 9606- ● ●
246 PIPE; AIR,UNION TO UNION
(A) L=2034 SERVICED BY L=2250 		1-49111-451-0 01 1 9606- ●
247 UNION; AIR PIPE
(A) M16 2WAY 		1-09650-182-1 01 1 9606- ● ●
247 UNION; AIR PIPE
(B) M20 2WAY 		1-09654-218-1 01 1 9606- ● ●
247 UNION; AIR PIPE
(C) M14 		1-09656-394-1 01 1 9606- ● ●
248 NUT; PIPE UNION
(B) M14 		9-99110-414-0 01 1 9606- ● ●
248 NUT; PIPE UNION
(A) M12 		9-99111-412-0 01 1 9606- ● ●
248 NUT; PIPE UNION
(C) M14 		9-99111-414-0 01 1 9606- ● ●
249 WASHER; LK,PIPE UNION
ID=15 		9-09160-514-0 01 1 9606- ● ●
352 WASHER; LK,BRKT FIX
ID=20.2 		9-09150-520-0 01 1 9606- ● ●
369 UNION; AIR PIPE
M20 STRAIGHT 		9-09233-012-1 01 1 9606- ● ●
çizim 73345
357 184 111 126 239 222 137 130 238 217 242 250 130 141 118 239 131 240 128 111 178 118 117 179
BalonParca AdiParca NoAdetTipApplied Date A B
111 PIPE; AIR,UNION TO UNION
L=1495 SERVICED BY L=1500 		1-47434-391-0 01 1 9606- ●
117 UNION; AIR PIPE 1-09656-321-1 01 1 9606- ● ●
118 NUT; UNION
(A) M12 		9-09840-280-0 01 1 9606- ● ●
118 NUT; UNION
(A) M12 		9-09840-280-0 01 1 9606- ● ●
118 NUT; UNION
(B) M12 		9-99111-412-0 01 1 9606- ● ●
126 PIPE; AIR,UNION TO UNION
L=1247 SERVICED BY L=1250 		1-47434-389-0 01 1 9606- ●
126 PIPE; AIR,UNION TO UNION
L=1102 SERVICED BY L=1200 		1-47434-388-0 01 1 9606- ●
128 NUT; PIPE UNION
M12 		9-99111-412-0 01 1 9606- ●
128 NUT; PIPE UNION
M12 		9-09840-280-0 02 1 9606- ● ●
130 PIPE; AIR,UNION TO UNION
(C) L=936 SERVICED BY L=1000 		1-47434-386-0 01 1 9606- ●
130 PIPE; AIR,UNION TO UNION
(B) L=425 SERVICED BY L=460 		9-47415-349-0 01 1 9606- ●
130 PIPE; AIR,UNION TO UNION
(A) L=594 SERVICED BY L=600 		9-47415-352-0 01 1 9606- ● ●
130 PIPE; AIR,UNION TO UNION
(B) L=392 SERVICED BY L=460 		9-47415-349-0 01 1 9606- ●
131 UNION; AIR PIPE
(B) M12 		9-09228-806-1 01 1 9606- ●
131 UNION; AIR PIPE
(A) M12 L=69 		9-09225-106-1 01 1 9606- ● ●
131 UNION; AIR PIPE
(A) M12 L=69 		9-09225-106-1 01 1 9606- ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=440 		0-07210-440-0 01 1 9606- ● ●
141 UNION; FLEX HOSE
M10 & M12 ELBOW 		1-09654-111-1 01 1 9606- ● ●
178 UNION; AIR PIPE
M12 2WAY 		1-09654-059-2 01 1 9606- ●
179 NUT; UNION
M12 		9-99110-512-0 01 1 9606- ●
184 HOSE; FLEX,AIR GOV
L=500 		0-07120-500-0 01 1 9606- ● ●
217 PIPE; VAC,UNION TO MAG VLV
L=427 SERVICED BY L=460 		9-47415-349-0 01 1 9606- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE 1-47488-041-0 01 1 9606- ● ●
238 PIPE; AIR,UNION TO UNION
L=1582 SERVICED BY L=1620 		1-47434-392-0 01 1 9606- ●
238 PIPE; AIR,UNION TO UNION
L=1600 SERVICED BY L=1620 		1-47434-392-0 01 1 9606- ●
239 UNION; AIR PIPE
M12 L=62.5 		9-09223-206-1 02 1 9606- ●
239 UNION; AIR PIPE
M12 L=40 		9-09223-006-1 01 1 9606- ●
239 UNION; AIR PIPE
M12 L=56.5 		9-09223-106-1 01 1 9606- ●
240 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 9606- ● ●
240 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 9606- ●
242 PIPE; AIR,AIR TANK TO UNION
L=528 SERVICED BY L=550 		9-47415-351-0 01 1 9606- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=657 SERVICED BY L=700 		1-47434-466-0 01 1 9606- ● ●
357 PIPE; AIR,UNION TO UNION
L=1345 SERVICED BY L=1370 		1-47434-390-0 01 1 9606- ●
çizim 74370
193 4 184 55 192 55 185 4 166
BalonParca AdiParca NoAdetTipApplied Date A B
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9606- ● ●
55 GASKET; AIR PIPE
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9606- ● ●
166 PIPE; AIR,UNION TO GOV 1-47448-547-0 01 1 9606- ● ●
184 HOSE; FLEX,AIR GOV
L=500 		0-07120-500-0 01 1 9606- ● ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9606- ● ●
192 PIPE; AIR,FLEX HOSE TO GOV 1-19191-357-0 01 1 9606- ● ●
193 BOLT; EYE,FLEX HOSE,GOV LINE
M14X27 FLANGE 		1-09675-086-0 01 1 9606- ● ●

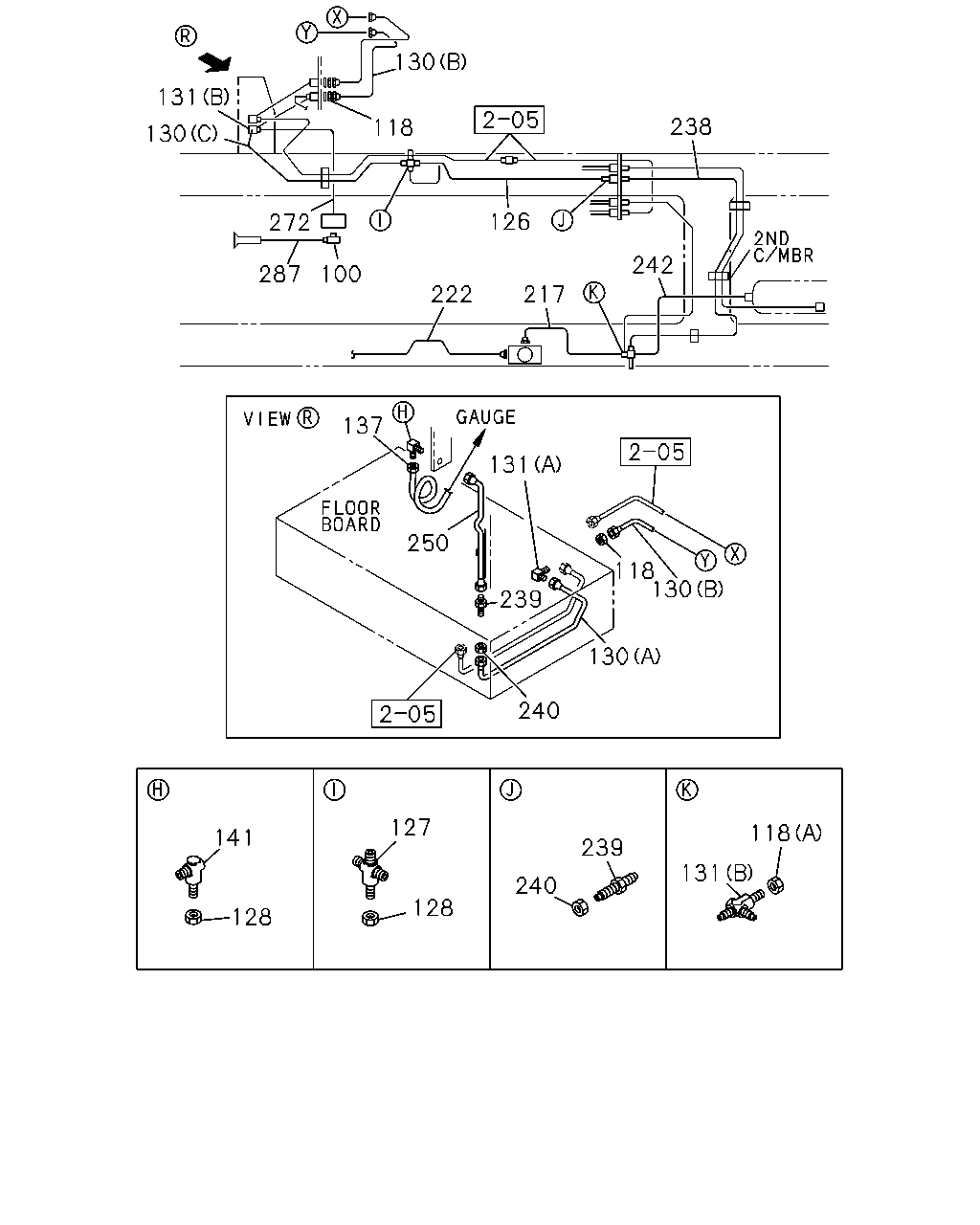

çizim 75147
130 131 130 238 118 126 272 242 287 100 222 217 137 131 250 118 130 239 130 240 127 118 141 239 131 240 128 128
BalonParca AdiParca NoAdetTipApplied Date A B
100 CONNECTOR; AIR PIPE
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9606- ●
118 NUT; UNION
(A) M12 		9-09840-280-0 01 1 9606- ● ●
118 NUT; UNION
(A) M12 		9-09840-280-0 01 1 9606- ● ●
118 NUT; UNION
(B) M12 		9-99111-412-0 01 1 9606- ● ●
126 PIPE; AIR,UNION TO UNION
L=1247 SERVICED BY L=1250 		1-47434-389-0 01 1 9606- ●
126 PIPE; AIR,UNION TO UNION
L=1102 SERVICED BY L=1200 		1-47434-388-0 01 1 9606- ●
127 UNION; AIR PIPE 9-09228-206-1 01 1 9606- ●
128 NUT; PIPE UNION
M12 		9-99111-412-0 01 1 9606- ●
128 NUT; PIPE UNION
M12 		9-09840-280-0 02 1 9606- ● ●
130 PIPE; AIR,UNION TO UNION
(C) L=936 SERVICED BY L=1000 		1-47434-386-0 01 1 9606- ●
130 PIPE; AIR,UNION TO UNION
(B) L=425 SERVICED BY L=460 		9-47415-349-0 01 1 9606- ●
130 PIPE; AIR,UNION TO UNION
(A) L=594 SERVICED BY L=600 		9-47415-352-0 01 1 9606- ● ●
130 PIPE; AIR,UNION TO UNION
(B) L=392 SERVICED BY L=460 		9-47415-349-0 01 1 9606- ●
131 UNION; AIR PIPE
(B) M12 		9-09228-806-1 01 1 9606- ●
131 UNION; AIR PIPE
(A) M12 L=69 		9-09225-106-1 01 1 9606- ● ●
131 UNION; AIR PIPE
(A) M12 L=69 		9-09225-106-1 01 1 9606- ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=440 		0-07210-440-0 01 1 9606- ● ●
141 UNION; FLEX HOSE
M10 & M12 ELBOW 		1-09654-111-1 01 1 9606- ● ●
217 PIPE; VAC,UNION TO MAG VLV
L=427 SERVICED BY L=460 		9-47415-349-0 01 1 9606- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE 1-47488-041-0 01 1 9606- ● ●
238 PIPE; AIR,UNION TO UNION
L=1582 SERVICED BY L=1620 		1-47434-392-0 01 1 9606- ●
238 PIPE; AIR,UNION TO UNION
L=1600 SERVICED BY L=1620 		1-47434-392-0 01 1 9606- ●
239 UNION; AIR PIPE
M12 L=62.5 		9-09223-206-1 02 1 9606- ●
239 UNION; AIR PIPE
M12 L=40 		9-09223-006-1 01 1 9606- ●
239 UNION; AIR PIPE
M12 L=56.5 		9-09223-106-1 01 1 9606- ●
240 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 9606- ● ●
240 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 9606- ●
242 PIPE; AIR,AIR TANK TO UNION
L=528 SERVICED BY L=550 		9-47415-351-0 01 1 9606- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
L=657 SERVICED BY L=700 		1-47434-466-0 01 1 9606- ● ●
272 PIPE; AIR,MAG VLV TO UNION
L=349 		1-47485-087-0 01 1 9606- ●
287 PIPE; AIR,MAG VLV 1-47485-086-0 01 1 9606- ●
