◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51411 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-14 - DASH PANEL AND FENDER SKIRT ▶
6-14 — DASH PANEL AND FENDER SKIRT (#91126) — 16 parça

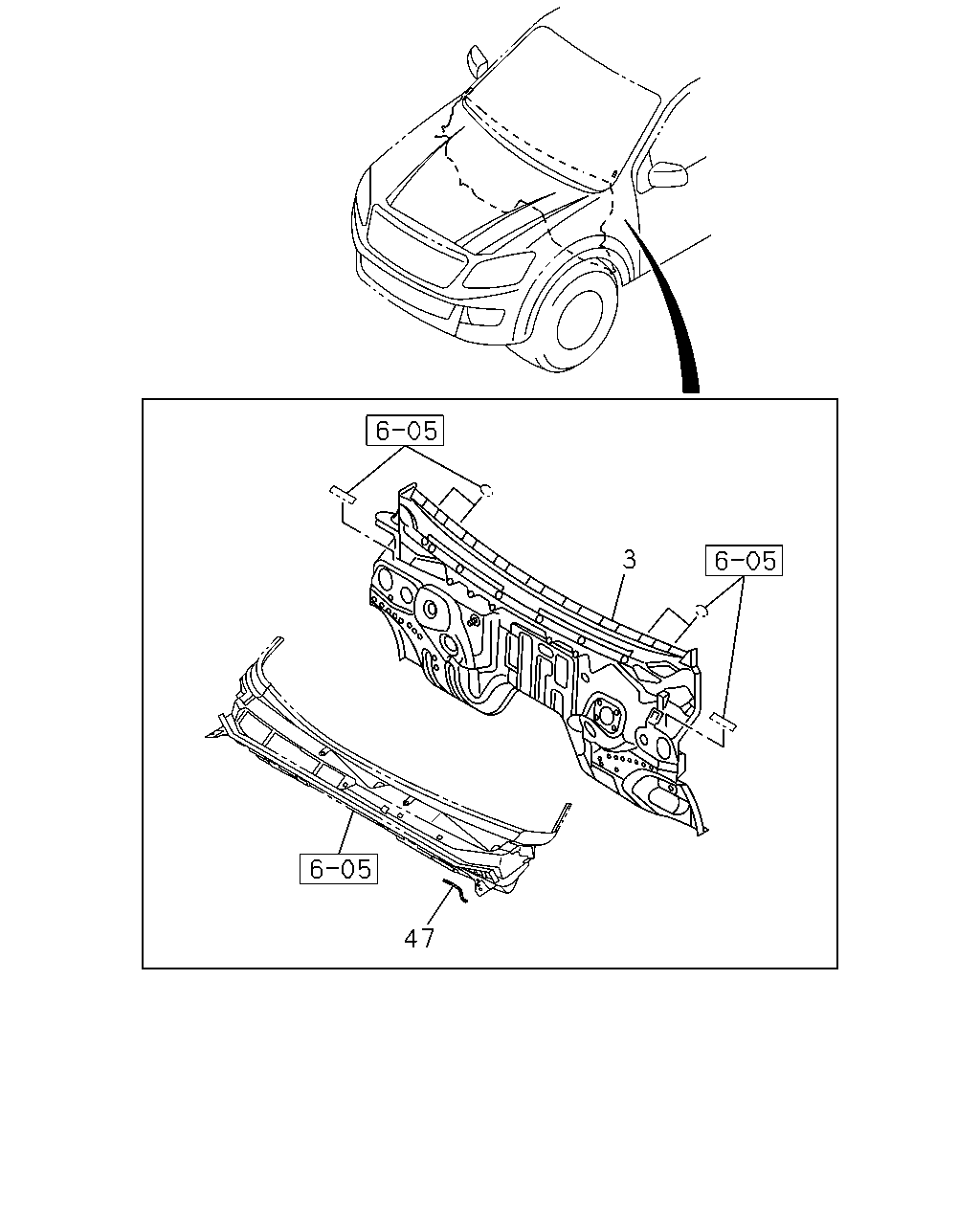

çizim 283667
3 47
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 16.550 PANEL; SUB,DASH LWR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 		8-98127-766-2 01 1 1206-1301 ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EXC. RUSSIA EQUIPMENT(B12) 		8-98127-766-2 01 1 1206-1301 ● ●
3 16.550 PANEL; SUB,DASH LWR 8-98127-766-2 01 1 1206-1301 ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EXC. RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) 		8-98127-766-2 01 1 1302- ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR 8-98127-766-2 01 1 1302- ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) 		8-98127-770-2 01 1 1206-1301 ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) EXC. RUSSIA EQUIPMENT(B12) 		8-98127-770-2 01 1 1206-1301 ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) EXC. CONGO EQUIPMENT(CDF) 		8-98127-770-2 01 1 1302- ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) EXC. RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) 		8-98127-770-2 01 1 1302- ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) RUSSIA EQUIPMENT(B12) 		8-98103-212-2 01 1 1206-1301 ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) 		8-98103-212-2 01 1 1302- ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) RUSSIA EQUIPMENT(B12) 		8-98103-214-2 01 1 1206-1301 ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) CONGO EQUIPMENT(CDF) 		8-98103-214-2 01 1 1302- ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) 		8-98103-214-2 01 1 1302- ●
47 16.550 TAPE; DASH PANEL
4JA1-T ENG(LP0) 		8-98151-273-0 02 1 1206- ● ●
47 16.550 TAPE; DASH PANEL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 		8-98151-273-0 01 1 1206- ● ● ● ● ●
