◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51411 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#91124) — 28 parça

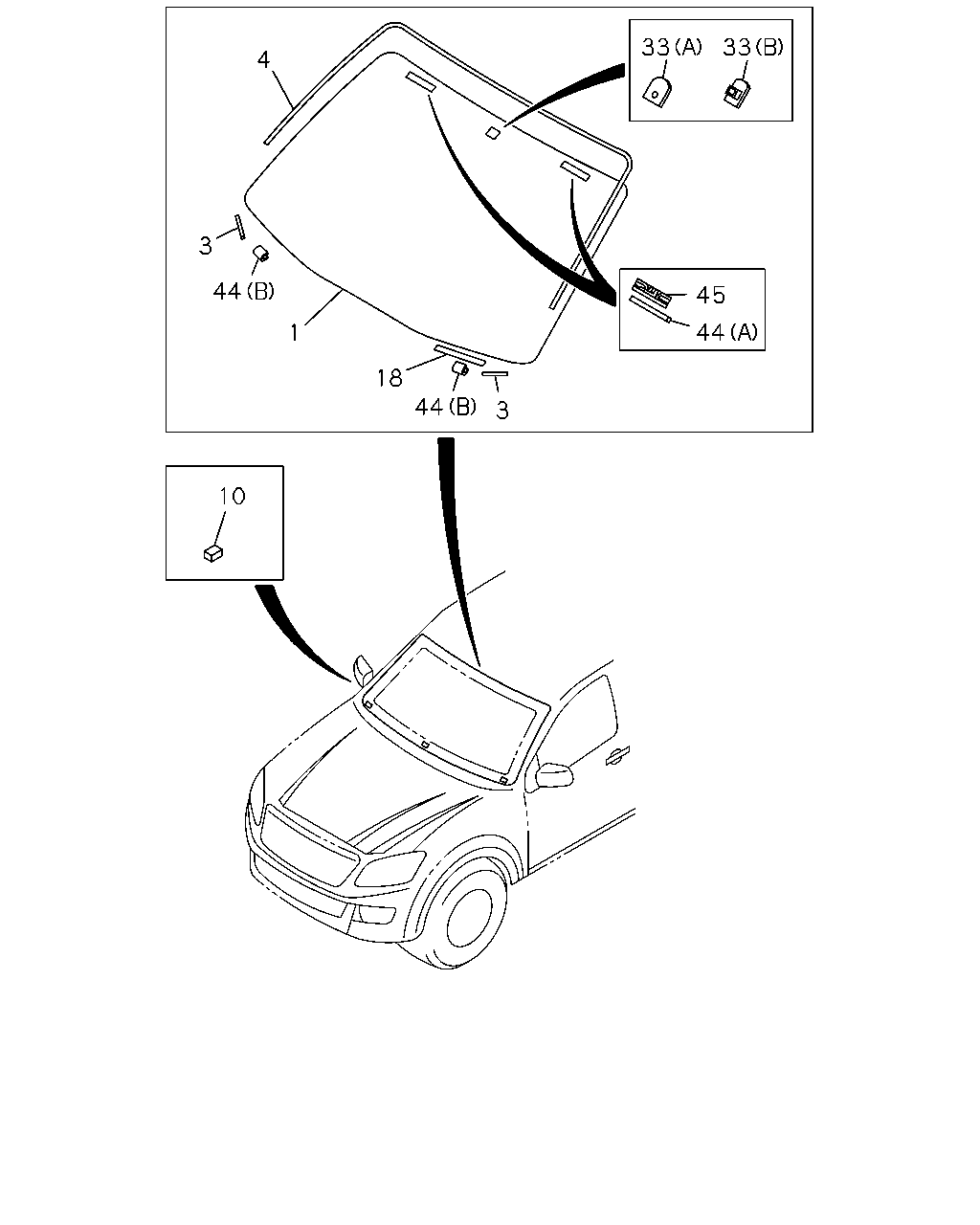

çizim 283299
4 3 44 1 18 44 3 33 33 45 44 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.005 GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31> 		8-98140-681-3 01 1 1206-1301 ● ● ●
1 16.005 GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31> EXC. RUSSIA EQUIPMENT(B12) 		8-98140-681-3 01 1 1206-1301 ● ●
1 16.005 GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31> EXC. CONGO EQUIPMENT(CDF) 		8-98140-681-3 01 1 1302- ● ●
1 16.005 GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31> EXC. RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) 		8-98140-681-3 01 1 1302- ● ●
1 16.005 GLASS; WINDSHIELD
RR VIEW MIRROR DAY & NIGHT<D31> 		8-98140-681-3 01 1 1302- ●
1 16.005 GLASS; WINDSHIELD
EXC. RR VIEW MIRROR DAY & NIGHT<D31> 		8-98140-682-3 01 1 1206-1301 ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. RUSSIA EQUIPMENT(B12),RR VIEW MIRROR DAY & NIGHT<D31> 		8-98140-682-3 01 1 1206-1301 ● ●
1 16.005 GLASS; WINDSHIELD
EXC. CONGO EQUIPMENT(CDF),RR VIEW MIRROR DAY & NIGHT<D31> 		8-98140-682-3 01 1 1302- ● ●
1 16.005 GLASS; WINDSHIELD
EXC. RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF),RR VIEW MIRROR DAY & NIGHT<D31> 		8-98140-682-3 01 1 1302- ● ●
1 16.005 GLASS; WINDSHIELD
EXC. RR VIEW MIRROR DAY & NIGHT<D31> 		8-98140-682-3 01 1 1302- ●
1 16.005 GLASS; WINDSHIELD
RUSSIA EQUIPMENT(B12) RR VIEW MIRROR DAY & NIGHT<D31> 		8-98140-683-3 01 1 1206-1301 ● ●
1 16.005 GLASS; WINDSHIELD
CONGO EQUIPMENT(CDF) RR VIEW MIRROR DAY & NIGHT<D31> 		8-98140-683-3 01 1 1302- ● ●
1 16.005 GLASS; WINDSHIELD
RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) RR VIEW MIRROR DAY & NIGHT<D31> 		8-98140-683-3 01 1 1302- ● ●
1 16.005 GLASS; WINDSHIELD
RUSSIA EQUIPMENT(B12) EXC. RR VIEW MIRROR DAY & NIGHT<D31> 		8-98140-684-3 01 1 1206-1301 ● ●
1 16.005 GLASS; WINDSHIELD
CONGO EQUIPMENT(CDF) EXC. RR VIEW MIRROR DAY & NIGHT<D31> 		8-98140-684-3 01 1 1302- ● ●
1 16.005 GLASS; WINDSHIELD
RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) EXC. RR VIEW MIRROR DAY & NIGHT<D31> 		8-98140-684-3 01 1 1302- ● ●
3 16.470 MOLDING; WINDSHIELD 8-98194-205-0 01 1 1206- ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-98194-206-0 01 1 1206- ● ● ● ● ●
4 16.475 MOLDING; WINDSHIELD,UPR 8-98140-685-0 01 1 1206- ● ● ● ● ●
10 08.160 SPACER; WINDSHIELD GLASS
12.180 		8-94434-770-0 03 1 1206- ● ● ● ● ●
18 16.041 SEAL; WINDSHIELD
RUSSIA EQUIPMENT(B12) 		8-98140-686-0 01 1 1206-1301 ● ●
18 16.041 SEAL; WINDSHIELD
CONGO EQUIPMENT(CDF) 		8-98140-686-0 01 1 1302- ● ●
18 16.041 SEAL; WINDSHIELD
RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) 		8-98140-686-0 01 1 1302- ● ●
33 08.133 SUPPORT; WINDSHIELD,LWR
RR VIEW MIRROR DAY & NIGHT<D31> (A) 		8-15954-649-0 01 1 1206- ● ● ● ● ●
33 08.133 SUPPORT; WINDSHIELD,LWR
EXC. RR VIEW MIRROR DAY & NIGHT<D31> (B) 		8-97331-592-0 01 1 1206- ● ● ● ● ●
44 16.041 SPONGE
(A) 		8-98194-201-0 02 1 1206-1308 ● ● ● ● ●
44 16.041 SPONGE
(B) 		8-98194-202-0 02 1 1206- ● ● ● ● ●
45 16.041 SUPPORT; WINDSHIELD 8-98140-687-0 02 1 1206- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
