◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51411 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#91123) — 117 parça

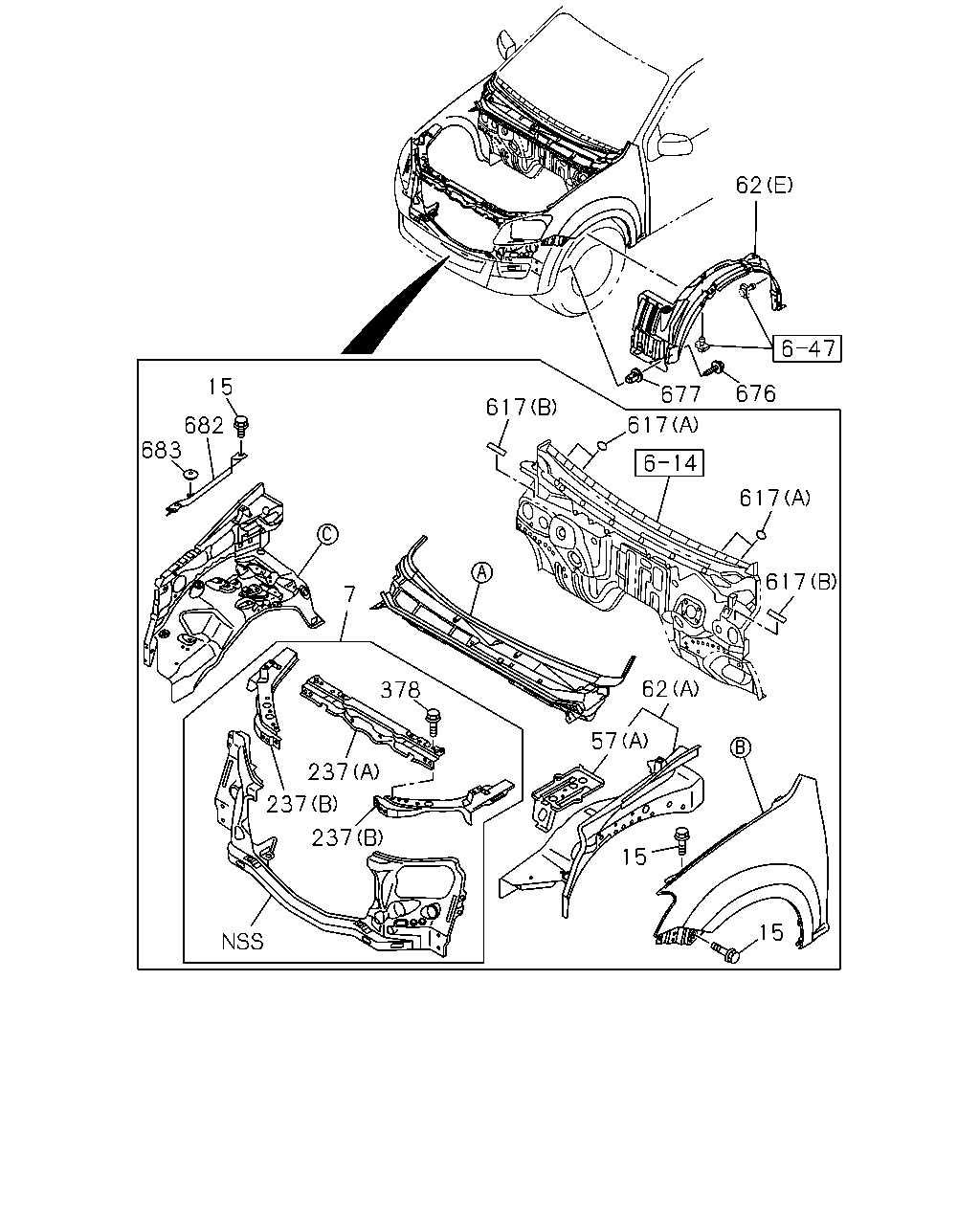

çizim 283289
15 15 57 62 617 617 617 676 677 62 617 15 682 683 7 378 237 237 237
BalonParca AdiParca NoAdetTipApplied Date A B C D E
7 01.271 PANEL; DEFLECTOR 8-98103-202-0 01 1 1206- ● ● ● ● ●
15 08.143 BOLT; FENDER
M6X15 W/LK&PL WASHER 		8-98167-615-0 12 1 1206- ● ● ● ● ●
57 02.333 TRAY; BATTERY
(A) 		8-98104-480-5 01 1 1206- ● ● ● ● ●
57 02.333 TRAY; BATTERY
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) 		8-98103-305-2 01 1 1206- ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
(A) 		8-98103-211-2 01 1 1206- ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) 		8-98103-210-0 01 1 1206-1208 ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) 		8-98193-272-0 01 1 1209-1402 ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-98193-272-2 01 1 1403- ● ● ●
62 08.153 PANEL; WHEEL HOUSE
4JA1-T ENG(LP0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (C) 		8-98207-467-1 01 1 1206-1402 ● ●
62 08.153 PANEL; WHEEL HOUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) 		8-98256-639-2 01 1 1403- ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
4JA1-T ENG(LP0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (C) 		8-98256-638-2 01 1 1403- ● ●
62 08.153 PANEL; WHEEL HOUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (D) 		8-98183-629-3 01 1 1206- ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
(E) 		8-98077-255-4 01 1 1206-1301 ●
62 08.153 PANEL; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98077-255-4 01 1 1206-1301 ●
62 08.153 PANEL; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98077-255-4 01 1 1302- ● ●
62 08.153 PANEL; WHEEL HOUSE
(E) 		8-98077-252-4 01 1 1206-1301 ●
62 08.153 PANEL; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98077-252-4 01 1 1206-1301 ●
62 08.153 PANEL; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98077-252-4 01 1 1302- ● ●
62 08.153 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION(7YC) EXC. ISRAEL EQUIPMENT(2G1) (E) 		8-98077-256-6 01 1 1206-1301 ●
62 08.153 PANEL; WHEEL HOUSE
(E) 		8-98077-256-6 01 1 1206-1301 ● ● ●
62 08.153 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION(7YC) EXC. ISRAEL EQUIPMENT(2G1) (E) 		8-98077-256-6 01 1 1302- ● ●
62 08.153 PANEL; WHEEL HOUSE
(E) 		8-98077-256-6 01 1 1302- ● ● ●
62 08.153 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION(7YC) EXC. ISRAEL EQUIPMENT(2G1) (E) 		8-98077-254-7 01 1 1206-1301 ●
62 08.153 PANEL; WHEEL HOUSE
(E) 		8-98077-254-7 01 1 1206-1301 ● ● ●
62 08.153 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION(7YC) EXC. ISRAEL EQUIPMENT(2G1) (E) 		8-98077-254-7 01 1 1302- ● ●
62 08.153 PANEL; WHEEL HOUSE
(E) 		8-98077-254-7 01 1 1302- ● ● ●
62 08.153 PANEL; WHEEL HOUSE
ISRAEL EQUIPMENT(2G1) HIGH RIDE SUSPENSION(7YC) (E) 		8-98213-050-0 01 1 1206-1301 ●
62 08.153 PANEL; WHEEL HOUSE
ISRAEL EQUIPMENT(2G1) HIGH RIDE SUSPENSION(7YC) (E) 		8-98213-050-0 01 1 1302- ● ●
62 08.153 PANEL; WHEEL HOUSE
ISRAEL EQUIPMENT(2G1) HIGH RIDE SUSPENSION(7YC) (E) 		8-98213-051-0 01 1 1206-1301 ●
62 08.153 PANEL; WHEEL HOUSE
ISRAEL EQUIPMENT(2G1) HIGH RIDE SUSPENSION(7YC) (E) 		8-98213-051-0 01 1 1302- ● ●
237 01.263 SUPPORT; DEFLECTOR
(A) 		8-98104-224-4 01 1 1206- ● ● ● ● ●
237 01.263 SUPPORT; DEFLECTOR
(B) 		8-98104-244-4 01 1 1206- ● ● ● ● ●
237 01.263 SUPPORT; DEFLECTOR
(B) 		8-98104-253-4 01 1 1206- ● ● ● ● ●
378 01.269 BOLT; SUPPORT
03.342 M6X12 FLANGE 		0-28060-612-0 08 1 1206- ● ● ● ● ●
617 08.131 SEAL; DASH
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 1206- ● ● ● ● ●
617 08.131 SEAL; DASH
(B) 110X10 		8-98192-905-0 02 1 1206- ● ● ● ● ●
617 08.131 SEAL; DASH
(C) T=5.0 		8-98134-005-0 01 1 1206- ● ● ● ● ●
676 16.125 BOLT; WHEEL HOUSE
07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 02 1 1206- ● ● ● ● ●
677 16.125 NUT; WHEEL HOUSE
09.190 D=9.7X9.7 L=8 		8-94222-314-0 02 1 1206- ● ● ● ● ●
682 08.228 PROTECTOR; HEAT,ENG 8-98139-849-3 01 1 1206- ● ● ● ● ●
683 08.228 RIVET; PROTECTOR,HEAT
17.490 		8-98057-864-0 02 1 1206- ● ● ● ● ●

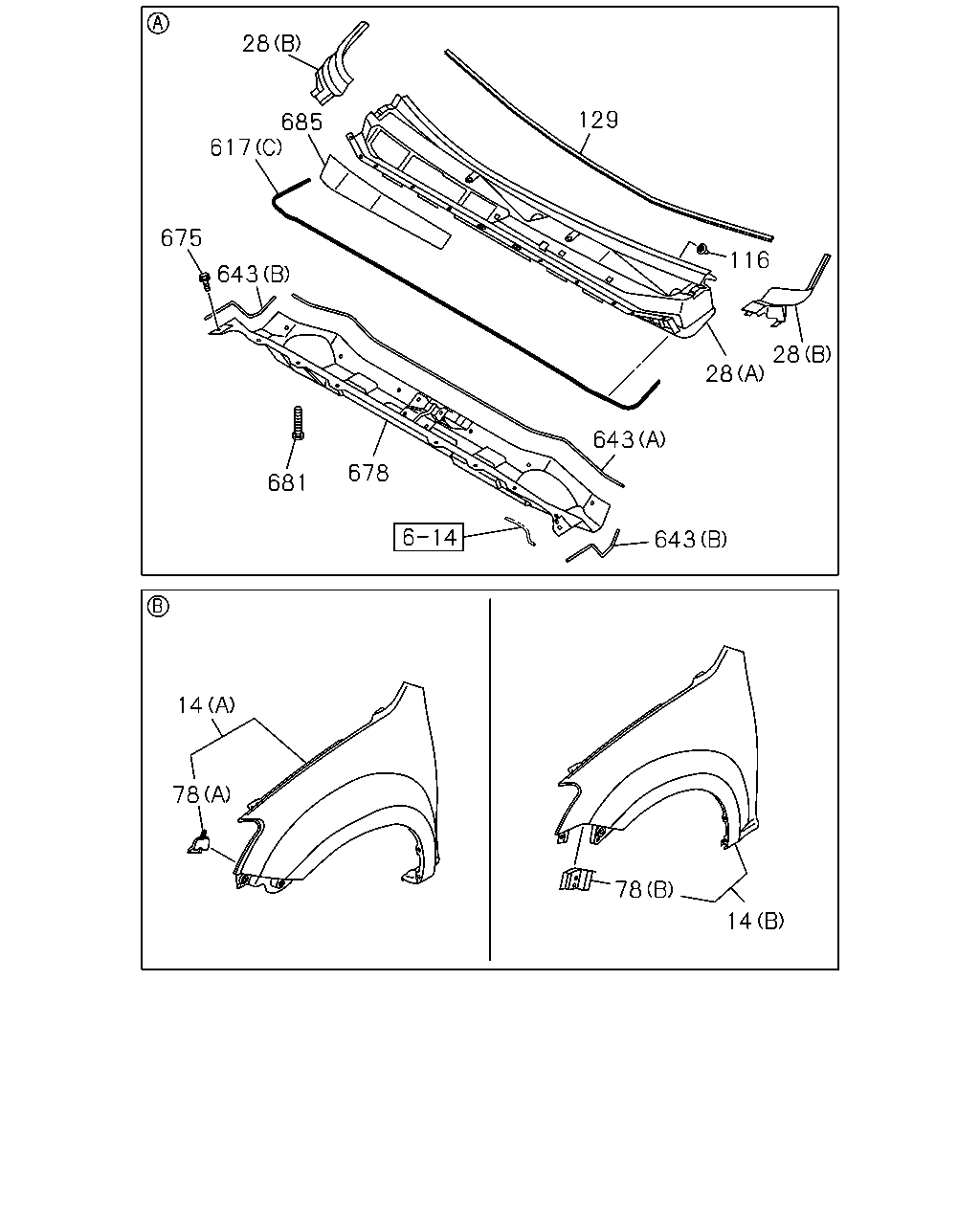

çizim 283290
643 643 129 28 685 617 675 643 678 681 14 78 78 14 116 28 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E
14 08.130 FENDER; FRT
(B) 		8-98103-206-0 01 1 1206-1301 ●
14 08.130 FENDER; FRT
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98103-206-0 01 1 1206-1301 ●
14 08.130 FENDER; FRT
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98103-206-0 01 1 1302- ● ●
14 08.130 FENDER; FRT
(B) 		8-98103-208-0 01 1 1206-1301 ●
14 08.130 FENDER; FRT
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98103-208-0 01 1 1206-1301 ●
14 08.130 FENDER; FRT
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98103-208-0 01 1 1302- ● ●
14 08.130 FENDER; FRT
HIGH RIDE SUSPENSION(7YC) (A) 		8-98181-029-0 01 1 1206-1301 ●
14 08.130 FENDER; FRT
(A) 		8-98181-029-0 01 1 1206-1301 ● ● ●
14 08.130 FENDER; FRT
HIGH RIDE SUSPENSION(7YC) (A) 		8-98181-029-0 01 1 1302- ● ●
14 08.130 FENDER; FRT
(A) 		8-98181-029-0 01 1 1302- ● ● ●
14 08.130 FENDER; FRT
HIGH RIDE SUSPENSION(7YC) (A) 		8-98181-030-0 01 1 1206-1301 ●
14 08.130 FENDER; FRT
(A) 		8-98181-030-0 01 1 1206-1301 ● ● ●
14 08.130 FENDER; FRT
HIGH RIDE SUSPENSION(7YC) (A) 		8-98181-030-0 01 1 1302- ● ●
14 08.130 FENDER; FRT
(A) 		8-98181-030-0 01 1 1302- ● ● ●
28 16.125 COVER; DASH COWL
(B) 		8-98133-981-6 01 1 1206- ● ● ● ● ●
28 16.125 COVER; DASH COWL
(B) 		8-98133-982-5 01 1 1206- ● ● ● ● ●
28 16.125 COVER; DASH COWL
(A) 		8-98194-237-2 01 1 1206- ● ● ● ● ●
78 16.125 BRACKET; FENDER
(B) 		8-98104-031-1 01 1 1206-1301 ●
78 16.125 BRACKET; FENDER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-031-1 01 1 1206-1301 ●
78 16.125 BRACKET; FENDER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-031-1 01 1 1302- ● ●
78 16.125 BRACKET; FENDER
(B) 		8-98104-032-1 01 1 1206-1301 ●
78 16.125 BRACKET; FENDER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-032-1 01 1 1206-1301 ●
78 16.125 BRACKET; FENDER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-032-1 01 1 1302- ● ●
78 16.125 BRACKET; FENDER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-033-1 01 1 1206-1301 ●
78 16.125 BRACKET; FENDER
(A) 		8-98104-033-1 01 1 1206-1301 ● ● ●
78 16.125 BRACKET; FENDER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-033-1 01 1 1302- ● ●
78 16.125 BRACKET; FENDER
(A) 		8-98104-033-1 01 1 1302- ● ● ●
78 16.125 BRACKET; FENDER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-034-1 01 1 1206-1301 ●
78 16.125 BRACKET; FENDER
(A) 		8-98104-034-1 01 1 1206-1301 ● ● ●
78 16.125 BRACKET; FENDER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-034-1 01 1 1302- ● ●
78 16.125 BRACKET; FENDER
(A) 		8-98104-034-1 01 1 1302- ● ● ●
116 12.800 CLIP; COWL COVER 8-98134-004-1 06 1 1206- ● ● ● ● ●
129 16.125 FINISHER; COWL COVER 8-98133-991-0 01 1 1206- ● ● ● ● ●
617 08.131 SEAL; DASH
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 1206- ● ● ● ● ●
617 08.131 SEAL; DASH
(B) 110X10 		8-98192-905-0 02 1 1206- ● ● ● ● ●
617 08.131 SEAL; DASH
(C) T=5.0 		8-98134-005-0 01 1 1206- ● ● ● ● ●
643 08.131 SEAL; COWL
(A) 		8-98110-283-1 01 1 1206- ● ● ● ● ●
643 08.131 SEAL; COWL
(B) 		8-98110-284-1 02 1 1206- ● ● ● ● ●
675 08.143 BOLT; PANEL
M6X12 W/PL WASHER 		8-98180-459-2 08 1 1206- ● ● ● ● ●
678 08.143 PANEL; COWL
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-98065-804-3 01 1 1206- ● ● ● ● ●
678 08.143 PANEL; COWL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 		8-98123-887-5 01 1 1206- ● ● ● ●
681 02.333 STUD; BATTERY
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 		8-98191-340-0 04 1 1206- ● ● ● ●
685 16.125 FINISHER; COWL
RUSSIA EQUIPMENT(B12) 		8-98194-211-0 01 1 1206- ● ●

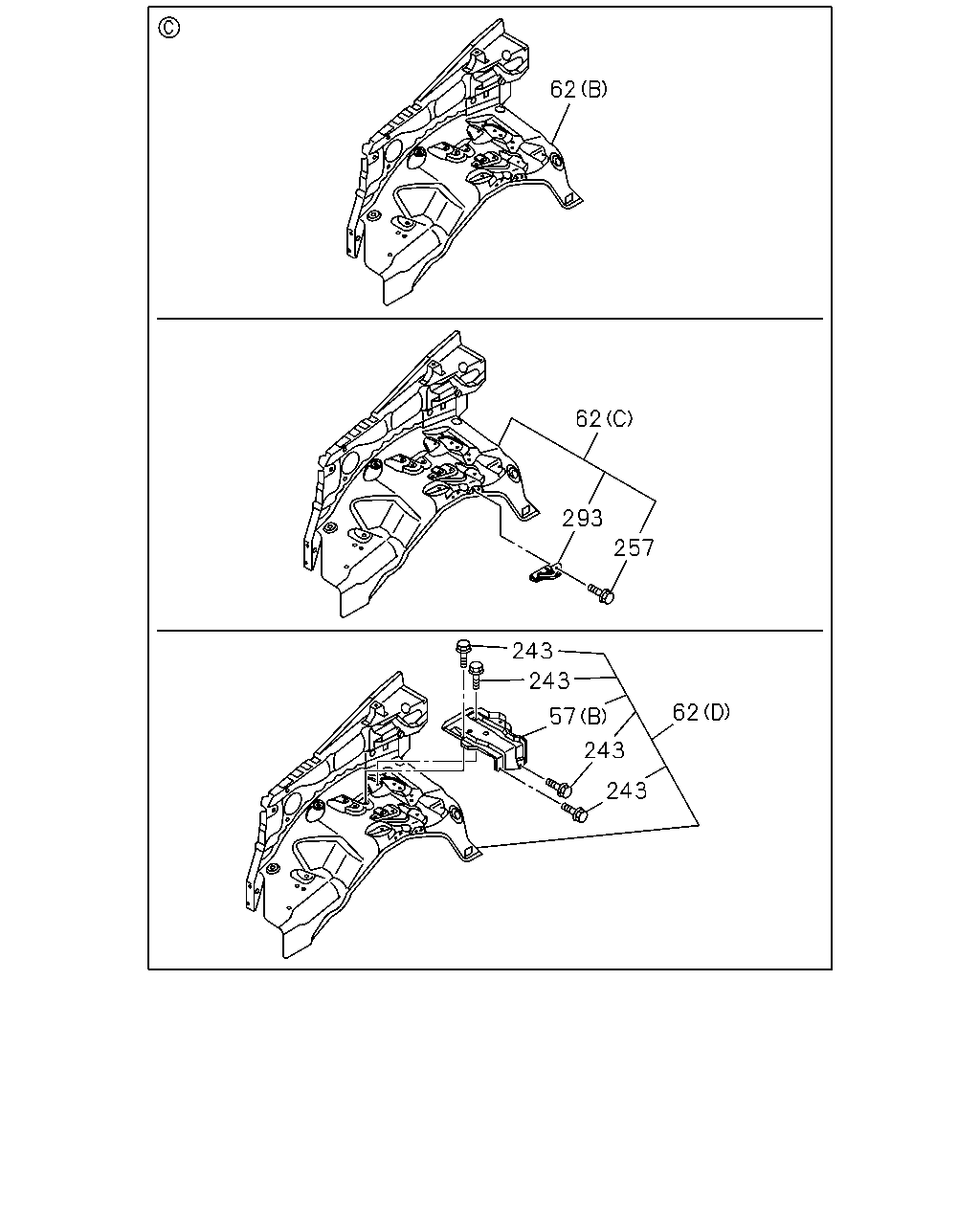

çizim 283292
62 62 293 257 243 243 57 243 243 62
BalonParca AdiParca NoAdetTipApplied Date A B C D E
57 02.333 TRAY; BATTERY
(A) 		8-98104-480-5 01 1 1206- ● ● ● ● ●
57 02.333 TRAY; BATTERY
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) 		8-98103-305-2 01 1 1206- ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
(A) 		8-98103-211-2 01 1 1206- ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) 		8-98103-210-0 01 1 1206-1208 ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) 		8-98193-272-0 01 1 1209-1402 ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-98193-272-2 01 1 1403- ● ● ●
62 08.153 PANEL; WHEEL HOUSE
4JA1-T ENG(LP0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (C) 		8-98207-467-1 01 1 1206-1402 ● ●
62 08.153 PANEL; WHEEL HOUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) 		8-98256-639-2 01 1 1403- ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
4JA1-T ENG(LP0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (C) 		8-98256-638-2 01 1 1403- ● ●
62 08.153 PANEL; WHEEL HOUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (D) 		8-98183-629-3 01 1 1206- ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
(E) 		8-98077-255-4 01 1 1206-1301 ●
62 08.153 PANEL; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98077-255-4 01 1 1206-1301 ●
62 08.153 PANEL; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98077-255-4 01 1 1302- ● ●
62 08.153 PANEL; WHEEL HOUSE
(E) 		8-98077-252-4 01 1 1206-1301 ●
62 08.153 PANEL; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98077-252-4 01 1 1206-1301 ●
62 08.153 PANEL; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98077-252-4 01 1 1302- ● ●
62 08.153 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION(7YC) EXC. ISRAEL EQUIPMENT(2G1) (E) 		8-98077-256-6 01 1 1206-1301 ●
62 08.153 PANEL; WHEEL HOUSE
(E) 		8-98077-256-6 01 1 1206-1301 ● ● ●
62 08.153 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION(7YC) EXC. ISRAEL EQUIPMENT(2G1) (E) 		8-98077-256-6 01 1 1302- ● ●
62 08.153 PANEL; WHEEL HOUSE
(E) 		8-98077-256-6 01 1 1302- ● ● ●
62 08.153 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION(7YC) EXC. ISRAEL EQUIPMENT(2G1) (E) 		8-98077-254-7 01 1 1206-1301 ●
62 08.153 PANEL; WHEEL HOUSE
(E) 		8-98077-254-7 01 1 1206-1301 ● ● ●
62 08.153 PANEL; WHEEL HOUSE
HIGH RIDE SUSPENSION(7YC) EXC. ISRAEL EQUIPMENT(2G1) (E) 		8-98077-254-7 01 1 1302- ● ●
62 08.153 PANEL; WHEEL HOUSE
(E) 		8-98077-254-7 01 1 1302- ● ● ●
62 08.153 PANEL; WHEEL HOUSE
ISRAEL EQUIPMENT(2G1) HIGH RIDE SUSPENSION(7YC) (E) 		8-98213-050-0 01 1 1206-1301 ●
62 08.153 PANEL; WHEEL HOUSE
ISRAEL EQUIPMENT(2G1) HIGH RIDE SUSPENSION(7YC) (E) 		8-98213-050-0 01 1 1302- ● ●
62 08.153 PANEL; WHEEL HOUSE
ISRAEL EQUIPMENT(2G1) HIGH RIDE SUSPENSION(7YC) (E) 		8-98213-051-0 01 1 1206-1301 ●
62 08.153 PANEL; WHEEL HOUSE
ISRAEL EQUIPMENT(2G1) HIGH RIDE SUSPENSION(7YC) (E) 		8-98213-051-0 01 1 1302- ● ●
243 02.334 BOLT; BATTERY TRAY
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 00.206 M6X12 FLANGE 		0-28450-612-0 04 1 1206- ● ● ● ●
257 07.039 BOLT; BRKT
4JA1-T ENG(LP0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 00.206 M6X12 FLANGE 		0-28450-612-0 02 1 1206-1402 ● ●
257 07.039 BOLT; BRKT
4JA1-T ENG(LP0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 00.206 M6X12 FLANGE 		0-28450-612-0 02 1 1403- ● ●
293 16.592 BRACKET; PANEL
4JA1-T ENG(LP0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 03.672 		8-98172-758-0 01 1 1206-1402 ● ●
293 16.592 BRACKET; PANEL
4JA1-T ENG(LP0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> 03.672 		8-98172-758-0 01 1 1403- ● ●
