3-40 — FRONT BRAKE POWER CHAMBER (#9111) — 12 parça

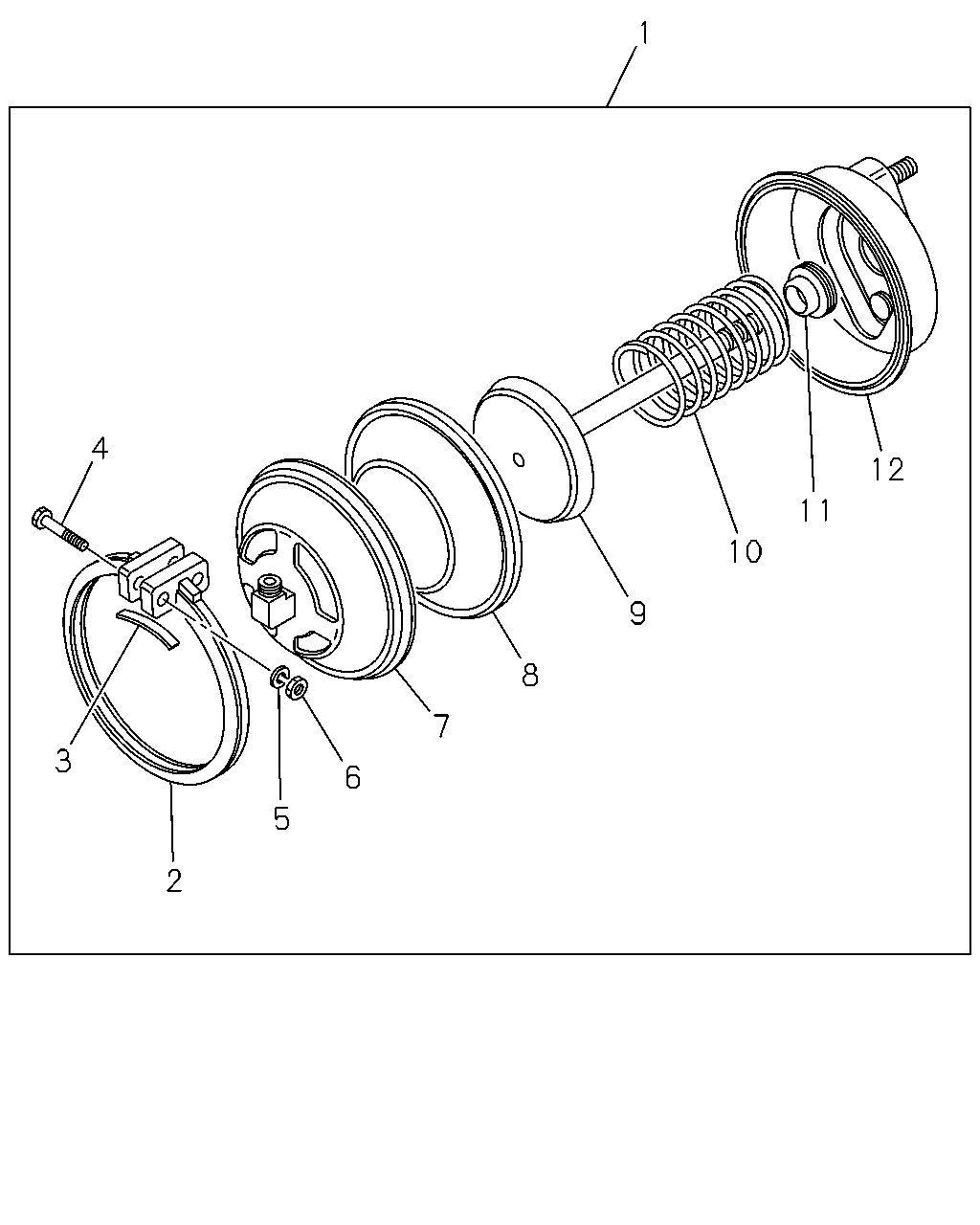

çizim 74994
1 4 12 11 10 9 8 7 3 6 5 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK 1-48250-062-1 02 1 9606- ● ●
2 RING; CLAMP,SPR CHAMBER 1-48259-001-0 02 1 9606- ● ●
3 RETAINER; DIAPH 9-48259-016-0 02 1 9606- ● ●
4 BOLT; CLAMP RING 1-48259-002-0 04 1 9606- ● ●
5 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 04 1 9606- ● ●
6 NUT; CLAMP RING
M10 		9-09110-010-0 04 1 9606- ● ●
7 COVER ASM; UPR,SPR CHAMBER 1-48251-002-0 02 1 9606- ● ●
8 DIAPHRAGM; SPR CHAMBER 1-48252-006-0 02 1 9606- ● ●
9 PISTON; SPR CHAMBER 1-48253-001-0 02 1 9606- ● ●
10 SPRING; PISTON,SPR CHAMBER 1-48255-001-0 02 1 9606- ● ●
11 SEAL; PISTON,SPR CHAMBER 1-48252-025-0 02 1 9606- ● ●
12 COVER ASM; LWR,SPR CHAMBER 1-48251-019-0 02 1 9606- ● ●
