4-42 — POWER STEERING OIL PUMP (#91109) — 74 parça

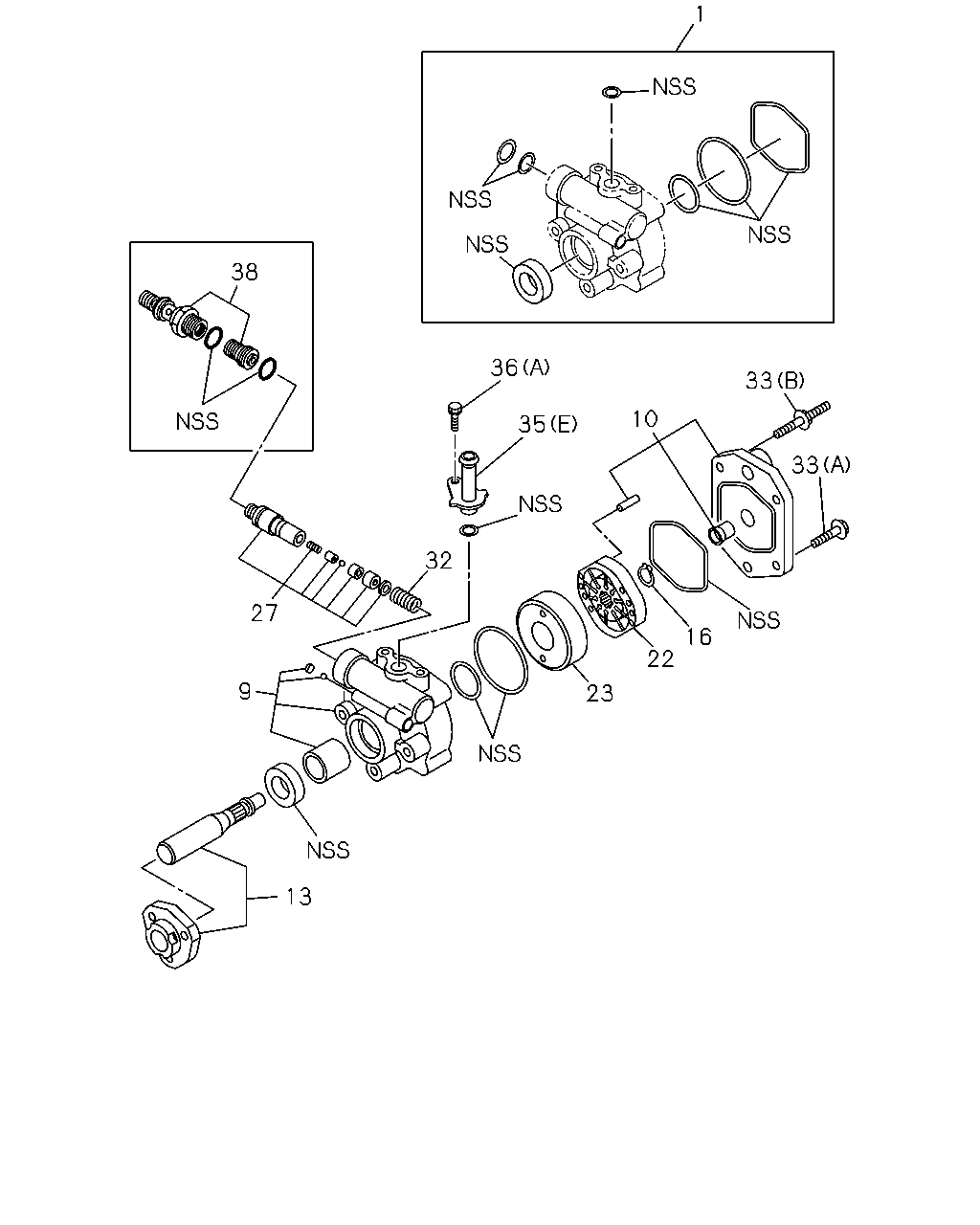

1 38 36 35 10 33 33 16 22 23 32 13 9 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-97946-697-0, 97946697	8-97184-735-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-98002-698-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97946-697-0, 97946697	8-97946-693-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-98002-697-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97946-697-0, 97946697, C = 8-97946-698-0, 97946698	8-97946-689-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-97946-697-0, 97946697	8-97306-614-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: B = 8-97946-697-0, 97946697	8-94411-358-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97946-697-0, 97946697, C = 8-97946-698-0, 97946698	8-97946-615-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: B = 8-97946-697-0, 97946697, C = 8-97946-698-0, 97946698	8-97184-728-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-97946-697-0, 97946697	8-97184-731-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-98034-043-0	01	1	-
32	06.606 SPRING; OIL PUMP ASM PART: B = 8-97946-697-0, 97946697, C = 8-97946-698-0, 97946698	8-97184-766-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: B = 8-97946-697-0, 97946697, C = 8-97946-698-0, 97946698	8-98028-773-0	03	1	-
33	06.606 BOLT; COVER (B) ASM PART: B = 8-97946-697-0, 97946697	8-98034-093-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: C = 8-97946-698-0, 97946698	8-97946-174-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (E) ASM PART: B = 8-97946-697-0, 97946697	8-98033-923-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (B) ASM PART: C = 8-97946-698-0, 97946698	8-98033-924-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: A = 8-97946-164-0, 97946164	8-98165-869-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (D) ASM PART: A = 8-97946-164-0, 97946164	8-98166-383-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: C = 8-97946-698-0, 97946698	8-98028-783-0	02	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: B = 8-97946-697-0, 97946697	8-98028-783-0	01	1	-
36	06.602 BOLT; CONN,PIPE (B) ASM PART: C = 8-97946-698-0, 97946698	8-98034-052-0	01	1	-
36	06.602 BOLT; CONN,PIPE (C) ASM PART: A = 8-97946-164-0, 97946164	8-98165-884-0	01	1	-
36	06.602 BOLT; CONN,PIPE (D) ASM PART: A = 8-97946-164-0, 97946164	8-98166-386-0	02	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: B = 8-97946-697-0, 97946697	8-97184-732-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-97943-866-0	01	1	-

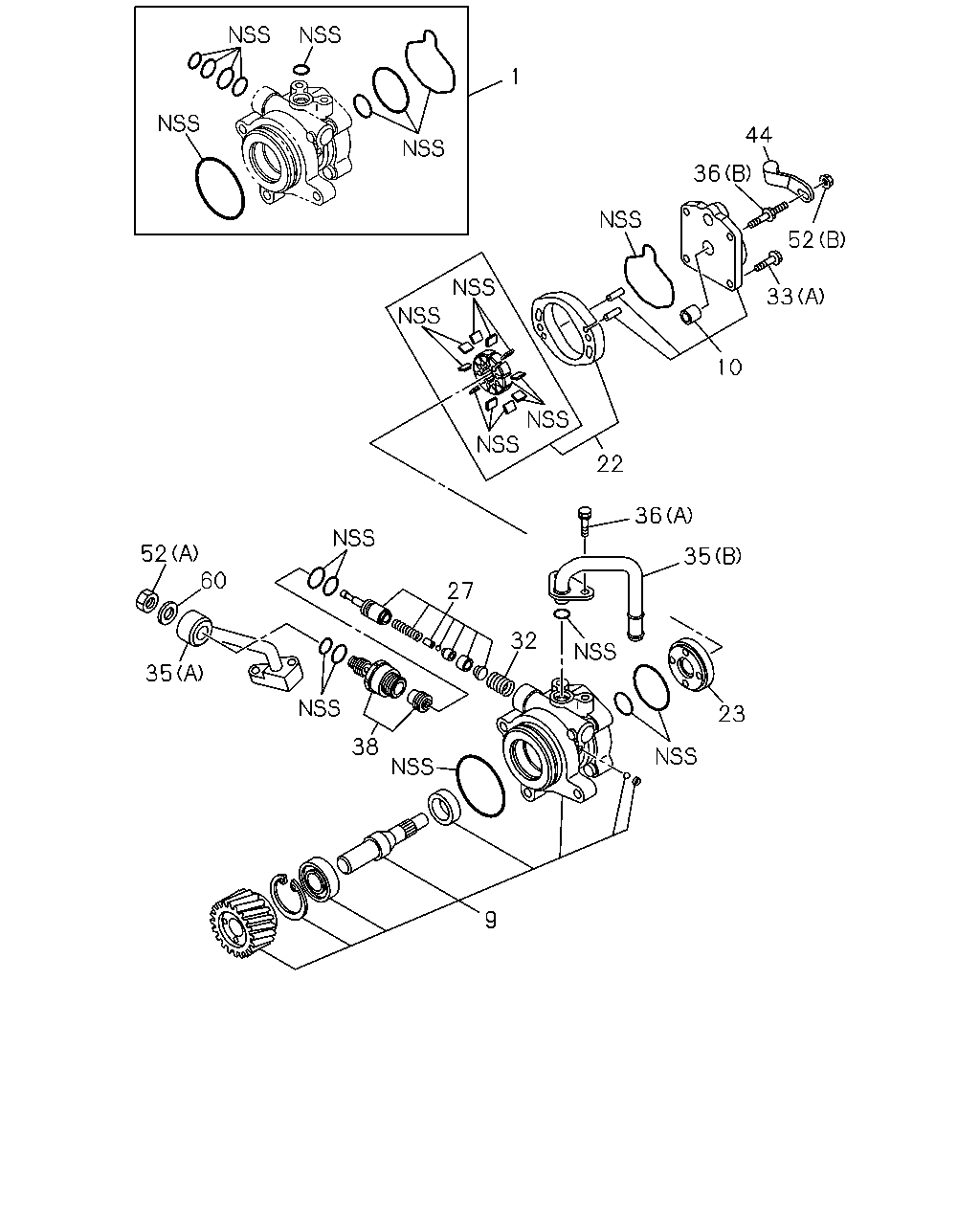

1 44 36 10 33 52 36 22 35 23 9 38 32 27 60 35 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-97946-697-0, 97946697	8-97184-735-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-98002-698-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97946-697-0, 97946697	8-97946-693-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-98002-697-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97946-697-0, 97946697, C = 8-97946-698-0, 97946698	8-97946-689-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97946-697-0, 97946697, C = 8-97946-698-0, 97946698	8-97946-615-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: B = 8-97946-697-0, 97946697, C = 8-97946-698-0, 97946698	8-97184-728-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-97946-697-0, 97946697	8-97184-731-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-98034-043-0	01	1	-
32	06.606 SPRING; OIL PUMP ASM PART: B = 8-97946-697-0, 97946697, C = 8-97946-698-0, 97946698	8-97184-766-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: B = 8-97946-697-0, 97946697, C = 8-97946-698-0, 97946698	8-98028-773-0	03	1	-
33	06.606 BOLT; COVER (B) ASM PART: B = 8-97946-697-0, 97946697	8-98034-093-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: C = 8-97946-698-0, 97946698	8-97946-174-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (E) ASM PART: B = 8-97946-697-0, 97946697	8-98033-923-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (B) ASM PART: C = 8-97946-698-0, 97946698	8-98033-924-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: A = 8-97946-164-0, 97946164	8-98165-869-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (D) ASM PART: A = 8-97946-164-0, 97946164	8-98166-383-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: C = 8-97946-698-0, 97946698	8-98028-783-0	02	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: B = 8-97946-697-0, 97946697	8-98028-783-0	01	1	-
36	06.602 BOLT; CONN,PIPE (B) ASM PART: C = 8-97946-698-0, 97946698	8-98034-052-0	01	1	-
36	06.602 BOLT; CONN,PIPE (C) ASM PART: A = 8-97946-164-0, 97946164	8-98165-884-0	01	1	-
36	06.602 BOLT; CONN,PIPE (D) ASM PART: A = 8-97946-164-0, 97946164	8-98166-386-0	02	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: B = 8-97946-697-0, 97946697	8-97184-732-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-97943-866-0	01	1	-
44	06.606 BRACKET; OIL PUMP,P/S & EDS ASM PART: C = 8-97946-698-0, 97946698	8-98034-047-0	01	1	-
44	06.606 BRACKET; OIL PUMP,P/S & EDS ASM PART: A = 8-97946-164-0, 97946164	8-98165-885-0	01	1	-
52	06.635 NUT; OIL PUMP (A) ASM PART: C = 8-97946-698-0, 97946698	8-98034-050-0	01	1	-
52	06.635 NUT; OIL PUMP (B) ASM PART: C = 8-97946-698-0, 97946698	8-98034-051-0	01	1	-
52	06.635 NUT; OIL PUMP (C) ASM PART: A = 8-97946-164-0, 97946164	8-98165-887-0	01	1	-
60	06.635 WASHER; LK,OIL PUMP ASM PART: C = 8-97946-698-0, 97946698	8-98034-048-0	01	1	-

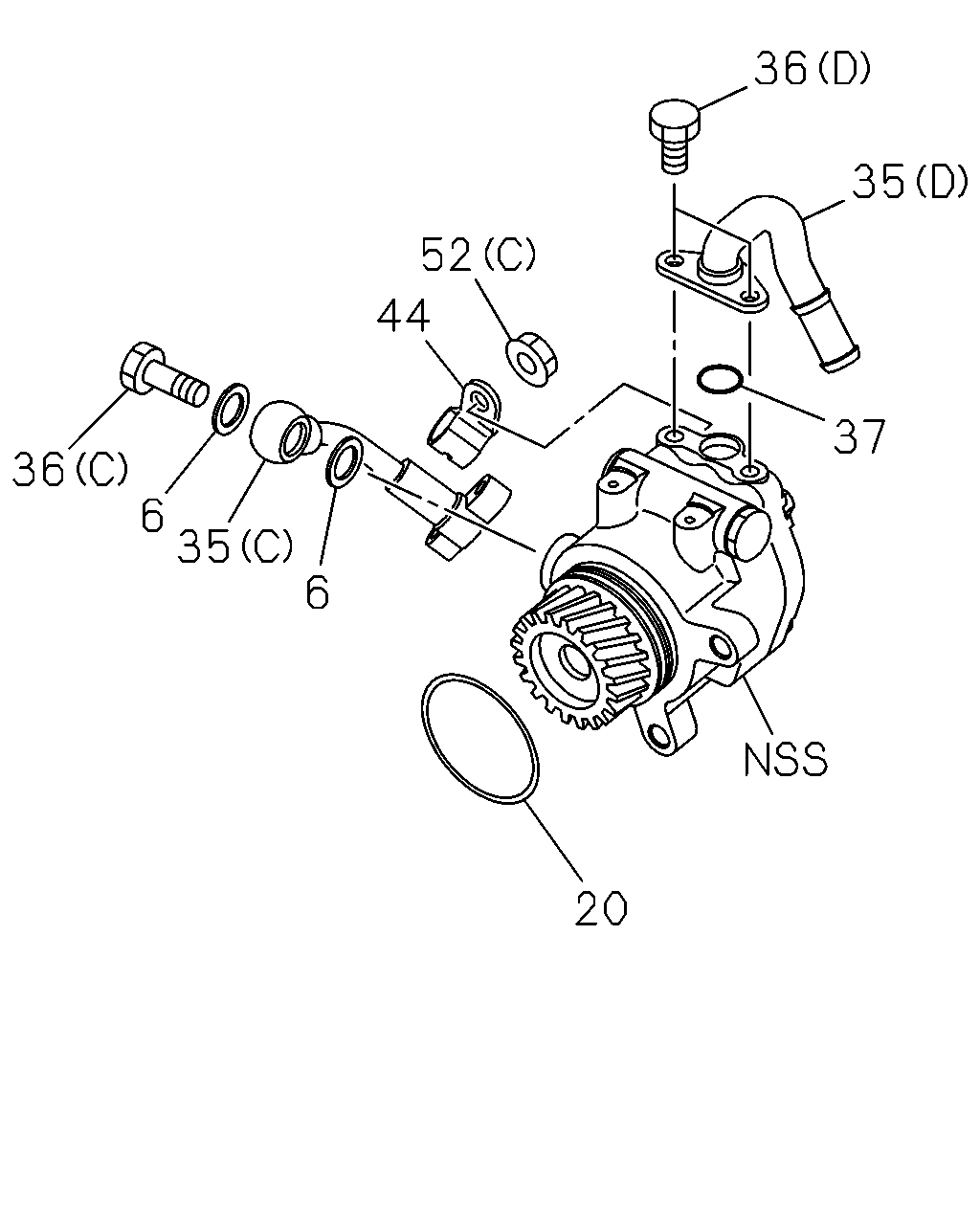

36 35 37 20 6 35 36 6 44 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	06.635 WASHER; PL,OIL PUMP ASM PART: A = 8-97946-164-0, 97946164	8-98165-870-0	02	1	-
20	06.635 GASKET; FRT,OIL PUMP ASM PART: A = 8-97946-164-0, 97946164	8-98165-868-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: C = 8-97946-698-0, 97946698	8-97946-174-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (E) ASM PART: B = 8-97946-697-0, 97946697	8-98033-923-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (B) ASM PART: C = 8-97946-698-0, 97946698	8-98033-924-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: A = 8-97946-164-0, 97946164	8-98165-869-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (D) ASM PART: A = 8-97946-164-0, 97946164	8-98166-383-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: C = 8-97946-698-0, 97946698	8-98028-783-0	02	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: B = 8-97946-697-0, 97946697	8-98028-783-0	01	1	-
36	06.602 BOLT; CONN,PIPE (B) ASM PART: C = 8-97946-698-0, 97946698	8-98034-052-0	01	1	-
36	06.602 BOLT; CONN,PIPE (C) ASM PART: A = 8-97946-164-0, 97946164	8-98165-884-0	01	1	-
36	06.602 BOLT; CONN,PIPE (D) ASM PART: A = 8-97946-164-0, 97946164	8-98166-386-0	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97946-164-0, 97946164	8-98166-384-0	01	1	-
44	06.606 BRACKET; OIL PUMP,P/S & EDS ASM PART: C = 8-97946-698-0, 97946698	8-98034-047-0	01	1	-
44	06.606 BRACKET; OIL PUMP,P/S & EDS ASM PART: A = 8-97946-164-0, 97946164	8-98165-885-0	01	1	-
52	06.635 NUT; OIL PUMP (A) ASM PART: C = 8-97946-698-0, 97946698	8-98034-050-0	01	1	-
52	06.635 NUT; OIL PUMP (B) ASM PART: C = 8-97946-698-0, 97946698	8-98034-051-0	01	1	-
52	06.635 NUT; OIL PUMP (C) ASM PART: A = 8-97946-164-0, 97946164	8-98165-887-0	01	1	-
