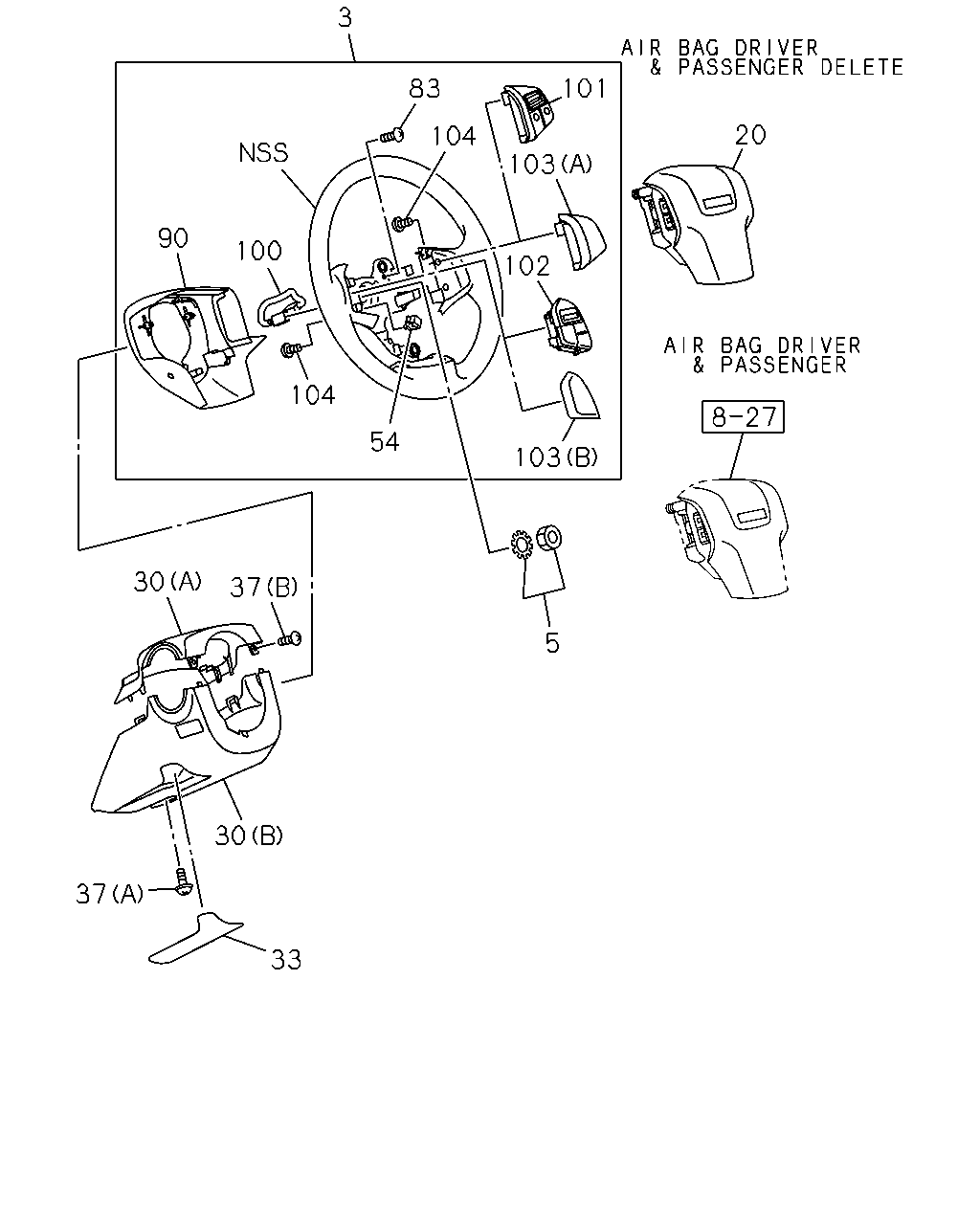

4-30 — STEERING WHEEL AND COWL (#91103) — 46 parça

3 83 101 104 102 103 100 90 104 103 54 5 20 30 37 30 37 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) BLACK	8-97416-797-3	01	1	1206-	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. STEERING WHEEL LEATHER<NP5> BLACK	8-97416-797-3	01	1	1206-			●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) EXC. STEERING WHEEL LEATHER<NP5> BLACK	8-97416-797-3	01	1	1206-					●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK	8-97416-799-3	01	1	1206-	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5> BLACK	8-97416-799-3	01	1	1206-			●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> BLACK	8-97416-800-3	01	1	1206-			●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> BLACK	8-97416-800-3	01	1	1206-					●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE> BLACK	8-97416-801-3	01	1	1206-			●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE> BLACK	8-97416-801-3	01	1	1206-					●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> EXC. AUTO CRUISE CONT<K30> BLACK	8-97416-802-3	01	1	1206-			●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> EXC. AUTO CRUISE CONT<K30> BLACK	8-97416-802-3	01	1	1206-					●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) STEERING WHEEL LEATHER<NP5> EXC. AUTO CRUISE CONT<K30>,STEERING WHEEL RADIO CONTROLS<8NE> BLACK	8-97416-796-3	01	1	1206-			●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> EXC. AUTO CRUISE CONT<K30>,STEERING WHEEL RADIO CONTROLS<8NE> BLACK	8-97416-796-3	01	1	1206-					●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> EXC. AUTO CRUISE CONT<K30>,STEERING WHEEL RADIO CONTROLS<8NE> BLACK	8-97416-798-3	01	1	1206-			●	●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-1	01	1	1206-	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> BLACK	8-97417-529-1	01	1	1206-	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> BLACK	8-97416-803-4	01	1	1206-	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERIOR STEERING CENTER PAD BADGE<8MB> BLACK	8-97416-803-4	01	1	1206-					●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) ISUZU BRAND<7WL> EXC. INTERIOR STEERING CENTER PAD BADG E<8MB> BLACK	8-97416-804-4	01	1	1206-	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. INTERIOR STEERING CENTER PAD BADG E<8MB> BLACK	8-97416-804-4	01	1	1206-					●
30	06.518 COWL; STEERING IMMOBILIZER SYSTEM<7KC> (B) BLACK	8-97417-527-6	01	1	1206-	●	●	●	●
30	06.518 COWL; STEERING (A) BLACK	8-97416-863-4	01	1	1206-	●	●	●	●	●
30	06.518 COWL; STEERING EXC. IMMOBILIZER SYSTEM<7KC> (B) BLACK	8-97417-528-6	01	1	1206-	●	●	●	●
30	06.518 COWL; STEERING (B) BLACK	8-97417-528-6	01	1	1206-					●
33	06.518 COVER; STRG COWL EXC. TILT STEERING<N33> BLACK	8-97421-052-0	01	1	1206-	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR (A) M4X12 W/PL WASHER	0-36210-412-0	01	1	1206-	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR 08.083 (B) M5X16 TAPPING	8-98167-449-0	02	1	1206-	●	●	●	●	●
54	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0)	8-98165-703-0	01	1	1206-	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL 09.242 M4X10 TAPPING	0-71240-410-0	02	1	1206-	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 06.514 BLACK	8-97416-856-1	01	1	1206-	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK	8-97416-859-2	01	1	1206-	●	●	●	●	●
100	06.513 HARNESS; STRG WHEEL AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE>	8-98108-694-0	01	1	1206-			●	●
100	06.513 HARNESS; STRG WHEEL AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE>	8-98108-694-0	01	1	1206-					●
100	06.513 HARNESS; STRG WHEEL AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE>	8-98108-693-0	01	1	1206-			●	●
100	06.513 HARNESS; STRG WHEEL AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE>	8-98108-693-0	01	1	1206-					●
100	06.513 HARNESS; STRG WHEEL AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> EXC. AUTO CRUISE CONT<K30>	8-98108-695-0	01	1	1206-			●	●
100	06.513 HARNESS; STRG WHEEL AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> EXC. AUTO CRUISE CONT<K30>	8-98108-695-0	01	1	1206-					●
101	06.514 SWITCH ASM; CRUISE CONT,STRG WHE AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5>	8-98108-691-0	01	1	1206-			●	●	●
102	06.514 SWITCH ASM; AUDIO CONT,STRG WHEE AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE>	8-98108-690-0	01	1	1206-			●	●	●
103	06.514 BEZEL; COVER,SWITCH HOLE AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) AUTO CRUISE CONT<K30> STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE> (B) SILVER	8-97416-858-1	01	1	1206-			●	●	●
103	06.514 BEZEL; COVER,SWITCH HOLE STEERING WHEEL LEATHER<NP5> EXC. AUTO CRUISE CONT<K30>,STEERING WHEEL RADIO CONTROLS<8NE> (B) SILVER	8-97416-858-1	01	1	1206-			●	●
103	06.514 BEZEL; COVER,SWITCH HOLE AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> EXC. AUTO CRUISE CONT<K30>,STEERING WHEEL RADIO CONTROLS<8NE> (B) SILVER	8-97416-858-1	01	1	1206-					●
103	06.514 BEZEL; COVER,SWITCH HOLE AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> EXC. AUTO CRUISE CONT<K30> (A) SILVER	8-97416-857-1	01	1	1206-			●	●	●
103	06.514 BEZEL; COVER,SWITCH HOLE STEERING WHEEL LEATHER<NP5> EXC. AUTO CRUISE CONT<K30>,STEERING WHEEL RADIO CONTROLS<8NE> (A) SILVER	8-97416-857-1	01	1	1206-			●	●
103	06.514 BEZEL; COVER,SWITCH HOLE AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> EXC. AUTO CRUISE CONT<K30>,STEERING WHEEL RADIO CONTROLS<8NE> (A) SILVER	8-97416-857-1	01	1	1206-					●
104	06.514 SCREW; SWITCH AND BEZEL STEERING WHEEL LEATHER<NP5> 09.242 M4X10 TAPPING	0-71240-410-0	04	1	1206-			●	●	●
