◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MV ▶ 10857 - MV118 ▶ 3 - Brakes, Brake System ▶ 3-34 - BRAKE VALVE; AIR ▶
3-34 — BRAKE VALVE; AIR (#9110) — 52 parça
çizim 18791
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; BRK VLV 1-48119-307-0 01 1 9606-0101 ● ●
2 REPAIR KIT; BRK VLV 1-85576-292-0 01 1 0102- ● ●

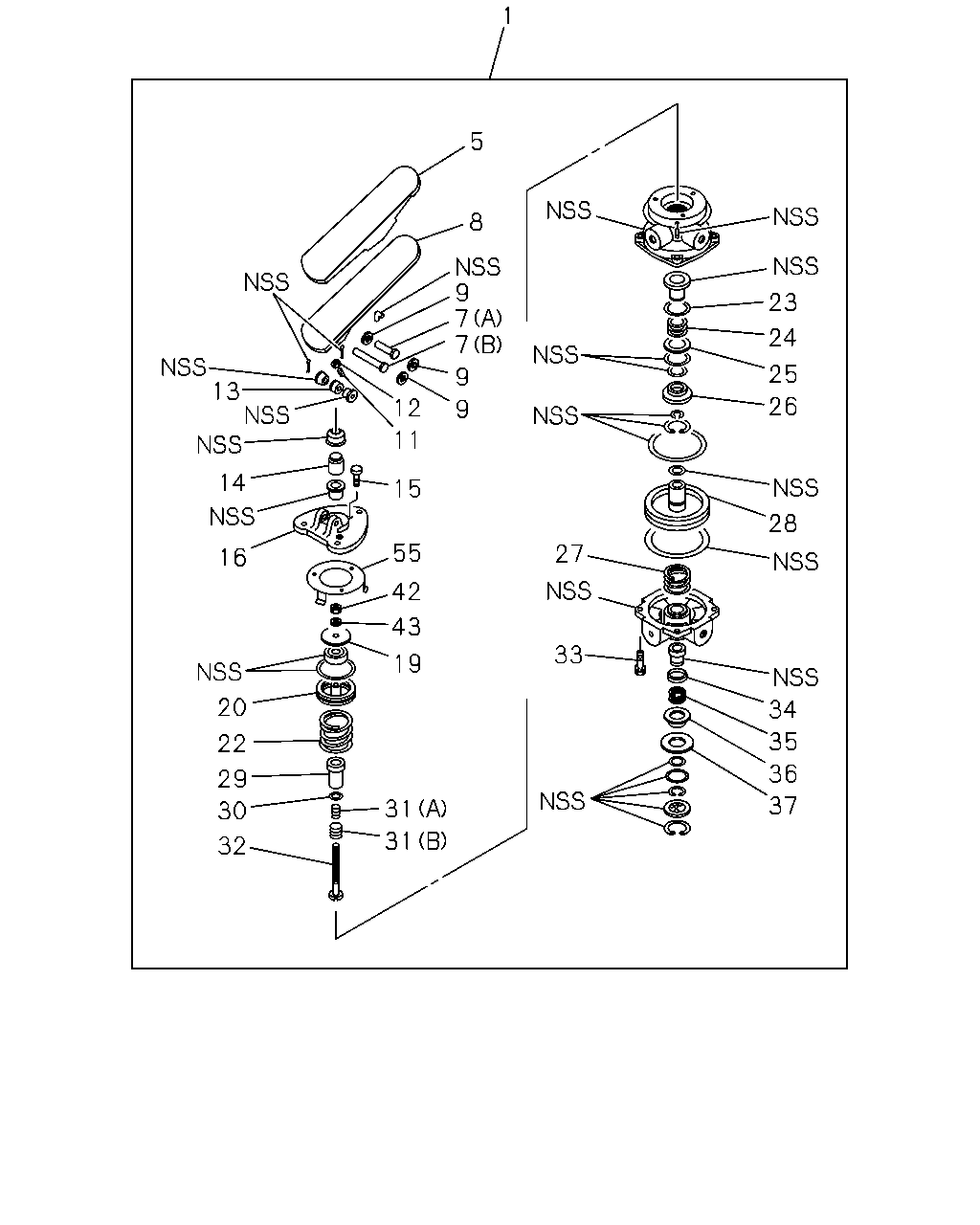

çizim 18792
1 5 8 9 7 7 23 24 13 25 9 26 12 9 11 14 15 28 55 27 16 42 43 33 19 20 34 35 22 36 29 37 31 30 31 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; BRK
JKC 		1-48100-465-3 01 1 9606-0101 ● ●
1 VALVE; BRK
JKC 		1-48100-831-0 01 1 0102- ● ●
1 VALVE; BRK
NABCO 		1-48100-466-0 01 1 9606- ● ●
5 COVER; PEDAL,BRK VLV 1-48119-201-0 01 1 9606-0101 ● ●
5 COVER; PEDAL,BRK VLV 1-48119-432-0 01 1 0102- ● ●
7 PIN; PEDAL,BRK VLV
(A) 		1-48119-098-0 01 1 9606-0101 ● ●
7 PIN; PEDAL,BRK VLV
(A),(B) 		1-48119-431-0 02 1 0102- ● ●
7 PIN; PEDAL,BRK VLV
(B) 		1-48119-102-0 01 1 9606-0101 ● ●
8 PEDAL; BRK VLV 1-48119-200-0 01 1 9606-0101 ● ●
8 PEDAL; BRK VLV 1-48119-428-0 01 1 0102- ● ●
9 WASHER; PIN,BRK VLV
ID=10.5 		9-09164-510-0 03 1 9606-0101 ● ●
11 SCREW; SET,BRK VLV 1-48119-003-1 01 1 9606-0101 ● ●
11 SCREW; SET,BRK VLV 1-48119-570-0 01 1 0102- ● ●
12 NUT; SCREW,PEDAL,BRK VLV 9-88510-123-0 01 1 9606- ● ●
13 ROLLER; PEDAL,BRK VLV 1-48119-031-0 01 1 9606-0101 ● ●
13 ROLLER; PEDAL,BRK VLV 1-48119-430-0 01 1 0102- ● ●
14 PLUNGER; BRK VLV 1-48119-203-0 01 1 9606-0101 ● ●
14 PLUNGER; BRK VLV 1-48119-571-0 01 1 0102- ● ●
15 BOLT; PLATE,BRK VLV 1-48129-039-0 03 1 9606-0101 ● ●
15 BOLT; PLATE,BRK VLV 1-48219-039-0 03 1 0102- ● ●
16 PLATE; MTG,BRKT VLV 1-48119-268-0 01 1 9606-0101 ● ●
16 PLATE; MTG,BRKT VLV 1-48119-547-0 01 1 0102- ● ●
19 SEAT; SPRING,BRK VLV 1-48123-017-0 01 1 9606-0101 ● ●
19 SEAT; SPRING,BRK VLV 1-48123-092-0 01 1 0102- ● ●
20 PISTON; UPR,BRK VLV 1-48119-092-0 01 1 9606-0101 ● ●
20 PISTON; UPR,BRK VLV 1-48119-546-0 01 1 0102- ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48143-002-0 01 1 9606-0101 ● ●
22 SPRING; PISTON,LWR,BRK VLV 1-48143-009-0 01 1 0102- ● ●
23 WASHER; UPR,BRK VLV 1-48129-145-0 01 1 0102- ● ●
24 SPRING; UPR,BRK VLV 1-48123-018-0 01 1 9606- ● ●
25 WASHER; PISTON,BRK VLV 1-48129-287-0 01 1 9606-0101 ● ●
25 WASHER; PISTON,BRK VLV 1-48129-138-0 01 1 0102- ● ●
26 RETAINER; VLV,BRK VLV 1-48129-139-0 01 1 9606-0101 ● ●
27 SPRING; PISTON,LWR,BRK VLV 1-48123-021-0 01 1 9606- ● ●
28 PISTON; LWR,BRK VLV 1-48129-140-0 01 1 9606-0101 ● ●
28 PISTON; LWR,BRK VLV 1-48129-313-0 01 1 0102- ● ●
29 SLEEVE; VLV,BRK VLV 1-48129-083-1 01 1 9606- ● ●
30 WASHER; SLEEVE,BRK VLV 1-48129-082-0 01 1 9606- ● ●
31 SPRING; VLV,BRK VLV
(A) 		1-48123-032-0 01 1 9606- ● ●
31 SPRING; VLV,BRK VLV
(B) 		1-48123-033-0 01 1 9606- ● ●
32 SCREW; BRK VLV 1-48129-081-1 01 1 9606-0101 ● ●
33 BOLT; BODY,BRK VLV 1-48119-212-0 04 1 9606- ● ●
34 RETAINER; VLV,BRK VLV 1-48129-144-0 01 1 0102- ● ●
35 SPRING; VLV,BRK VLV 1-48123-019-0 01 1 9606- ● ●
36 RETAINER; GASKET,BRK VLV 1-48129-143-0 01 1 9606-0101 ● ●
37 WASHER; VLV LWR,BRK VLV 1-48129-080-0 01 1 9606- ● ●
42 NUT; SPR SEAT,BRK VLV 1-48129-069-0 01 1 9606-0101 ● ●
43 WASHER; SPR SEAT,BRK VLV 1-48149-002-0 01 1 9606-0101 ● ●
43 WASHER; SPR SEAT,BRK VLV 1-48419-002-0 01 1 0102- ● ●
55 RETAINER; PLATE,BRK VLV 1-48119-026-0 01 1 9606-0101 ● ●
