Isuzu WW
▶
TRUCKS
▶
FTR
▶
10627 - FTR-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶

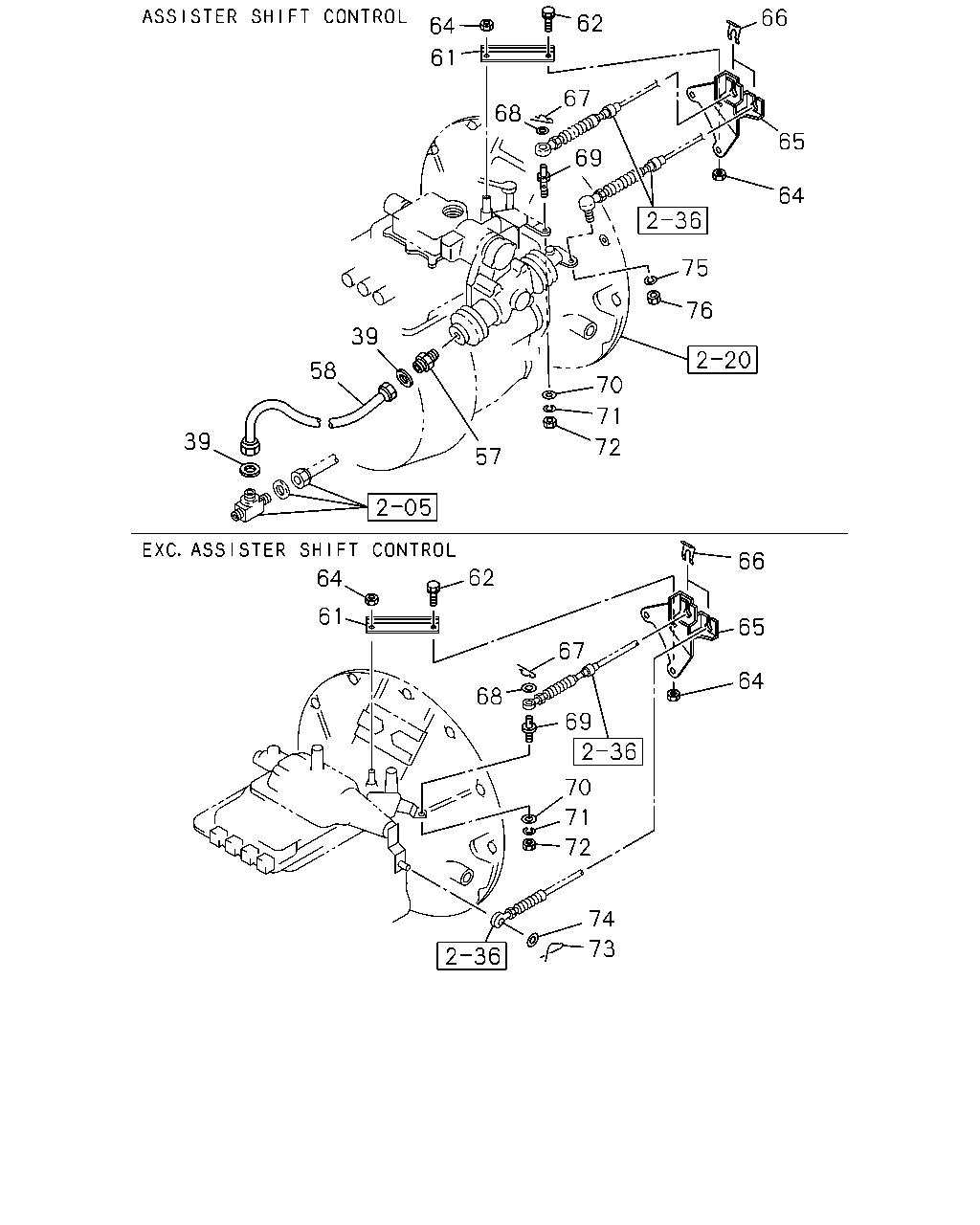

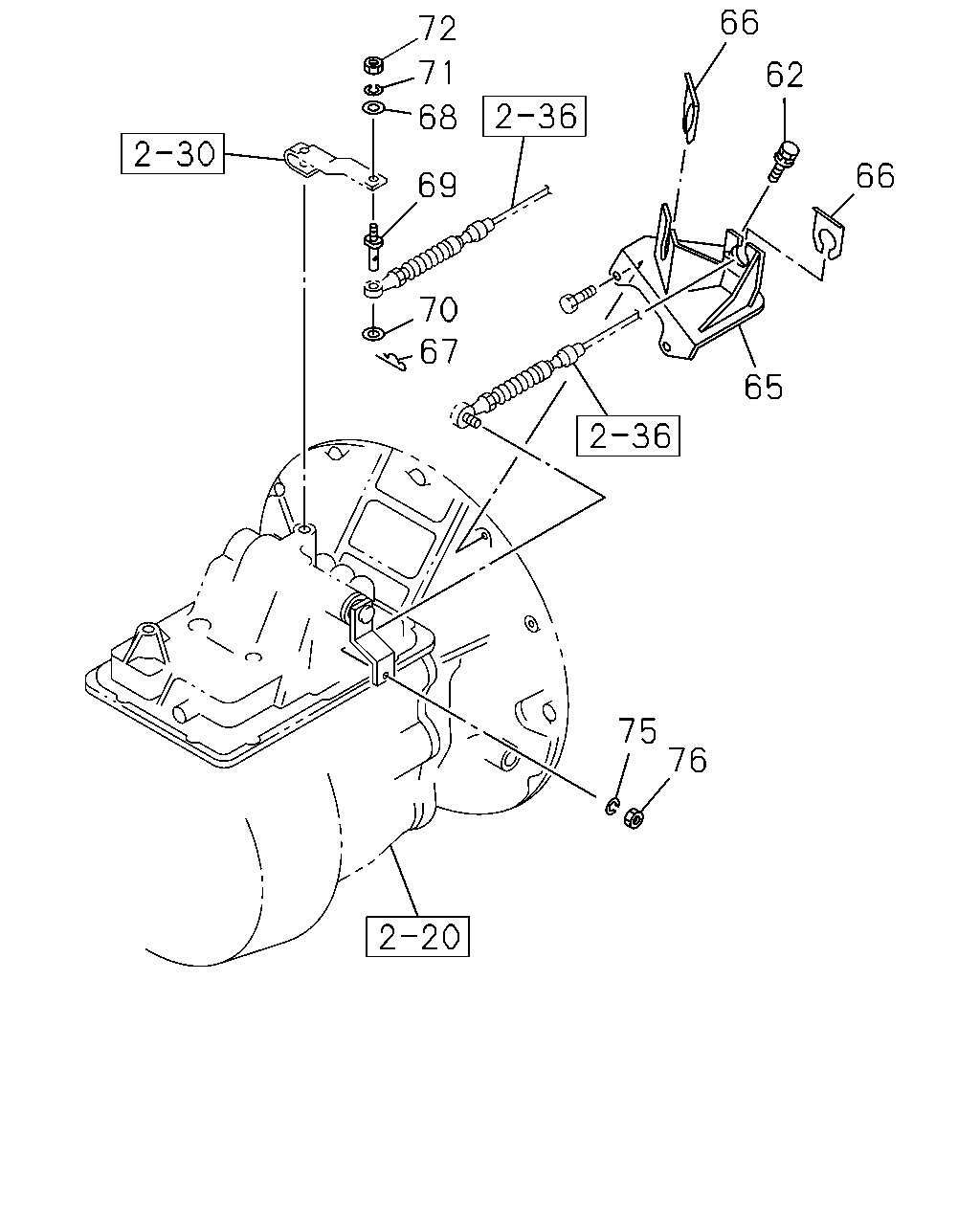

2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#911) — 41 parça
Tümü
A - MBG5C M/T
B - MLD7R M/T
C - MLD6A M/T
◀
[237A] MBG M/T (17 parça)
[237A] MLD M/T (24 parça)
▶
66
72
71
62
68
66
69
70
67
65
75
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
62
BOLT; STAY
M10X20 W/LK&PL WASHER
0-50151-020-0
01
1
9202-
●
62
BOLT; STAY
M10X20 W/LK WASHER
0-50041-020-0
01
1
9202-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
1-33657-472-1
01
1
9202-
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTER SHIFT CONTROL<WX8>
1-33657-490-1
01
1
9202-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ASSISTER SHIFT CONTROL<WX8>
1-33657-347-1
01
1
9202-
●
●
66
CLIP; SELECT BRKT
1-09700-778-1
02
1
9202-
●
●
●
67
PIN; SNAP,SELECT WIRE
L=27.7
8-94157-841-0
01
1
9202-
●
●
●
68
WASHER; PL,TRANS CONT,SELECT
ID=8.4 OD=18
9-09164-608-0
01
1
9202-
●
●
●
69
PIN; TRANS CONT,SELECT
1-33659-116-0
01
1
9202-
●
●
●
70
WASHER; PL,SELECT WIRE
ID=8.4 OD=18
9-09164-608-0
01
1
9202-
●
●
●
71
WASHER; LK,TRANS CONT,SELECT
ID=8.2
9-09150-608-0
01
1
9202-9203
●
●
●
71
WASHER; LK,TRANS CONT,SELECT
ID=8.2
9-09150-508-0
01
1
9204-
●
●
●
72
NUT; TRANS CONT,SELECT
M8
9-09110-408-0
01
1
9202-
●
●
●
75
WASHER; LK,BALL JOINT,SELECT WIRE
ID=10.2
9-09150-510-0
01
1
9202-
●
75
WASHER; LK,BALL JOINT,SELECT WIRE
ASSISTER SHIFT CONTROL<WX8> ID=10.2
9-09150-510-0
01
1
9202-
●
●
76
NUT; BALL JOINT,SELECT WIRE
M10
9-09110-510-0
01
1
9202-
●
76
NUT; BALL JOINT,SELECT WIRE
ASSISTER SHIFT CONTROL<WX8> M10
9-09110-510-0
01
1
9202-
●
●
66
62
64
61
67
68
65
69
64
75
76
39
58
70
71
39
72
57
66
62
64
61
65
67
64
68
69
70
71
72
74
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
39
GASKET; FLEX HOSE
ASSISTER SHIFT CONTROL<WX8> ID=11 OD=18
9-09572-510-0
01
1
9202-
●
●
57
NIPPLE; POWER ASSISTOR
ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4
9-09902-386-0
01
1
9202-
●
●
58
HOSE; FLEX,POWER ASSISTOR
ASSISTER SHIFT CONTROL<WX8> L=330
0-07120-330-0
01
1
9202-
●
●
61
STAY; BRKT,TRANS CONT
1-33657-267-0
01
1
9202-
●
●
62
BOLT; STAY
M10X20 W/LK&PL WASHER
0-50151-020-0
01
1
9202-
●
62
BOLT; STAY
M10X20 W/LK WASHER
0-50041-020-0
01
1
9202-
●
●
64
NUT; STAY
M10 FLANGE
5-09440-006-0
02
1
9202-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
1-33657-472-1
01
1
9202-
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ASSISTER SHIFT CONTROL<WX8>
1-33657-490-1
01
1
9202-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ASSISTER SHIFT CONTROL<WX8>
1-33657-347-1
01
1
9202-
●
●
66
CLIP; SELECT BRKT
1-09700-778-1
02
1
9202-
●
●
●
67
PIN; SNAP,SELECT WIRE
L=27.7
8-94157-841-0
01
1
9202-
●
●
●
68
WASHER; PL,TRANS CONT,SELECT
ID=8.4 OD=18
9-09164-608-0
01
1
9202-
●
●
●
69
PIN; TRANS CONT,SELECT
1-33659-116-0
01
1
9202-
●
●
●
70
WASHER; PL,SELECT WIRE
ID=8.4 OD=18
9-09164-608-0
01
1
9202-
●
●
●
71
WASHER; LK,TRANS CONT,SELECT
ID=8.2
9-09150-608-0
01
1
9202-9203
●
●
●
71
WASHER; LK,TRANS CONT,SELECT
ID=8.2
9-09150-508-0
01
1
9204-
●
●
●
72
NUT; TRANS CONT,SELECT
M8
9-09110-408-0
01
1
9202-
●
●
●
73
RING; SNAP,WIRE SHAFT
EXC. ASSISTER SHIFT CONTROL<WX8> L=32.6
8-94157-842-0
01
1
9202-
●
●
74
WASHER; PL,WIRE
EXC. ASSISTER SHIFT CONTROL<WX8> ID=10.5 OD=32
9-09164-810-0
02
1
9202-
●
●
75
WASHER; LK,BALL JOINT,SELECT WIRE
ID=10.2
9-09150-510-0
01
1
9202-
●
75
WASHER; LK,BALL JOINT,SELECT WIRE
ASSISTER SHIFT CONTROL<WX8> ID=10.2
9-09150-510-0
01
1
9202-
●
●
76
NUT; BALL JOINT,SELECT WIRE
M10
9-09110-510-0
01
1
9202-
●
76
NUT; BALL JOINT,SELECT WIRE
ASSISTER SHIFT CONTROL<WX8> M10
9-09110-510-0
01
1
9202-
●
●
