4-12 — FRONT DRIVE SHAFT (#91099) — 84 parça

37 232 233 232 184 234 234 186 231 19 44 99 224 224 224 183 137 43 37 43 37 184 183 45 44 184 186 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	06.156 BOLT; FRT AXLE 02.343 (G) M6X16 FLANGE	0-28650-616-0	02	1	1206-	●	●	●
19	06.156 BOLT; FRT AXLE 09.003 (C) M12X30 FLANGE	0-28051-230-0	04	1	1206-	●	●	●
19	06.156 BOLT; FRT AXLE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1206-	●	●	●
19	06.156 BOLT; FRT AXLE 00.685 (A) M8X40 FLANGE	0-28650-840-0	03	1	1206-	●	●	●
19	06.156 BOLT; FRT AXLE (D) M8X28.5 W/SP WASHER	8-97947-579-0	03	1	1206-	●	●	●
19	06.156 BOLT; FRT AXLE (E) M8X40 W/SP WASHER	8-97947-580-0	05	1	1206-	●	●	●
19	06.156 BOLT; FRT AXLE (F) M8X95 W/SP WASHER	8-97947-581-0	02	1	1206-	●	●	●

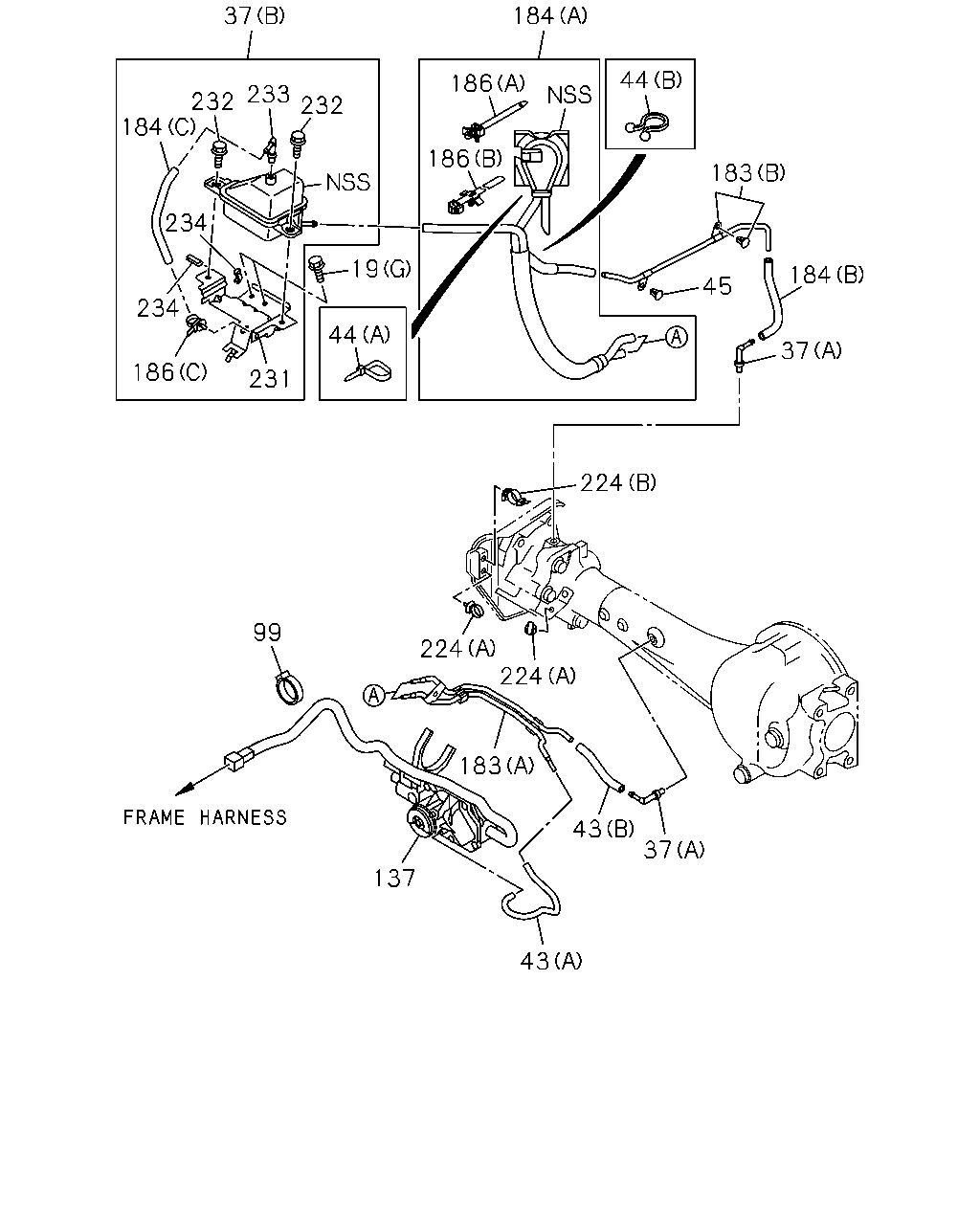

37	06.008 BREATHER; FRT AXLE CASE (A)	8-94226-943-0	02	1	1206-	●	●	●
37	06.008 BREATHER; FRT AXLE CASE (B)	8-98166-418-4	01	1	1206-	●	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (A) L=250 SERVICED BY L=3000	0-04740-300-0	01	1	1206-	●	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER (B) L=120 SERVICED BY L=3000	0-04950-300-0	01	1	1206-	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 16.716 (A) L=129.5	8-94368-493-0	01	1	1206-	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE EURO5 SPECIFICATION<NT5> 02.480 (B) ID=25	8-94120-831-0	01	1	1206-		●	●
45	06.008 CLIP 02.726 OD=14 HOLE ID=6	8-97031-632-0	01	1	1206-	●	●	●
99	06.008 CLIP; RUBBER HOSE 02.559 ID=34	8-98069-482-0	01	1	1206-	●	●	●
137	06.008 ACTUATOR; AXLE	8-98140-853-1	01	1	1206-	●	●	●
183	06.008 PIPE; BREATHER (A)	8-98125-294-1	01	1	1206-	●	●	●
183	06.008 PIPE; BREATHER (B)	8-98177-662-1	01	1	1206-	●	●	●
184	06.008 HOSE; BREATHER 08.962 (C) L=190 SERVICED BY L=3000	0-04750-300-0	01	1	1206-	●	●	●
184	06.008 HOSE; BREATHER (B)	8-98177-663-0	01	1	1206-	●	●	●
184	06.008 HOSE; BREATHER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A)	8-98166-421-5	01	1	1206-	●	●	●
184	06.008 HOSE; BREATHER EURO5 SPECIFICATION<NT5> (A)	8-98182-787-1	01	1	1206-		●	●
186	06.008 CLIP; HOSE,BREATHER 02.559 (C) L=155	8-97173-307-0	01	1	1206-	●	●	●
186	06.008 CLIP; HOSE,BREATHER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 02.587 (A) L=172	8-94232-620-0	01	1	1206-	●	●	●
186	06.008 CLIP; HOSE,BREATHER EURO5 SPECIFICATION<NT5> 02.559 (B) L=170.3	1-09987-182-0	01	1	1206-		●	●
224	06.008 CLIP; HARNESS 02.559 (A) L=150	8-97811-150-1	02	1	1206-	●	●	●
224	06.008 CLIP; HARNESS (B) L=145	8-98116-079-0	01	1	1206-1307	●	●	●
224	06.008 CLIP; HARNESS 02.587 (B) L=172	8-94232-620-0	01	1	1308-	●	●	●
231	06.008 BRACKET; CATCH TANK,OIL	8-98165-859-2	01	1	1206-	●	●	●
232	06.008 BOLT; TANK TO BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1206-	●	●	●
233	06.008 BREATHER; AIR,OIL TANK	8-94226-943-0	01	1	1206-	●	●	●
234	06.008 FINISHER; BRKT 03.885 L=50	8-94270-377-1	02	1	1206-	●	●	●

7 11 12 1 10 17 17 138 168 9 69 95 50 62 62 12 7 11 1 10 17 9 17 9 12 14 2 4 2 4 2 4 11 3 5 2 4 4 3 13 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

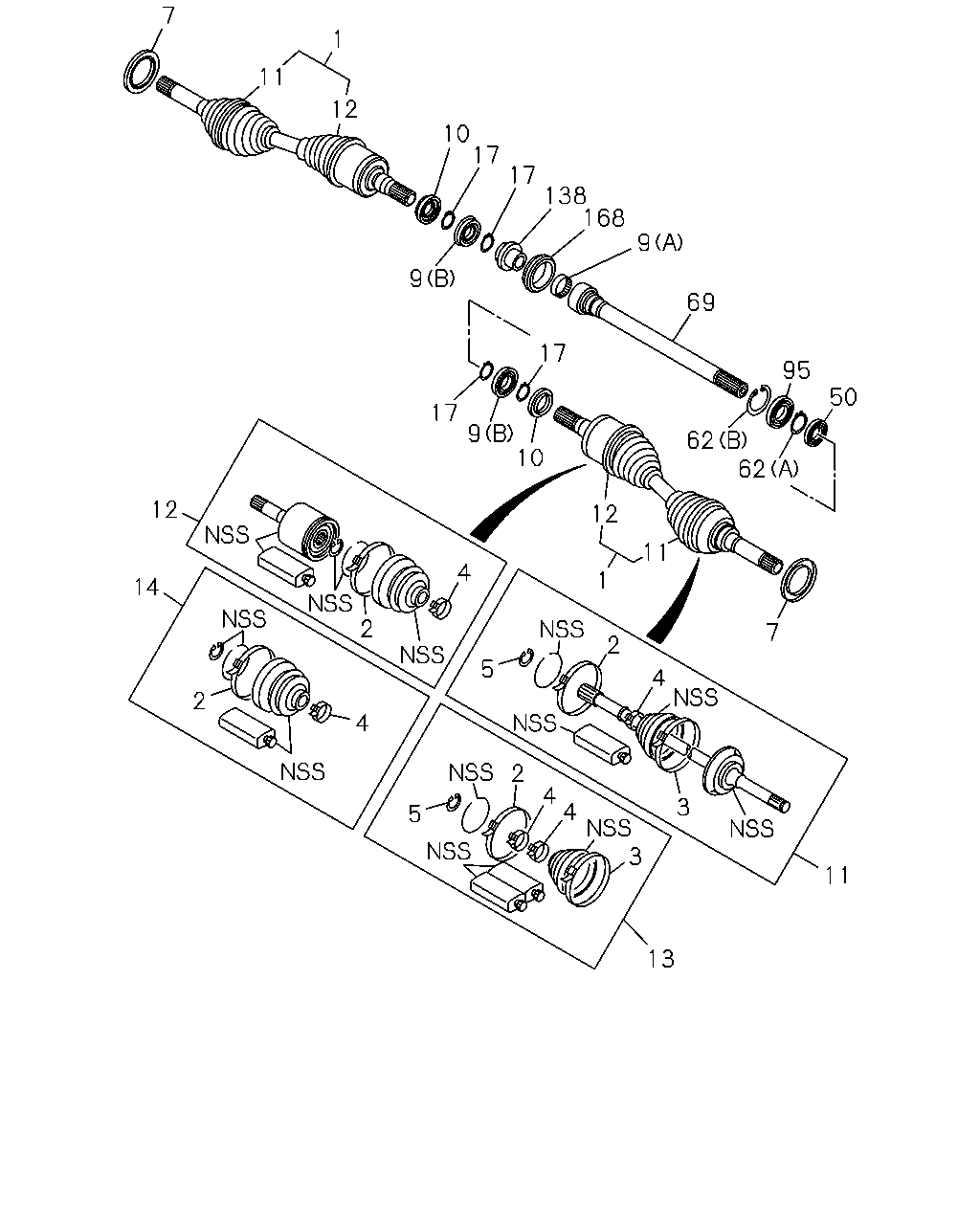

1	06.055 SHAFT ASM; FRT DRIVE	8-98147-245-2	02	1	1206-	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT	8-98147-676-0	02	1	1206-	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT	8-97349-959-1	02	1	1206-	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT	8-97222-152-1	04	1	1206-	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT	8-97131-402-0	02	1	1206-	●	●	●
7	06.061 SEAL; DUST,DRIVE SHAFT	8-98036-560-0	02	1	1206-	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER (B)	8-94407-724-0	02	1	1206-	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER (A)	8-97101-878-0	01	1	1206-	●	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER	8-97373-555-0	02	1	1206-	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA	8-98147-681-1	02	1	1206-	●	●	●
12	06.060 JOINT ASM	8-98147-680-2	02	1	1206-	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF	8-98147-678-1	02	1	1206-	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF	8-98147-677-1	02	1	1206-	●	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 04.416 ID=27.9	9-09180-030-0	04	1	1206-	●	●	●
50	06.061 SEAL; OIL,SHAFT,FRT AXLE	8-97084-507-0	01	1	1206-	●	●	●
62	06.061 RING; SNAP,AXLE SHAFT 08.934 (A) ID=37.0	9-09180-040-0	01	1	1206-	●	●	●
62	06.061 RING; SNAP,AXLE SHAFT 01.105 (B) ID=57.9	9-09180-162-0	01	1	1206-	●	●	●
69	06.055 SHAFT; AXLE,FRT INNER	8-97188-174-1	01	1	1206-	●	●	●
95	06.008 BEARING; AXLE SHAFT,FRT	8-97103-392-0	01	1	1206-	●	●	●
138	06.008 GEAR; CLUTCH Z=17	8-97134-857-1	01	1	1206-	●	●	●
168	06.056 SLEEVE; FRT AXLE 06.008	8-97130-567-1	01	1	1206-	●	●	●

18 36 28 35 34 27 84 48 48 49 19 18 27 28 36 35 34 19 166 19 19 18 222 221 18 19 79 79 19 19 19 23 26 24 223 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

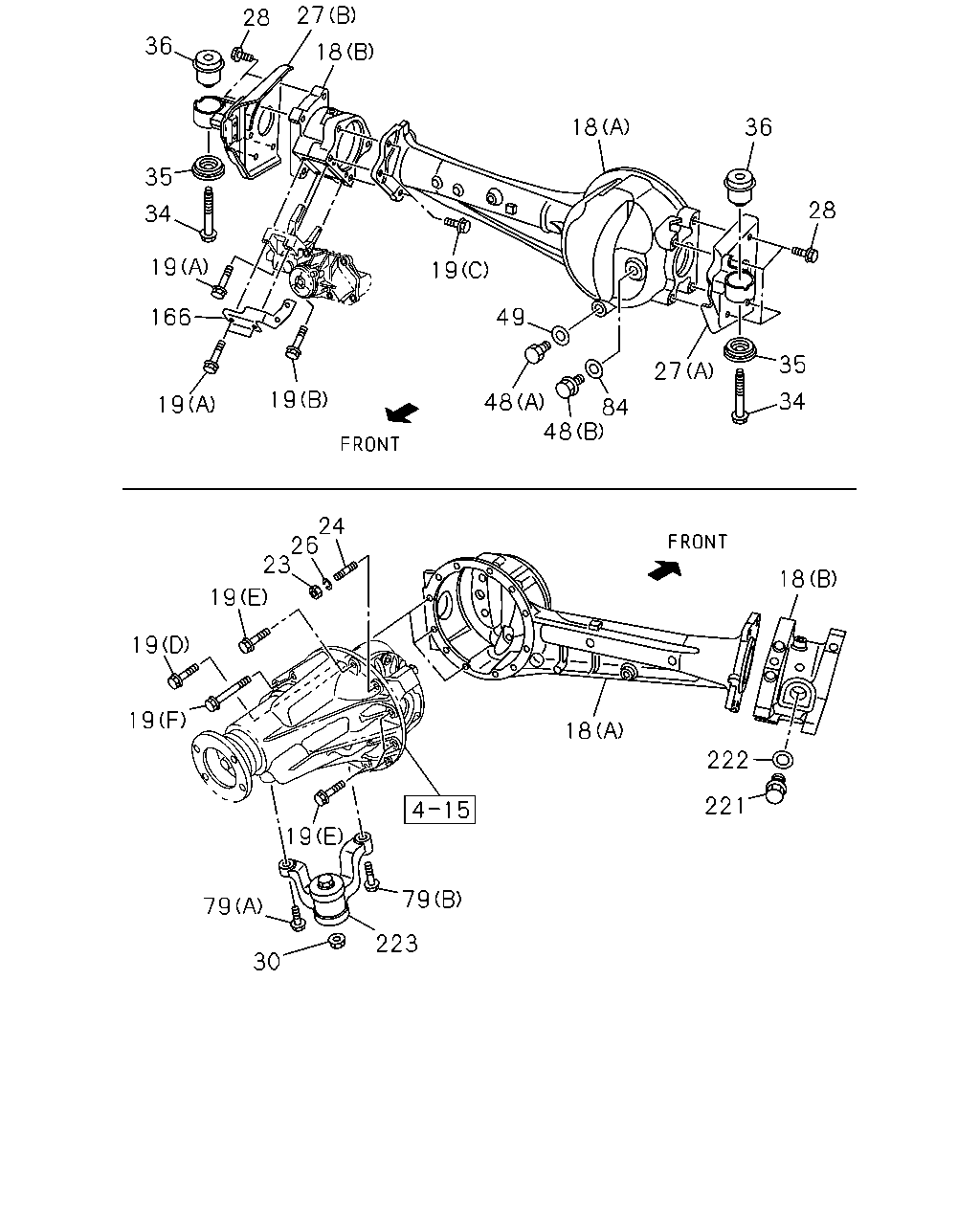

18	06.008 CASE; FRT AXLE (A)	8-98084-280-8	01	1	1206-	●	●	●
18	06.008 CASE; FRT AXLE (B)	8-98084-292-3	01	1	1206-	●	●	●
19	06.156 BOLT; FRT AXLE 02.343 (G) M6X16 FLANGE	0-28650-616-0	02	1	1206-	●	●	●
19	06.156 BOLT; FRT AXLE 09.003 (C) M12X30 FLANGE	0-28051-230-0	04	1	1206-	●	●	●
19	06.156 BOLT; FRT AXLE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1206-	●	●	●
19	06.156 BOLT; FRT AXLE 00.685 (A) M8X40 FLANGE	0-28650-840-0	03	1	1206-	●	●	●
19	06.156 BOLT; FRT AXLE (D) M8X28.5 W/SP WASHER	8-97947-579-0	03	1	1206-	●	●	●
19	06.156 BOLT; FRT AXLE (E) M8X40 W/SP WASHER	8-97947-580-0	05	1	1206-	●	●	●
19	06.156 BOLT; FRT AXLE (F) M8X95 W/SP WASHER	8-97947-581-0	02	1	1206-	●	●	●
23	06.056 NUT; FRT AXLE 02.334 M8	0-91110-508-0	02	1	1206-	●	●	●
24	06.056 STUD; CASE,FRT AXLE 03.275 M8X25 L=41	0-40210-825-0	02	1	1206-	●	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE 02.559 ID=8.2	0-91510-808-0	02	1	1206-	●	●	●
27	06.056 BRACKET; AXLE CASE (A)	8-98103-425-0	01	1	1206-	●	●	●
27	06.056 BRACKET; AXLE CASE (B)	8-98103-434-0	01	1	1206-	●	●	●
28	06.056 BOLT; BRKT TO AXLE CASE 09.003 M12X25 FLANGE	0-28051-225-0	08	1	1206-1312	●	●	●
28	06.056 BOLT; BRKT TO AXLE CASE M12X22 FLANGE	8-98270-578-0	08	1	1401-	●	●	●
30	06.008 NUT; FRT AXLE MTG 00.429 M14 FLANGE	0-91180-214-0	01	1	1206-	●	●	●
34	06.008 BOLT; FRT AXLE MTG M14X85 FLANGE	8-97259-306-0	02	1	1206-	●	●	●
35	06.008 WASHER; FRT AXLE MTG ID=14.2 OD=50	8-98008-020-0	02	1	1206-	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-97364-319-0	01	1	1206-	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-97364-323-0	01	1	1206-	●	●	●
48	05.400 PLUG; DRAIN,AXLE CASE 05.508 (A) M16X12.5	8-97307-060-0	01	1	1206-	●	●	●
48	05.400 PLUG; DRAIN,AXLE CASE (B) M20X10.5	8-98009-333-0	01	1	1206-	●	●	●
49	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1206-	●	●	●
79	06.008 BOLT; BRKT 07.425 (A) M12X30 FLANGE	0-28061-230-0	01	1	1206-	●	●	●
79	06.008 BOLT; BRKT (B) M12X40 FLANGE	0-28061-240-0	01	1	1206-	●	●	●
84	06.326 GASKET; PLUG,OIL FILLER 05.400 ID=20 OD=30	8-94462-734-0	01	1	1206-	●	●	●
166	06.008 BRACKET; CLIP	8-98125-310-3	01	1	1206-	●	●	●
221	06.008 PLUG; FILLER 05.400 M20X10.5	8-98009-333-0	01	1	1206-	●	●	●
222	04.515 GASKET; FILLER PLUG 05.400 ID=20 OD=30	8-94462-734-0	01	1	1206-	●	●	●
223	06.008 BRACKET; HSG	8-98103-437-0	01	1	1206-	●	●	●
