3-60 — BRAKE PIPING; VACUUM
(#91095) — 20 parça
Tümü
A - TFB6SF
B - TFB6WF
C - TFS6CF
D - TFS6SF
E - TFS6WF
◀

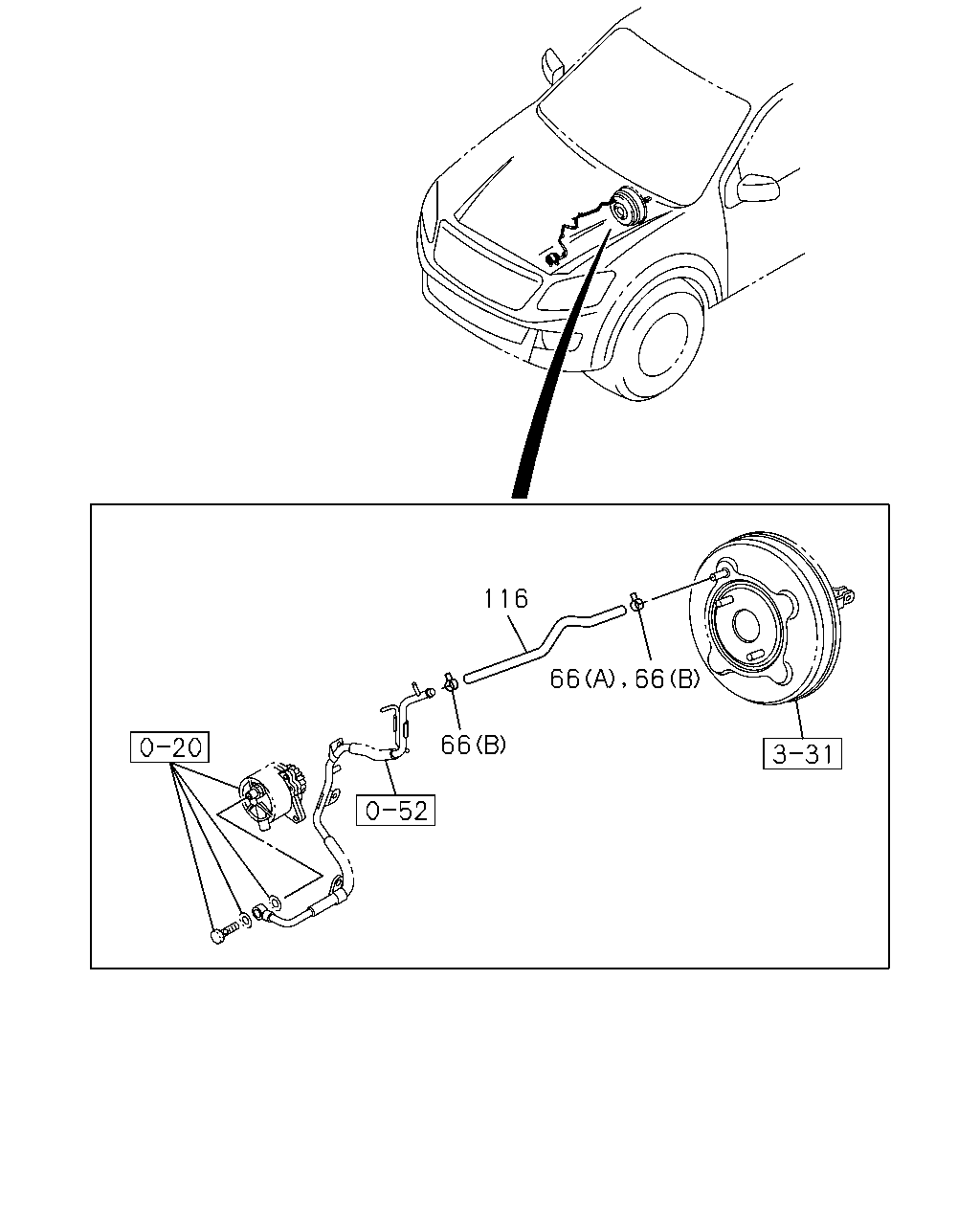

[360A] 4JJ1,4JK1 (8 parça)

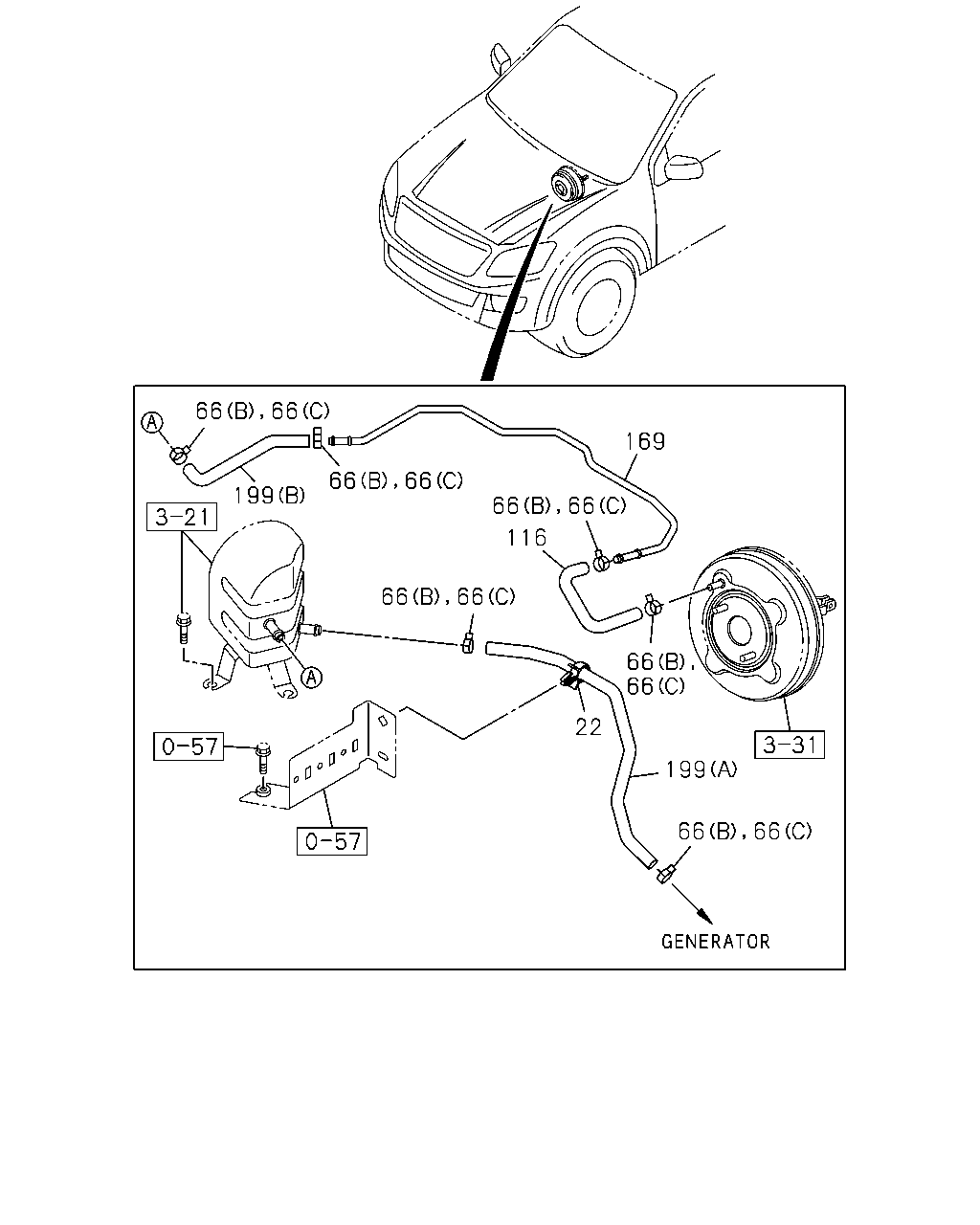

[360A] 4JA1 (12 parça)
▶
116
66
66
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
66
04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (A) ID=15.5
8-98035-872-0
01
1
1206-1403
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (B) ID=16
8-98036-539-0
01
1
1206-1403
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (B) ID=16
8-98036-539-0
02
1
1404-
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
(B) ID=16
8-98036-539-0
02
1
1404-
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (C) ID=15.5
8-98035-872-0
06
1
1206-1403
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (B) ID=16
8-98036-539-0
06
1
1404-
●
●
116
04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX)
8-98100-737-1
01
1
1206-
●
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0)
8-98100-741-0
01
1
1206-
●
●
66
66
66
66
66
66
66
66
66
66
66
66
169
116
199
22
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
22
04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0) 03.162
8-97089-536-0
01
1
1206-
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (A) ID=15.5
8-98035-872-0
01
1
1206-1403
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (B) ID=16
8-98036-539-0
01
1
1206-1403
●
●
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (B) ID=16
8-98036-539-0
02
1
1404-
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
(B) ID=16
8-98036-539-0
02
1
1404-
●
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (C) ID=15.5
8-98035-872-0
06
1
1206-1403
●
●
66
04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (B) ID=16
8-98036-539-0
06
1
1404-
●
●
116
04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX)
8-98100-737-1
01
1
1206-
●
●
●
●
●
116
04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0)
8-98100-741-0
01
1
1206-
●
●
169
04.930 PIPE; VAC,BOOSTER SIDE
4JA1-T ENG(LP0)
8-98100-267-1
01
1
1206-
●
●
199
04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JA1-T ENG(LP0) (A)
8-98100-739-2
01
1
1206-
●
●
199
04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JA1-T ENG(LP0) (B)
8-98100-740-0
01
1
1206-
●
●
