3-52 — BRAKE PIPING; OIL,FRONT (#91092) — 27 parça

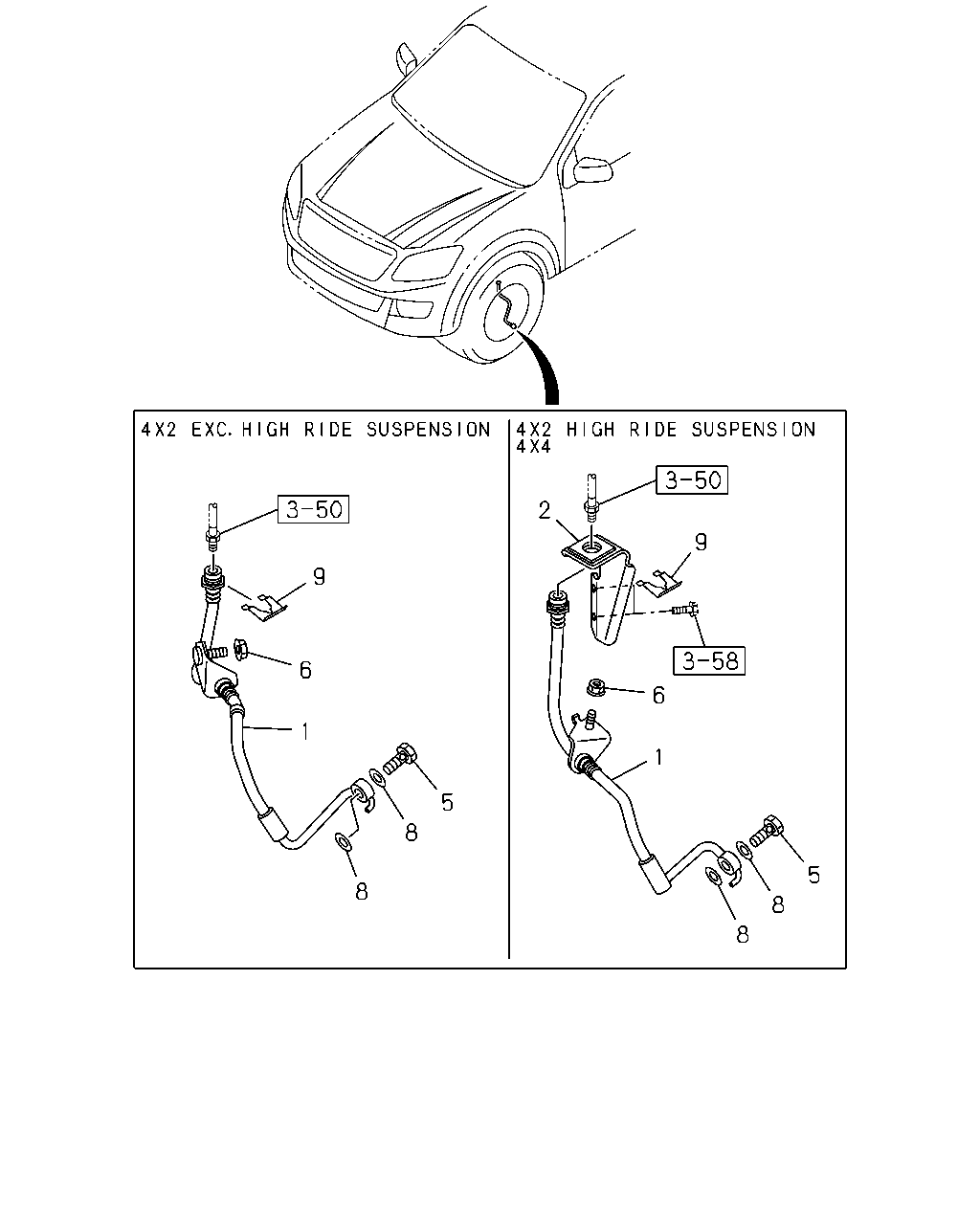

9 6 1 5 8 8 8 8 5 1 6 9 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.680 HOSE; FLEX,FRT BRK L=413	8-98067-244-1	01	1	1206-1301	●
1	04.680 HOSE; FLEX,FRT BRK EXC. HIGH RIDE SUSPENSION(7YC) L=413	8-98067-244-1	01	1	1206-1301		●
1	04.680 HOSE; FLEX,FRT BRK EXC. HIGH RIDE SUSPENSION(7YC) L=413	8-98067-244-1	01	1	1302-	●	●
1	04.680 HOSE; FLEX,FRT BRK L=413	8-98067-248-1	01	1	1206-1301	●
1	04.680 HOSE; FLEX,FRT BRK EXC. HIGH RIDE SUSPENSION(7YC) L=413	8-98067-248-1	01	1	1206-1301		●
1	04.680 HOSE; FLEX,FRT BRK EXC. HIGH RIDE SUSPENSION(7YC) L=413	8-98067-248-1	01	1	1302-	●	●
1	04.680 HOSE; FLEX,FRT BRK HIGH RIDE SUSPENSION(7YC) L=391	8-98067-246-4	01	1	1206-1301		●
1	04.680 HOSE; FLEX,FRT BRK L=391	8-98067-246-4	01	1	1206-1301			●	●	●
1	04.680 HOSE; FLEX,FRT BRK HIGH RIDE SUSPENSION(7YC) L=391	8-98067-246-4	01	1	1302-	●	●
1	04.680 HOSE; FLEX,FRT BRK L=391	8-98067-246-4	01	1	1302-			●	●	●
1	04.680 HOSE; FLEX,FRT BRK HIGH RIDE SUSPENSION(7YC) L=391	8-98067-247-4	01	1	1206-1301		●
1	04.680 HOSE; FLEX,FRT BRK L=391	8-98067-247-4	01	1	1206-1301			●	●	●
1	04.680 HOSE; FLEX,FRT BRK HIGH RIDE SUSPENSION(7YC) L=391	8-98067-247-4	01	1	1302-	●	●
1	04.680 HOSE; FLEX,FRT BRK L=391	8-98067-247-4	01	1	1302-			●	●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC)	8-97947-148-1	01	1	1206-1301		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-97947-148-1	01	1	1206-1301			●	●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC)	8-97947-148-1	01	1	1302-	●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-97947-148-1	01	1	1302-			●	●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK HIGH RIDE SUSPENSION(7YC)	8-97947-149-1	01	1	1206-1301		●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-97947-149-1	01	1	1206-1301			●	●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC)	8-97947-149-1	01	1	1302-	●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-97947-149-1	01	1	1302-			●	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-98014-005-0	02	1	1206-	●	●	●	●	●
6	04.686 NUT; FLEX HOSE,FRT BRK 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-	●	●	●	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	1206-	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	1206-	●	●	●	●	●

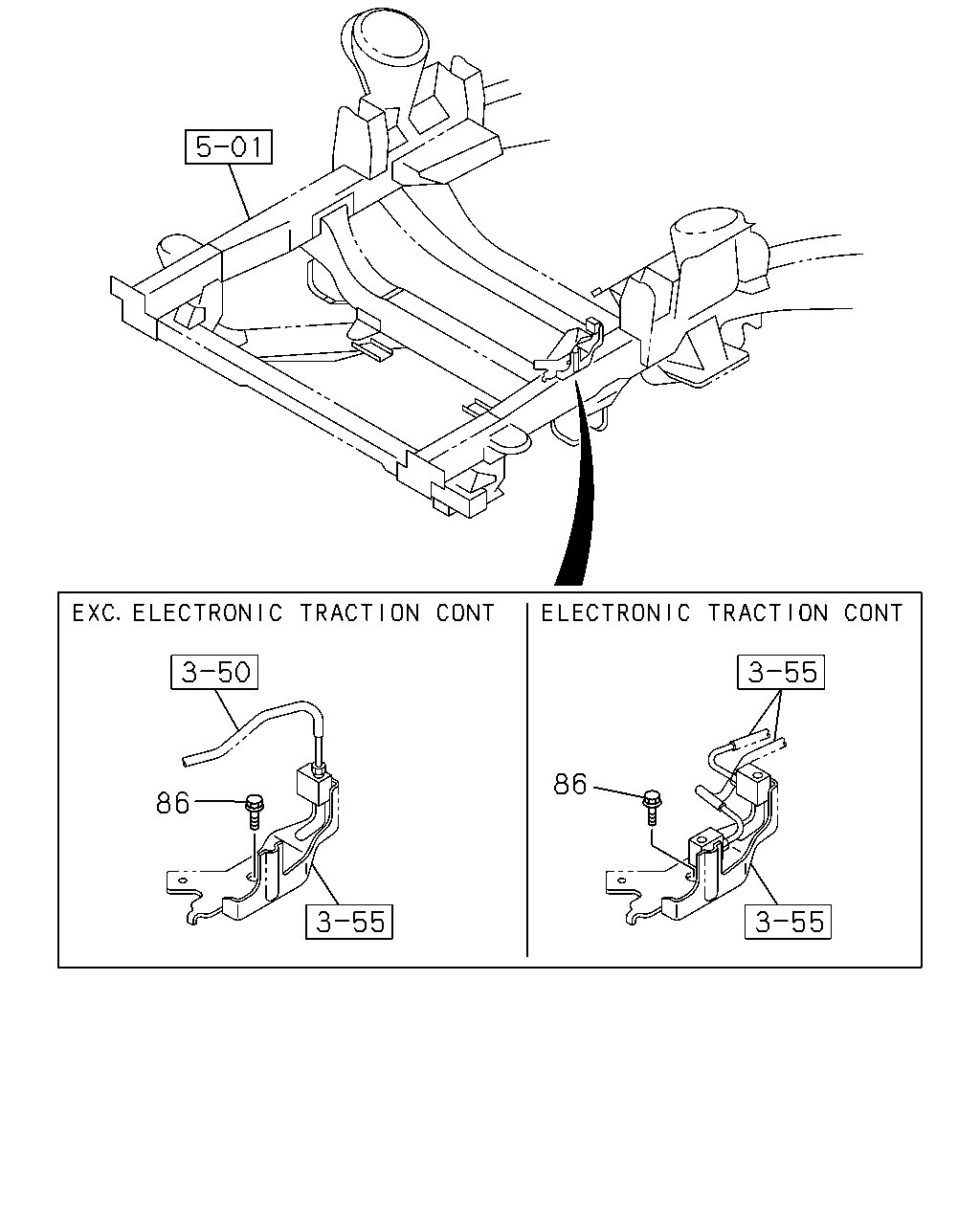

86 86

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	86	04.686 BOLT; BRK PIPE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1206-	●	●	●	●	●
