3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#91091) — 420 parça

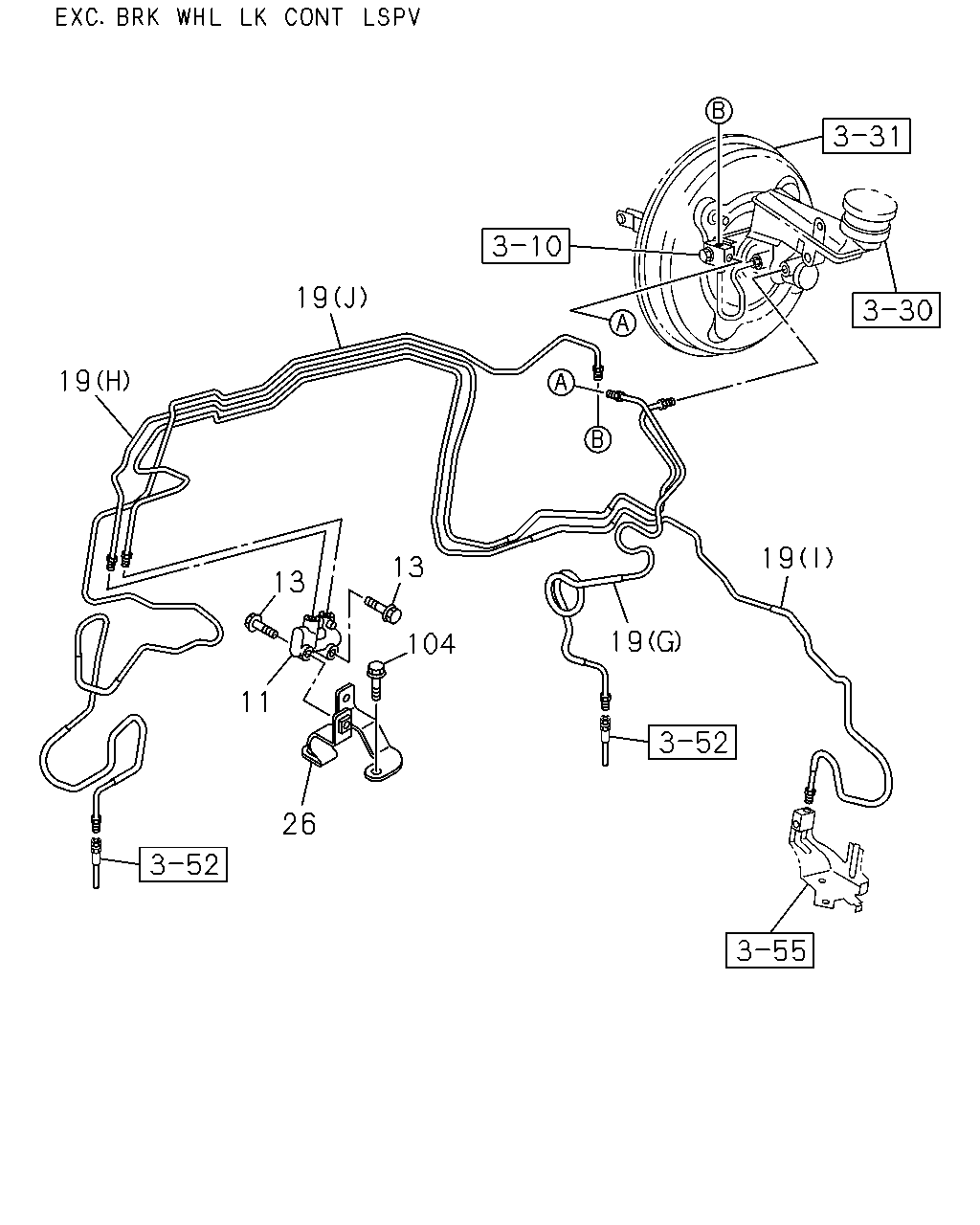

çizim 283209
19 19 13 13 104 11 26 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 1206- ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> M8X45 FLANGE 		0-29260-845-0 02 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) (E) 		8-98159-943-1 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98099-751-0 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-756-1 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-757-1 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (K) 		8-98099-766-1 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-98099-768-3 01 1 1206-1301 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-98099-768-3 01 1 1302- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (M) 		8-98099-769-1 01 1 1206-1301 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (M) 		8-98099-769-1 01 1 1302- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G) 		8-98186-105-0 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (H) 		8-98185-884-0 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-98185-886-0 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) (F) 		8-98118-384-2 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION(7YC) (N) 		8-98099-771-4 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-98186-107-2 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) (F) 		8-98196-385-0 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION(7YC) (N) 		8-98196-379-1 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-98196-376-1 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC) (F) 		8-98155-585-1 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-746-2 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (A) 		8-98099-746-2 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-746-2 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-746-2 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (A) 		8-98099-746-2 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-746-2 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-747-2 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-747-2 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-747-2 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-747-2 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-747-2 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-747-2 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-752-3 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-752-3 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-752-3 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-752-3 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-752-3 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-752-3 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98203-949-0 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (D) 		8-98203-949-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98203-949-0 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98203-949-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (D) 		8-98203-949-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98203-949-0 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98203-950-0 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) EXC. HIGH RIDE SUSPENSION(7YC) (F) 		8-98202-317-0 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (F) 		8-98099-749-1 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98099-749-1 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (F) 		8-98099-749-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98099-749-1 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98159-941-1 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98159-941-1 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98159-941-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98159-941-1 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98202-432-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98202-432-0 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98202-432-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98202-432-0 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1302-1403 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1302-1403 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1404- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1404- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1302-1403 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1302-1403 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1404- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1404- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-98185-885-1 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-98185-885-1 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-98185-885-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-98185-885-1 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (E) 		8-98203-951-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98203-951-0 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (E) 		8-98203-951-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98203-951-0 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (F) 		8-98155-583-1 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (F) 		8-98155-583-1 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (F) 		8-98155-583-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (F) 		8-98155-583-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) HIGH RIDE SUSPENSION(7YC) (F) 		8-98202-319-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (F) 		8-98202-319-0 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) HIGH RIDE SUSPENSION(7YC) (F) 		8-98202-319-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (F) 		8-98202-319-0 01 1 1302- ● ●
26 04.730 BRACKET; PROPORTIONING VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-98194-685-0 01 1 1206- ● ● ● ● ●
104 04.730 BOLT; BRKT TO BODY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1206- ● ● ● ● ●

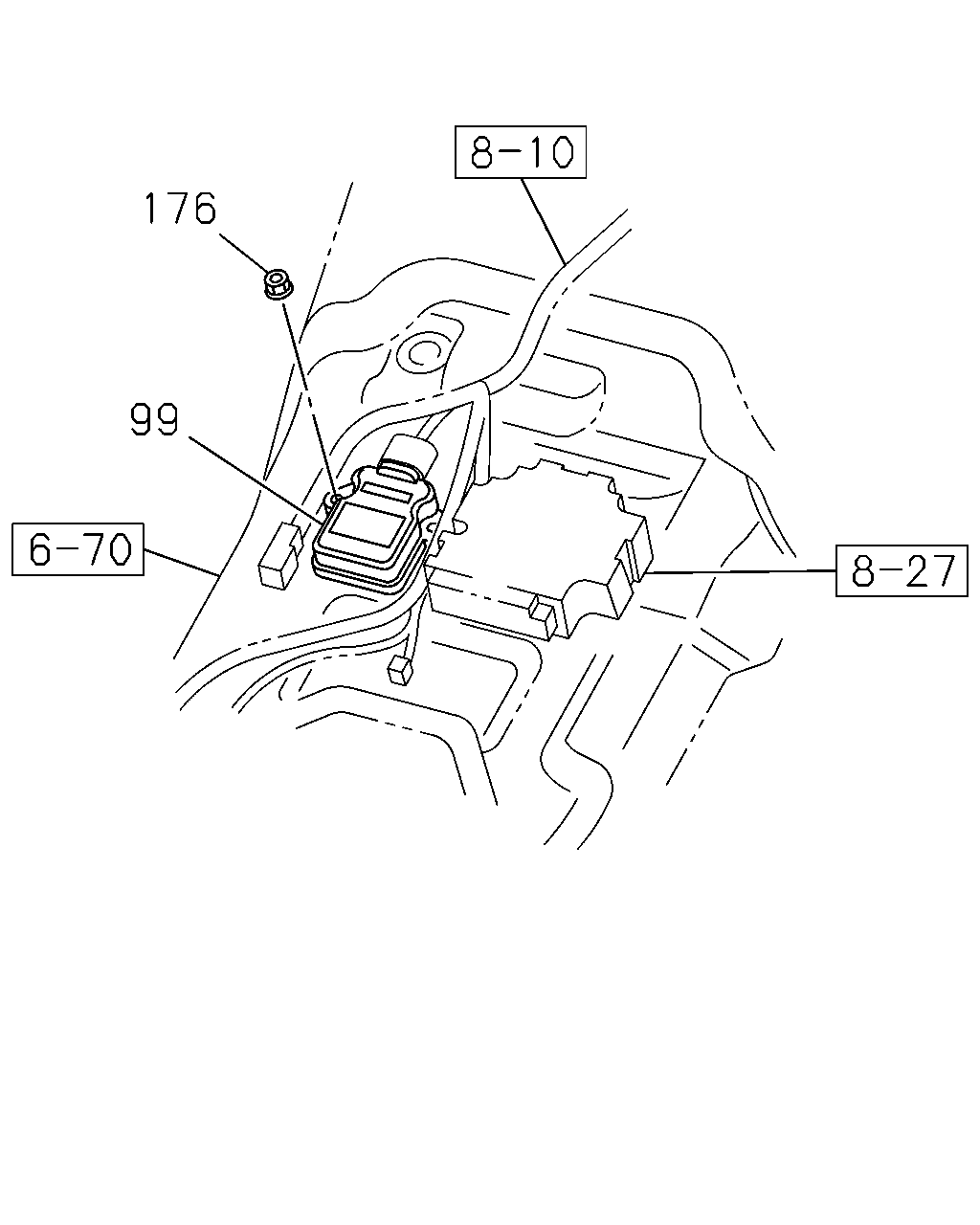

çizim 283211
176 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E
99 04.710 SENSOR; DECELERATION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98052-116-1 01 1 1206- ● ● ● ● ●
176 04.730 NUT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 01.062 M6 FLANGE 		0-91180-106-0 02 1 1206- ● ● ● ● ●
çizim 283213
19 19 19 19 19 19 72 89 89
BalonParca AdiParca NoAdetTipApplied Date A B C D E
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) (E) 		8-98159-943-1 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98099-751-0 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-756-1 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-757-1 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (K) 		8-98099-766-1 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-98099-768-3 01 1 1206-1301 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-98099-768-3 01 1 1302- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (M) 		8-98099-769-1 01 1 1206-1301 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (M) 		8-98099-769-1 01 1 1302- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G) 		8-98186-105-0 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (H) 		8-98185-884-0 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-98185-886-0 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) (F) 		8-98118-384-2 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION(7YC) (N) 		8-98099-771-4 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-98186-107-2 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) (F) 		8-98196-385-0 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION(7YC) (N) 		8-98196-379-1 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-98196-376-1 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC) (F) 		8-98155-585-1 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-746-2 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (A) 		8-98099-746-2 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-746-2 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-746-2 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (A) 		8-98099-746-2 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-746-2 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-747-2 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-747-2 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-747-2 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-747-2 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-747-2 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-747-2 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-752-3 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-752-3 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-752-3 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-752-3 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-752-3 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-752-3 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98203-949-0 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (D) 		8-98203-949-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98203-949-0 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98203-949-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (D) 		8-98203-949-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98203-949-0 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98203-950-0 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) EXC. HIGH RIDE SUSPENSION(7YC) (F) 		8-98202-317-0 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (F) 		8-98099-749-1 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98099-749-1 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (F) 		8-98099-749-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98099-749-1 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98159-941-1 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98159-941-1 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98159-941-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98159-941-1 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98202-432-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98202-432-0 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98202-432-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98202-432-0 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1302-1403 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1302-1403 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1404- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1404- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1302-1403 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1302-1403 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1404- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1404- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-98185-885-1 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-98185-885-1 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-98185-885-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-98185-885-1 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (E) 		8-98203-951-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98203-951-0 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (E) 		8-98203-951-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98203-951-0 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (F) 		8-98155-583-1 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (F) 		8-98155-583-1 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (F) 		8-98155-583-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (F) 		8-98155-583-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) HIGH RIDE SUSPENSION(7YC) (F) 		8-98202-319-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (F) 		8-98202-319-0 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) HIGH RIDE SUSPENSION(7YC) (F) 		8-98202-319-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (F) 		8-98202-319-0 01 1 1302- ● ●
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 1206- ● ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (A) 		8-98194-499-1 01 1 1206-1301 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98232-480-0 01 1 1302- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (A) 		8-98182-431-2 01 1 1206-1301 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12),ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQUIPMENT(2G1) (B) 		8-98130-300-1 01 1 1206-1301 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98232-467-0 01 1 1302-1508 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98285-166-0 01 1 1509- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (A) 		8-98194-500-1 01 1 1206-1301 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98232-481-0 01 1 1302- ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12),ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQUIPMENT(2G1) (B) 		8-98130-301-1 01 1 1206-1301 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98232-469-0 01 1 1302-1508 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98285-168-0 01 1 1509- ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98182-432-2 01 1 1206-1301 ● ●

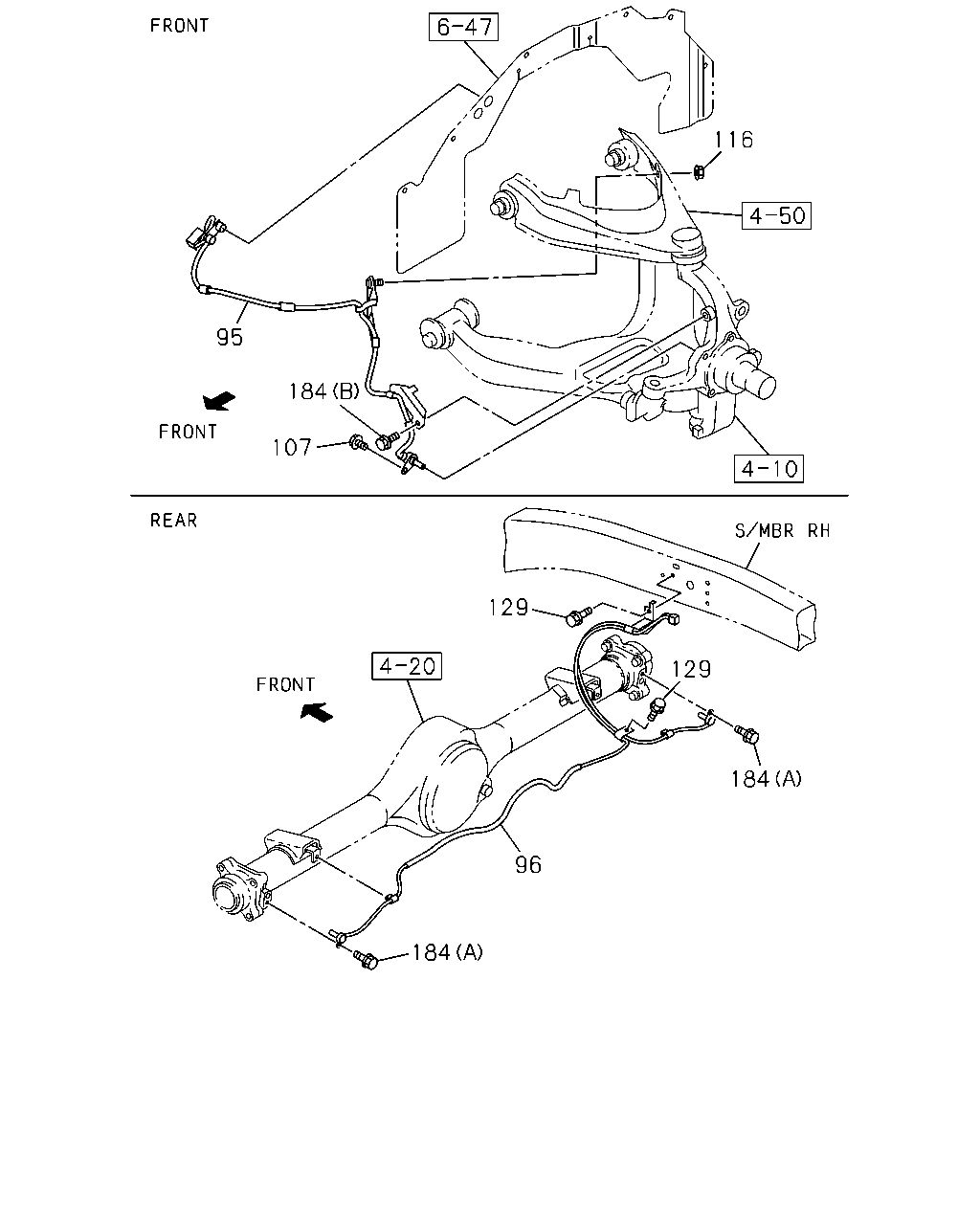

çizim 283215
116 184 107 95 129 129 184 96 184
BalonParca AdiParca NoAdetTipApplied Date A B C D E
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98052-117-1 01 1 1206-1301 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98052-117-1 01 1 1206-1301 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98052-117-1 01 1 1302-1509 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98292-430-0 01 1 1510- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98052-118-1 01 1 1206-1301 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98052-118-1 01 1 1206-1301 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98052-118-1 01 1 1302-1509 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98292-431-0 01 1 1510- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98052-119-1 01 1 1206-1301 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98052-119-1 01 1 1206-1301 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98052-119-1 01 1 1302-1509 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98052-119-1 01 1 1302-1509 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98292-432-0 01 1 1510- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98292-432-0 01 1 1510- ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98052-120-1 01 1 1206-1301 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98052-120-1 01 1 1206-1301 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98052-120-1 01 1 1302-1509 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98052-120-1 01 1 1302-1509 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98292-433-0 01 1 1510- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98292-433-0 01 1 1510- ● ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98052-121-1 01 1 1206- ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98052-122-1 01 1 1206-1301 ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98052-122-1 01 1 1206-1301 ● ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98052-122-1 01 1 1302- ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98052-122-1 01 1 1302- ● ● ●
107 04.710 BOLT; WHEEL SPD SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 M6X10 FLANGE 		0-28050-610-0 02 1 1206-1509 ● ● ● ● ●
107 04.710 BOLT; WHEEL SPD SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1510- ● ● ● ● ●
116 04.686 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1206- ● ● ● ● ●
129 04.710 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1206- ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1206-1509 ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (B) M6X12 FLANGE 		0-28050-612-0 02 1 1510- ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 1206- ● ● ● ● ●

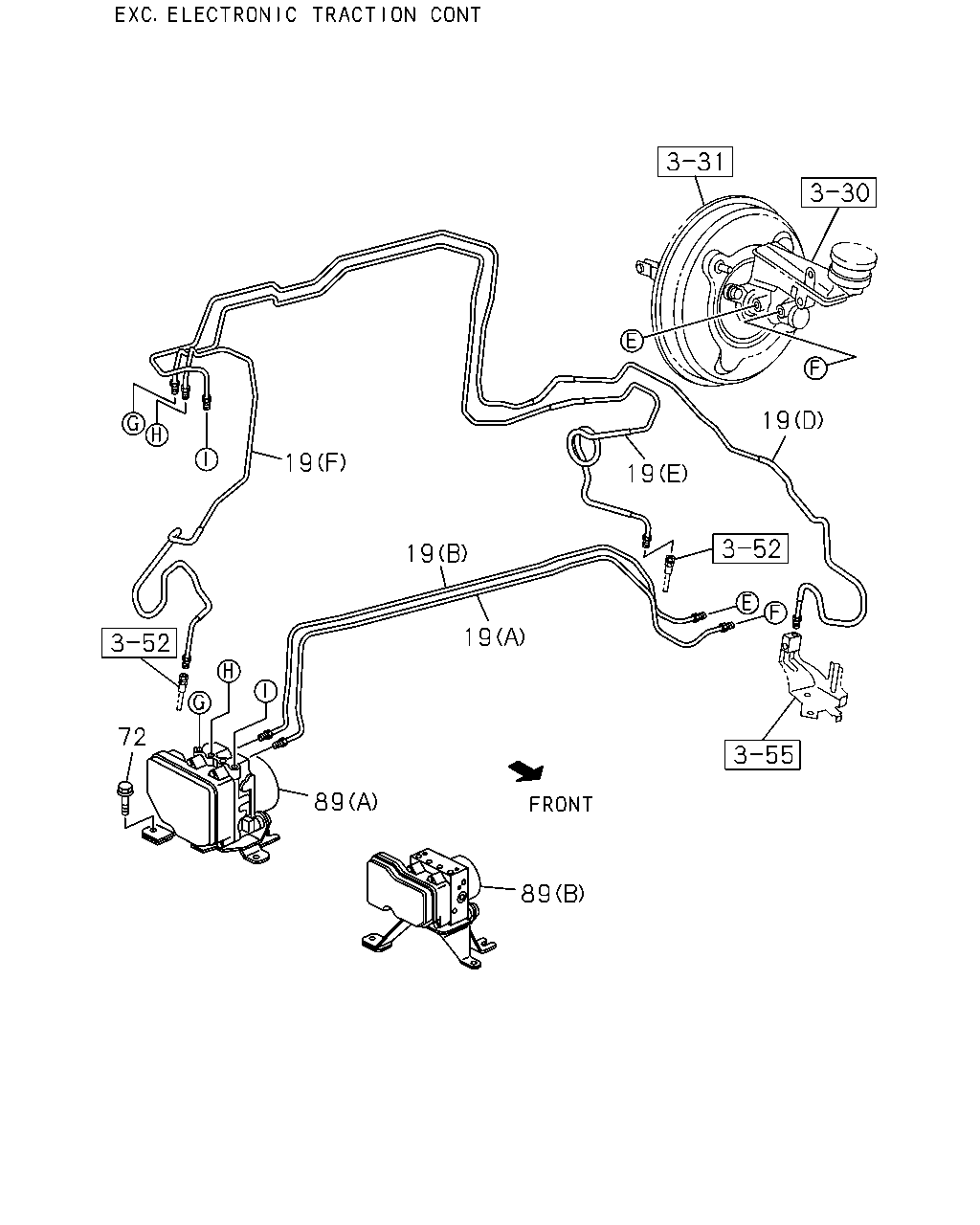

çizim 283640
19 19 19 19 19 72 89 89
BalonParca AdiParca NoAdetTipApplied Date A B C D E
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) (E) 		8-98159-943-1 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98099-751-0 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-756-1 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-757-1 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (K) 		8-98099-766-1 01 1 1206- ● ●

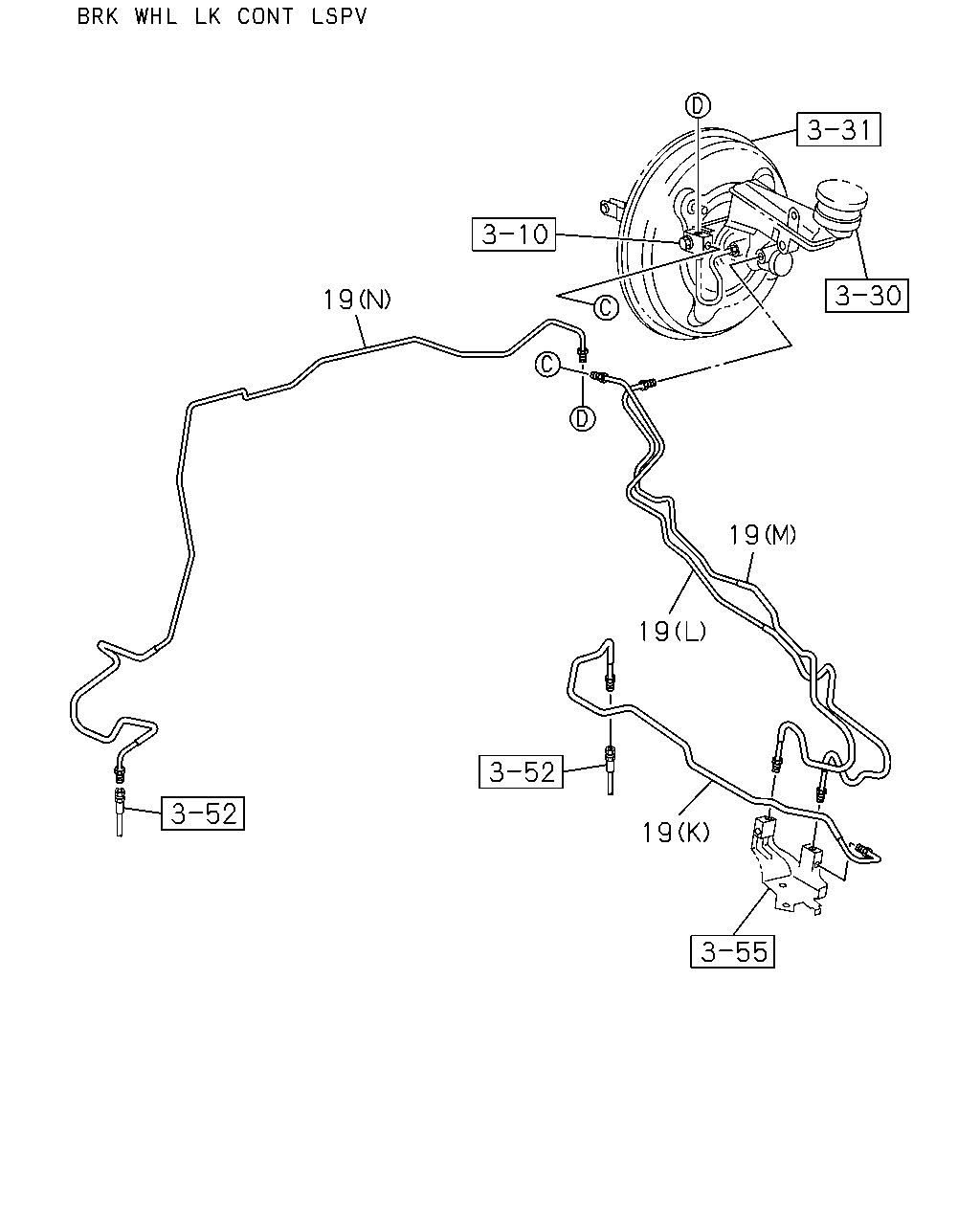

19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-98099-768-3 01 1 1206-1301 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-98099-768-3 01 1 1302- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (M) 		8-98099-769-1 01 1 1206-1301 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (M) 		8-98099-769-1 01 1 1302- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G) 		8-98186-105-0 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (H) 		8-98185-884-0 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-98185-886-0 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) (F) 		8-98118-384-2 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION(7YC) (N) 		8-98099-771-4 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-98186-107-2 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) (F) 		8-98196-385-0 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION(7YC) (N) 		8-98196-379-1 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-98196-376-1 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC) (F) 		8-98155-585-1 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-746-2 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (A) 		8-98099-746-2 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-746-2 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-746-2 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (A) 		8-98099-746-2 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-746-2 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-747-2 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-747-2 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-747-2 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-747-2 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-747-2 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-747-2 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-752-3 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-752-3 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-752-3 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-752-3 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-752-3 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-752-3 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98203-949-0 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (D) 		8-98203-949-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98203-949-0 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98203-949-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (D) 		8-98203-949-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98203-949-0 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98203-950-0 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) EXC. HIGH RIDE SUSPENSION(7YC) (F) 		8-98202-317-0 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (F) 		8-98099-749-1 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98099-749-1 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (F) 		8-98099-749-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98099-749-1 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98159-941-1 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98159-941-1 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98159-941-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98159-941-1 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98202-432-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98202-432-0 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98202-432-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98202-432-0 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1302-1403 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1302-1403 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1404- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1404- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1302-1403 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1302-1403 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1404- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1404- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-98185-885-1 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-98185-885-1 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-98185-885-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-98185-885-1 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (E) 		8-98203-951-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98203-951-0 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (E) 		8-98203-951-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98203-951-0 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (F) 		8-98155-583-1 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (F) 		8-98155-583-1 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (F) 		8-98155-583-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (F) 		8-98155-583-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) HIGH RIDE SUSPENSION(7YC) (F) 		8-98202-319-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (F) 		8-98202-319-0 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) HIGH RIDE SUSPENSION(7YC) (F) 		8-98202-319-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (F) 		8-98202-319-0 01 1 1302- ● ●
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 1206- ● ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (A) 		8-98194-499-1 01 1 1206-1301 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98232-480-0 01 1 1302- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (A) 		8-98182-431-2 01 1 1206-1301 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12),ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQUIPMENT(2G1) (B) 		8-98130-300-1 01 1 1206-1301 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98232-467-0 01 1 1302-1508 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98285-166-0 01 1 1509- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (A) 		8-98194-500-1 01 1 1206-1301 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98232-481-0 01 1 1302- ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. RUSSIA EQUIPMENT(B12),ELECTRONIC TRACTION CONTROL<NW9>,ISRAEL EQUIPMENT(2G1) (B) 		8-98130-301-1 01 1 1206-1301 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98232-469-0 01 1 1302-1508 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98285-168-0 01 1 1509- ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98182-432-2 01 1 1206-1301 ● ●
çizim 283643
19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) (E) 		8-98159-943-1 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98099-751-0 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-756-1 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-757-1 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (K) 		8-98099-766-1 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-98099-768-3 01 1 1206-1301 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (L) 		8-98099-768-3 01 1 1302- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (M) 		8-98099-769-1 01 1 1206-1301 ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (M) 		8-98099-769-1 01 1 1302- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G) 		8-98186-105-0 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (H) 		8-98185-884-0 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I) 		8-98185-886-0 01 1 1206- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) (F) 		8-98118-384-2 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION(7YC) (N) 		8-98099-771-4 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-98186-107-2 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>, HIGH RIDE SUSPENSION(7YC) (F) 		8-98196-385-0 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGHRIDE SUSPENSION(7YC) (N) 		8-98196-379-1 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (J) 		8-98196-376-1 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC) (F) 		8-98155-585-1 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-746-2 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (A) 		8-98099-746-2 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-746-2 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-746-2 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (A) 		8-98099-746-2 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-746-2 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-747-2 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-747-2 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-747-2 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-747-2 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-747-2 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-747-2 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-752-3 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-752-3 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-752-3 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-752-3 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-752-3 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-752-3 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98203-949-0 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (D) 		8-98203-949-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98203-949-0 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98203-949-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (D) 		8-98203-949-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (D) 		8-98203-949-0 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98203-950-0 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) EXC. HIGH RIDE SUSPENSION(7YC) (F) 		8-98202-317-0 01 1 1206- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (F) 		8-98099-749-1 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98099-749-1 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (F) 		8-98099-749-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98099-749-1 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98159-941-1 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98159-941-1 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98159-941-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98159-941-1 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98202-432-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98202-432-0 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98202-432-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98202-432-0 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1302-1403 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1302-1403 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1404- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) 		8-98099-776-0 01 1 1404- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1302-1403 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1302-1403 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1404- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98100-764-2 01 1 1404- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G) 		8-98185-881-0 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-98185-885-1 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-98185-885-1 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-98185-885-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (J) 		8-98185-885-1 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (E) 		8-98203-951-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98203-951-0 01 1 1206-1301 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (E) 		8-98203-951-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (E) 		8-98203-951-0 01 1 1302- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (F) 		8-98155-583-1 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (F) 		8-98155-583-1 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (F) 		8-98155-583-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (F) 		8-98155-583-1 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) HIGH RIDE SUSPENSION(7YC) (F) 		8-98202-319-0 01 1 1206-1301 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (F) 		8-98202-319-0 01 1 1206-1301 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) HIGH RIDE SUSPENSION(7YC) (F) 		8-98202-319-0 01 1 1302- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (F) 		8-98202-319-0 01 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
