Isuzu WW
▶
PICKUP
▶
TFR
▶
51411 - TFR/TFS-LHD
▶
3 - Brakes, Brake System
▶
3-45 - LOAD SENSING PROPORTIONING VALVE
▶

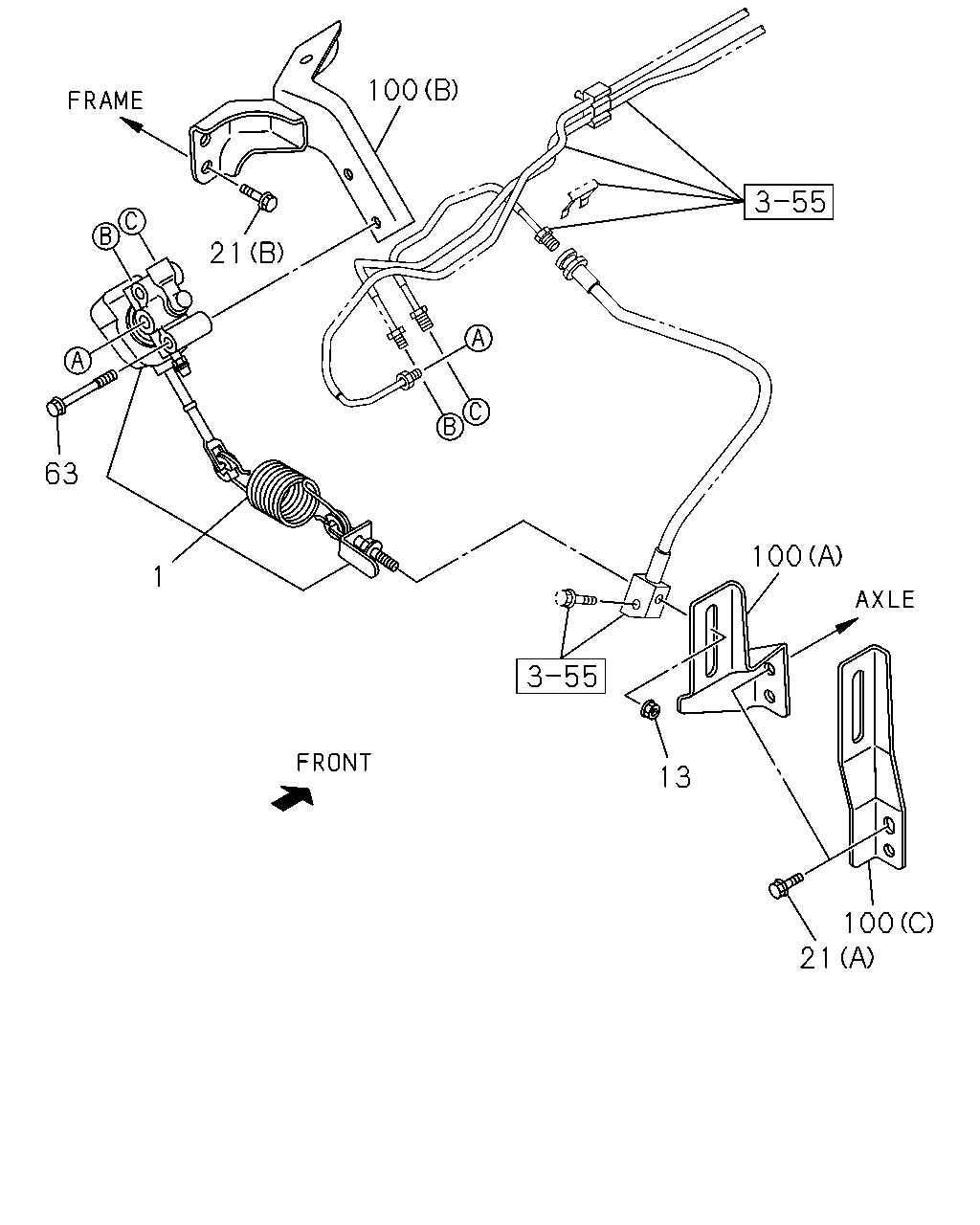

3-45 — LOAD SENSING PROPORTIONING VALVE
(#91090) — 24 parça
Tümü
A - TFB6SF
B - TFB6WF
C - TFS6CF
D - TFS6WF
E - TFS6SF
100
21
63
1
13
100
100
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
04.730 VALVE ASM; LOAD SENSING PROPORTI
BRK WHL LK CONT LSPV<JR9>
8-97947-813-0
01
1
1206-1301
●
●
●
●
1
04.730 VALVE ASM; LOAD SENSING PROPORTI
BRK WHL LK CONT LSPV<JR9>
8-97947-813-0
01
1
1302-
●
●
●
●
●
13
04.730 NUT; LSPV TO BRKT
BRK WHL LK CONT LSPV<JR9> 01.062 M8 FLANGE
0-91180-108-0
01
1
1206-1301
●
●
●
●
13
04.730 NUT; LSPV TO BRKT
BRK WHL LK CONT LSPV<JR9> 01.062 M8 FLANGE
0-91180-108-0
01
1
1302-
●
●
●
●
●
21
04.730 BOLT; BRKT
BRK WHL LK CONT LSPV<JR9> 01.531 (A) M8X20 FLANGE
0-28650-820-0
02
1
1206-1301
●
●
●
●
21
04.730 BOLT; BRKT
BRK WHL LK CONT LSPV<JR9> 01.531 (A) M8X20 FLANGE
0-28650-820-0
02
1
1302-
●
●
●
●
●
21
04.730 BOLT; BRKT
BRK WHL LK CONT LSPV<JR9> 06.216 (B) M8X25 FLANGE
0-28650-825-0
03
1
1206-1301
●
●
●
●
21
04.730 BOLT; BRKT
BRK WHL LK CONT LSPV<JR9> 06.216 (B) M8X25 FLANGE
0-28650-825-0
03
1
1302-
●
●
●
●
●
63
04.710 BOLT; LSPV
BRK WHL LK CONT LSPV<JR9> 04.686 M8X60 FLANGE
0-28050-860-0
02
1
1206-1301
●
●
●
●
63
04.710 BOLT; LSPV
BRK WHL LK CONT LSPV<JR9> 04.686 M8X60 FLANGE
0-28050-860-0
02
1
1302-
●
●
●
●
●
100
04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (C)
8-97947-819-0
01
1
1206-1301
●
100
04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> (C)
8-97947-819-0
01
1
1206-1301
●
●
100
04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (C)
8-97947-819-0
01
1
1302-
●
●
100
04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> (C)
8-97947-819-0
01
1
1302-
●
●
●
100
04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> (A)
8-97947-818-0
01
1
1206-1301
●
100
04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (A)
8-97947-818-0
01
1
1206-1301
●
100
04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (A)
8-97947-818-0
01
1
1302-
●
●
100
04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> (B)
8-98192-002-0
01
1
1206-1301
●
100
04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (B)
8-98192-002-0
01
1
1206-1301
●
100
04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (B)
8-98192-002-0
01
1
1302-
●
●
100
04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (B)
8-98192-003-0
01
1
1206-1301
●
100
04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> (B)
8-98192-003-0
01
1
1206-1301
●
●
100
04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (B)
8-98192-003-0
01
1
1302-
●
●
100
04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> (B)
8-98192-003-0
01
1
1302-
●
●
●
