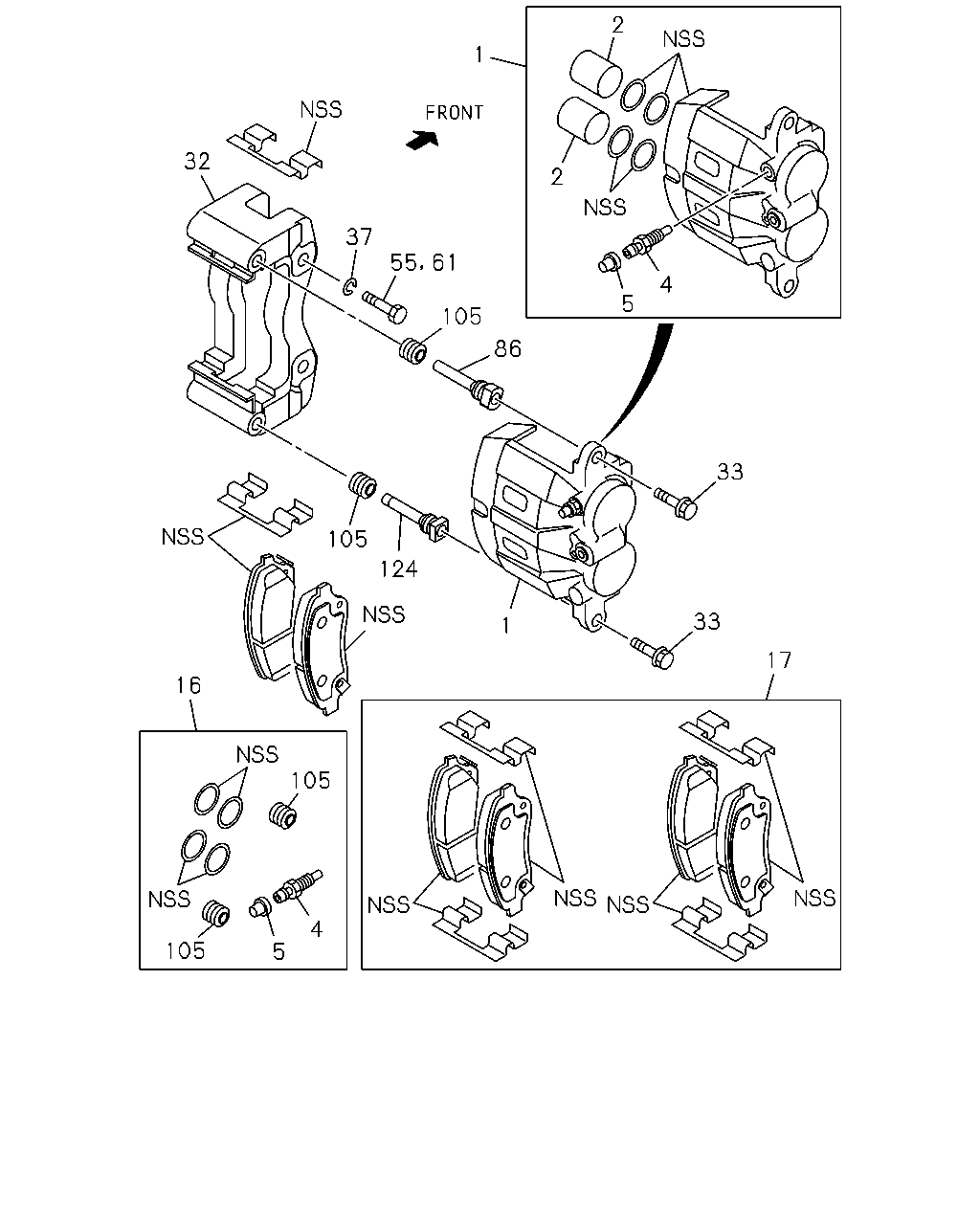

3-02 — FRONT DISC BRAKE CALIPER (#91083) — 31 parça

33 33 17 1 124 105 16 105 105 5 4 86 105 61 55 37 32 1 2 5 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.665 CALIPER; FRT DISC BRK	8-98077-996-0	01	1	1206-	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK	8-98077-997-0	01	1	1206-	●	●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-98078-000-0	04	1	1206-	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-98050-476-0	02	1	1206-	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	8-98050-479-0	02	1	1206-	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98079-105-0	01	1	1206-	●	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT ECUADOR EQUIPMENT(E46)	8-98298-384-0	01	1	1506-	●	●		●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97947-466-0	01	1	1206-1301	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97947-466-0	01	1	1206-1301		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97947-466-0	01	1	1302-1505	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT EXC. ECUADOR EQUIPMENT(E46),HIGH RIDE SUSPENSION(7YC)	8-97947-466-0	01	1	1506-1506	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> ISRAEL EQUIPMENT(2G1)	8-97947-466-0	01	1	1506-	●	●		●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT EXC. ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC)	8-97947-466-0	01	1	1506-	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-97947-571-0	01	1	1206-1301		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97947-571-0	01	1	1206-1301			●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION(7YC)	8-97947-571-0	01	1	1302-1505	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97947-571-0	01	1	1302-1505			●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION(7YC) EXC. ECUADOR EQUIPMENT(E46)	8-97947-571-0	01	1	1506-1506	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97947-571-0	01	1	1506-1506			●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT EXC. ECUADOR EQUIPMENT(E46)	8-97947-571-0	01	1	1506-1506				●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT HIGH RIDE SUSPENSION(7YC) EXC. ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1)	8-97947-571-0	01	1	1506-	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97947-571-0	01	1	1506-			●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT EXC. ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1)	8-97947-571-0	01	1	1506-				●	●
32	04.665 SUPPORT; FRT DISC BRK	8-97947-221-0	02	1	1206-	●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK	8-98078-192-0	04	1	1206-	●	●	●	●	●
37	04.665 WASHER; LK 06.174 ID=14.2	0-91510-814-0	04	1	1206-	●	●	●	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK	8-98037-731-0	02	1	1206-	●	●	●	●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE 04.681	8-98037-731-0	02	1	1206-	●	●	●	●	●
86	04.665 PIN; GUIDE	8-98078-175-0	02	1	1206-	●	●	●	●	●
105	04.665 BOOT; CALIPER	8-98078-193-0	04	1	1206-	●	●	●	●	●
124	04.665 PIN ASM; W/BUSH	8-98078-176-0	02	1	1206-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
