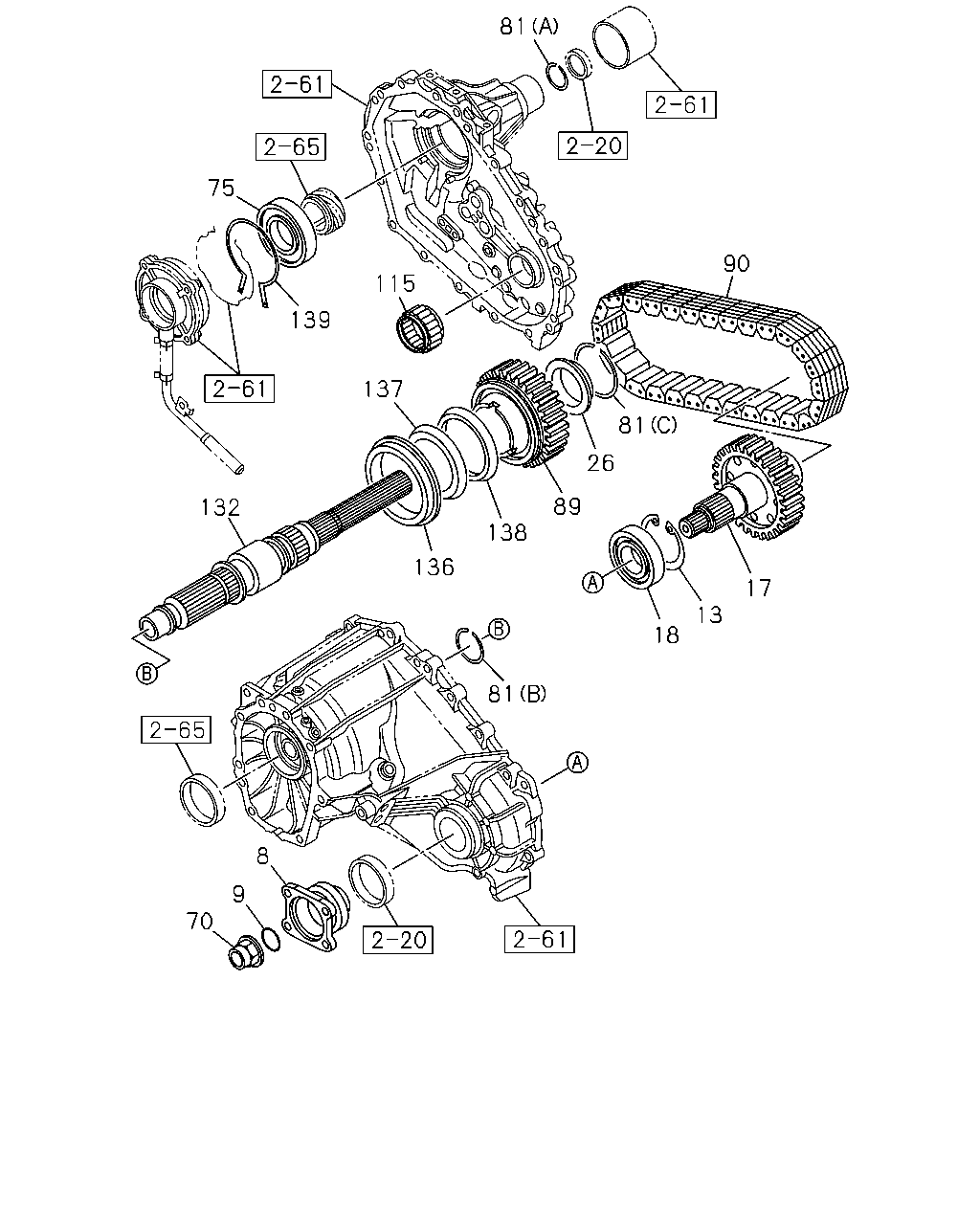

2-66 — MANUAL TRANSFER GEAR; OUTPUT
(#91082) — 27 parça
Tümü
A - TFS6CF
B - TFS6SF
C - TFS6WF
81
75
115
139
137
132
8
9
70
81
136
18
13
17
89
138
26
81
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
8
04.535 FLANGE; OUTPUT
8-97319-825-2
01
1
1206-
●
●
●
9
04.164 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 04.552 ID=29.7 OD=36.1
8-94483-035-0
01
1
1206-
●
●
●
13
04.545 RING; SNAP,OUTPUT,FRT
ID=67
8-97305-402-0
01
1
1206-
●
●
●
17
04.555 SHAFT; OUTPUT
8-97231-853-0
01
1
1206-
●
●
●
18
04.520 BEARING; BALL,OUTPUT,FRT
NSK
8-94422-172-1
01
1
1206-
●
●
●
26
04.533 WASHER; THRUST
8-97239-774-0
01
1
1206-
●
●
●
70
04.164 NUT; RR OUTPUT SHAFT,TRANSFER
M36 FLANGE
8-97358-603-0
01
1
1206-
●
●
●
75
04.520 BEARING; BALL,RR OUTPUT
8-97234-737-0
01
1
1206-
●
●
●
81
04.545 RING; SNAP
(A) T=1.9
8-97305-404-1
01
1
1206-
●
●
●
81
04.545 RING; SNAP
(B) T=1.4
8-97305-405-0
01
1
1206-
●
●
●
81
04.545 RING; SNAP
(C) T=2.15 RED
8-97305-407-0
01
1
1206-
●
●
●
81
04.545 RING; SNAP
(C) T=2.10 NON COLOR
8-97305-408-0
01
1
1206-
●
●
●
81
04.545 RING; SNAP
(C) T=2.05 BLUE
8-97305-409-0
01
1
1206-
●
●
●
81
04.545 RING; SNAP
(C) T=2.00 WHITE
8-97305-410-0
01
1
1206-
●
●
●
89
04.535 SPROCKET; DRIVE
Z=48
8-98013-525-0
01
1
1206-
●
●
●
90
04.535 CHAIN; DRIVE
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED5H(MWQ)
8-98275-645-0
01
1
1405-1408
●
●
●
90
04.535 CHAIN; DRIVE
8-98275-645-0
01
1
1409-
●
●
●
90
04.535 CHAIN; DRIVE
8-97323-177-0
01
1
1206-1404
●
●
●
90
04.535 CHAIN; DRIVE
M/T AISIN 6 SPEED(RNU)
8-97323-177-0
01
1
1405-1408
●
●
115
04.520 BEARING; NEEDLE
8-97234-747-0
01
1
1206-
●
●
●
132
05.544 SHAFT; MAIN,TRANSFER
A/T 5 SPEED-AISIN(MA1) Z=34-36-26-27
8-98316-370-0
01
1
1509-
●
●
132
05.544 SHAFT; MAIN,TRANSFER
Z=34-36-26-27
8-98013-925-1
01
1
1206-1508
●
●
●
132
05.544 SHAFT; MAIN,TRANSFER
M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) Z=34-36-26-27
8-98013-925-1
01
1
1509-
●
●
●
136
04.545 BLOCK RING; 2-4
04.383 Z=48
8-94363-054-1
01
1
1206-
●
●
●
137
04.545 RING; OUTSIDE,2-4
04.383 OD=90.0
8-94363-055-1
01
1
1206-
●
●
●
138
04.545 RING; INSIDE,2-4
04.383 OD=95.8
8-94363-056-0
01
1
1206-
●
●
●
139
04.545 RING; RETAINING,RR OUTPUT
ID=76
8-97305-012-0
01
1
1206-
●
●
●
