Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#9108) — 67 parça

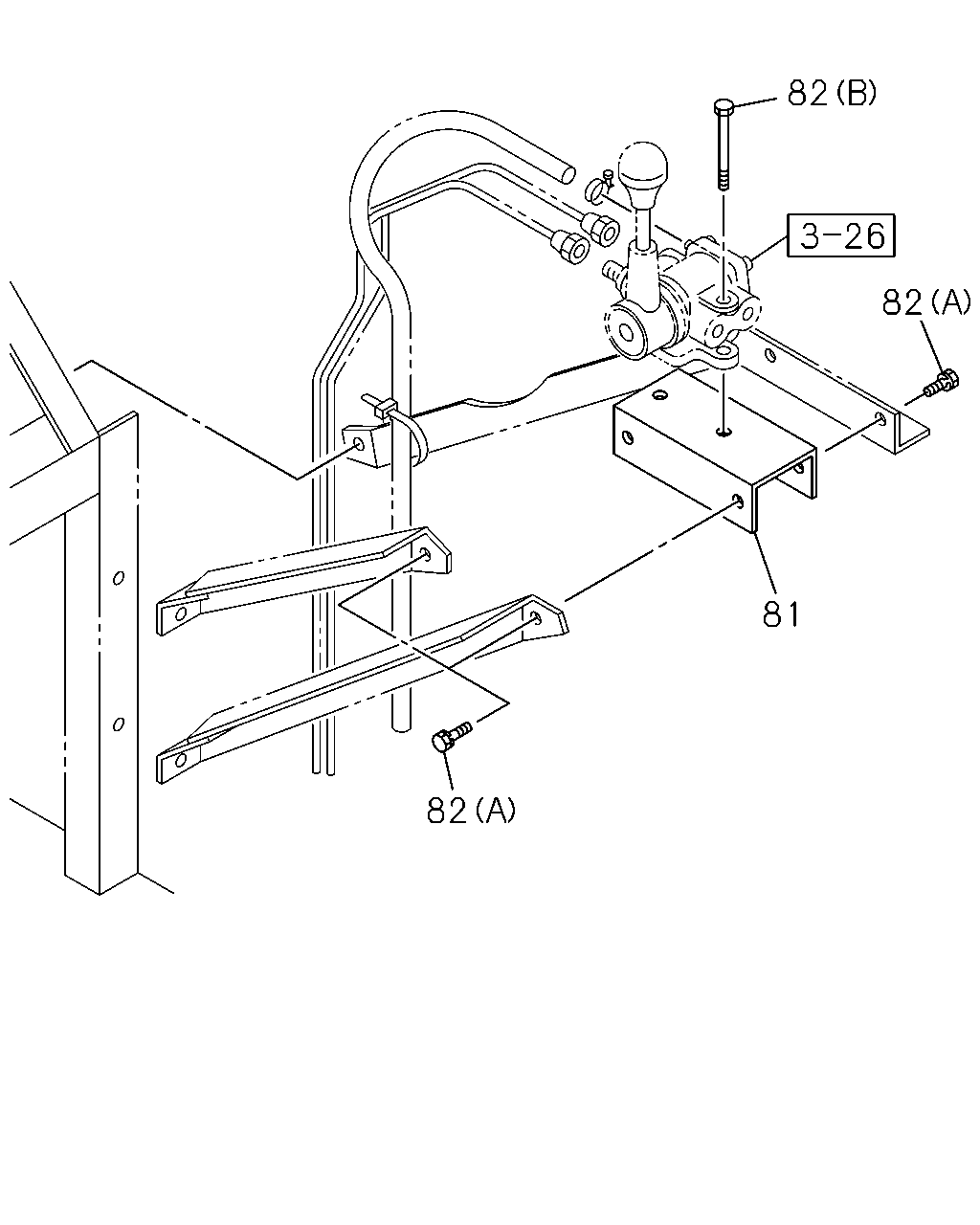

82 82 81 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	BRACKET; RELAY VLV,PARKING BRK	8-93559-749-0	01	1	9606-	●	●
82	BOLT; BRKT,RELAY VLV (B) M8X65	0-20800-865-0	02	1	9606-	●	●
82	BOLT; BRKT,RELAY VLV (A) M6X20 W/LK WASHER	0-50040-620-0	04	1	9606-	●	●

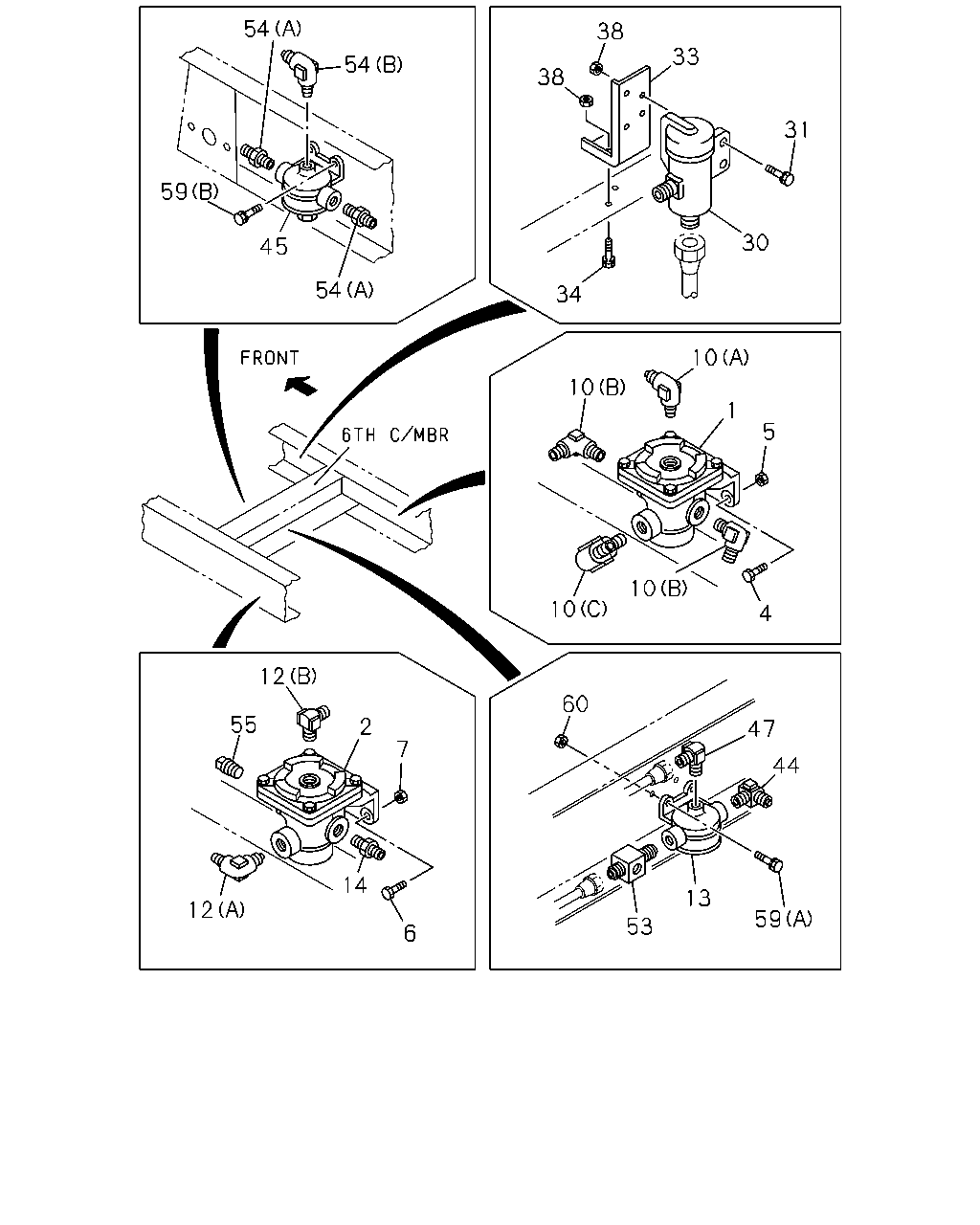

54 38 33 54 38 31 59 30 45 54 34 10 10 1 5 10 10 4 12 60 55 2 47 7 44 14 13 12 59 53 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR	1-48210-278-0	01	1	9606-	●	●
2	VALVE; RELAY	1-48210-278-0	01	1	9606-	●	●
4	BOLT; RELAY VLV TO BRKT M10X40 W/LK WASHER	0-50041-040-0	02	1	9606-	●	●
5	NUT M10	9-09110-410-0	02	1	9606-	●	●
6	BOLT; VLV M10X40 W/LK WASHER	0-50041-040-0	02	1	9606-	●	●
7	NUT; RELAY VLV M10	9-09110-510-0	02	1	9606-	●	●
10	CONNECTOR (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9606-	●	●
10	CONNECTOR (B) M20 & PT1/2 ELBOW	1-09650-443-0	02	1	9606-	●	●
10	CONNECTOR (C) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9606-	●	●
12	CONNECTOR; RELAY VLV (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9606-	●	●
12	CONNECTOR; RELAY VLV (A) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9606-	●	●
13	VALVE ASM; QUICK RELEASE	1-48410-406-0	01	1	9606-0109	●	●
13	VALVE ASM; QUICK RELEASE	1-48410-656-0	01	1	0110-	●	●
14	CONNECTOR; RELAY VLV M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9606-	●	●
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9606-	●	●
31	BOLT; GOV TO FRAME M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9606-	●	●
33	BRACKET; GOV,AIR CONT	1-21219-081-0	01	1	9606-	●	●
34	BOLT; BRKT,GOV M10X25 W/LK WASHER	0-50041-025-0	02	1	9606-	●	●
38	NUT; BRKT,GOV M8	9-09110-408-0	02	1	9606-	●	●
38	NUT; BRKT,GOV M10	9-09110-510-0	02	1	9606-	●	●
44	CONNECTOR; VLV,CHARGE M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9606-	●	●
45	VALVE; QUICK RELEASE	1-48410-406-0	01	1	9606-0109	●	●
45	VALVE; QUICK RELEASE	1-48410-656-0	01	1	0110-	●	●
47	CONNECTOR; RELAY VLV,CONT M20 & PT3/8 ELBOW	1-09650-439-0	01	1	9606-	●	●
53	CONNECTOR; AIR VLV	1-09656-281-1	01	1	9606-0109	●	●
53	CONNECTOR; AIR VLV M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0110-	●	●
54	CONNECTOR; QUICK RELEASE VLV (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	02	1	9606-	●	●
54	CONNECTOR; QUICK RELEASE VLV (B) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	9606-	●	●
55	PLUG; SUPPLY PT1/2	9-09204-521-0	01	1	9606-	●	●
59	BOLT; RELEASE VALVE FIX (B) M8X25 W/LK WASHER	0-50040-825-0	02	1	9606-	●	●
59	BOLT; RELEASE VALVE FIX (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9606-	●	●
60	NUT; RELEASE VALVE FIX M8	9-09110-408-0	02	1	9606-	●	●

240 13 45 158 157 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	VALVE ASM; QUICK RELEASE	1-48410-406-0	01	1	9606-0109	●	●
13	VALVE ASM; QUICK RELEASE	1-48410-656-0	01	1	0110-	●	●
45	VALVE; QUICK RELEASE	1-48410-406-0	01	1	9606-0109	●	●
45	VALVE; QUICK RELEASE	1-48410-656-0	01	1	0110-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	9606-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	9606-	●	●
157	RETAINER; VALVE (B)	1-48419-036-0	02	1	9606-0109	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	9606-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	9606-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	02	1	9606-0109	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85579-056-0	02	1	9606-0109	●	●
240	REPAIR KIT; AIR CONT GOV	1-85576-207-0	01	1	9606-	●	●

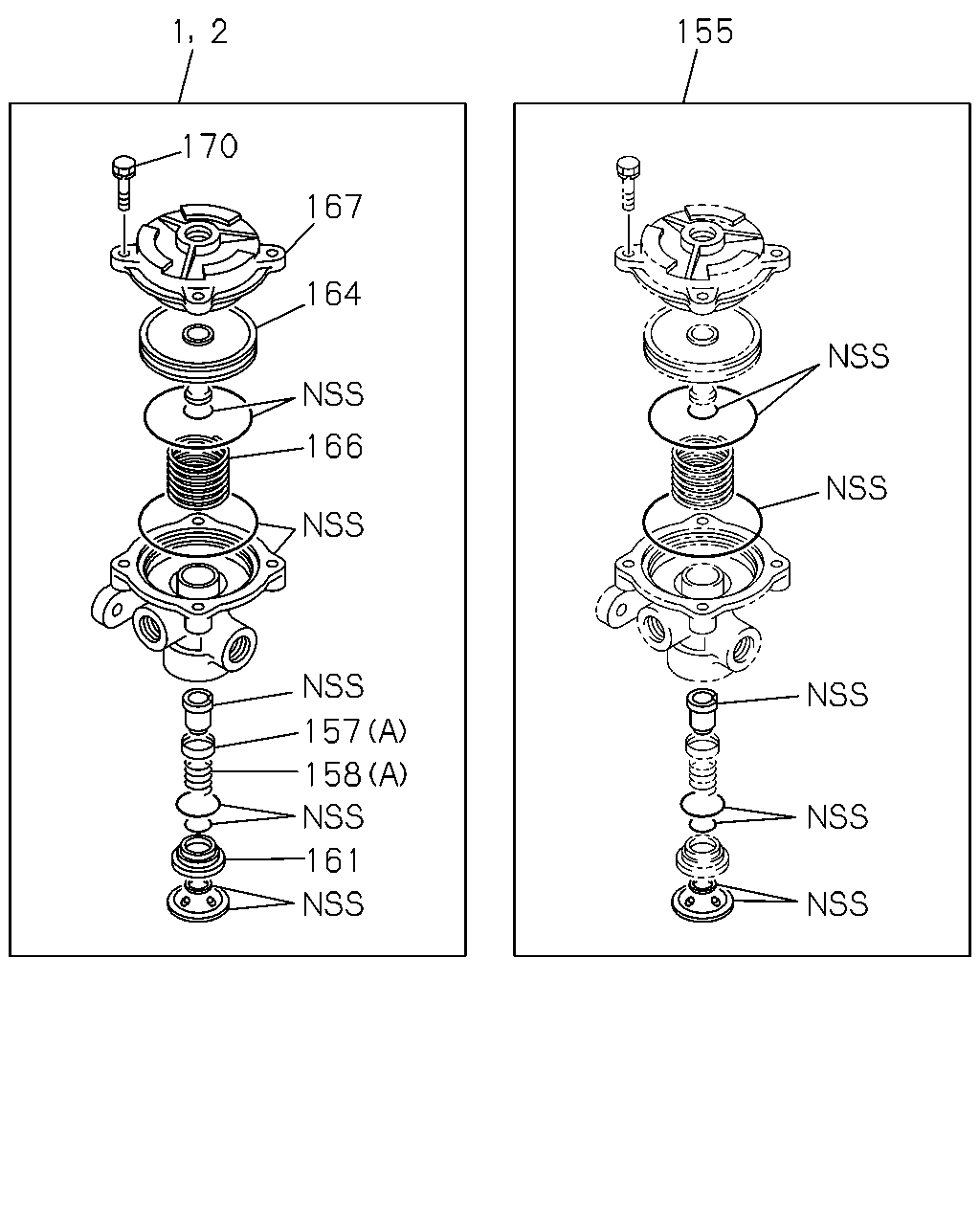

2 155 1 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR	1-48210-278-0	01	1	9606-	●	●
2	VALVE; RELAY	1-48210-278-0	01	1	9606-	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	9606-	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	9606-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	9606-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	9606-	●	●
157	RETAINER; VALVE (B)	1-48419-036-0	02	1	9606-0109	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	9606-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	9606-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	02	1	9606-0109	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	9606-	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	9606-	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	9606-	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	9606-	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	9606-	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	9606-	●	●
167	COVER; VALVE	1-48219-070-0	01	1	9606-	●	●
167	COVER; VALVE	1-48219-070-0	01	1	9606-	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	9606-	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	9606-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
