Isuzu WW
▶
PICKUP
▶
TFR
▶
51411 - TFR/TFS-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-60 - TRANSFER
▶

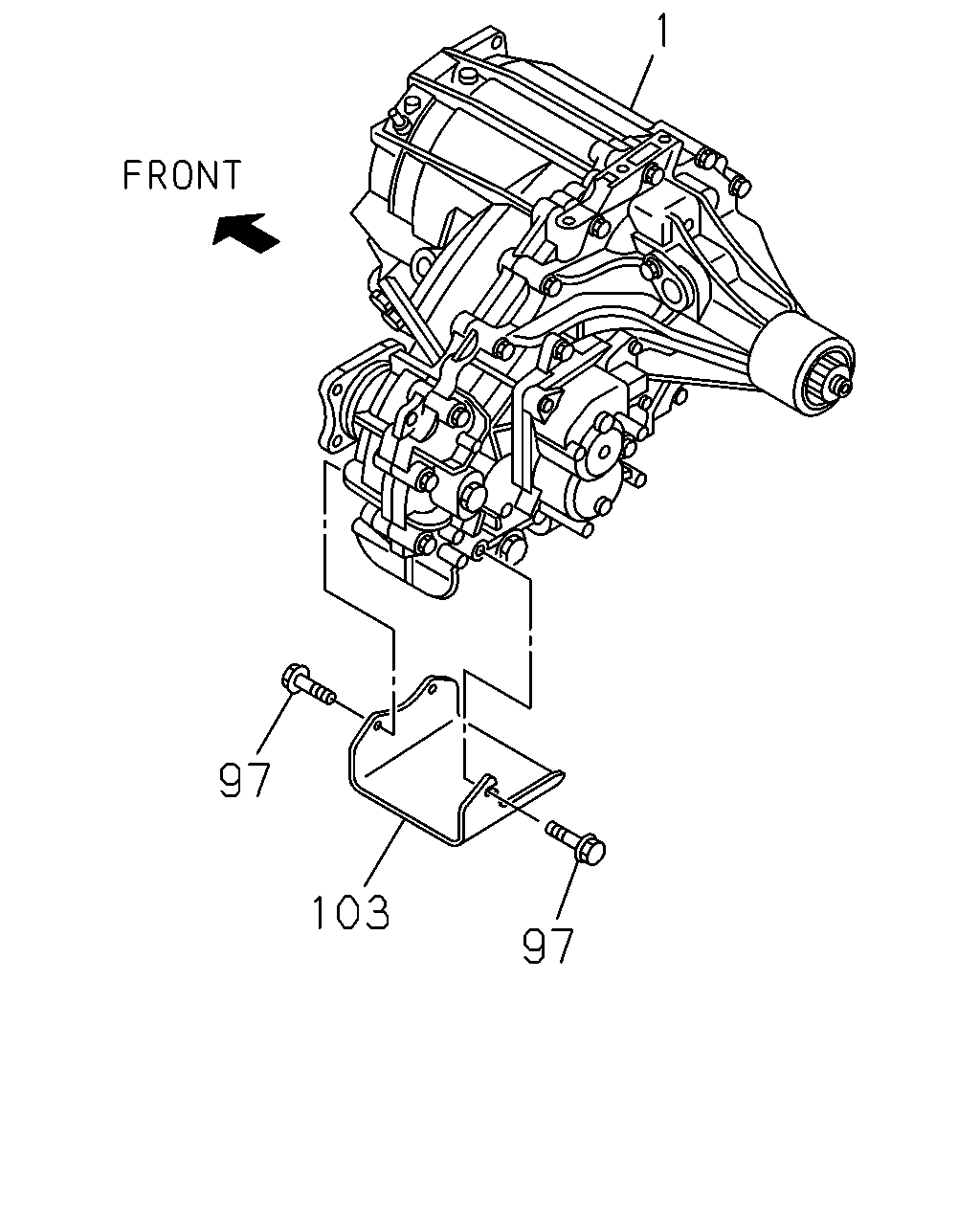

2-60 — TRANSFER
(#91078) — 11 parça
Tümü
A - TFS6CF
B - TFS6WF
C - TFS6SF
1
103
97
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
04.505 TRANSFER ASM
A/T 5 SPEED-AISIN(MA1) IDENTIFICATION LABEL FOR KD<6UT>
8-98241-872-0
01
1
1304-1508
●
●
1
04.505 TRANSFER ASM
A/T 5 SPEED-AISIN(MA1) IDENTIFICATION LABEL FOR KD<6UT>
8-98316-292-0
01
1
1509-
●
●
1
04.505 TRANSFER ASM
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION LABEL FOR KD<6UT>
8-98241-871-0
01
1
1304-
●
●
●
1
04.505 TRANSFER ASM
A/T 5 SPEED-AISIN(MA1)
8-98196-935-0
01
1
1206-1303
●
●
●
1
04.505 TRANSFER ASM
A/T 5 SPEED-AISIN(MA1) EXC. IDENTIFICATION LABEL FOR KD<6UT>
8-98196-935-0
01
1
1304-1508
●
●
1
04.505 TRANSFER ASM
A/T 5 SPEED-AISIN(MA1) EXC. IDENTIFICATION LABEL FOR KD<6UT>
8-98316-291-0
01
1
1509-
●
●
1
04.505 TRANSFER ASM
M/T MUA 5 SPEED 5H(MWQ)
8-98196-934-0
01
1
1206-1303
●
●
●
1
04.505 TRANSFER ASM
M/T MUA 5 SPEED 5H(MWQ) EXC. IDENTIFICATION LABEL FOR KD<6UT>
8-98196-934-0
01
1
1304-
●
●
●
1
04.505 TRANSFER ASM
M/T AISIN 6 SPEED(RNU)
8-98196-936-0
01
1
1206-
●
●
97
04.512 BOLT
01.531 M8X20 FLANGE
0-28650-820-0
03
1
1206-
●
●
●
103
04.510 GUARD; TRANSFER
8-98125-254-0
01
1
1206-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
