◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51411 - TFR/TFS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-56 - AUTO TRANS CONTROL LINK ▶
2-56 — AUTO TRANS CONTROL LINK (#91077) — 11 parça

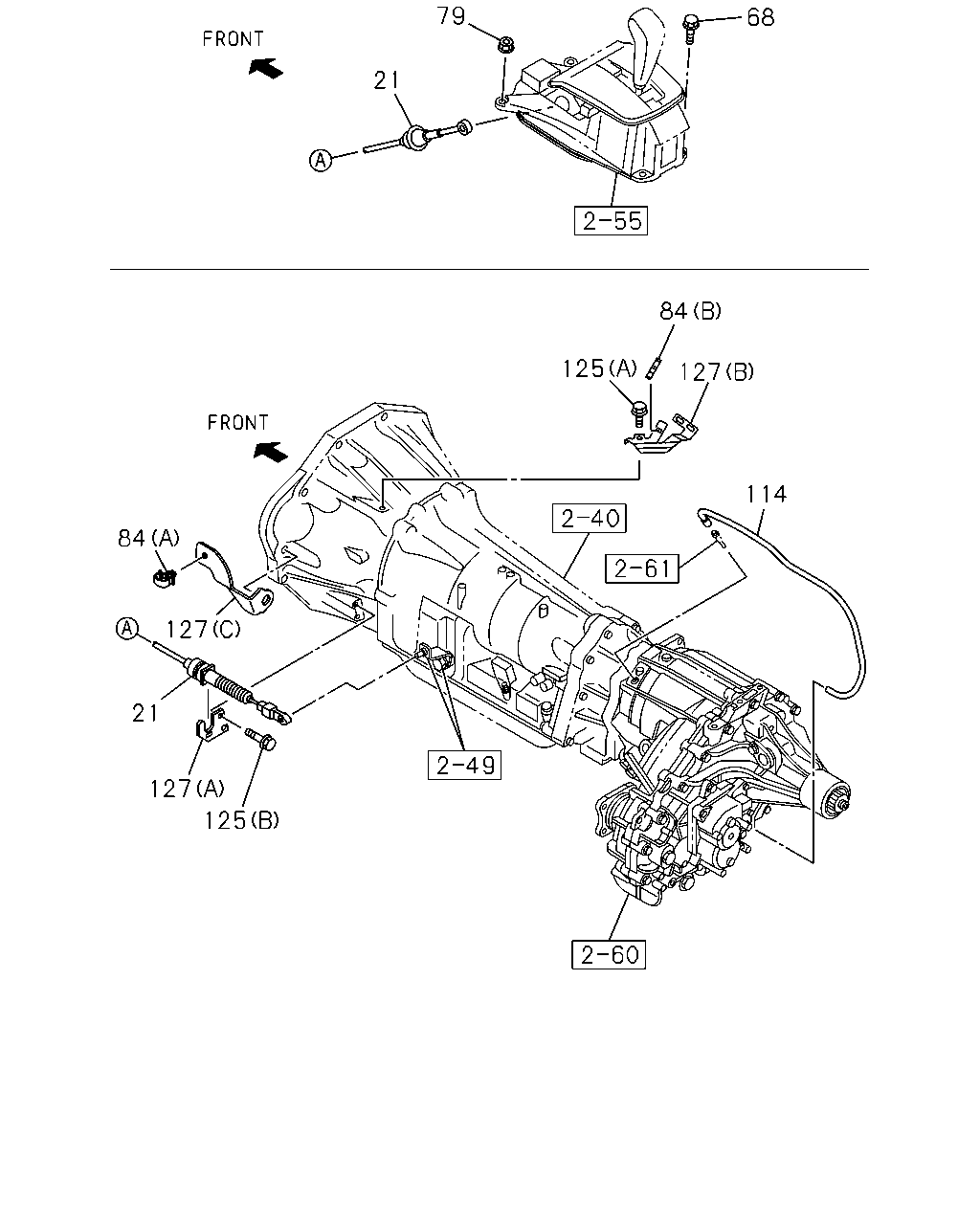

çizim 283195
68 79 21 84 127 125 114 84 127 21 127 125
BalonParca AdiParca NoAdetTipApplied Date A B C
21 04.047 CABLE; A/T 8-98072-710-1 01 1 1206- ●
68 04.047 BOLT; A/T CONT CABLE
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1206- ●
79 04.047 NUT; CONT CABLE
08.915 M6 FLANGE 		8-98055-704-0 02 1 1206- ●
84 04.047 CLIP; A/T CONT CABLE
02.559 (A) ID=10 		8-94450-392-0 01 1 1206- ●
84 04.047 CLIP; A/T CONT CABLE
03.682 (B) ID=7 L=7.5 		8-97369-561-0 01 1 1206- ●
114 08.962 HOSE; BREATHER
4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) L=527 		8-98183-634-0 01 1 1206- ● ● ●
125 04.047 BOLT; BRKT
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 1206- ●
125 04.047 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 02 1 1206- ●
127 04.047 BRACKET; A/T CONT CABLE
(A) 		8-98098-409-0 01 1 1206- ●
127 04.047 BRACKET; A/T CONT CABLE
(C) 		8-98098-410-1 01 1 1206- ●
127 04.047 BRACKET; A/T CONT CABLE
(B) 		8-98098-411-1 01 1 1206- ●
