2-53 — TRANSMISSION OIL COOLER SYSTEM (#91075) — 34 parça

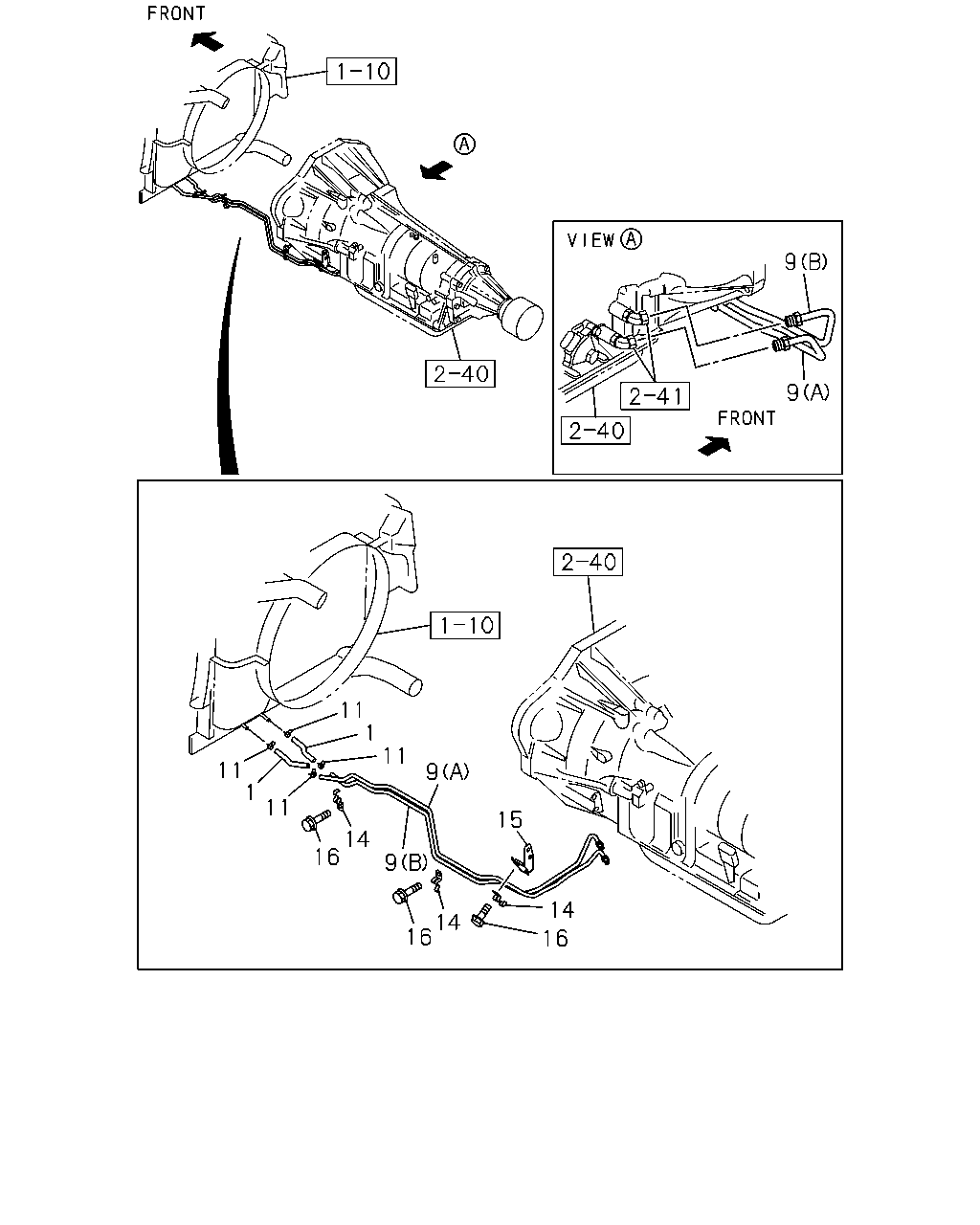

çizim 283196
11 1 11 11 1 11 16 14 9 16 14 14 16 15 9 9 9
BalonParca AdiParca NoAdetTipApplied Date
1 04.128 HOSE; ATF
L=180 SERVICED BY L=3000 		0-02259-300-0 02 1 1206-
9 04.128 PIPE; ATF,INL,A/T
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (A) INLET 		8-98100-272-2 01 1 1206-
9 04.128 PIPE; ATF,INL,A/T
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (B) RETURN 		8-98100-274-2 01 1 1206-
9 04.128 PIPE; ATF,INL,A/T
4X2(TFB***) 4JK1-TCY ENG(RDX) (A) INLET 		8-98155-564-2 01 1 1206-1408
9 04.128 PIPE; ATF,INL,A/T
4X2(TFB***) 4JK1-TCY ENG(RDX) (A) INLET 		8-98289-239-1 01 1 1409-
9 04.128 PIPE; ATF,INL,A/T
4X2(TFB***) 4JK1-TCY ENG(RDX) (B) RETURN 		8-98155-566-2 01 1 1206-1408
9 04.128 PIPE; ATF,INL,A/T
4X2(TFB***) 4JK1-TCY ENG(RDX) (B) RETURN 		8-98289-242-1 01 1 1409-
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (C) INLET 		8-98100-273-3 01 1 1206-
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (D) RETURN 		8-98100-275-3 01 1 1206-
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JK1-TCY ENG(RDX) (C) INLET 		8-98155-565-2 01 1 1206-1408
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JK1-TCY ENG(RDX) (C) INLET 		8-98289-240-1 01 1 1409-
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JK1-TCY ENG(RDX) (D) RETURN 		8-98155-567-2 01 1 1206-1408
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JK1-TCY ENG(RDX) (D) RETURN 		8-98289-243-1 01 1 1409-
11 04.128 CLIP; PIPE 8-98008-165-0 04 1 1206-
14 04.128 CLIP; PIPE TO ENG SIDE 8-98008-163-0 03 1 1206-
15 04.128 BRACKET; ATF PIPE 8-98100-277-0 01 1 1206-
16 04.128 BOLT; CLIP,ENG SIDE
02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1206-

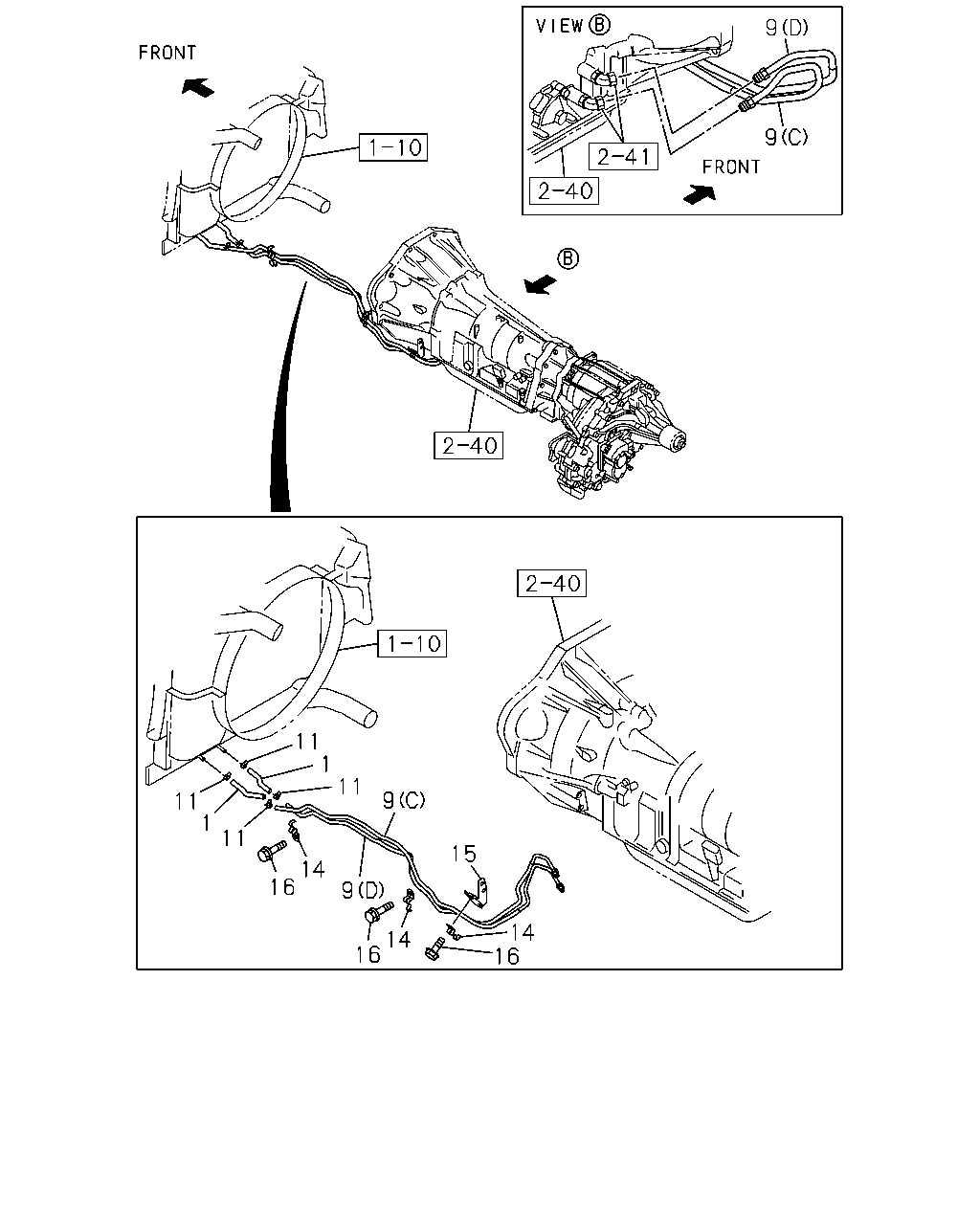

çizim 283197
9 9 11 1 11 9 15 14 16 16 14 9 14 16 11 1 11
BalonParca AdiParca NoAdetTipApplied Date
1 04.128 HOSE; ATF
L=180 SERVICED BY L=3000 		0-02259-300-0 02 1 1206-
9 04.128 PIPE; ATF,INL,A/T
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (A) INLET 		8-98100-272-2 01 1 1206-
9 04.128 PIPE; ATF,INL,A/T
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (B) RETURN 		8-98100-274-2 01 1 1206-
9 04.128 PIPE; ATF,INL,A/T
4X2(TFB***) 4JK1-TCY ENG(RDX) (A) INLET 		8-98155-564-2 01 1 1206-1408
9 04.128 PIPE; ATF,INL,A/T
4X2(TFB***) 4JK1-TCY ENG(RDX) (A) INLET 		8-98289-239-1 01 1 1409-
9 04.128 PIPE; ATF,INL,A/T
4X2(TFB***) 4JK1-TCY ENG(RDX) (B) RETURN 		8-98155-566-2 01 1 1206-1408
9 04.128 PIPE; ATF,INL,A/T
4X2(TFB***) 4JK1-TCY ENG(RDX) (B) RETURN 		8-98289-242-1 01 1 1409-
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (C) INLET 		8-98100-273-3 01 1 1206-
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (D) RETURN 		8-98100-275-3 01 1 1206-
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JK1-TCY ENG(RDX) (C) INLET 		8-98155-565-2 01 1 1206-1408
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JK1-TCY ENG(RDX) (C) INLET 		8-98289-240-1 01 1 1409-
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JK1-TCY ENG(RDX) (D) RETURN 		8-98155-567-2 01 1 1206-1408
9 04.128 PIPE; ATF,INL,A/T
4X4(TFS***) 4JK1-TCY ENG(RDX) (D) RETURN 		8-98289-243-1 01 1 1409-
11 04.128 CLIP; PIPE 8-98008-165-0 04 1 1206-
14 04.128 CLIP; PIPE TO ENG SIDE 8-98008-163-0 03 1 1206-
15 04.128 BRACKET; ATF PIPE 8-98100-277-0 01 1 1206-
16 04.128 BOLT; CLIP,ENG SIDE
02.343 M8X16 FLANGE 		0-28050-816-0 03 1 1206-
