◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51411 - TFR/TFS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-48 - AUTO TRANS MULTIPLE-DISC CLUTCH ▶
2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#91073) — 76 parça

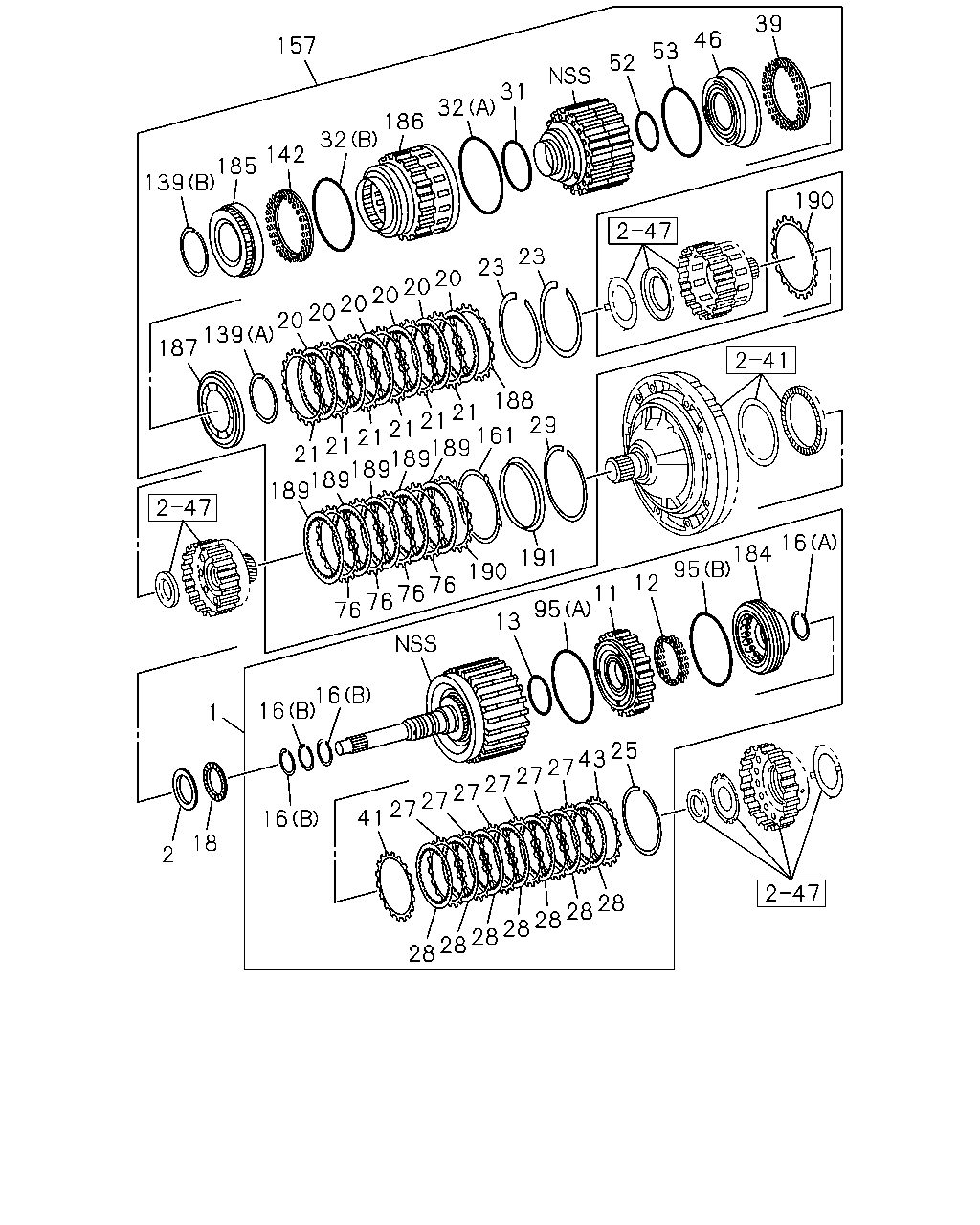

çizim 283639
157 139 185 142 32 186 32 31 52 53 46 39 190 23 23 20 20 20 20 20 20 139 187 21 21 21 21 21 21 188 189 186 189 189 189 161 29 16 184 95 12 11 95 191 190 76 76 76 76 13 16 16 1 2 18 16 41 27 27 27 27 27 27 43 25 28 28 28 28 28 28 28
BalonParca AdiParca NoAdetTipApplied Date
1 04.164 HUB ASM; CLU,INPUT SHAFT,A/T
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-98189-762-0 01 1 1206-
1 04.164 HUB ASM; CLU,INPUT SHAFT,A/T
4JK1-TCY ENG(RDX) 		8-98189-510-0 01 1 1206-
2 04.164 RACE; THRUST BRG,A/T 8-98189-534-0 01 1 1206-
11 04.166 PISTON ASM; CLU,A/T
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-98189-764-0 01 1 1206-
11 04.166 PISTON ASM; CLU,A/T
4JK1-TCY ENG(RDX) 		8-98189-512-0 01 1 1206-
12 04.164 SPRING; CLU RETURN,A/T 8-98189-515-0 01 1 1206-
13 04.166 GASKET; INNER,CLU,A/T
ID=40 		8-98189-513-0 01 1 1206-
16 04.166 RING; SNAP,CLU,A/T
(A) ID=35 		8-98189-518-0 01 1 1206-
16 04.166 RING; SNAP,CLU,A/T
(B) ID=29 		8-98189-533-0 03 1 1206-
18 04.164 BEARING; THRUST,CLU,A/T 8-98189-535-0 01 1 1206-
20 04.163 DISC; CLU,A/T
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) OD=162 		8-98189-559-0 05 1 1206-
20 04.163 DISC; CLU,A/T
4JK1-TCY ENG(RDX) OD=162 		8-98189-559-0 06 1 1206-
21 04.163 DISC ASM; CLU & FACING,A/T
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ID=149 		8-98189-558-0 05 1 1206-
21 04.163 DISC ASM; CLU & FACING,A/T
4JK1-TCY ENG(RDX) ID=149 		8-98189-558-0 06 1 1206-
23 04.164 RING; RET,CLU,A/T
ID=160 		8-98189-576-0 02 1 1206-
25 04.164 RING; RET,BACKING PLATE,A/T
ID=115 		8-98189-532-0 01 1 1206-
27 04.163 DISC ASM; CLU & FACING,A/T
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) T=1.8 		8-98189-520-0 05 1 1206-
27 04.163 DISC ASM; CLU & FACING,A/T
4JK1-TCY ENG(RDX) T=1.8 		8-98189-520-0 06 1 1206-
28 04.163 DISC; CLU,A/T
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) OD=120 		8-98189-519-0 06 1 1206-
28 04.163 DISC; CLU,A/T
4JK1-TCY ENG(RDX) OD=120 		8-98189-519-0 07 1 1206-
29 04.164 RING; SNAP,CLU,A/T
ID=171 		8-98189-597-0 01 1 1206-
31 04.166 GASKET; CLU,INNER,A/T
ID=101 		8-98189-586-0 01 1 1206-
32 04.166 GASKET; CLU,OUTER,A/T
(A) ID=142 		8-98189-582-0 01 1 1206-
32 04.166 GASKET; CLU,OUTER,A/T
(B) ID=140 		8-98189-585-0 01 1 1206-
39 04.164 SPRING; DIRECT CLU RETURN 8-98189-543-0 01 1 1206-
41 04.164 FLANGE; DIRECT CLU
T=3.0 		8-98189-521-0 01 1 1206-
43 04.164 FLANGE; FWD CLU
T=3.0 		8-98189-521-0 AR 1 1206-
43 04.164 FLANGE; FWD CLU
T=3.1 		8-98189-522-0 AR 1 1206-
43 04.164 FLANGE; FWD CLU
T=3.2 		8-98189-523-0 AR 1 1206-
43 04.164 FLANGE; FWD CLU
T=3.3 		8-98189-524-0 AR 1 1206-
43 04.164 FLANGE; FWD CLU
T=3.4 		8-98189-525-0 AR 1 1206-
43 04.164 FLANGE; FWD CLU
T=3.5 		8-98189-526-0 AR 1 1206-
43 04.164 FLANGE; FWD CLU
T=3.6 		8-98189-527-0 AR 1 1206-
43 04.164 FLANGE; FWD CLU
T=3.7 		8-98189-528-0 AR 1 1206-
43 04.164 FLANGE; FWD CLU
T=3.8 		8-98189-529-0 AR 1 1206-
43 04.164 FLANGE; FWD CLU
T=3.9 		8-98189-530-0 AR 1 1206-
43 04.164 FLANGE; FWD CLU
T=4.0 		8-98189-531-0 AR 1 1206-
46 04.166 PISTON; DIRECT CLU,A/T
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-98189-766-0 01 1 1206-
46 04.166 PISTON; DIRECT CLU,A/T
4JK1-TCY ENG(RDX) 		8-98189-540-0 01 1 1206-
52 04.167 GASKET; PISTON INNER,DIRECT CLU,
ID=75 		8-98189-542-0 01 1 1206-
53 04.167 GASKET; PISTON OUTER,DIRECT CLU,
ID=126.7 		8-98189-541-0 01 1 1206-
76 04.262 PLATE; 3RD CLU
T=2.4 		8-98189-591-0 04 1 1206-
95 04.166 GASKET; CLU HUB
(A) ID=108 		8-98189-514-0 01 1 1206-
95 04.166 GASKET; CLU HUB
(B) ID=107 		8-98189-517-0 01 1 1206-
139 04.164 RING; SNAP
(A) ID=64 		8-98189-557-0 01 1 1206-
139 04.164 RING; SNAP
(B) ID=79 		8-98189-589-0 01 1 1206-
142 04.167 SPRING; CLU 8-98189-587-0 01 1 1206-
157 04.166 CLUTCH ASM; A/T
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-98189-765-0 01 1 1206-
157 04.166 CLUTCH ASM; A/T
4JK1-TCY ENG(RDX) 		8-98189-538-0 01 1 1206-
161 04.166 PLATE; CLU
T=1.5 		8-98189-595-0 01 1 1206-
184 04.166 BALANCER; CLUTCH NO 1 8-98189-516-0 01 1 1206-
185 04.166 BALANCER; CLUTCH NO 3 8-98189-588-0 01 1 1206-
186 04.166 PISTON; REVERSE CLUTCH 8-98189-579-0 01 1 1206-
187 04.166 BALANCER; CLUTCH NO 2 8-98189-556-0 01 1 1206-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.0 		8-98189-560-0 AR 1 1206-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.1 		8-98189-561-0 AR 1 1206-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.2 		8-98189-562-0 AR 1 1206-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.3 		8-98189-563-0 AR 1 1206-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.4 		8-98189-564-0 AR 1 1206-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.5 		8-98189-565-0 AR 1 1206-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.6 		8-98189-566-0 AR 1 1206-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.7 		8-98189-568-0 AR 1 1206-
188 04.164 FLANGE; REVERSE CLUTCH
T=3.8 		8-98189-572-0 AR 1 1206-
189 04.163 DISC; CLUTCH NO 3
OD=162 		8-98189-590-0 05 1 1206-
190 04.164 FLANGE; CLUTCH
T=3.0 		8-98189-560-0 AR 1 1206-
190 04.164 FLANGE; CLUTCH
T=3.1 		8-98189-561-0 AR 1 1206-
190 04.164 FLANGE; CLUTCH
T=3.2 		8-98189-562-0 AR 1 1206-
190 04.164 FLANGE; CLUTCH
T=3.3 		8-98189-563-0 AR 1 1206-
190 04.164 FLANGE; CLUTCH
T=3.4 		8-98189-564-0 AR 1 1206-
190 04.164 FLANGE; CLUTCH
T=3.5 		8-98189-565-0 AR 1 1206-
190 04.164 FLANGE; CLUTCH
T=3.6 		8-98189-566-0 AR 1 1206-
190 04.164 FLANGE; CLUTCH
T=3.7 		8-98189-568-0 AR 1 1206-
190 04.164 FLANGE; CLUTCH
T=3.8 		8-98189-572-0 AR 1 1206-
190 04.164 FLANGE; CLUTCH
T=2.8 		8-98189-592-0 AR 1 1206-
190 04.164 FLANGE; CLUTCH
T=2.9 		8-98189-594-0 AR 1 1206-
191 04.166 SLEEVE; CLUTCH 8-98189-596-0 01 1 1206-
