◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51411 - TFR/TFS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-47 - AUTO TRANS PLANETARY GEAR AND GOVERNOR ▶
2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#91072) — 58 parça

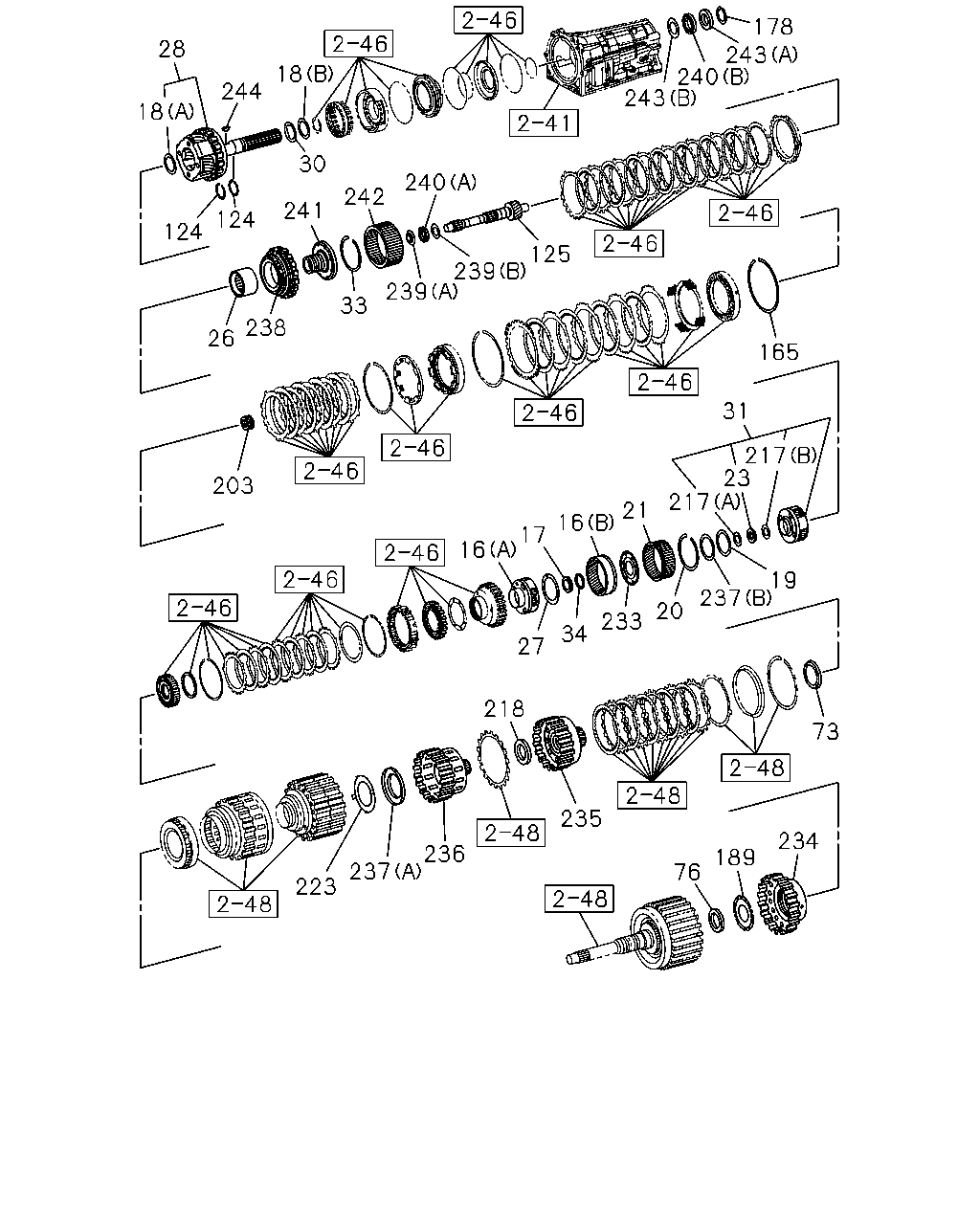

çizim 283647
28 18 244 18 243 240 243 178 165 125 240 242 241 124 124 26 238 33 239 239 31 217 23 217 21 16 17 16 237 20 233 34 27 19 73 234 189 76 235 218 236 237 223 203 30
BalonParca AdiParca NoAdetTipApplied Date
16 04.256 GEAR ASM; FRT PLANETARY,A/T
(A) 		8-98189-682-0 01 1 1206-
16 04.256 GEAR ASM; FRT PLANETARY,A/T
(B) 		8-98189-686-0 01 1 1206-
17 04.167 RACE; THRUST BRG,PLANETARY SHAFT
ID=38 		8-98189-684-0 01 1 1206-
18 04.187 BEARING; THRUST,RR PLANETARY GEA
(A) 		8-98189-708-0 01 1 1206-
18 04.187 BEARING; THRUST,RR PLANETARY GEA
(B) 		8-98189-712-0 01 1 1206-
19 04.167 RACE; THRUST BRG,PLANETARY SHAFT 8-98189-692-0 01 1 1206-
20 04.164 RING; RET,PLANETARY GEAR,A/T
T=1.4 		8-98189-691-0 01 1 1206-
21 04.158 GEAR; PLANETARY,INTERNAL FRT,A/T 8-98189-688-0 01 1 1206-
23 04.164 BEARING; THRUST,PLANETARY SHAFT, 8-98189-695-0 01 1 1206-
26 04.168 RACE; ONEWAY CLU,A/T 8-98189-701-0 01 1 1206-
27 04.256 WASHER; THRUST,FRT PLANETARY,A/T
ID=64 		8-98189-683-0 01 1 1206-
28 04.187 GEAR ASM; RR PLANETARY,A/T
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98189-707-0 01 1 1206-
28 04.187 GEAR ASM; RR PLANETARY,A/T
4JK1-TCY ENG(RDX) 		8-98189-707-0 01 1 1206-
28 04.187 GEAR ASM; RR PLANETARY,A/T
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98189-774-0 01 1 1206-
28 04.187 GEAR ASM; RR PLANETARY,A/T
4X4(TFS***) 		8-98189-784-0 01 1 1206-
30 04.180 RACE; THRUST BRG,RR PLANETARY FL 8-98189-711-0 01 1 1206-
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T 8-98189-694-0 01 1 1206-
33 04.166 RING; RET,PLANETARY GEAR,A/T
T=1.4 		8-98189-710-0 01 1 1206-
34 04.164 BEARING; THRUST,FRT PLANETARY SH 8-98189-685-0 01 1 1206-
73 04.164 WASHER; THRUST,CARRIER
ID=74 		8-98189-679-0 01 1 1206-
76 04.164 BEARING; THRUST,CARRIER 8-98189-673-0 01 1 1206-
124 04.164 RING; SLEEVE,OIL SEAL,RR PLANETA
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=33 		8-98189-775-0 02 1 1206-
125 04.175 SHAFT ASM; INTERMEDIATE,PLANETAR 8-98189-698-0 01 1 1206-
165 04.176 RING; RET
ID=151 		8-98189-702-0 01 1 1206-
178 04.187 RING; RET
4X2(TFB***) ID=34 		8-98189-730-0 01 1 1206-
189 04.167 RACE; INNER,LOW CLU
ID=23 		8-98189-670-0 01 1 1206-
203 04.166 GEAR; SUN
Z=31 		8-98189-699-0 01 1 1206-
217 04.164 RACE; THRUST BRG,INTERNAL GEAR
(A) 		8-98189-696-0 01 1 1206-
217 04.164 RACE; THRUST BRG,INTERNAL GEAR
(B) 		8-98189-697-0 01 1 1206-
218 04.164 BEARING; THRUST,INTERNAL GEAR 8-98189-680-0 01 1 1206-
223 04.164 RACE; BRG,CARRIER 8-98189-675-0 01 1 1206-
233 04.164 FLANGE; FR PLANETARY 8-98189-687-0 01 1 1206-
234 04.164 HUB; FORWARD CLUTCH 8-98189-674-0 01 1 1206-
235 04.164 HUB; REVERSE CLUTCH 8-98189-681-0 01 1 1206-
236 04.164 HUB; CLUTCH 8-98189-678-0 01 1 1206-
237 04.164 BEARING; THRUST
(A) 		8-98189-676-0 01 1 1206-
237 04.164 BEARING; THRUST
(B) 		8-98189-693-0 01 1 1206-
238 04.164 CLUTCH ASM; 1WAY 8-98189-700-0 01 1 1206-
239 04.167 RACE; INTERMEDIATE SHAFT
(A) 		8-98189-703-0 01 1 1206-
239 04.167 RACE; INTERMEDIATE SHAFT
(B) 		8-98189-704-0 01 1 1206-
240 04.164 BEARING; THRUST NEEDLE ROLLER
4X2(TFB***) (B) 		8-98189-729-0 01 1 1206-
240 04.164 BEARING; THRUST NEEDLE ROLLER
(A) 		8-98189-705-0 01 1 1206-
241 04.164 FLANGE; RR PLANETARY 8-98189-706-0 01 1 1206-
242 04.158 GEAR; RR PLANETARY 8-98189-709-0 01 1 1206-
243 04.167 RACE; THRUST BEARING
4X2(TFB***) (A) T=3.8 		8-98189-716-0 AR 1 1206-
243 04.167 RACE; THRUST BEARING
4X2(TFB***) (A) T=3.9 		8-98189-717-0 AR 1 1206-
243 04.167 RACE; THRUST BEARING
4X2(TFB***) (A) T=4.0 		8-98189-718-0 AR 1 1206-
243 04.167 RACE; THRUST BEARING
4X2(TFB***) (A) T=4.1 		8-98189-719-0 AR 1 1206-
243 04.167 RACE; THRUST BEARING
4X2(TFB***) (A) T=4.2 		8-98189-720-0 AR 1 1206-
243 04.167 RACE; THRUST BEARING
4X2(TFB***) (A) T=3.85 		8-98189-721-0 AR 1 1206-
243 04.167 RACE; THRUST BEARING
4X2(TFB***) (A) T=3.95 		8-98189-722-0 AR 1 1206-
243 04.167 RACE; THRUST BEARING
4X2(TFB***) (A) T=4.05 		8-98189-723-0 AR 1 1206-
243 04.167 RACE; THRUST BEARING
4X2(TFB***) (A) T=4.15 		8-98189-724-0 AR 1 1206-
243 04.167 RACE; THRUST BEARING
4X2(TFB***) (A) T=4.25 		8-98189-725-0 AR 1 1206-
243 04.167 RACE; THRUST BEARING
4X2(TFB***) (A) T=4.30 		8-98189-726-0 AR 1 1206-
243 04.167 RACE; THRUST BEARING
4X2(TFB***) (A) T=4.35 		8-98189-727-0 AR 1 1206-
243 04.167 RACE; THRUST BEARING
4X2(TFB***) (B) T=2.0 		8-98189-728-0 01 1 1206-
244 04.330 KEY; WOODRUF,PLANETARY GEAR
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.337 		8-94479-904-0 01 1 1206-
