3-20 — AIR TANK
(#9107) — 54 parça
Tümü
A - MVR5FB
B - MVR6FB
◀

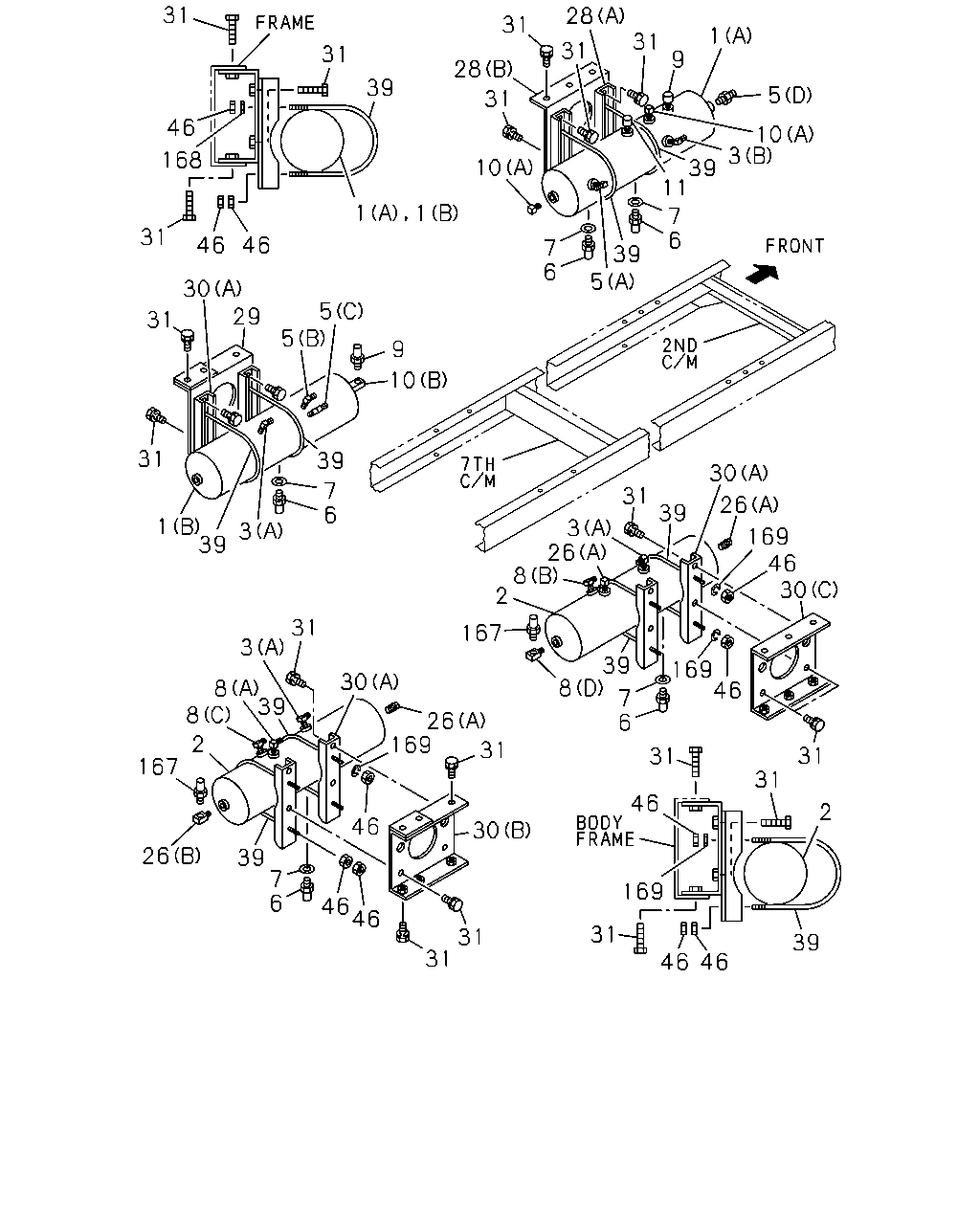

[320A] NO.1 (39 parça)

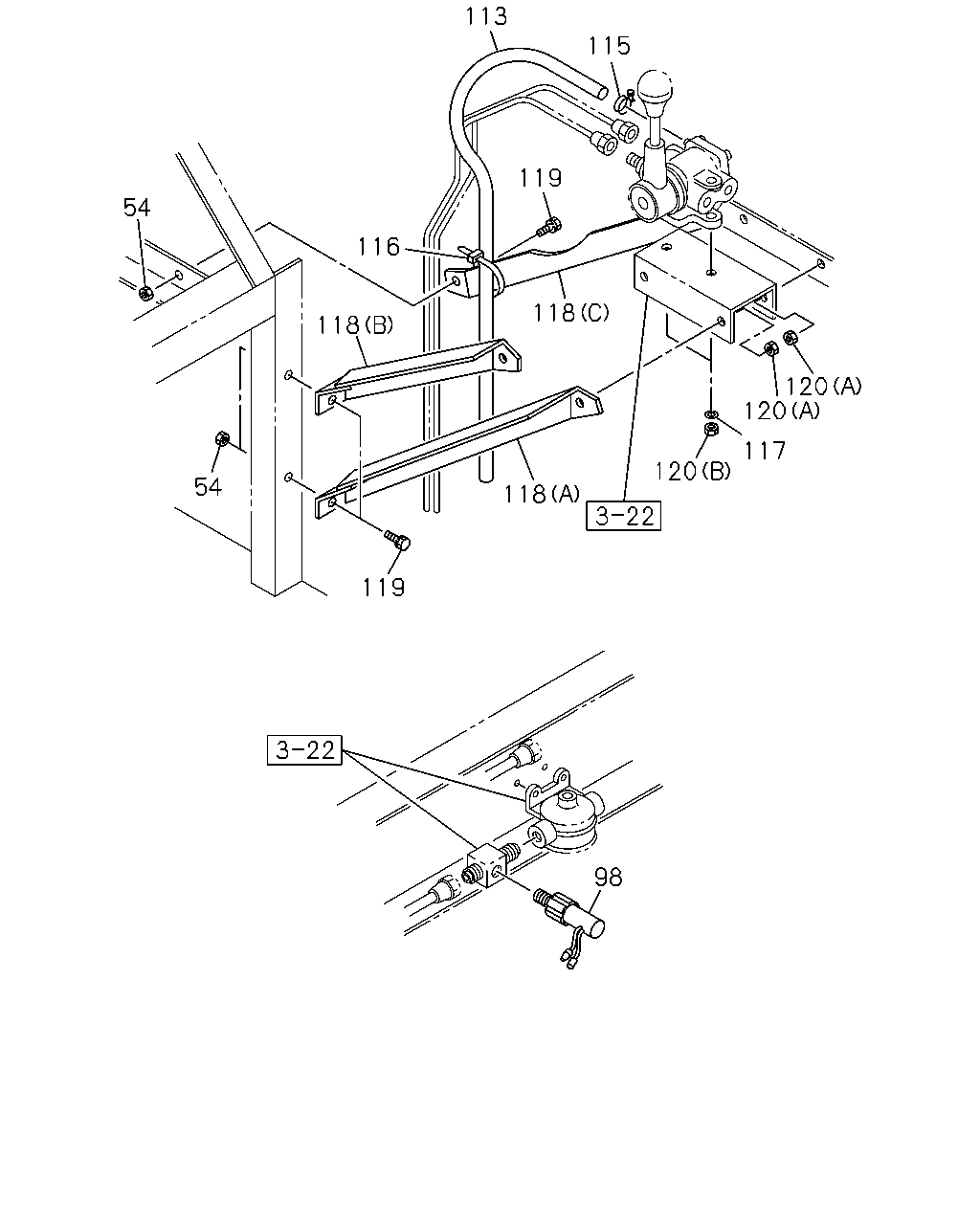

[320A] NO.2 (15 parça)
▶
31
28
31
31
1
31
31
9
28
39
5
31
46
10
3
168
10
39
11
1
1
7
6
31
46
46
7
6
39
5
30
29
5
5
31
9
10
31
39
7
30
7
6
31
26
39
1
39
3
26
8
2
3
169
46
30
31
167
3
39
8
169
46
30
8
8
39
7
6
26
169
2
31
31
31
167
31
46
2
46
30
26
39
7
6
169
46
46
31
31
31
39
46
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK ASM; AIR
(A)
1-48330-563-1
01
1
9606-
●
●
1
TANK ASM; AIR
(B)
1-48330-564-2
01
1
9606-
●
●
2
TANK; AIR
1-48330-564-2
02
1
9606-
●
●
3
VALVE; CHECK,AIR TANK
(A)
1-48410-132-3
03
1
9606-
●
●
3
VALVE; CHECK,AIR TANK
(B)
1-48410-133-2
01
1
9606-9606
●
●
3
VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW
1-48410-412-0
01
1
9607-
●
●
5
UNION; AIR TANK
(D) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
9606-
●
●
5
UNION; AIR TANK
(B) M16 & PT1/4 ELBOW
1-09650-434-0
01
1
9606-
●
●
5
UNION; AIR TANK
(A) M20 & PT3/8 ELBOW
1-09650-439-0
02
1
9606-
●
●
5
UNION; AIR TANK
(C) M22 & PT1/2 ELBOW
1-09650-444-0
01
1
9606-
●
●
6
COCK; DRAIN,AIR TANK
W/COVER
1-48312-004-1
05
1
9606-9606
●
●
6
COCK; DRAIN,AIR TANK
1-48312-015-0
05
1
9606-
●
●
7
GASKET; DRAIN COCK
ID=14.2 OD=23.0
9-09572-014-0
05
1
9606-9608
●
●
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
05
1
9609-
●
●
8
CONNECTOR; AIR TANK
(A) M16 & PT1/4 ELBOW
1-09650-434-0
01
1
9606-
●
●
8
CONNECTOR; AIR TANK
(B) M20 & PT1/2 ELBOW
1-09650-443-0
01
1
9606-
●
●
8
CONNECTOR; AIR TANK
(C) M22 & PT1/2 ELBOW
1-09650-444-0
01
1
9606-
●
●
8
CONNECTOR; AIR TANK
(D) PT1/4
9-09903-738-0
01
1
9606-
●
●
9
SWITCH; LOW PRESSURE GAGE,AIR TANK
1-48340-051-0
02
1
9606-
●
●
10
PLUG; AIR TANK
(B) PT1/4
9-09903-738-0
01
1
9606-
●
●
10
PLUG; AIR TANK
(A) PT1/4
9-99204-513-0
03
1
9606-
●
●
11
VALVE; SAFETY,AIR TANK
1-48320-003-0
01
1
9606-
●
●
26
PLUG; SUB AIR TANK
(B) PT1/4
9-09903-738-0
01
1
9606-
●
●
26
PLUG; SUB AIR TANK
(A) PT1/4
9-99204-513-0
03
1
9606-
●
●
28
BRACKET; AIR TANK
(A)
1-48317-432-0
04
1
9606-
●
●
28
BRACKET; AIR TANK
(B)
1-53153-570-1
01
1
9606-
●
●
29
BRACKET; AIR TANK
1-48317-311-0
01
1
9606-
●
●
30
BRACKET; AIR TANK,SUB
(B)
1-48317-310-0
01
1
9606-
●
●
30
BRACKET; AIR TANK,SUB
(A)
1-48317-432-0
04
1
9606-
●
●
30
BRACKET; AIR TANK,SUB
(C)
1-53153-570-1
01
1
9606-
●
●
31
BOLT; BRKT TO FRAME
M10X25 W/LK WASHER
0-50041-025-0
08
1
9606-
●
●
31
BOLT; BRKT TO FRAME
M10X25 W/LK WASHER
0-50041-025-0
20
1
9606-
●
●
31
BOLT; BRKT TO FRAME
M10X30 W/LK WASHER
0-50041-030-0
08
1
9606-
●
●
39
U-BOLT; AIR TANK
L=250
1-48317-308-0
08
1
9606-
●
●
46
NUT; U-BOLT
M8
9-09110-408-0
18
1
9606-
●
●
46
NUT; U-BOLT
M8
9-09111-408-0
08
1
9606-
●
●
167
SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
1-48340-051-0
02
1
9606-
●
●
168
WASHER; LK,BRKT
ID=8.2
9-09150-508-0
04
1
9606-
●
●
169
WASHER; LK,U-BOLT
ID=8.2
9-09150-508-0
04
1
9606-
●
●
113
115
119
54
116
118
118
120
120
117
120
54
118
119
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
54
NUT; STAY
M8
9-09110-408-0
03
1
9606-
●
●
98
SWITCH; AIR PRESSURE
1-48340-049-0
01
1
9606-
●
●
113
HOSE; VINYL,EXH
L=1000 SERVICED BY L=10000
9-09914-701-0
01
1
9606-
●
●
115
CLIP; VINYL HOSE
ID=14
1-09704-102-0
01
1
9606-
●
●
116
CLIP; BAND,VINYL PIPE
L=140
5-09707-031-1
01
1
9606-
●
●
117
WASHER; LK,BRKT
ID=8.2
9-09150-508-0
02
1
9606-
●
●
118
STAY; VLV,PARKING BRK
(A)
1-34631-004-2
01
1
9606-
●
118
STAY; VLV,PARKING BRK
(B)
1-34631-005-1
01
1
9606-
●
118
STAY; VLV,PARKING BRK
(C)
1-34631-006-1
01
1
9606-
●
118
STAY; VLV,PARKING BRK
(A)
1-34631-001-2
01
1
9606-
●
118
STAY; VLV,PARKING BRK
(B)
1-34631-002-1
01
1
9606-
●
118
STAY; VLV,PARKING BRK
(C)
1-34631-003-1
01
1
9606-
●
119
BOLT; STAY
M8X20 W/LK WASHER
0-50040-820-0
03
1
9606-
●
●
120
NUT; BRKT,RELAY VLV
(A) M6
9-09110-406-0
04
1
9606-
●
●
120
NUT; BRKT,RELAY VLV
(B) M8
9-09110-408-0
02
1
9606-
●
●
